DX-102F Portable AC and DC Gauss Gauge
Technical Parameter:
DC measurement:
1. Range: ±30kG, ±6kG, ±600G DC
2. Display resolution: 3 3/4、3 6/7 bit
3. Test resolution: 10G, 1G, 0.1G
4. Accuracy: (1% reading +0.05%range) @ 25℃±5℃
5. Rate of reading: 10 readings/ s
AC measurement:
1. Range: ±3.6kG, ±1.2kG, ±120G RMS
2. Display resolution: 2 3/4、3 1/2 bit
3. Test resolution: 10G, 1G, 0.1G
4. Accuracy: ±3% reading @ 25℃±10℃ (30Hz—10kHz, sinusoidal wave)
5. Rate of reading: 5 readings/ s.
Main Features:
Hall probe: 1. Universal all-copper/glass fiber package, calibration-free digital transverse hall probe. 2. Multipoint linear correction, proprietary RTN1 zero stability and noise reduction techniques. 3. Temperature coefficient: (0.05% reading + 0.02G) /℃ @ 25℃±10℃ 4. Automatic- calibration zero;
Automatic control: Standards equipped with internal USB—RS-232C conversion interfaces and easy-to-use interface features. Provides complete command set.

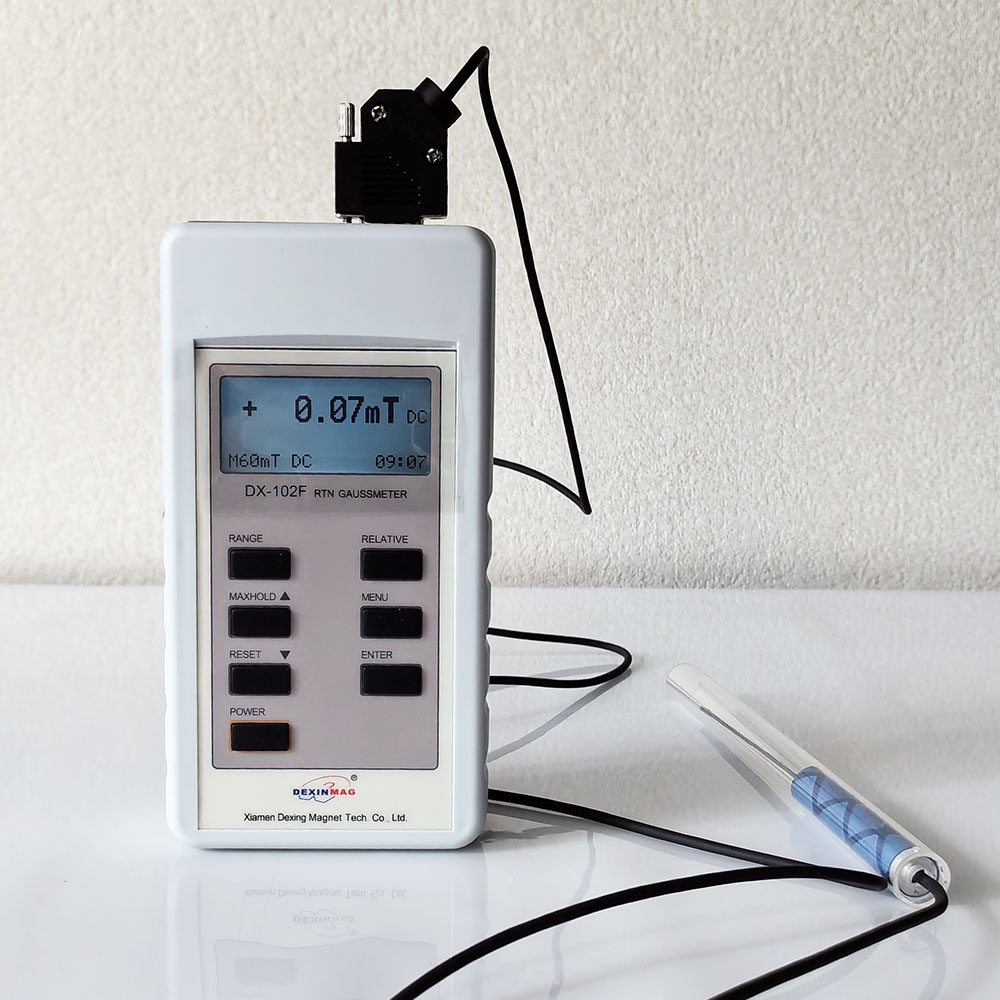

Interactive capacity: White backlight FSTN LCD display 3×4 key interactive keyboard operation with display;
Mathematical computation: Maximum value maintenance and relative value function G、T、A/m unit transformation;

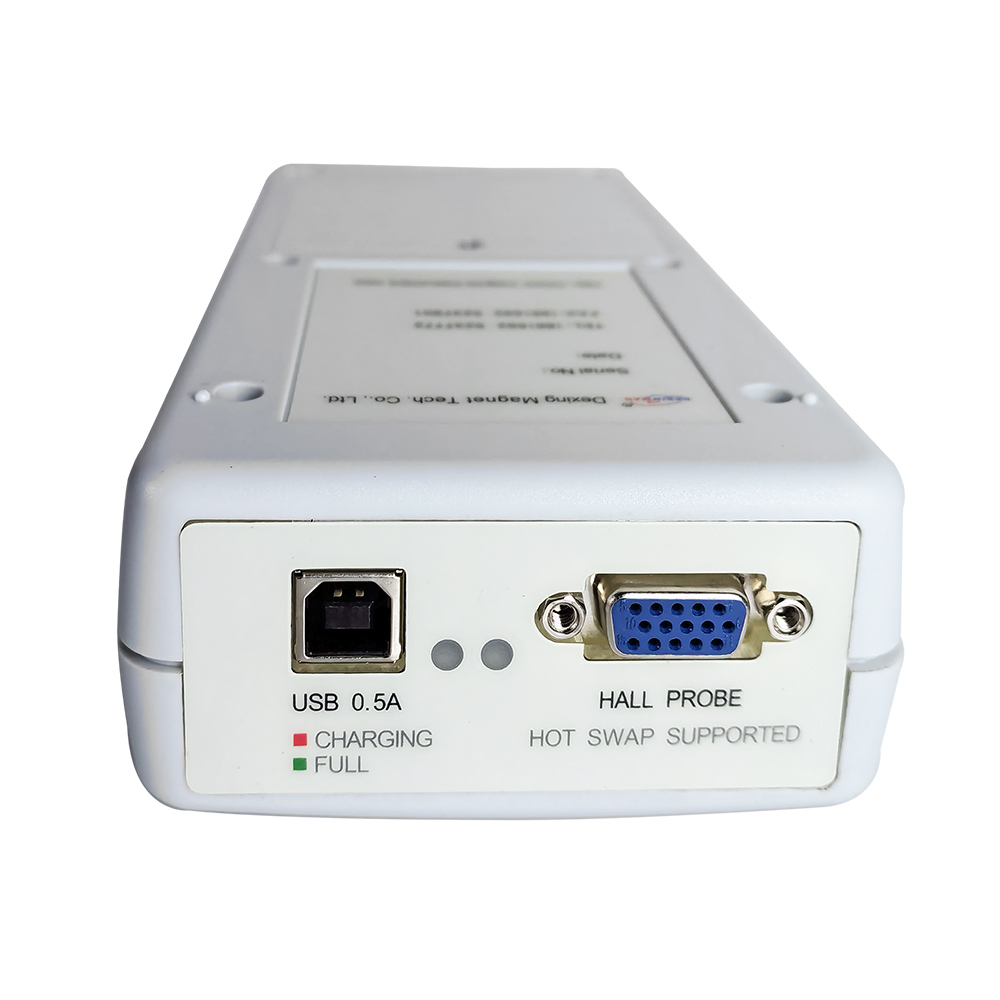

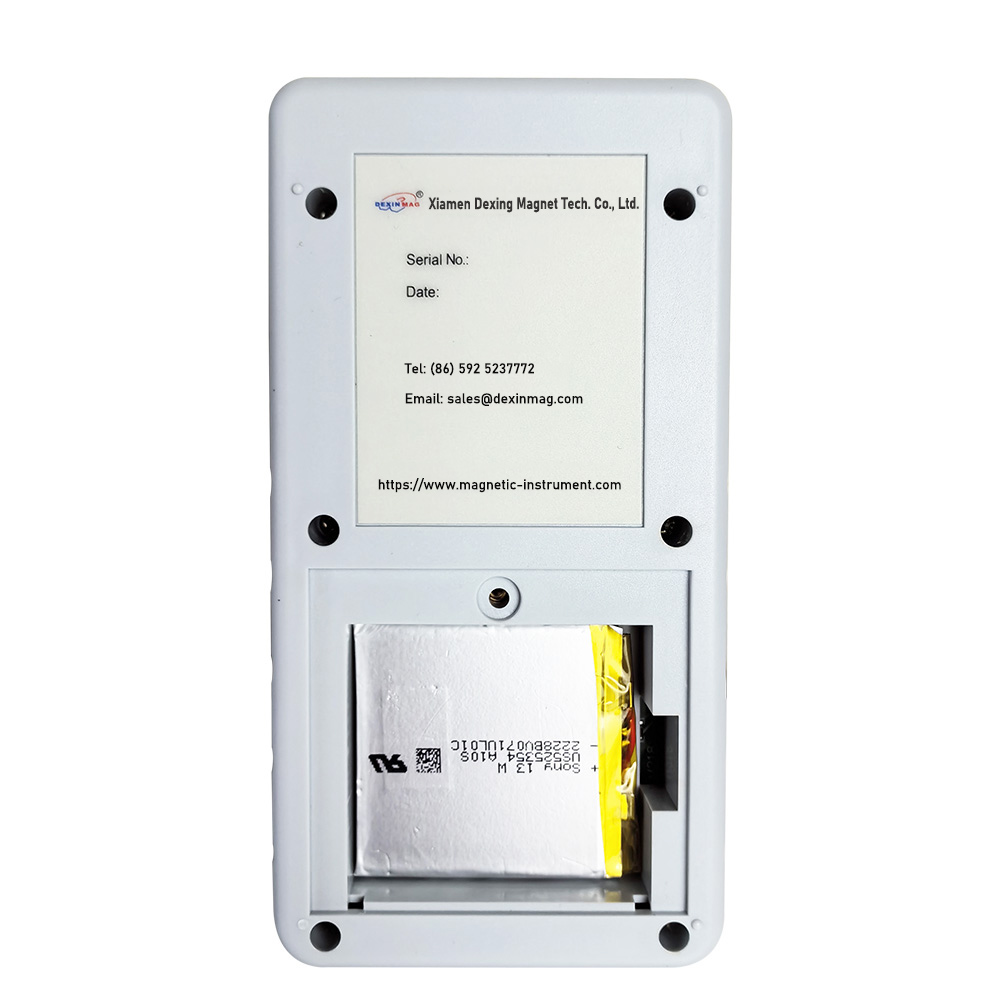

Electricity and charging: 1. 1850mAh lithium polymer battery 2. Charging using standard USB interface (500mA) 3. Built-in lithium battery charge manager and LED indicator 4. The charging interface also serves as a communication interface.
DX-102F Portable AC and DC Gauss Gauge
List of Dexinmag Gauss meters:
|
Model |
Range |
Frequency |
Min. Resolution |
Accuracy |
Test dimension |
|
DX-102 |
3T |
DC |
0.01mT |
±1% of reading |
1D (handheld) |
|
DX-102F |
3T |
DC - AC |
0.01mT |
DC: ±1% of reading ± 0.05% of range |
1D (handheld) |
|
DX-103 |
2T |
DC - AC |
0.01mT |
±1% of reading ± 0.05% of range |
1D |
|
DX-1205F |
3T |
DC |
0.001mT |
±0.45% of reading ± 100uT |
1D |
|
DX-150 |
3T |
DC - AC 30KHz |
0.01mT |
DC: ±0.3% of reading ± 0.05% of range |
1D |
|
DX-160 |
10T |
DC - AC 50KHz |
0.01uT |
DC: ±0.2% of reading ± 0.05% of range |
1D |
|
DX-180 |
30T |
DC - AC 100KHz |
0.01uT |
DC: ±0.05% of reading ± 0.005% of range |
1D |
|
DX-210 |
30T |
DC - AC 100KHz |
0.01uT |
DC: 1D - ±0.05% of reading ± 0.005% of range |
2D |
|
DX-350 |
3T |
DC |
0.001mT |
±0.45% of reading ± 0.005% of range |
3D |
|
DX-360 |
30T |
DC - AC 100KHz |
0.01uT |
DC: 1D - ±0.05% of reading ± 0.005% of range |
3D |
|
1T=10³mT=10⁶μT=10⁴Gs |
|||||
