DX-103 Portable AC and DC Gaussmeter
Features of DX-103 Portable AC and DC Gaussmeter
1. Small size, lightweight, easy to carry, easy to operate;
2. Function is perfect, can accurately measure AC and DC magnetic field, scan to maintain positive and negative peak, wide automatic range, 0.1 Gs resolution, software nonlinear correction, battery power display and other functions;
3. 180°visual display screen, visual display under daylight.
Panel Key Operation：
Range/ Right key：measuring range switch, direction key is effective at calibration interface;
Unit/Upward key: unit switch, direction key is effective at calibration interface;
AC/DC: AC, DC measurement mode switch;
PK-RES/Down key: peak zero, direction key is effective at calibration interface;
CAL: calibration system setup;
Zero: real-time reading zero, direction key is effective at calibration interface;
Power: power on/off.
Interface:
Technical Parameter
1. Range: 0~0.3T~3T
2. Accuracy:1.0% (corresponding to the full range of each gear)
3. Resolution: 0.1Gs
4. Magnetic field measured: 0-400Hz
5. Function Description: peak maintenance function
6. When measuring a static magnetic field, the N S pole can be judged by “+” “-”
7. One-click zeroing
8. Ambient temperature: 0℃~40℃
9. Relative humidity: 20%~80% (without condensation)
10. Display mode: 180°visual OLED lattice screen
11. Display unit: Gs， mT，kA/m
You may also like
User's Manual for DX-103 Handheld Digital Gaussmeter

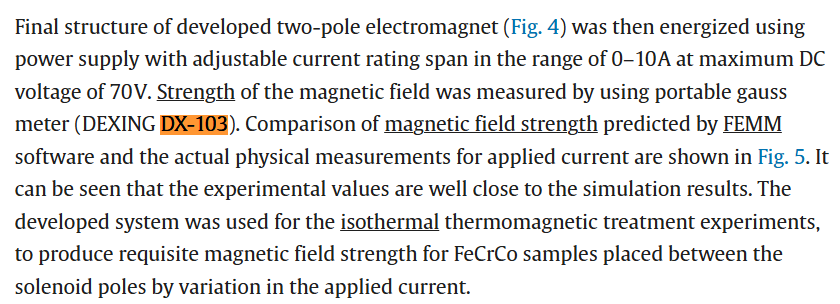

Article: "Design and development of thermo-electromagnetic system for spinodal decompositions of FeCrCo alloys"
