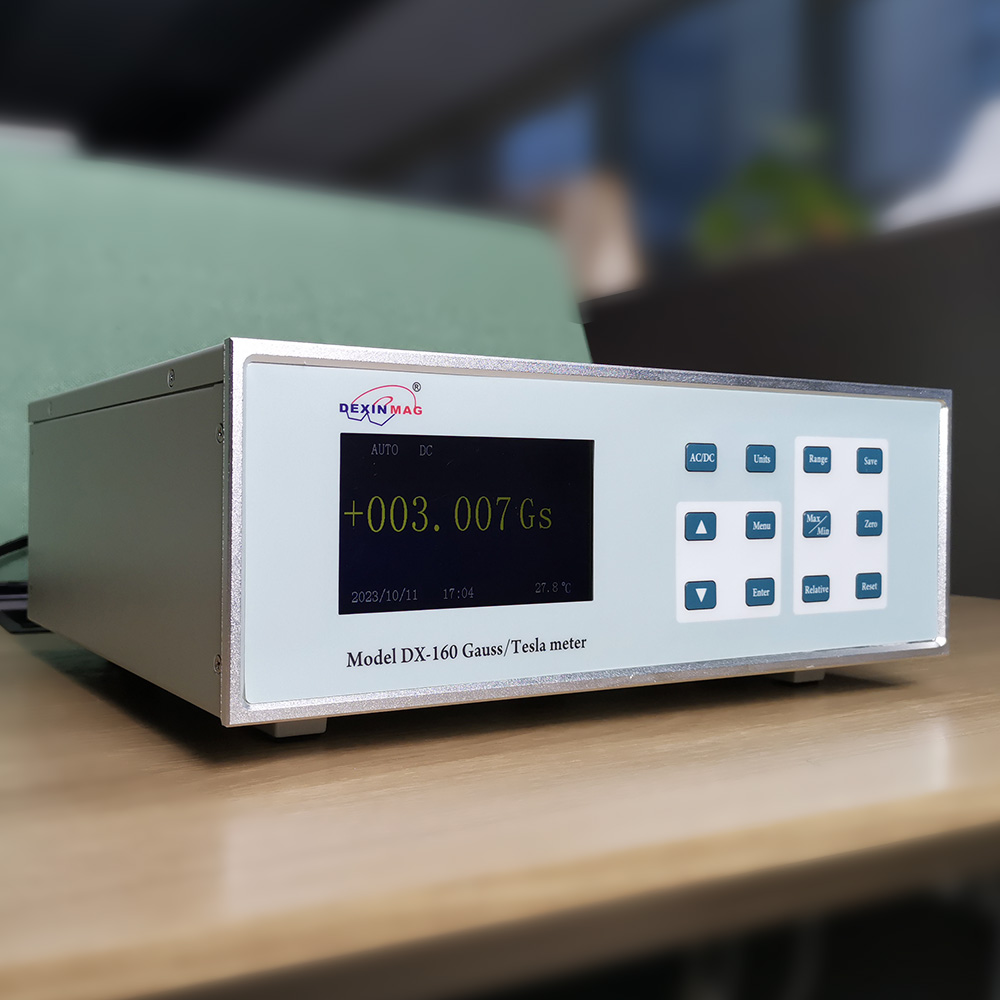

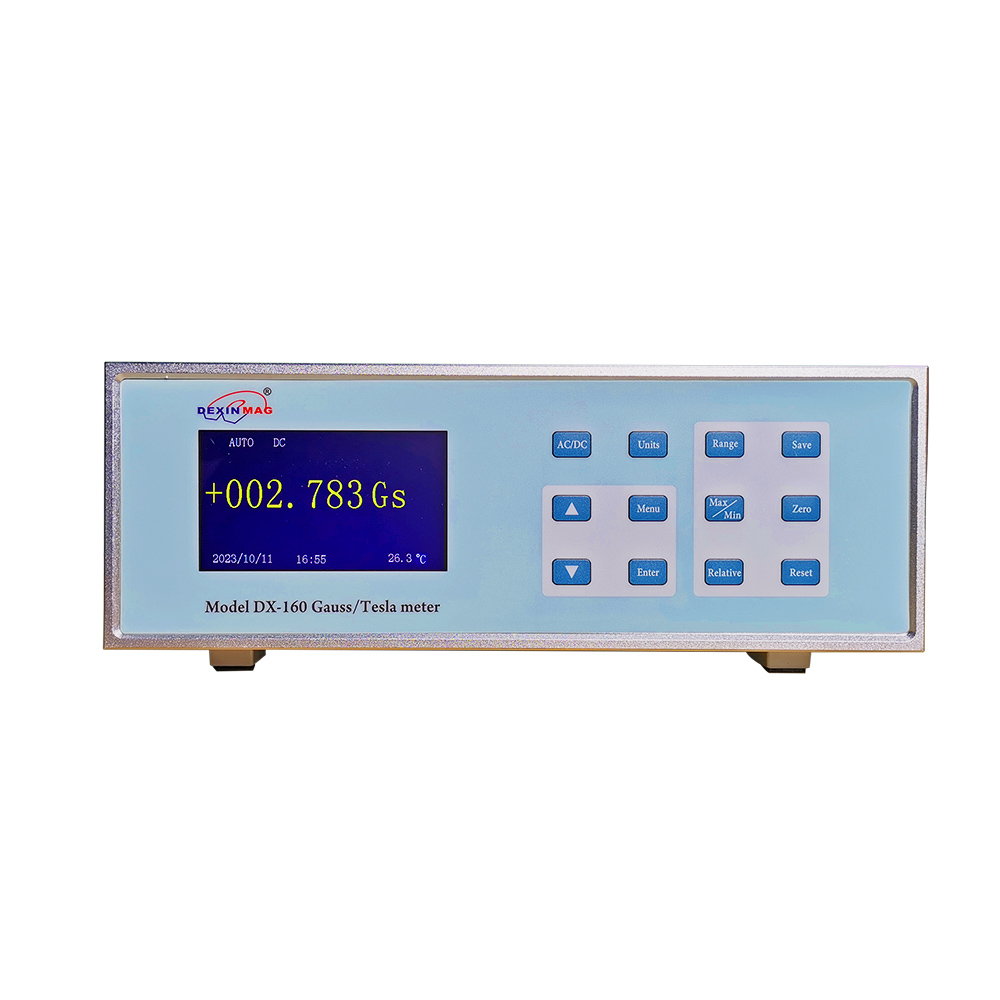

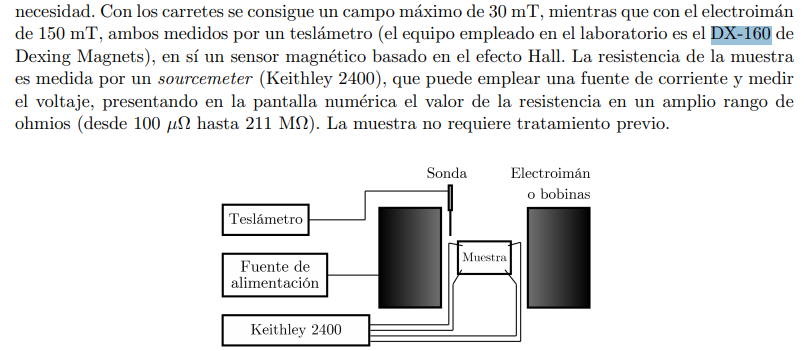

DX-160 AC and DC Digital Gauss Meter

DX-160 AC and DC digital gauss meter



This instrument can measure and display 6 parameters simultaneously. Units of measure optional Gauss, Tesla, A / M or Oe. This instrument also provides an RS232 interface for communication with the PC. It is designed and manufactured in accordance with ISO-9001 standard. With the functions of bright VGA color graphics, full menu operation, 5 ¾-bit readings, and high-resolution 1 / 600000, it makes it convenient to observe 0.0001mT weak changes in the high magnetic field measurements. It is able to measure a maximum of 30KG (3T). It has a large-capacity data storage and you can review the historical data according to storage time and it can upload data to a PC. Products are mainly sold to large institutes, universities and research departments of large factories.



Features

5 ¾-bit resolution on VGA color panel

Auto-zero, automatic/manual range

Maximum/minimum/peak/valley value keeping and interface locking

RS-232C interface/data output

Data storage (auto/manual)/Historical data reviewing

Zero setting / relative measurement mode

Probe auto calibration / Auto memory operation mode

Threshold setting and alarming

Display units: Gauss, Tesla, A / M or Oe

Time and brightness setting/ Temperature display

Communication baud rate adjustment / working temperature display

Dozens of optional basic or customized probes (standard 0.80mm ultra-thin probe)



Specifications

Model-160 Specifications

Range

 *(0.1mG-30G)/ (1mGs-300Gs)/ (0.01Gs-3000Gs)/ (0.1Gs-30KG)

Resolution

0.1mGs (0.01uT)

Accuracy (display value)

DC

±0.20% of reading ± 0.05% of range

AC

±1% of reading

Frequency Range

DC mode

DC

AC mode

AC 2Hz to 50kHz

Analog Output

Output voltage

±3V F.S.

Connectors

Standard BNC

Additional effects

Temperature coefficient

±(0.02% ±1 count)/ ºC

Temperature range

Working temperature

0ºC to 50ºC

Storage temperature

-20ºC to 60ºC

Panel display

320 x 240 pixel, 3.5-inch full view color screen

Communication interface

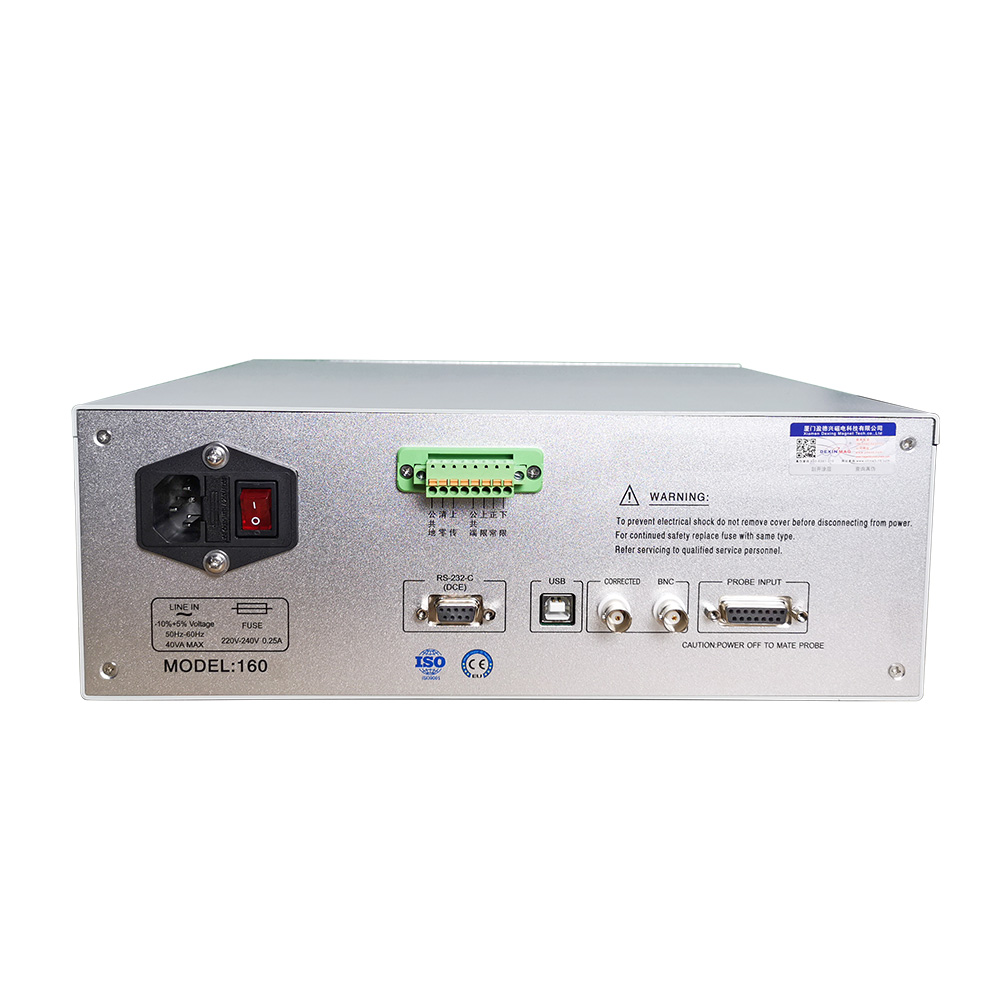

RS-232       Standard 9-pin D-type connectors

Supply power

Voltage: 200/240v      Frequency: 50-60 Hz

Peripheral: computer, oscilloscope, industrial equipment, bus system



Main Function



  1. High-precision AC / DC magnetic field measurement/ Temperature compensation system.
  2. Automatic / Manual Range: automatically adjust the test magnetic field range to a suitable gear in the automatic range, the manual range has three gears.
  3. Automatic / Manual Storage: This machine provides 1000 data storage spaces and automatically stores data according to a set time (1-60 seconds). Also it provides random storage and can be reviewed as per time and stored order.
  4. Max / Min Lock: Turn on or off the peak measurement function. Capture and display the highest and the lowest magnetic field readings, and lock the interface.

1. First gear: Maximum/minimum/peak/valley holding

2. Second gear: interface locking

3. Third gear: relieving

Auto Zeroing mode

1. Relative zero magnetic field mode: put the probe into the chamber of the Zero-Gauss calibrator, zeroing and storing the data.

2. Eliminate geomagnetic field mode: horizontally put the probe make sure it is to be vertical against the geomagnetic field, zeroing and storing the data.

Communications and drawing:

The RS-232C interface function

1. The user can use the computer to read test data, draw various survey maps with professional mapping software, and transmit and print chart

2. With serial real-time transmission function of real-time monitoring real-time data in a computer

3. Query real-time data through fixed instruction

At the same time, DX-160 monitoring analog output ( BNC ) can provide auxiliary automation capabilities without PC circumstances.



DX-160 optional accessories

Remote control system
Gauss meter professional mapping software
Zero Gauss Chamber
Industrial control output components



The interface of the mapping software

dx-160-gaussmeter-1







dx-160-gaussmeter-2

Picture 1: D plot of rectangular magnets



dx-160-gaussmeter-3

Picture2: D plot of elliptic magnets



dx-160-gaussmeter-4

Picture3: D plot of cylindrical magnets



dx-160-gaussmeter-5

Picture4: D plot of circular magnets



dx-160-gaussmeter-6

Picture5: D plot of multipole ring magnets



dx-160-gaussmeter-7

Picture6: Magnets 3D distribution vector diagram







DX-160 Full-digital high-precision digital gauss meter is designed for high-test precision, high-resolution magnetic field test applications. It provides a wide-range measurement from DC to up to 50kHz AC magnetic field measurement. It also has functions of auto-zeroing and auto-range. Maximum value, minimum value, peak and valley are selectable at hold mode.
