The main use of solenoids: standard field, hall sensor and all kinds of magnetometer calibration, biological magnetic field research and the study of the magnetic properties of the material, the magnetization and demagnetization of magnetic materials can also be used for the electromagnet or inductor.



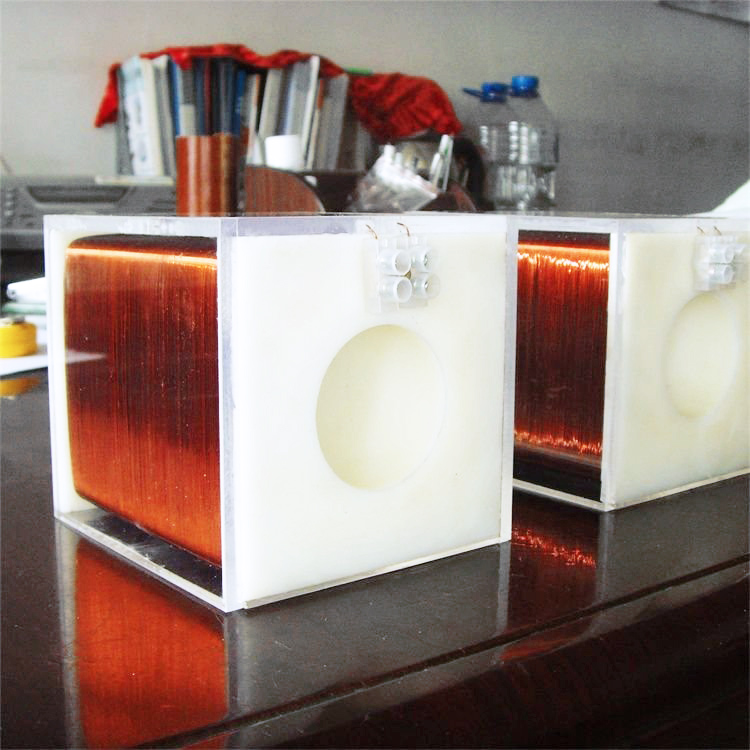

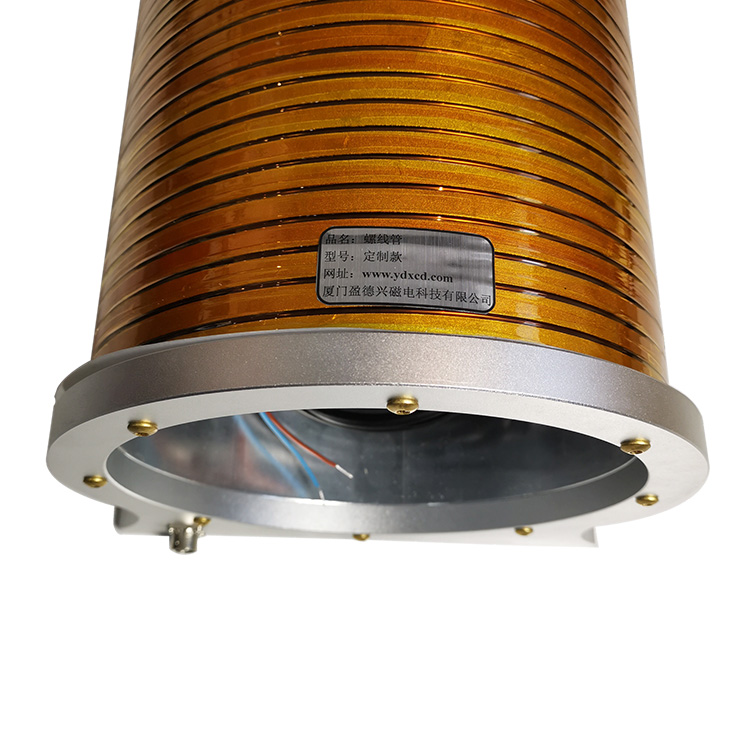

solenoid-15



Specification parameters of solenoid

Model Length
(mm)
Outside Diameter
(mm)
Inner Diameter
(mm)
Center magnetic field(GS) Power
(W)
Weight
(Kg)
DXSL10-100 140 70 20 100 10 1.2
DXSL10-500 140 120 20 500 60 5
DXSL10-1000 140 200 20 1000 240 24
DXSL20-100 240 120 60 100 50 5
DXSL20-500 240 160 60 500 170 15
DXSL20-1000 240 220 60 1000 500 40
DXSL20-2000 240 380 60 2000 1700 140
DXSL30-100 340 120 60 100 50 6
DXSL30-500 340 160 60 500 230 20
DXSL30-1000 340 220 60 1000 600 56
DXSL30-2000 340 330 60 2000 1800 150
DXSL50-100 540 160 100 100 100 15
DXSL50-500 540 200 100 500 520 50
DXSL50-1000 540 260 100 1000 1300 130
DXSL50-2000 540 360 100 2000 3400 300
DXSL70-100 740 180 120 100 200 30
DXSL70-500 740 220 120 500 840 100
DXSL70-1000 740 260 120 1000 2000 180
DXSL70-2000 740 380 120 2000 4800 420
DXSL100-100 1040 220 150 100 300 50
DXSL100-500 1040 260 150 500 1400 180
DXSL100-1000 1040 320 150 1000 3600 320
DXSL100-2000 1040 400 150 2000 7500 680



Typical Cases

solenoid-21

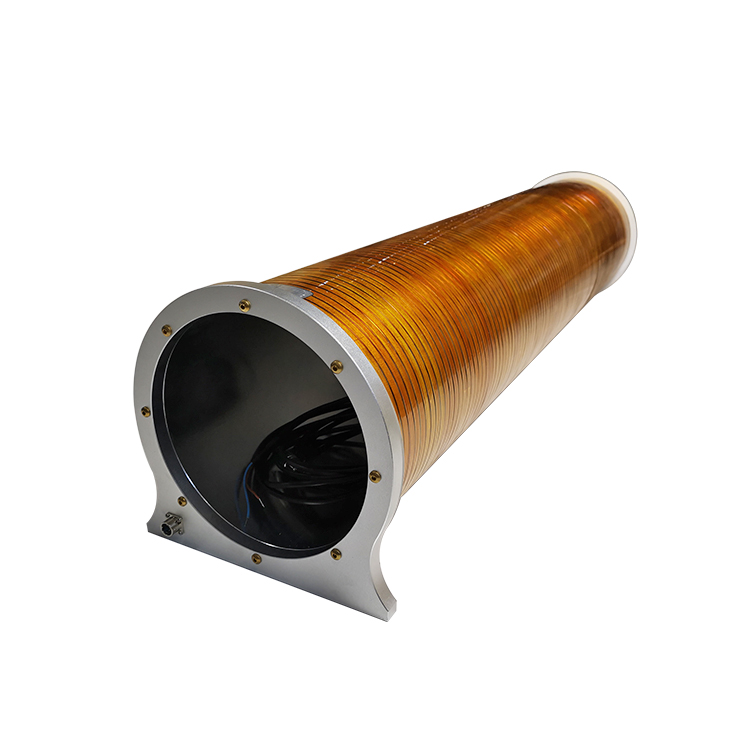

DXSL30-2000

Length: 320mm,
Outside diameter: 280mm,
Inner diameter: 50mm,
Center field strength: 2000Gs,
Uniform zone length: 30mm,
Uniformity: 0.6%

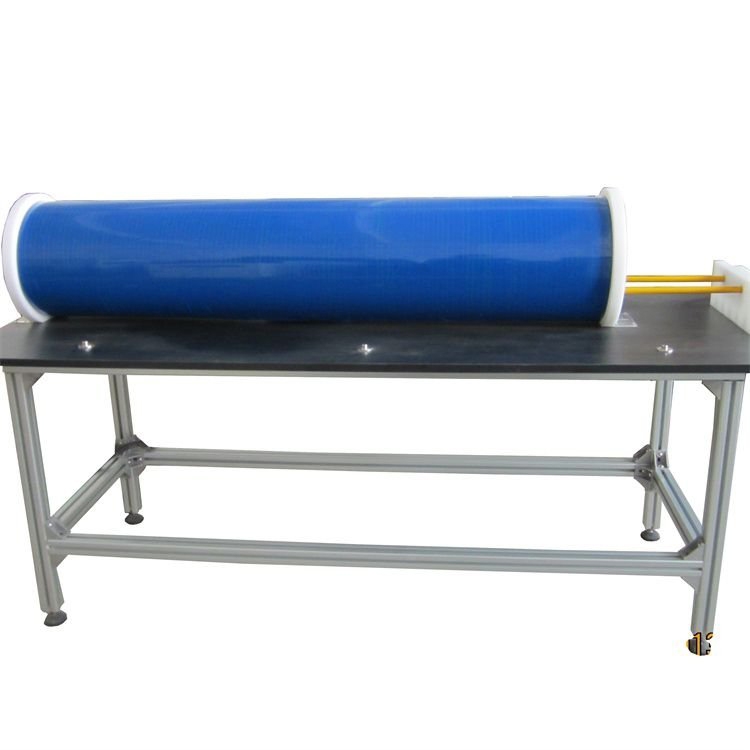

solenoid-16

DXSL80-1

Length: 800mm,
Outside diameter: 400mm,
Inner diameter: 370mm,
Center magnetic field strength: 1Gs,
Uniform zone length: 500mm,
Uniformity: 1%

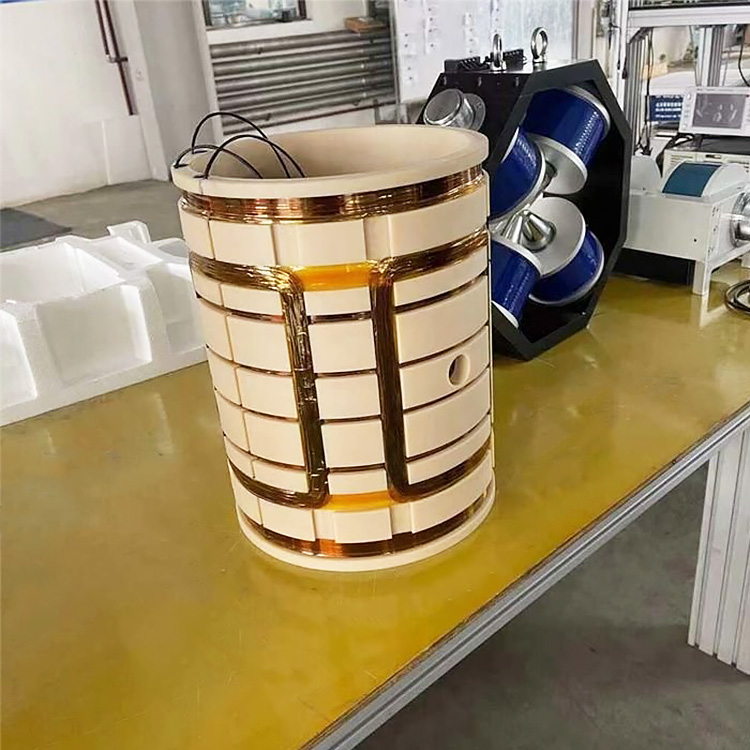

solenoid-22

DXSL35-10

Length: 350mm,
Outside diameter: 220mm,
Inner diameter: 190mm,
Center magnetic field strength: 1Gs,
Uniform zone length: 100mm,
Uniformity: 1%

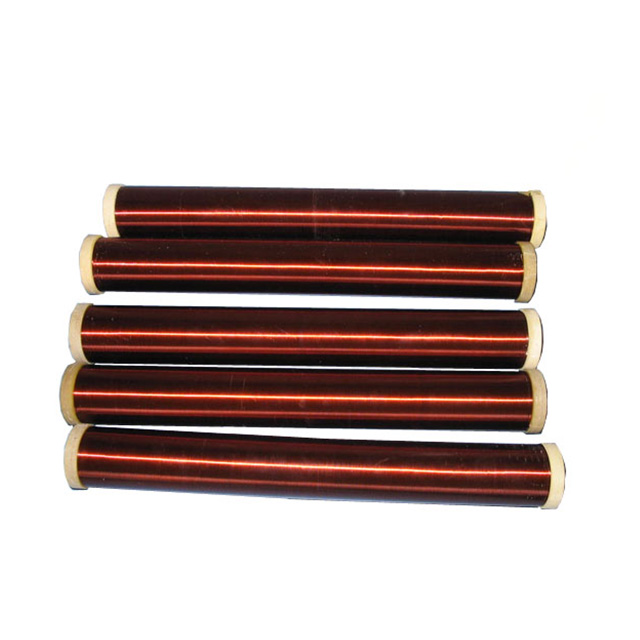

solenoid-25

DXSL20-200

Length: 200mm,
Outside diameter: 100mm,
Inner diameter: 50mm,
Center magnetic field strength: 200Gs,
Uniform zone length: 20mm,
Uniformity: 0.5%

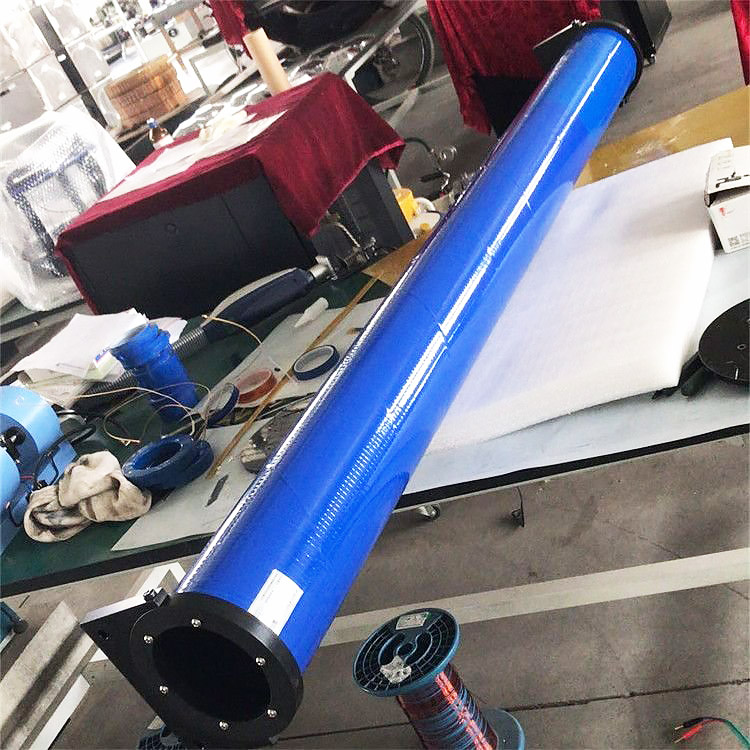

solenoid-18

DXSL250-1

Length: 2500mm,
Outside diameter: 500mm,
Inner diameter: 470mm,
Center magnetic field strength: 1Gs,
Uniform zone length: 250mm,
Uniformity: 0.1%



View other Solenoids

Solenoid has the advantages of good uniformity, small size, and high magnetic field. It can output AC/DC magnetic field, Current and magnetic field has a good linear relationship. Apply to the institute, institutions of higher learning and company do material or magnetic detection experiments, applied to materials, electronics, biological, medical, aerospace, chemical, physical, and other disciplines.
