DX-2012M silicon steel material automatic measuring device
Windows measurement software is applied simply. The product conforms to China National Standards GB/T 3655-2000, GB/T 13789-92 and international standards IEC 404-2, IEC 60404-3, and IEC 60404-6.
The controlling of computer and A/D sampling replace the traditional analog bridge, frequency meter, ammeter, voltage meter, and power meter, the whole testing process is automatically completed.
General Features of AC Hysteresis Graph (DX-2012M)
1. Testing sample varieties: hot rolling, cold rolling silicon steel materials, permalloy, amorphous and nm crystal.
2. Testing sample shapes: ribbon and chip open samples, annular, E and U closing samples.
3. Open circuit samples adopt EpsteinSquare to form a closed magnetic circuit, and can also select permeameter. The closing sample can be put under direct winding measurement, finished transformer can be also put under direct measurement.
4. Sample( iron core), magnetizing coil (N1) and measuring coil (N2) form a no-load transformer.
5. Non-inductive resistance is connected to magnetizing coil loop to determine magnetizing current and magnetic field intensity through the measurement of pressure drop on noninductive resistance, magnetic field peak value can be locked through digital feedback, and magnetic field lock precision 0.5%.
6. Magnetic induction density obtained through digital integration of coil measuring voltage, magnetic induction peak value locked through digital feedback, magnetic induction lock precision 0.2%.
7. Power source and sampling amplifier integrated into a casing with a simple interface: one RS232 interface connected to the computer, two-way voltage signal connected to A/D card.
8. Adopt voltammetry and digital integration to measure dynamic hysteresis loop, which can accurately measure dynamic magnetic characteristic parameters such as µa, d, Ps, Br and Hc, etc.
9. Automatic and continuous measurement up to 255 testing points, the testing time of every testing point is about 30 seconds, fixed-frequency, fixed Bm or fixed Hm optional in multipoint test.
Software Features of AC Hysteresis Graph (DX-2012M)
1. Operate under Windows XP, 7, 8, and 10 operating systems, conform to Windows software specification, visual and simple operation.
2. Full automatic control, intelligent identification, and user intervention are unnecessary in the entire testing process.
3. Sampling waveform and instrument status under real-time monitoring, and can be stopped at any time.
4. The effective sectional area and length of the magnetic path of samples can be calculated according to the overall dimension of the samples.
5. The file system adopts a database format, and can directly print or output test results in Excel form.
6. Powerful file management functions: data saving, deletions and removal.
7. Data files contain complete sampled data, sample parameters, instrument parameters and testing schemes, adopt text format, and can be conveniently typed into other software.
8. Display I (t), U (t) and B (t) sampling waveform and B (H) hysteresis loop, and coordinate message at every data point on the curve.
9. The multipoint cluster can display B (H) magnetic hysteresis cycle cluster, B (H) magnetization curve, µa (H) permeability curve and Ps (B) damage curve, and can display coordinate message at every data point on the curve.
10. B (H) magnetization curve and Ps (B) damage curve measured under different conditions can be combined on one drawing for comparative analysis.
11. Set up upper and lower limits according to µa, Ps, Bm, Br, Hc and Hm, etc., qualify test results and determine through the color of the data table.
12. Support various models of printers, test reports accurately match printer sheets.
13. The print preview function can conveniently regulate the size and edge distance of the test report.
14. The test reports can be directly printed or generated as JPG image files.
15. JPG image files can be sent directly through E-mail, or saved into disk.
16. Test reports contain complete curve diagrams, test results, test conditions and sample parameters. To facilitate adding user mark and enterprise name.
17. Multiple unit systems are optional to satisfy the application habits of different users.
Software Screen of AC Hysteresis Graph (DX-2012M)
Technical Data of AC Hysteresis Graph (DX-2012M)
System Specifications
Under 50Hz frequency, use 25cm EpsteinSquare to measure the silicon steel sample, technical indices are as follows:
| Parameters measured | Bm (%) | Hm(%) | µa(%) | Ps(%) | d(%) |
| Uncertainty (k=2) | 1 | 1 | 2 | 1 | 2 |
| Repeatability (constant temperature) | ± 0.5 | ± 0.5 | ± 1 | ± 0.5 | ± 1 |
Instrument Specifications

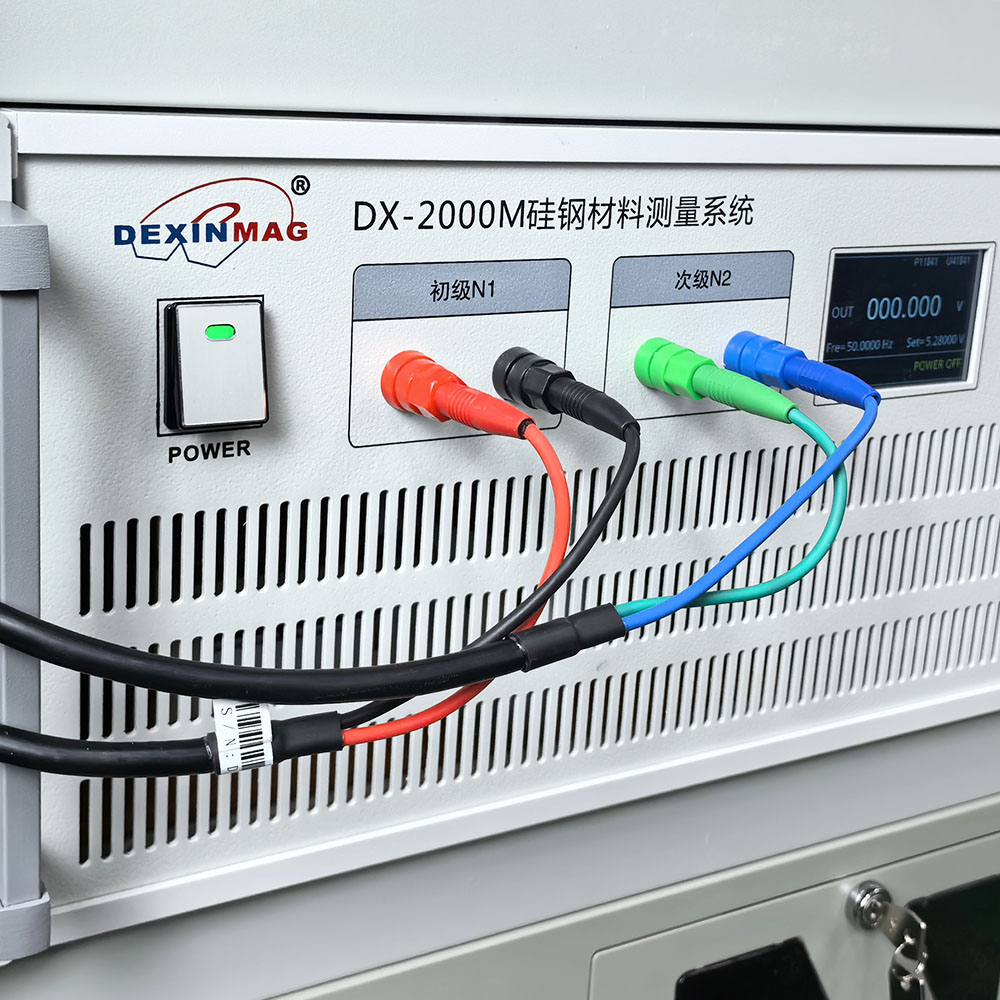

| DX-2012M Dynamic Hysteresis Graph | PC6112 A/D Card | |
| Output Power: 500VA sine wave Frequency Range: 45Hz~ 1000Hz Frequency Fineness:1Hz Frequency Error: < 0.05% Output Voltage: 0 ~ 10V ~ 50V ~ 150V ~ 300V, four automatic ranges Voltage Fineness: Program Control 1mV, panel < 0.1% * current range Voltage Distortion Factor: Superior to 0.5% Voltage Stability: Superior to 0.02% Sampling Current: 2mA, 5mA, 10mA, 20mA, 40mA, 80mA, 200mA, 400mA, 800mA, 1.6A, 4A, 8A (Peak Value) Sample Voltage: 20mV, 40mV, 100mV, 200mV, 400mV, 800mV, 2V, 4V, 8V, 16V, 40V, 80V, 160V, 320V, 800V, 1600V (Peak Value) |
Conversion time: <= 2.5µ s (every channel) Resolution and Linearity: 16 Bits ± 1 LSB Voltage Range: ± 5V ~ ± 10V Sampling Clock:6µ s ~ 10ms Hardware Clock Internal Storage Capacity: 4k Bytes Bus Structure: PCI busbar |

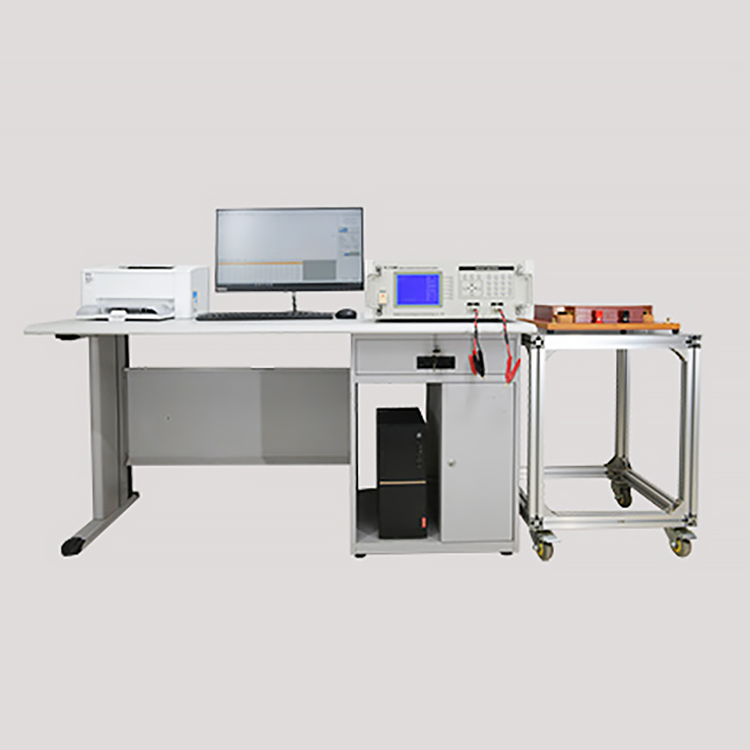

Standard Package of AC Hysteresis Graph (DX-2012M)
Basic Configuration
| Serial No. | Product Name | Model | Quantity |
| 1 | Test Power Supply | TPS-500M | 1 |
| 2 | Data Acquisition Card | PC6112 | 1 |
| 3 | Measurement Software | SMTest | 1 |
| 4 | Computer | Dell Dimension E-520n | 1 |
| 5 | Printer | HP1020 laser printer | 1 |

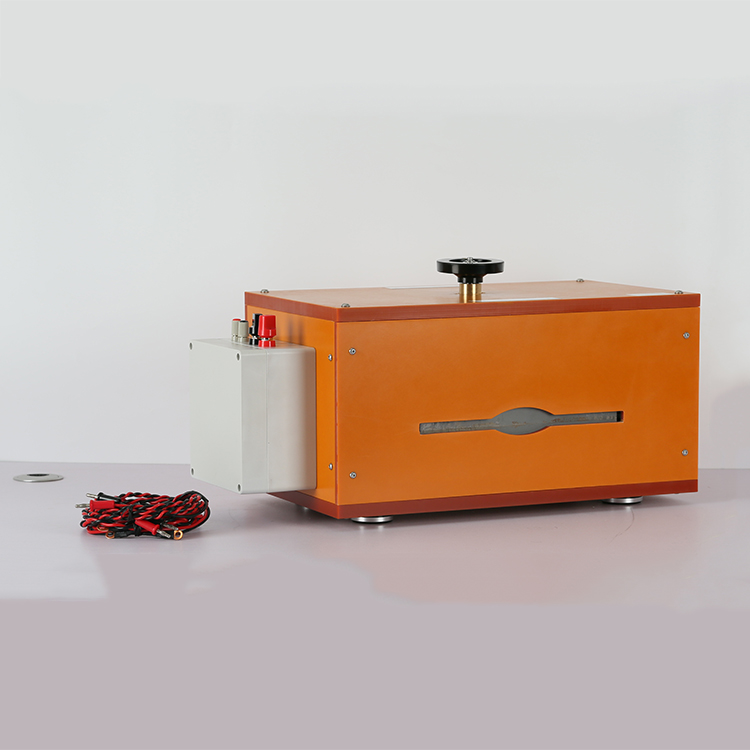

| 6 | EpsteinSquare | 25 cm | 1 |
| 7 | Square Standard Specimen | About 1kg | 1 |
Options
| Serial No. | Options Name | Functional Description | Remark |

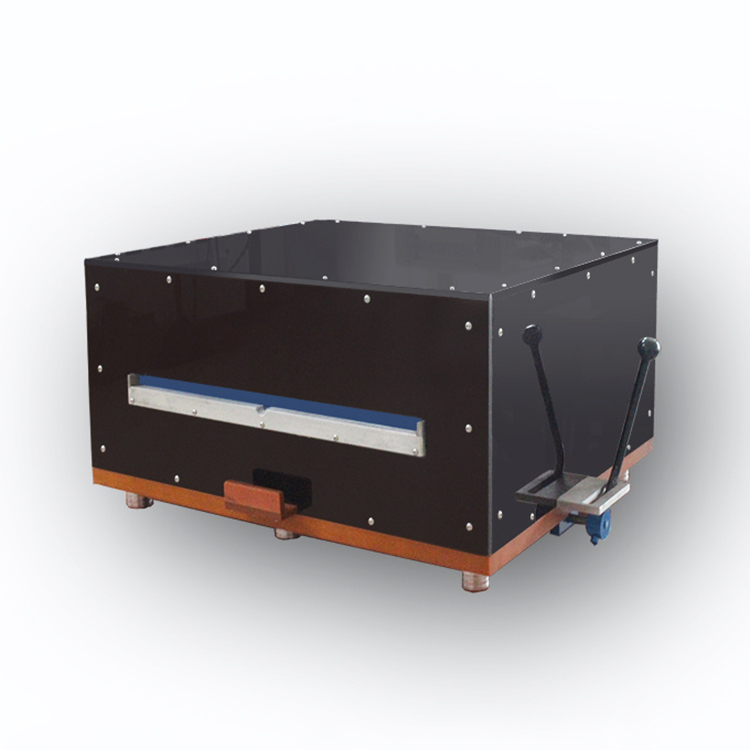

| 1 | 500mm×500mm SST | Applies to measuring half sheet of stalloy | |
| 2 | 1000mm×1000mm SST | Applies to measuring whole sheet of stalloy | |
| 3 | Nonstandard Permeameter | Applies to measure stalloy with special size | As required by users |
