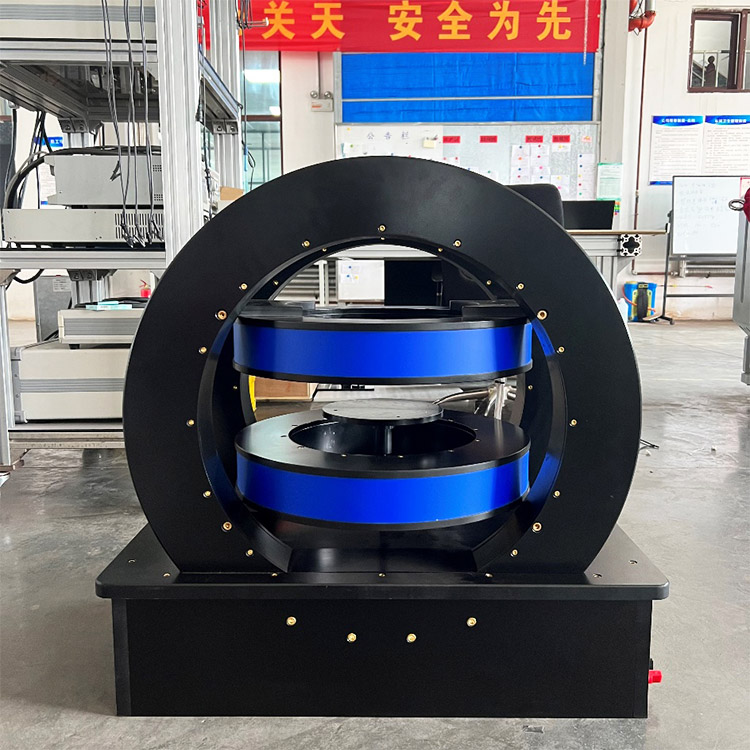

2DXHC7-100-1

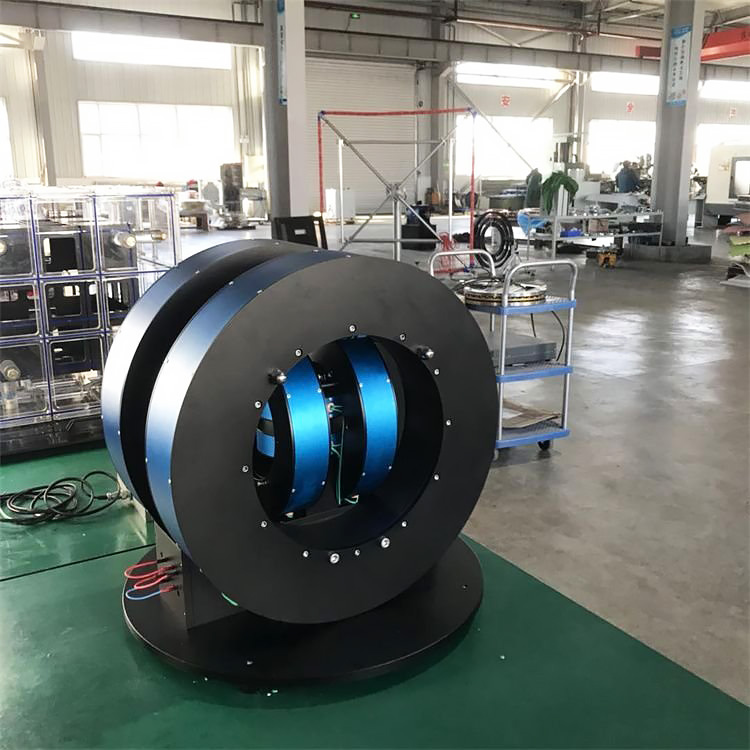

2DXHC7-100-2

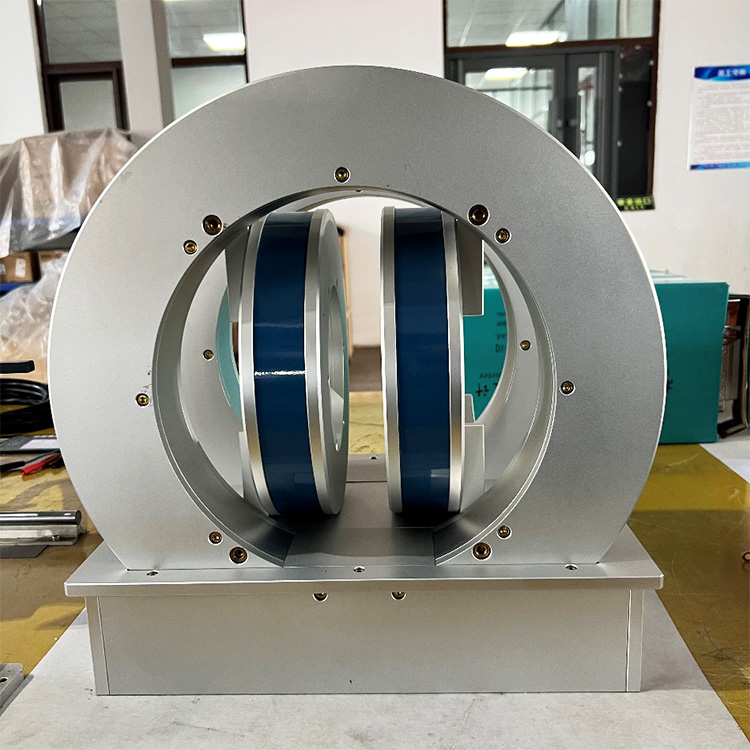

2DXHC10-200_helmholtz_coil

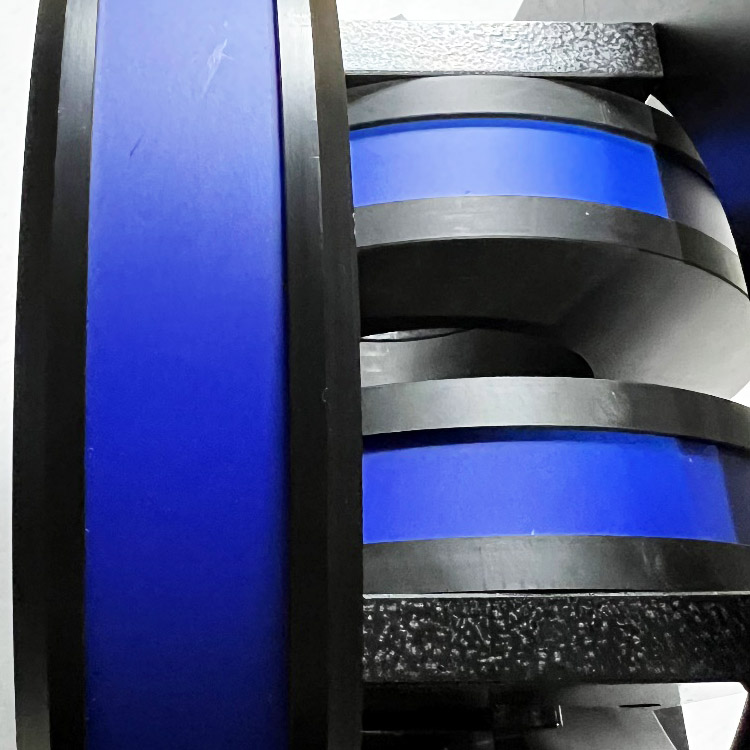

2DXHC20-300coil-1

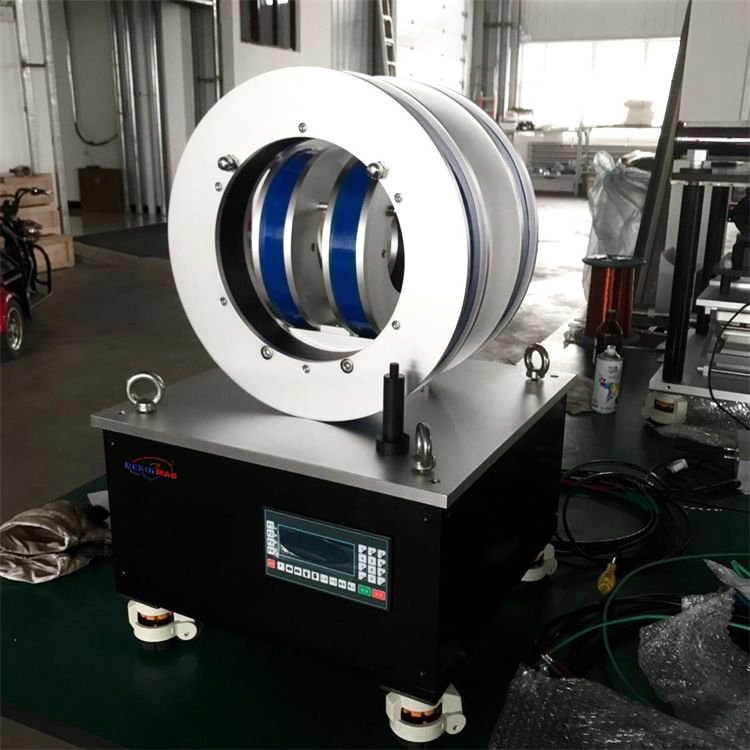

2dhelmholtzcoil-9
2dhelmholtzcoil-1
넳 넲

2 Axis Helmholtz Coil

2-axis-helmholtz-coil-4



Helmholtz Coil Specification Parameter



Model Radius
(mm)		 Center magnetic
field (Gs)		 Uniformity
%		 Homogeneity sphere
diameter(mm)		 Each dimension
power range(W)		 The One dimensional
weight (Kg)		 The three dimensional
weight (Kg)
DXHC30-50 300 50 5 200 420 55
1 150
DXHC30-10 300 10 0.5 100 90-120 12 38
0.1 90
DXHC30-2 300 2 0.05 60 18~32 3.5 11
0.01 40
DXHC25-1000 250 1000 5 160 5000 500
1 125
DXHC25-500 250 500 0.5 100 2500 250
0.1 75
DXHC25-300 250 300 0.05 50 1600 150
0.01 33
DXHC25-100 250 100 5 160 600 50
1 125
DXHC25-50 250 50 0.5 100 300~620 30 138
0.1 75
DXHC25-10 250 10 0.05 50 60~110 8 32
0.01 33
DXHC25-2 250 2 5 160 12~18 4 14
1 125
DXHC20-500 200 500 0.5 80 2000 160
0.1 60
DXHC20-300 200 300 0.05 40 1000 96
0.01 26
DXHC20-100 200 100 5 130 350 32
1 100
DXHC20-50 200 50 0.5 80 200~520 16 54
0.1 60
DXHC20-10 200 10 0.05 40 40~65 8 28
0.01 26
DXHC20-5 200 5 1 100 20~32 6 22
0.1 60
DXHC20-2 200 2 1 100 8~10 4 15
0.1 60
DXHC15-300 150 300 5 100 660 54
1 75
DXHC15-100 150 100 0.5 60 220 18
0.1 45
DXHC15-50 150 50 0.05 30 110~330 12 38
0.01 20
DXHC15-10 150 10 1 75 21~42 6 24
0.1 45
DXHC10-200 100 200 5 66 200 19
1 50
DXHC10-100 100 100 0.5 40 100 15
0.1 30
DXHC10-50 100 50 0.05 20 50~180 9 20
0.01 10
DXHC10-10 100 10 1 50 10~24 3.5 13
0.1 30
DXHC7-100 70 100 5 45 50 7
1 35
DXHC7-50 70 50 0.5 28 24~120 5 17
0.1 21
DXHC7-10 70 10 0.05 14 5~24 2 8
0.01 9.3



Typical Cases

2-axis-helmholtz-coil-1

2DXHC20-100



Magnetic field direction of X axis and Z axis orthogonal to each other;
The X axis's highest magnetic field intensity is 100 Gs, the Z axis is 1 Gs;
The minimum average diameter is 400 mm;
The homogeneity sphere is Φ55 mm;
Evenness 0.1%;
The X-axis power is 350 W.

2-axis-helmholtz-coil-3

2DXHC11-240



Magnetic field direction of X axis and Z axis orthogonal to each other;
The X-axis horizontal magnetic field can be rotated;
The X axis's highest magnetic field intensity is 240 Gs, the Z axis is 240 Gs;
The minimum average diameter is 220 mm;
The homogeneity sphere is Φ30 mm;
Evenness 0.1%;
the Z-axis power is 800 W, X-axis power is 2800 W.

2-axis-helmholtz-coil-5

2DXHC6-20



Magnetic field direction of X axis and Y axis orthogonal to each other;
The X axis's highest magnetic field intensity is 20 Gs, the Y axis is 20 Gs;
The minimum average diameter is 120 mm;
The homogeneity sphere is Φ30 mm;
Evenness 0.1%;
The X-axis power is 15 W, X-axis power is 30 W.

2-axis-helmholtz-coil-6

2DXHC20-10



Magnetic field direction of the X axis and Y axis orthogonal to each other;

The X axis's highest magnetic field intensity is 200 Gs, the Y axis is 200 Gs;
The minimum average diameter is 200 mm;
The homogeneity sphere is Φ30 mm;

Evenness 0.1%;
The X-axis power is 180 W, and Y axis power is 700 W.



Helmholtz Coil: the homogeneous area is big, and the use of the space is open, also easy to handle. It Can achieve that one-dimensional, two-dimensional and three-dimensional combination of the magnetic field, providing ac and dc magnetic field, and electric current and magnetic field can have a good linear relationship.
