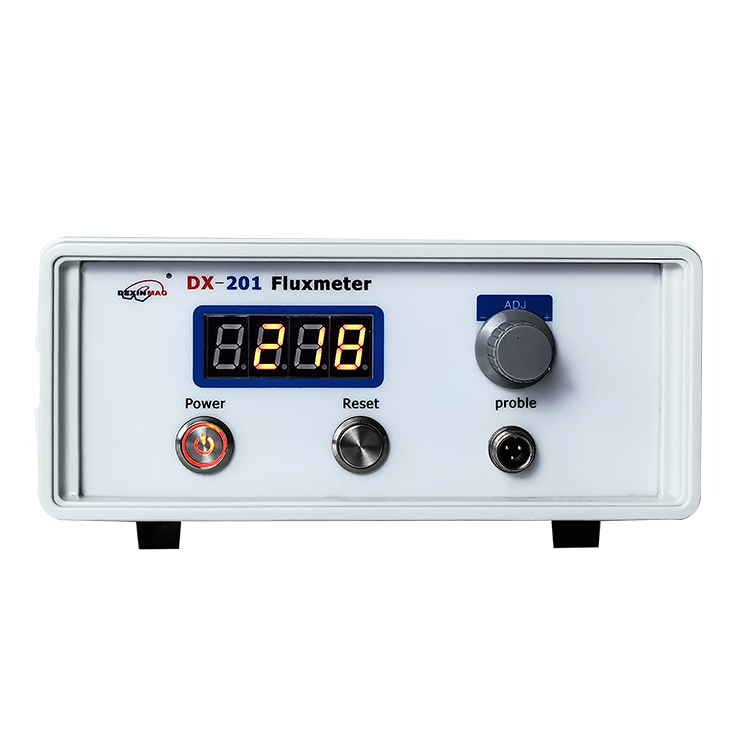

DX-201 Fluxmeter

Features

1. Directly read magnetic flux data;

2. Judge the direction of integration by “+” or “-”;

3. Suitable for matching with different integration coils and fixtures;

4. Adjust stably, low drift, 1uWb/min;

5. High input impedance, the coil has a small effect on the test;

6. Withholding function, suitable for the measurement of pulse magnetic field.

Function


1. Adopt a pulling coil to measure the magnetic flux of the permanent magnet;

2. Adopt Helmholtz coil to measure the magnetic moment of the permanent magnet;

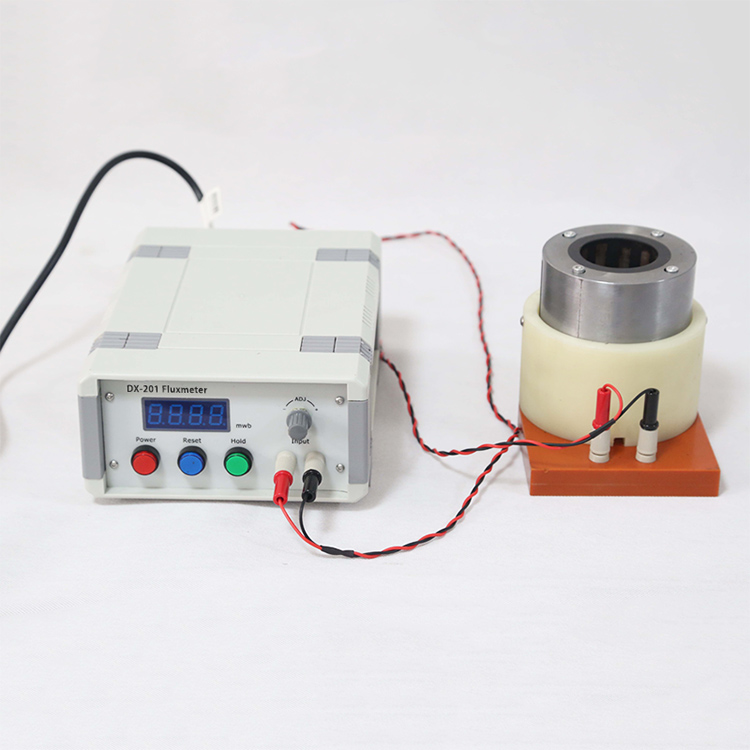

3. Adopt a closed-circuit test fixture to measure the overall magnetic flux of the motor stator;

4. Adopt a closed-circuit test fixture to measure the overall magnetic flux of the motor rotor;

5. Peak measurement of pulse magnetic field.


Technical parameters


1. Power supply: AC 220V/0.5A;

2. Display: 3 1/2 bit

3. Test range: 2.000mWb, 20.00mWb two gears;

4. Test accuracy: better than 1.0% (corresponding to each full range);

5. Drift: 1uWb/min;

6. Min. resolution: 1uWb;

7. Dimension: 250mm × 180mm × 100mm, weight: 2kg;

8. Operational environment: 0 ° C to +50 ° C, humidity: 35 to 80%.
