Fluxgate Magnetometer
Compared with the magnetic field measuring instruments based on the principle of the Hall effect or magnetoresistance effect, it is the best choice for measuring weak magnetic fields. It has digital and Analog signal output, a unique CAN bus network interface is suitable for multi-array magnetic field testing, widely used in scientific research, the military industry, aerospace and other departments.

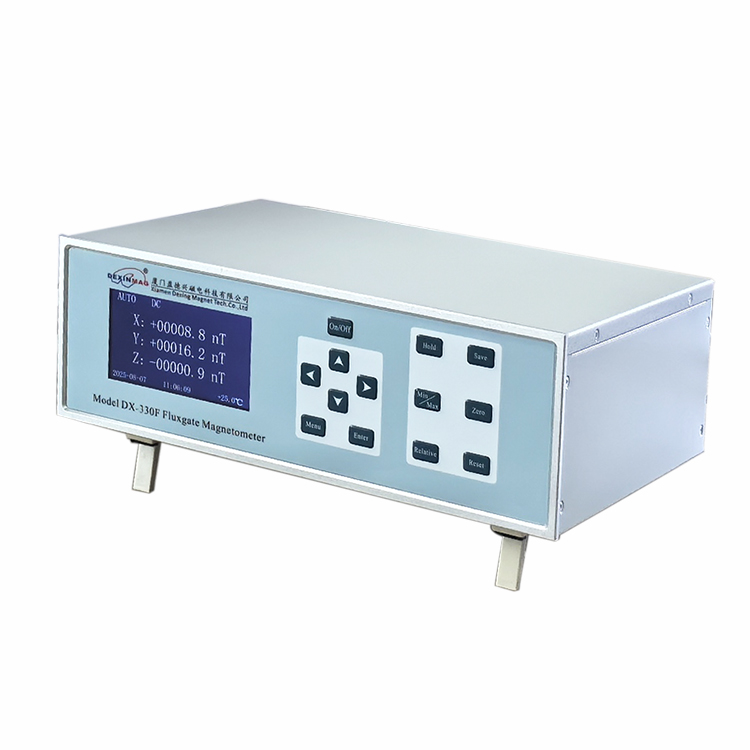

Dexinmag series fluxgate magnetometers include a main unit and a fluxgate probe sensor, a 15-core cable connects the probe and the electrical unit. The electrical unit provides the control signals to drive the probe and processes the signal output from the probe. It also includes an electrical section for switching and setting ranges. 5 The digital color screen displays the measured magnetic field value, and the dual-channel connector outputs the analog value and digital signal of the measured magnetic field.
3-axis fluxgate magnetometer probes can be selected from imported and domestic one-dimensional probes. Longitudinal probes measure the component of the magnetic field along the length of the probe. Transverse probes measure the vector component across the width of the probe. Both probes are capable of measuring the three vector components of the magnetic field by measuring the three orthogonal axis magnetic fields.
Parameters of Flux Gate Meters
| Model |
DX-310 |
DX-310A |
DX-330 |
|
Size(mm) (W*H*D) |
320 * 130 * 285 |
320 * 130 * 285 |
320 * 130 * 285 |
|
Dimension |
1 |
1 |
3 |
|
Range(optional) |
±100μT/±200μT/±500μT |
±100μt/±1000μt |
±100μT/±200μT/±500μT |
|
Error temperature coefficient |
±1nT/ºC |
<2nT/ºC |
±1nT/ºc |
|
Resolution |
1nT |
0.1nT |
1nT |
|
Accuracy |
<±0.5% of reading ±20nT |
<±0.5% of reading ±10nT |
<±0.5% of reading ±20nT |
|
Preheating time |
15mins |
15mins |
15mins |
|
Angel error relative to surface |
|
<1% |
<1% |
|
Range of working temperature |
-70ºC to +85ºC |
-20ºC to +70ºC |
-70ºC to +85ºC |
|
Storage temperature range |
-40ºC to +85ºC |
-40ºC to +85ºC |
-40ºC to +85ºC |
|
Probe size(mm) |
13*13*11(Square) φ12 x 26(cylinder) |
80*35*15 |
22*22*66 |
|
Communication |
RS-232 |
RS-232 |
RS-232 |
|
Analog output |
BNC |
BNC |
3-channel BNC |
|
Supporting software |
Date reading software |
Date reading software |
Date reading software |
| Model |
DX-330F |
DX-350 |
DX-370 |
|
Size(mm) (W*H*D) |
320 * 130 * 285 |
320 * 130 * 285 |
320 * 130 * 285 |
|
Dimension |
3 |
3 |
3 |
|
Range (optional) |
±100μT/±500μT/±1000μT |
±100μT |
±100μT |
|
Error temperature coefficient |
±1nT/ºC/±5nT/ºC/±10nT/ºC |
±1nT/ºC |
±0.3nT/ºC |
|
Resolution |
0.1nT |
0.1nT |
0.01nT |
|
Accuracy |
<±0.5% of reading ±10nT |
<±0.2% of reading ±10nT |
<±0.2% of reading ±5nT |
|
Preheating time |
15mins |
15mins |
15mins |
|
Angel error relative to surface |
<1% |
<1% |
<1% |
|
Range of working temperature |
-40ºC to +70ºC |
-40ºC to +70ºC |
-40ºC to +70ºC |
|
Storage temperature range |
-40ºC to +85ºC |
-40ºC to +85ºC |
-40ºC to +85ºC |
|
Probe size(mm) |
32*32*225/ 26*23*94 |
32*32*225 |
32*32*225 |
|
Communication |
RS-232 |
RS-232 |
RS-232 |
|
Analog output |
3-channel BNC |
3-channel BNC |
3-channel BNC |
|
Supporting software |
Date reading software |
Date reading software |
Date reading software |
|
|
Bandwidth at -3dB: <1kHz |
Response frequency: <1kHz |
Response frequency: <3kHz |
|
|
Noise level: 10-20pTrms/√Hz at 1Hz |
Zero field offset error: ±10nT |
Zero field offset error: ±5nT |
Application
♦ Monitoring the earth's environmental magnetic field, laboratory and space magnetic field.
♦ Calibrate the magnetic field shielding and field source in the laboratory, such as: three-dimensional helmholtz coil system, no distance coil system, etc;
♦ Geological prospecting, oil system while drilling system to detect weak magnetic field in rock;
♦ Check the attenuation characteristics and shielding effectiveness of the magnetic field shielding system;
♦ Test the magnetic shielding effect of the magnetic shielding room;
♦ Dipole moment and remanence magnetic field of satellite equipment
♦ Fluxgate meter, magnetoresistance magnetometer and calibration standard of various sensors
♦ Earthquake precursor monitoring, volcano observation and other environmental and disaster geological work;
♦ Aeromagnetic and marine magnetic survey
♦ Study of weak magnetic field in biological science
