DX-9700HC Hard Metal Magnetometer
The DX-9700HC magnetometer provides accurate magnetic parameters to evaluate other correlated properties; for example hardness or the presence of undesired phases. This revolutionary measuring equipment utilizes a technique that provides the fastest, repeatable and accurate measurements available on the market today.
The DX-9700HC magnetometer meets the International Standards IEC 60404-4 and ASTM A596.
Technical testing of DX-9700HC magnetometer
|
Measurable material |
Semi-hard magnetic and hard alloy |
Parameters |
|
Measured parameters |
Msat, Hcj , Jsat σsat |
|
|
Magnetic field |
Measurement accuracy |
Gauss meter: 0.25% reading + 0.1% range Probe: 0.5% (linearity) |
|
Resolution ratio |
0.1Gs (200Gs range), 1 Gs(2000 Gs range) |
|
|
Hc |
Measurement accuracy |
+ 2% for Hc>500 A/m |
|
Ms |
Measurement accuracy |
+ 2% on reading |
|
Resolution ratio: |
10⁻⁴ μWbm (10-10 Tm³, 10⁻¹ emu) |
|
|
The maximum sample size can be measured |
With coil 9700 HC-1 |
Φ70 x H 25mm |
|
Pole head size |
Shrinking polar head 110mm |
|
|
The maximum magnetic field of electromagnet |
With HC-110 mm pole |
10000 Gs 20mm air gap |
|
Measuring time |
1 minute (standard) |
|
|
Using temperature range |
10° C to 35° C |
|
|
Communication interface |
RS-232 /USB2 |
|
|
Digital flux meter |
Range |
2.5,5,10,20 mWb |
|
Resolution ratio |
From 1 μWb (range 2.5) to 10 μWb (range 20) |
|
|
Accuracy |
0.50% |
|
|
Input impedance |
10k Ω x range |
|
|
Communication interface |
RS232/USB |
|
|
Electromagnet |
Maximum pole head diameter |
140 mm to 110mm |
|
Pole pitch adjustment |
manual operation |
|
|
Polar distance gap display resolution |
0.01mm |
|
|
Size |
330 x 410 x 491 mm |
|
|
Weight |
160 kg (approx.) |
Magnetic properties of cemented carbide:
Cemented carbide is a composite material composed of tungsten carbide (WC) and cobalt (CO). The addition of cobalt gives the final alloy both an excellent hardness degree and good toughness. The percentage of cobalt by weight in an alloy usually ranges from 3 to 30%.
Magnetic properties of cemented carbide are measured as metallurgical the process provides useful information: the magnetic moment provides direct information on the amount of unalloyed cobalt in the non-magnetic phase. So we have DX-9700HC, and now the quality of metallurgical bonding and the eventual appearance of undesired phases can be assessed. Coercivity HCJ data provide an indication of grain size: the higher the HCJ reading, the finer the grain size.
The measurement coil has an embedded sensor and a slot to insert a Hall probe, and the sample is placed in the sample jig and placed into the measuring coil. The fixture size will be customized according to the customer measurement sample size.
Instrument Software

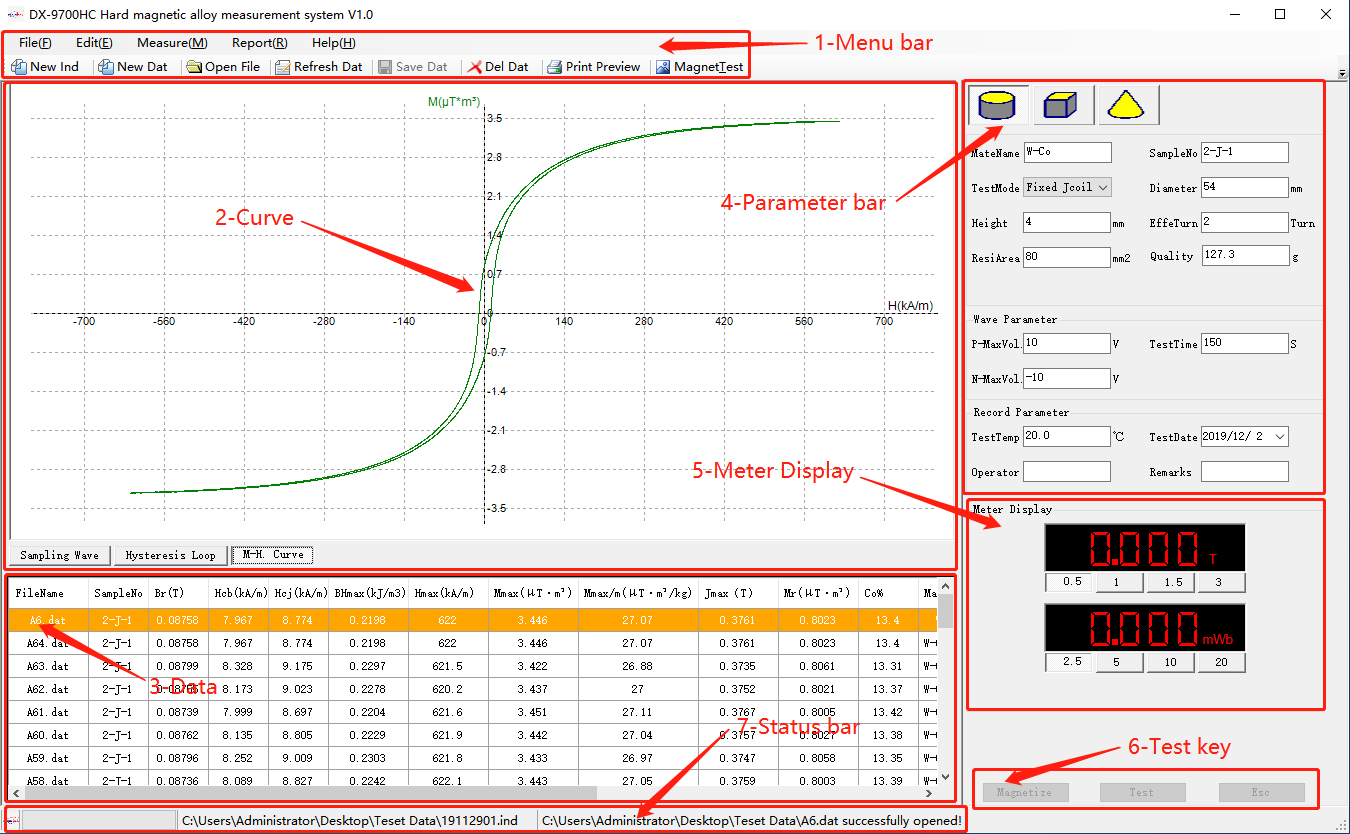

Our proprietary 9700SW software automatically manages the DX-9700HC magnetometer measurements, including the comparison of different curves and statistical analysis. The software ensures that the measurement process is precise and absolute, guiding the operator to correctly set the sample parameters.
The automated assistant notifies the operator and makes recommendations for appropriate steps or settings.
The software also provides automatic creation of printed reports, a database search feature and curve comparison.
