DX-2012R Magnetic Field Mapper

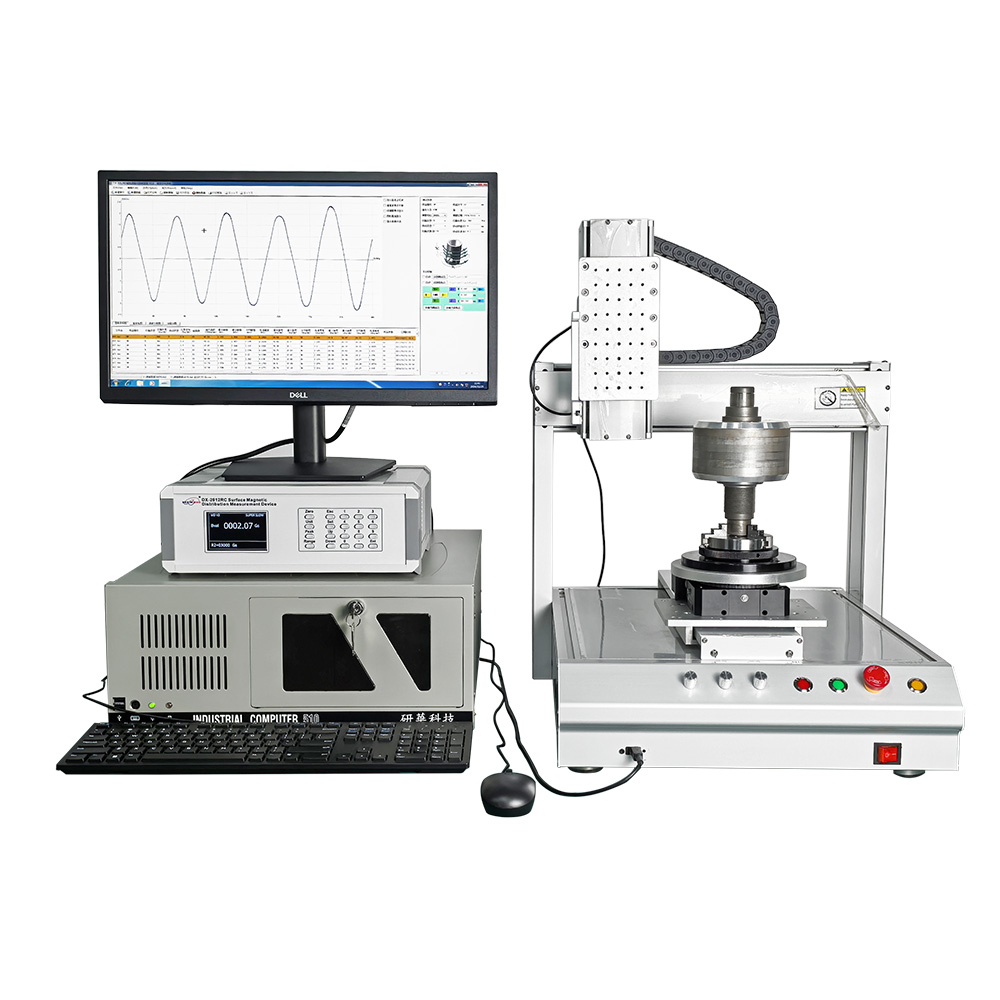

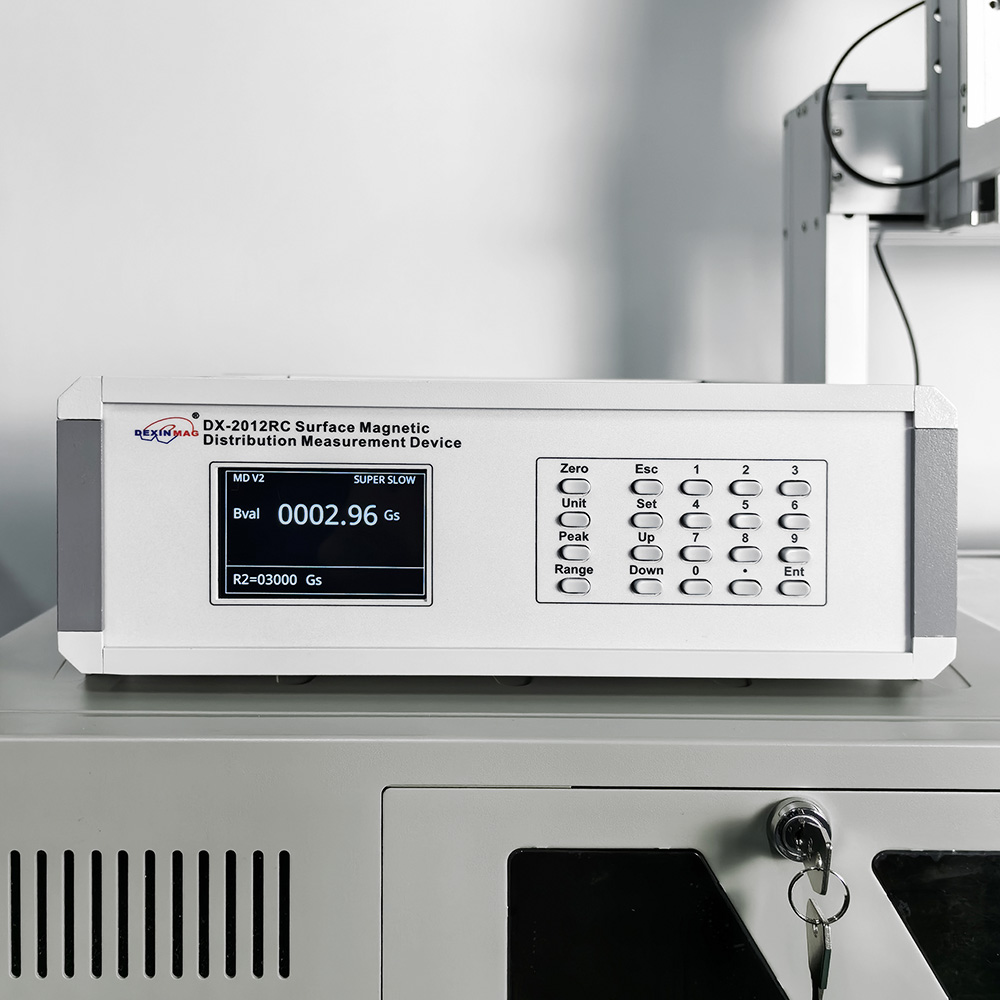

DX-2012R series surface magnetic field distribution measuring instrument independently developed by Dexinmag company is an indispensable tool for the correct evaluation of magnet magnetization accuracy and quality inspection of magnetic rings.

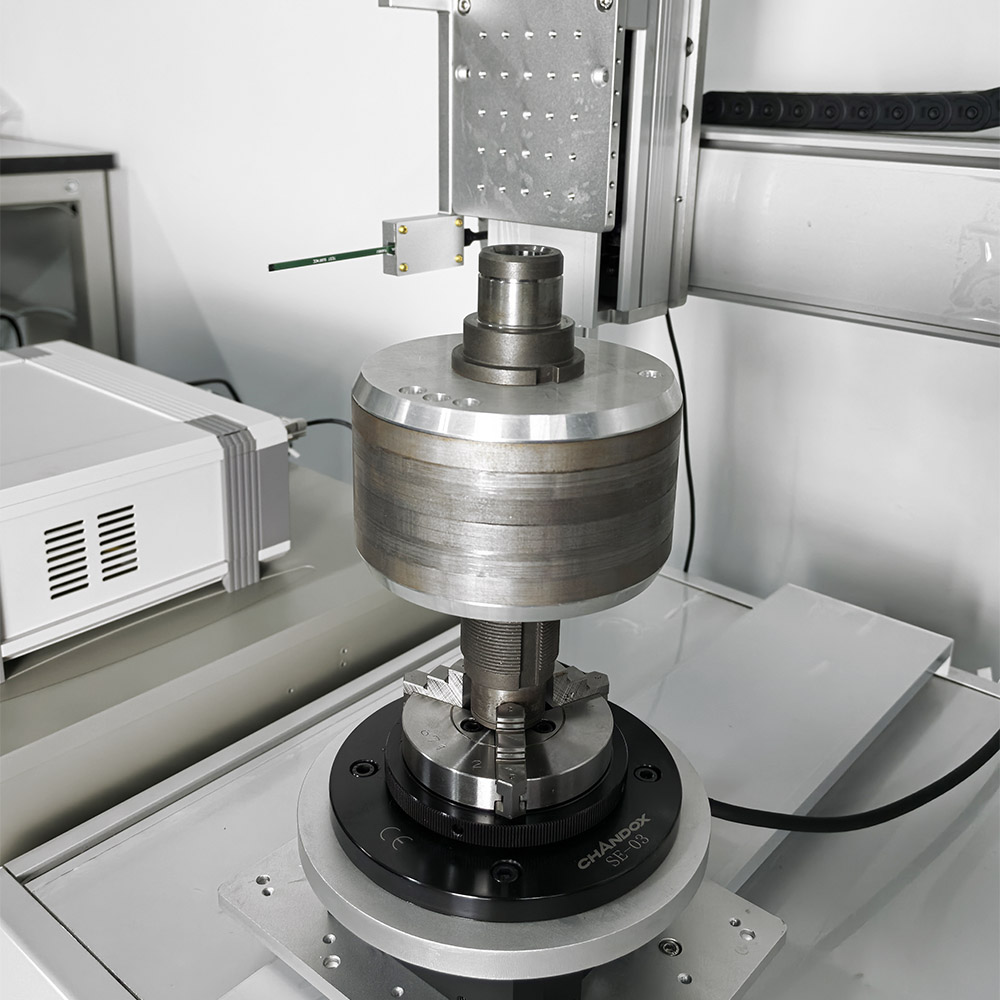

This 3 axis magnetic field mapping equipment can be equipped with a variety of test fixtures (such as three-dimensional test probes, rotating platforms or loading platforms). With a high concentricity design and high precision level of probe return.
The scanning space of the product is 800mm*800mm*800mm.
DX-2012R series surface magnetic field distribution measuring instrument
|
Product name |
DX-2012RA |
DX-2012RB |
DX-2012RC |
DX-2012RD |
|---|---|---|---|---|
|
Two-dimensional analysis |
√ |
√ |
√ |
√ |
|
Rectangular coordinate display |
√ |
√ |
√ |
√ |
|
Polar coordinate display |
√ |
√ |
√ |
√ |
|
Axial 3D distribution |
√ |
√ |
√ |
√ |
|
Oblique charging test |
|
√ |
√ |
√ |
|
With one-dimensional plane description |
|
|
√ |
√ |
|
Three-dimensional magnetic field description |
|
|
|
√ |
Measure principle of DX-2012R magnetic field mapping equipment
The space magnetic field distribution measuring instrument is mainly composed of an industrial computer (measurement software), motion control system and data acquisition system.
First, the test command is sent through the industrial control computer to control the motion control system to complete the set motion trajectory, and simultaneously control the work of the data acquisition system. The data acquisition system collects data in the X, Y, and Z directions through the Hall sensor, and then transmits the data to the industrial control system. The computer performs data processing and finally obtains a three-dimensional magnetic field distribution map.
Features of Magnetic Field Distribution Measuring Instrument
1. Three-axis electric control mobile platform, aluminum alloy material processing, shape and size can be customized;
2. The return precision of the stepper motor drive can reach ±0.01mm, and the step resolution can reach 0.01mm;
3. Taiwan three-jaw chuck, the concentricity is better than 0.05mm,
4. Rotation angle resolution: 0.01°, return uncertainty: ±0.005°;
5. Test speed 30-60 seconds/week (locked);
6. Data collection is divided into 0.2k/0.4k/1k/2k/4k/10k/20kGs seven automatic ranges;
7. Accuracy 1.0%, repeatability 0.3%;
8. The resolution corresponds to 1.0% of the full scale of each file (below 400Gs, 0.1Gs is valid);

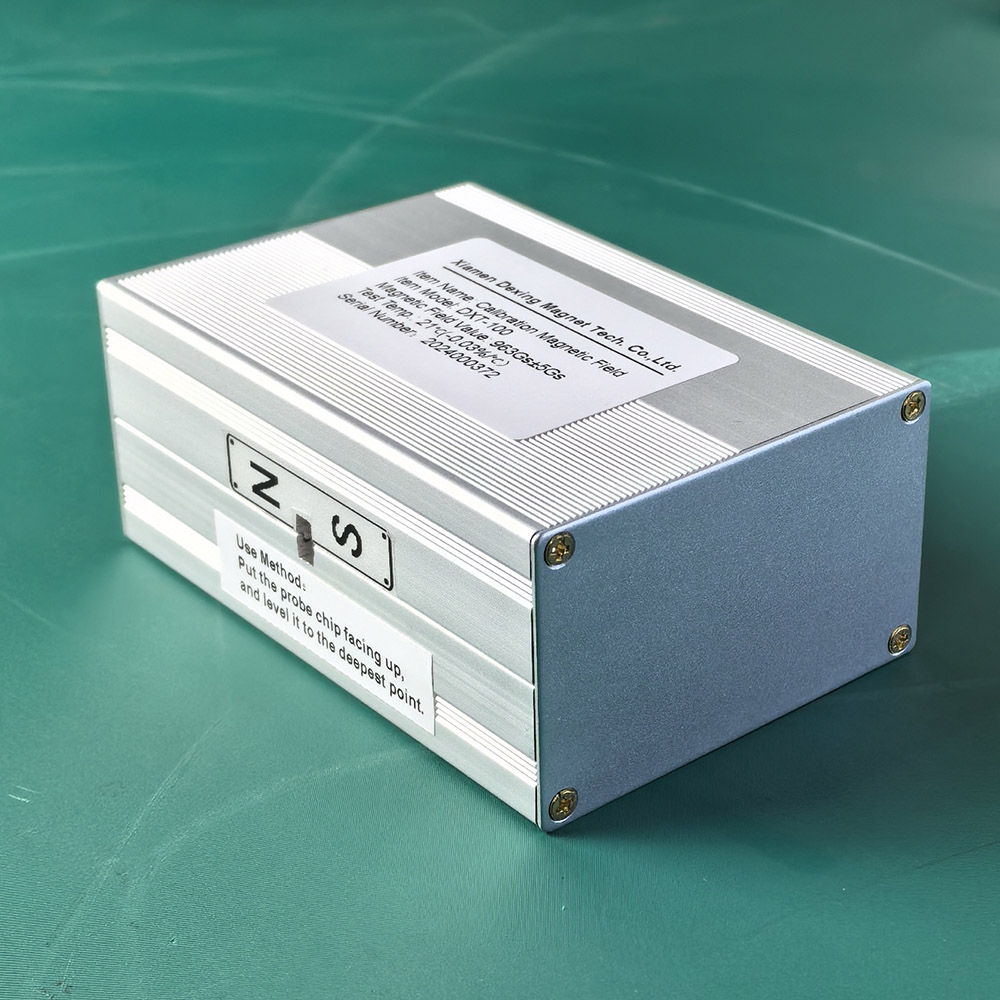

9. Equipped with a standard magnetic field, magnetic field 1000Gs±5Gs, calibration accuracy 0.5%, used for magnetic field calibration.
Technical parameters of stepper motor drive
|
Parameters |
X axis |
Y axis |
Z axis |
|
|---|---|---|---|---|
|
Displacement distance |
200mm |
200mm |
150mm |
|
|
Step resolution |
0.01mm |
0.01mm |
0.01mm |
|
|
Uncertainty of return |
±0.01mm |
±0.01mm |
±0.01mm |
|
|
Maximum speed |
20mm/sec |
20mm/sec |
20mm/sec |
|
|
Power supply |
12V ~40VDC |
|---|---|
|
Capacity |
0.1KVA |
|
Output current |
Peak 2.6A/phase (Max) |
|
Drive mode |
Space vector bipolar constant current drive |
|
Excitation method |
Sixteen subdivision modes are available |
|
Insulation resistance |
Under normal temperature and pressure＞100MΩ |
|
Insulation strength |
0.5KV under normal temperature and pressure, 1Min |
|
Table diameter |
100mm |
|
|---|---|---|
|
Transmission ratio |
180:1 |
|
|
Resolution (8 subdivisions) |
0.00125° |
|
|
Repeat positioning accuracy |
＜0.005° |
|
|
Maximum speed |
25°/s |
|
|
Stepper motor |
2 phase |
|
|
Maximum static torque |
40Ncm |
|
|
Maximum center load |
50kg |
|
