DX-2012F Multi-dimensional Magnetic Field Testing System

It can test the three-dimensional magnetic field distribution of AC and DC magnetic fields in any shape space with high precision, the three-dimensional distribution of magnetic structures on the surface of various shapes, uniform distribution, multi-pole magnetic ring, N/S magnetic pole distribution, motor magnetic field, superconducting magnetic field, magnetic resonance imaging magnetic field and many other magnetic field characteristics tests; It is then drawn into various graphics, stored data and saved for printing.


It is suitable for all kinds of AC and DC magnetic field magnetic research and has been widely used by many domestic and foreign aerospace military and scientific research units

Characteristic of DX-2012F Multi-dimensional Magnetic Field Testing System

1. Wide range of measurement: Space measurement range is 200mm x 200mm x 200mm (X, Y, Z)（it can be customized, please advise if there's a special requirement), free tour optional three directions, and will reach 5Axis platform when rational platform attached to it. The translation is meticulous(Resolution ratio: 0.00039mm), Positional accuracy 0.01mm, Repeat positional accuracy＜0.005mm, Rotation travel angle resolution ratio ＜0.0002°, positional accuracy 0.01, Repeat positional accuracy ＜0.005°, Velocity of movement can be divided into 2-64 classes. Fine distribution of measure space on the physical space.


2. High accuracy of system measurement: Using high-precision digital Gauss meter (one-dimensional or multi-dimensional) equipped with micro Hall probes (one dimensional ɸ0.5mm, two-dimensional ɸ1.2mm, three-dimensional ɸ1.2mm)make space and surface magnetic measurement up to higher accuracy. (One-dimensional precision can be up to ± 0.05% of the reading, range±0.005. Three-dimensional precision can be up to ± 0.10% of reading, range ± 0.005 )

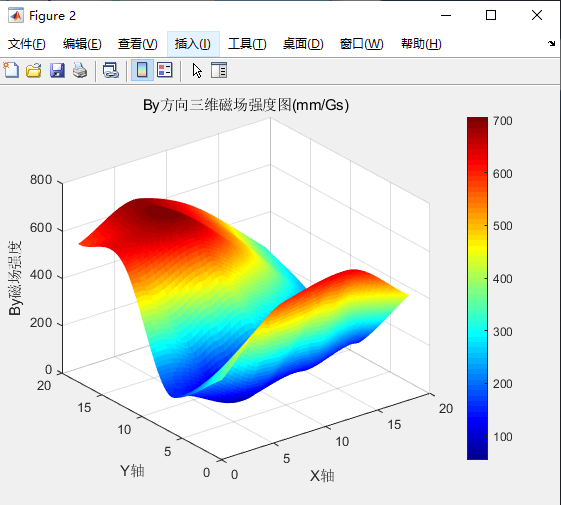

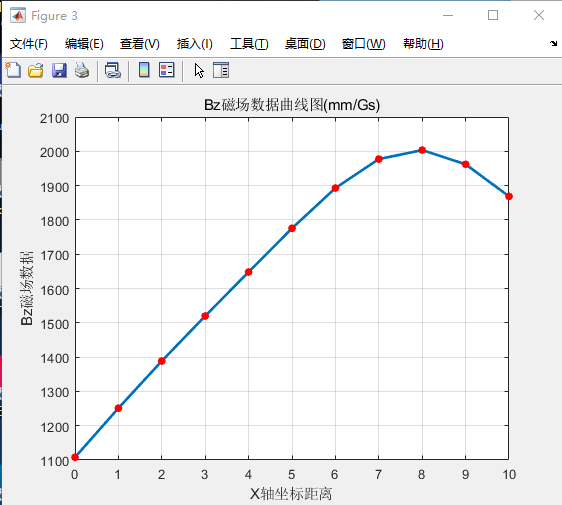

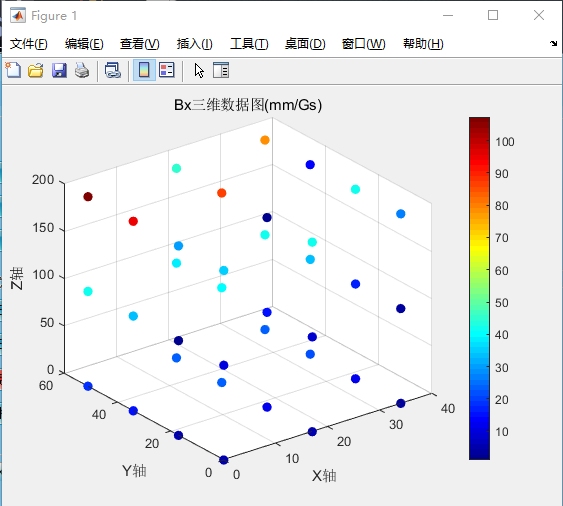

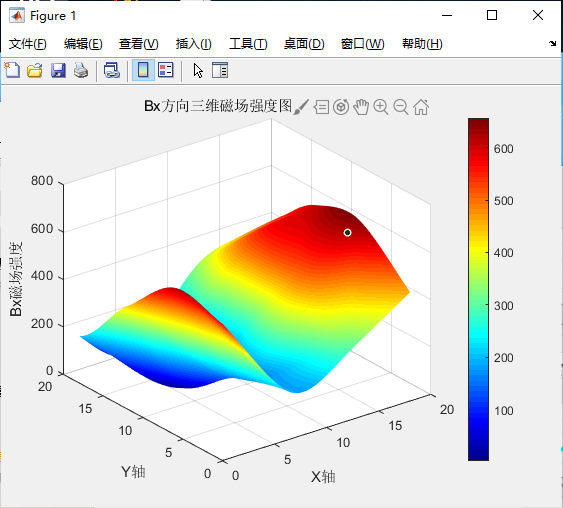

3. Automation and Digitization: The real-time control and data acquisition controlled by computer, system software design measure processes that can be divided into many forms, user can directly enter data parameters of the measured object for fully automated measurement, and data is automatically recorded and saved, based on test data system can generate one dimensional, two-dimensional, three-dimensional graphics and measurement data logging, database format is Access and print the chart.


4. Flexible combinations: Three-dimensional translation platform and rotation platform can be assembled in many suitable situations for various measurement methods to meet the needs of the different measurements, system software covers control and data acquisition, and software function can also be extended as required, realizing full automation of unmanned monitoring measurement.


5. Gauss meter tested by National Institute of Metrology China;  System software registered and approved by CPCC（Copyright Protection Center of China）

System configuration

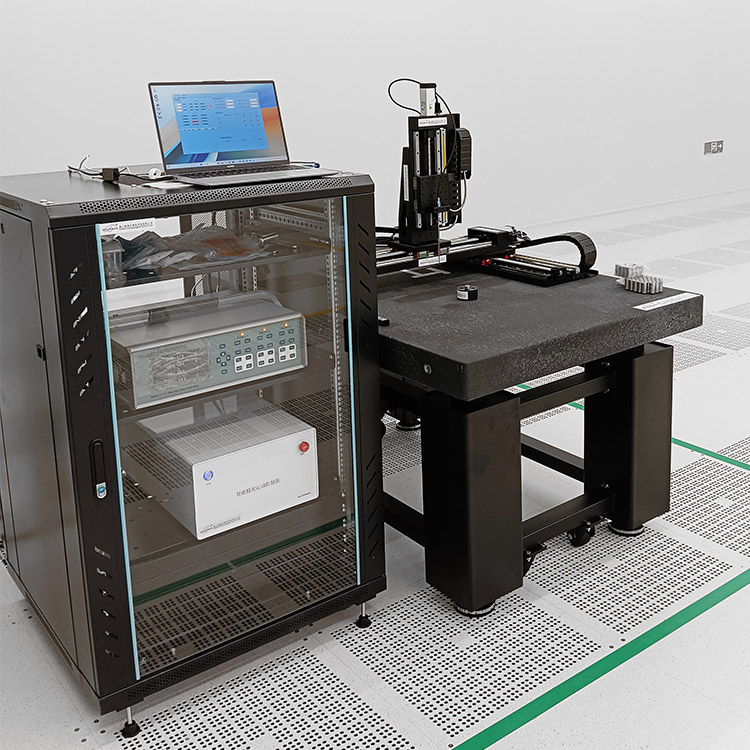

The system consists of a PC (equipped with control software), a high-precision Gauss meter (one-dimensional or three-dimensional), the probe that agrees with the Gauss meter, displacement multidimensional electronic control units as well as the displacement station controller. As shown in the schematic picture above, the system can be simply divided into two parts, one is used to collect the data, and the other part is only displacement, the two parts make up the acquisition system.

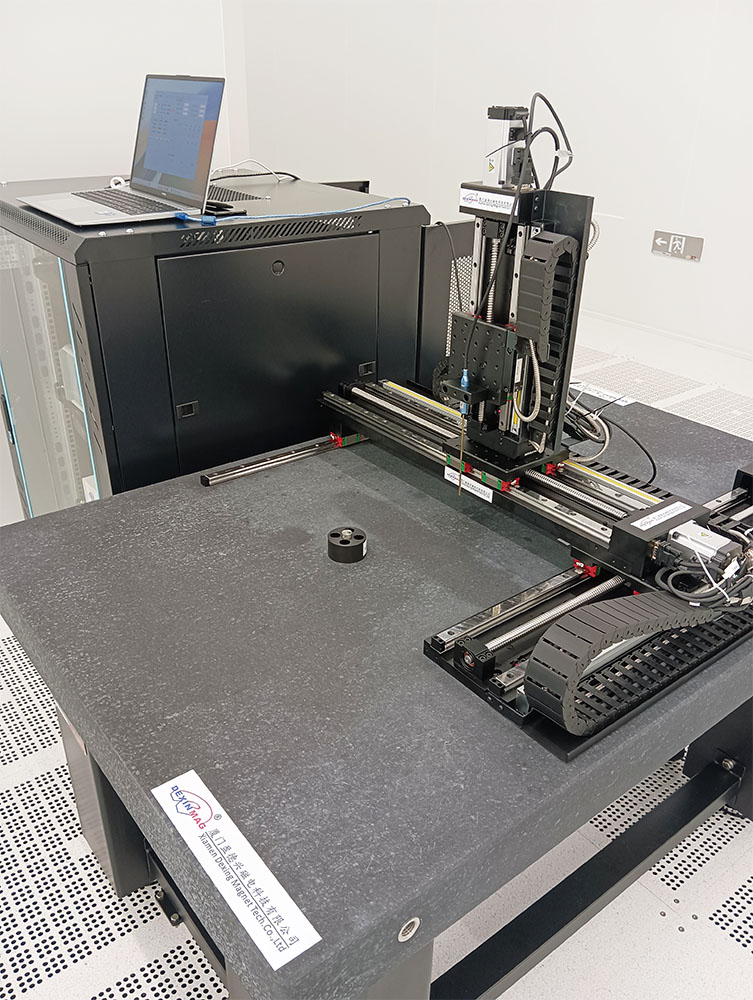

The displacement part consists of an electronic control displacement module and displacement station controller, by operating the PC software to send a command to the controller, the controller will drive the electric displacement units to control each axis motion according to the command, the parameters of this electronically controlled displacement table can be customized by users (table size, the length axis of motion, movement, the number of dimensions), realizing scan of various angles and various shapes within the allowable range.

CNC Multi Axis Platform

Axis can be selected, panning trips and rotating table diameter can be selected.

High-precision full digital Gauss meter
