Programmable Current Source
Since the current of the current source is fixed, the current source cannot be disconnected. When the current source is connected in series with a resistor, its effect on the external circuit is the same as that of a single current source. In addition, a current source and a voltage source can be equivalently converted, and a current source connected in parallel with a resistor can be equivalent to a voltage source connected in series with a resistor.

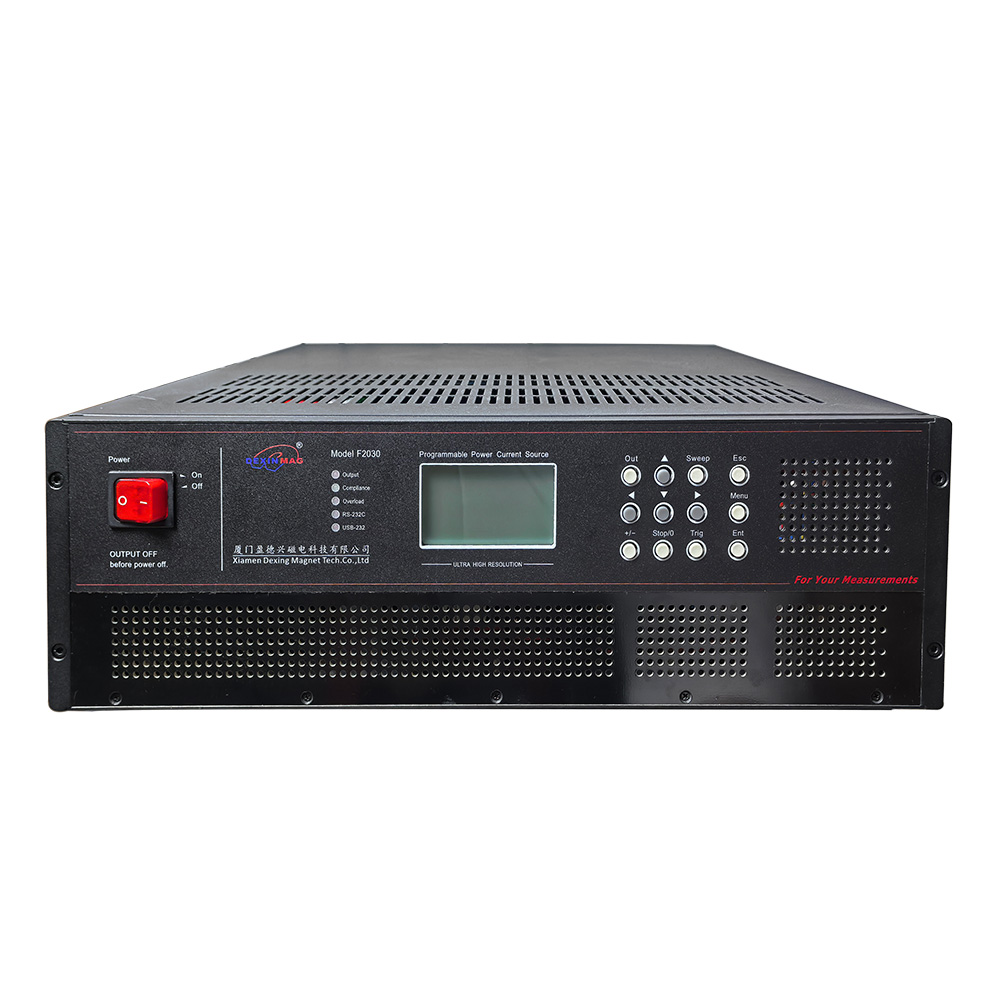

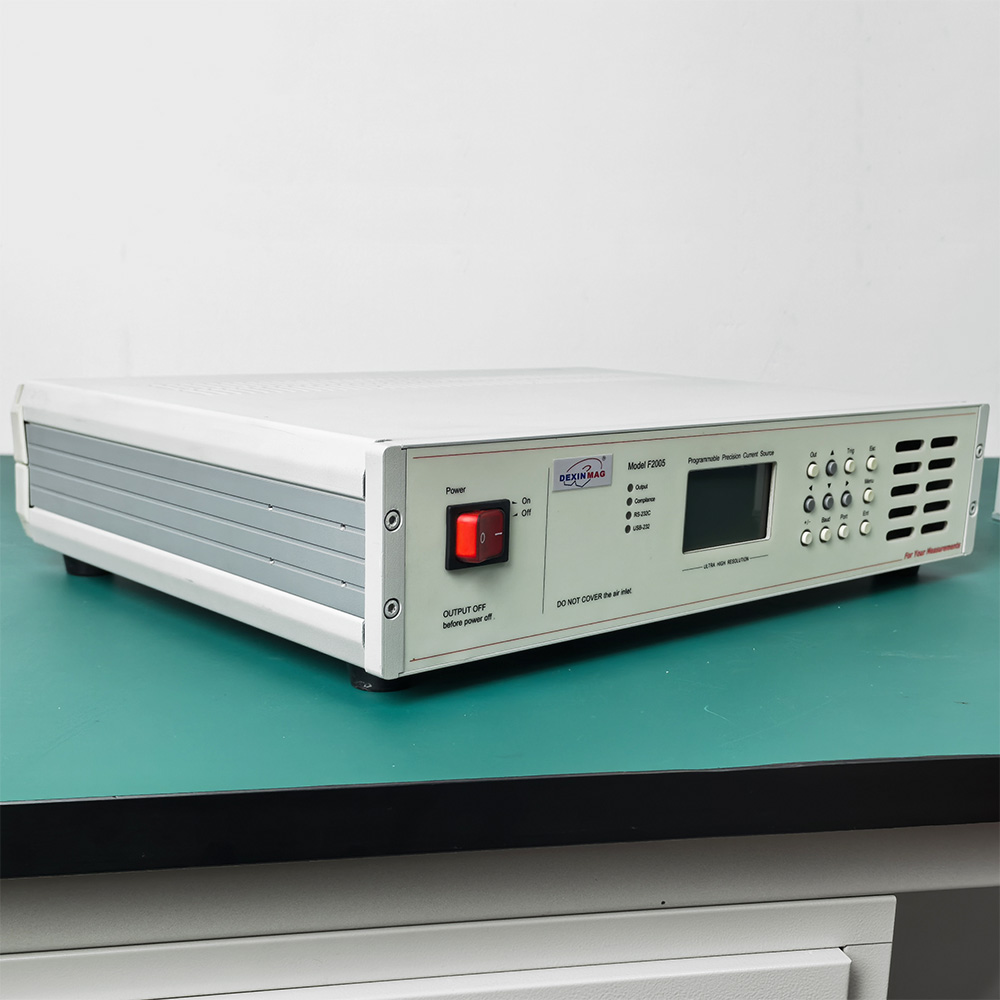

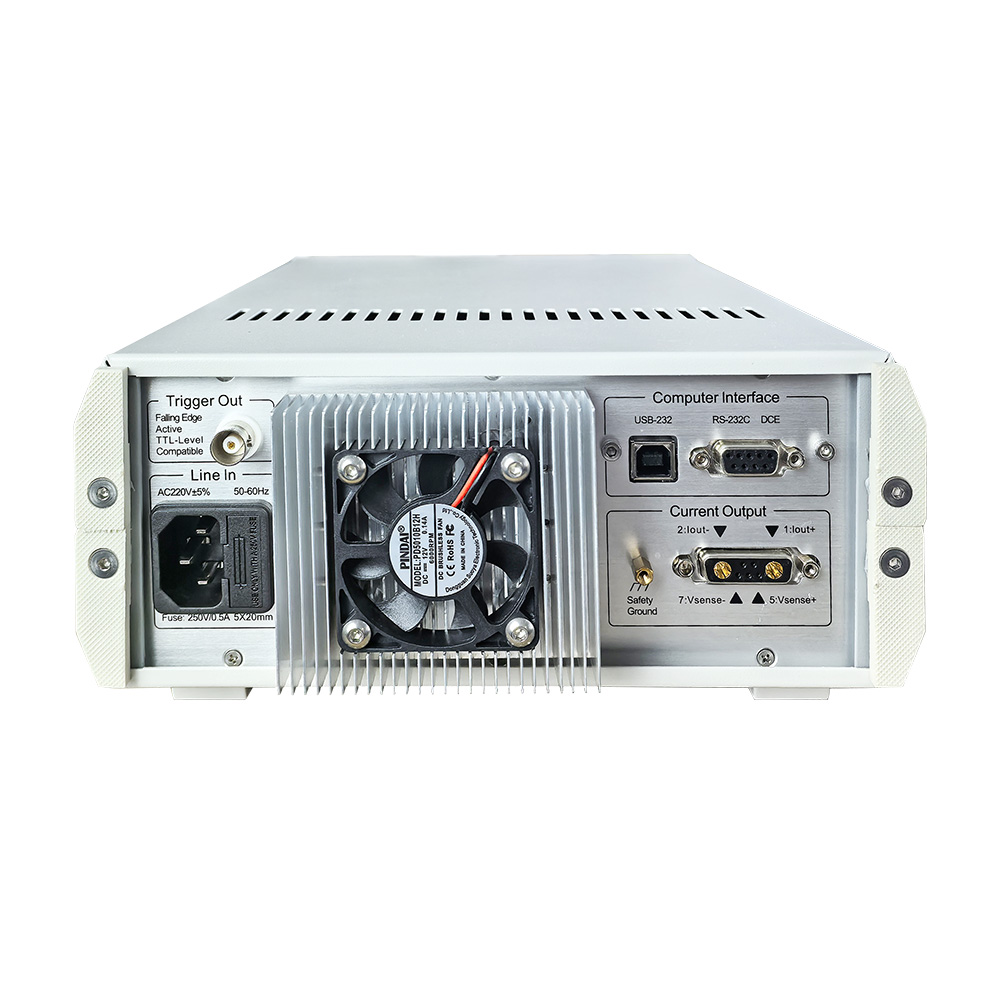

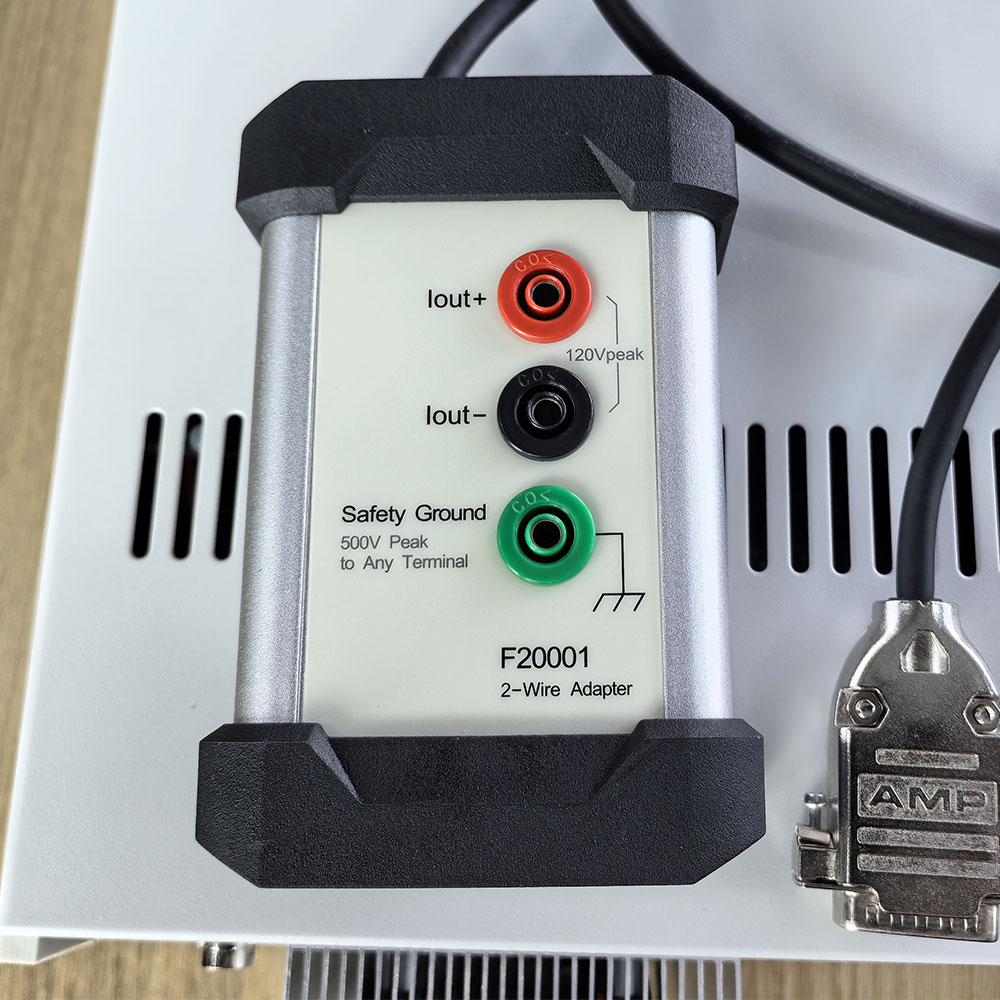

DXF series current sources
| Model |
Output Current |
Step resolution | Accuracy | Effective value of noise ripple |
Effective Output Voltage |
Max Output |
Output impedance |
| DX - F2002 | ±105 mA | 1μA (1/105,000) | ±(0.015% set value +2μA) | 1.2μA (Bandwidth 300kHz) | 0 - 105V | 10W | >500MΩ |
| DX - F2005 | ±1200 mA | 10μA (1/120,000) | ±(0.015% set value +20μA) | 12μA (Bandwidth 300kHz) | 0 - 42V | 50W | >100MΩ |
| DX - F2030 | ±10 A | 0.1mA (1/100,000) | ±(0.1% set value +2mA) | 0.7mA (Bandwidth 300kHz) | 0 - 100V | 1000W | >300kΩ |
| DX - F2031 | ±5 A | 0.05mA (1/100,000) | ±(0.1% set value +1mA) | 0.2mA (Bandwidth 300kHz) | 0 - 60V | 300W | >2.5MΩ |
| DX - F2036 | ±10 A | 0.1mA (1/100,000) | ±(0.1% set value +2mA) | 0.5mA (Bandwidth 300kHz) | 0 - 170V | 1700W | >300kΩ |
|
DX - F2070 Water-cooling |
±65 A | 1mA (1/ 65000) | ±(0.1% set value +10mA) | 3.5mA (Bandwidth 300kHz) | 0 - 120V | 7800W | >500kΩ |
|
DX - F2071 Forced air cooling |
±33 A | 0.1mA (1/330,000) | ±(0.1% set value +5mA) | 1.8mA (Bandwidth 300kHz) | 0 - 120V | 3960W | >500kΩ |
|
DX - F2106 True bipolar |
±2500mA | 10μA (1/250,000) | ±(0.015% set value +50μA) | 70μA (Bandwidth 300kHz) | 0 - 21V | 50W | >100MΩ |
|
DX - F2130 True bipolar |
±10A | 10μA (1/1,000,000) | ±(0.05% set value +2mA) | 1mA (Bandwidth 300kHz | 0 - 60V | 600W | >1MΩ |
User's Manual Download
DXF2030 Current Source(.PDF 163KB)
You may also like
The precision current source is a wide spectrum, high-precision DC steady-current power supply, which has the advantages of fast response, high precision constant current, long-term stable operation, and is suitable for various types of loads (resistive, inductive, capacitive).
