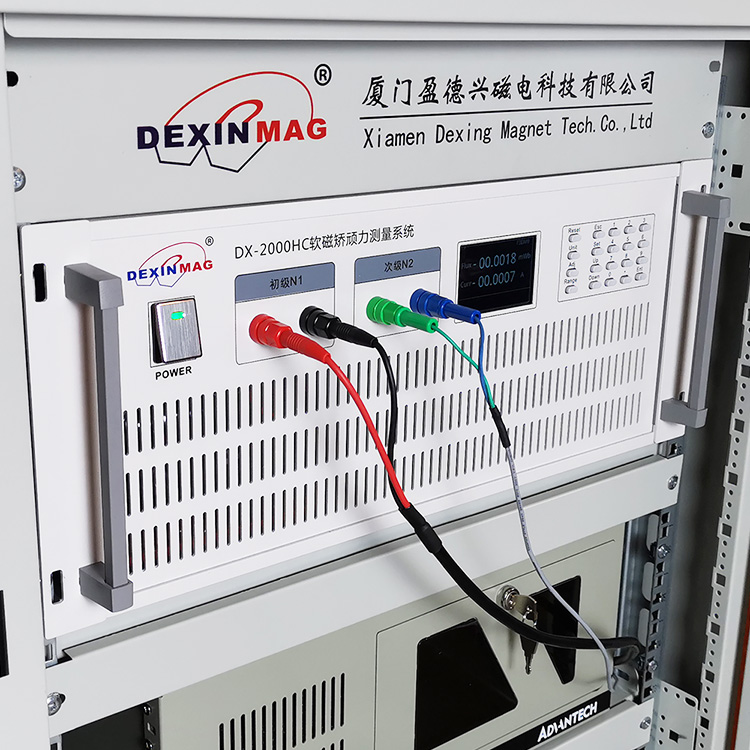

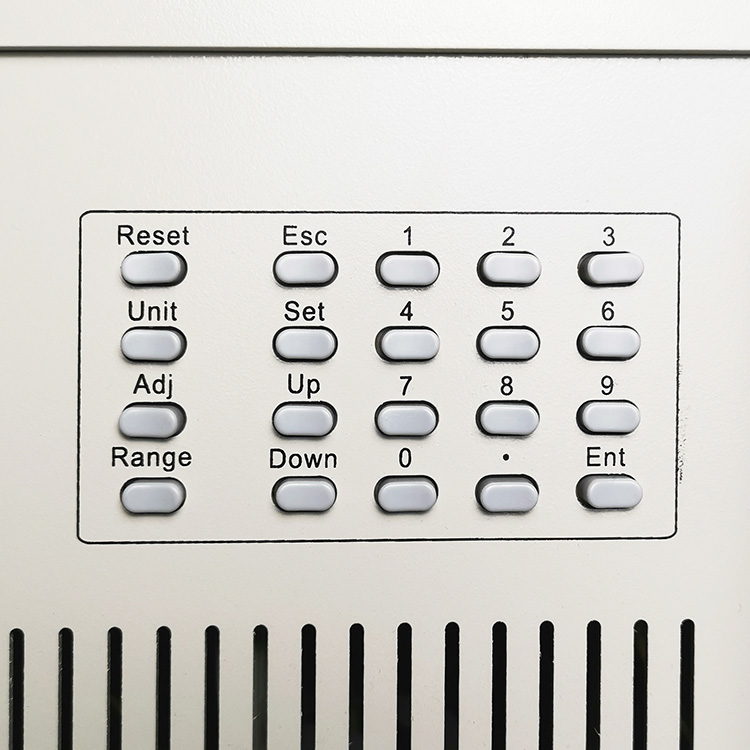

Economical Soft Magnetic Coercivity Measurement System
The product complies with the provisions of Chinese national standard GB3657-83, industry standard SJ/T13888-2009, and international standard IEC60404-7. According to the measurement principle of the impact method, the computer control technology is combined with A/D and D/A, and the electronic integrator is used to replace the traditional impact Galvanometer. The analog impact method measurement under the microcomputer control can not only completely eliminate the nontransient error caused by the use of impact Galvanometer in the classical impact method, but also has high measurement accuracy, fast speed, good repeatability, and can eliminate the impact of various human factors, To provide a reliable basis for studying the mechanism of material magnetization process.
Product Features
1. Types of test samples: soft magnetic ferrite, permalloy, amorphous, nanocrystalline, iron powder core, electrical pure iron, and silicon steel sheet.
2. The shape of the test sample: open circuit samples such as bar (rod) shaped, sheet shaped, L-shaped, and U-shaped.
3. Direct measurement is carried out through an open circuit solenoid and measuring equipment: the sample, magnetization coil (N1), and measuring coil (N2) together form a measurement system.
4. By measuring the magnetization current to measure the magnetic field strength, the magnetic field locking accuracy can reach up to 0.1%.
5. The electronic integrator is used to measure the Magnetic flux density, which is different from the existing manual zero clearing and stability adjustment in the market. The zero clearing and stability adjustment of this electronic integrator are fully automatically adjusted by software, and the whole test process does not require manual participation.
6. A solenoid is required for measuring open circuit samples.
7. Test method: Simulated impact method.
8. The basic magnetization curve can be measured by the simulated impact method, which can accurately measure the magnetic characteristic parameter: Coercivity Hc value.
9. Before testing, the measurement system will automatically zero.
10. The software has powerful functions and extremely low technical requirements for testers.
Technical parameters
|
Items |
350VA |
500VA |
1000VA |
|
Input power |
AC 200~240V 50/60Hz 10A |
||
|
Display mode |
TFT true color LCD screen with six position display |
||
|
Dimension |
510mmx490mmx230mm |
||
|
Weight |
30kg |
35kg |
40kg |
|
Application environment |
Environmental temperature: 23 ± 15 ℃; Environmental humidity: 20-80% RH |
||
|
External magnetic field interference |
Avoid |
||
|
Thermal equilibrium time |
10 minutes |
||
|
Max.output power |
350VA |
500VA |
1000VA |
|
Max.output voltage |
±35V |
±50V |
±50V |
|
Max.output current |
10A |
10A |
20A |
|
Magnetization fixture |
Solenoids, magnetometers, Epstein coils |
||
|
Current stability |
Better than 0.05%, 16 gears fully automatic range |
||
|
Current fineness |
<0.003% * Current range |
||
|
Flux range |
2. 4, 10, 20mWb, four gears fully automatic range |
||
|
Fluxmeter sensitivity |
zero point zero five μ Wb (impact method); zero point one μ Wb (magnetic field scanning method) |
||
|
A/D conversion |
24Bit, 24 bit high-precision data acquisition |
||
|
A/D conversion fineness |
Better than 0.0001%RG |
||
|
D/A conversion |
16Bit, 2-channel independent output |
||
|
D/A conversion fineness |
Better than 0.003%RG |
||
|
Test software |
Support Windows XP, Windows 7 32/64 bit, and Windows 1032/64 bit The measurement data is saved in text format on the hard drive and can be viewed at any time using office software (any version of Excel, Word, or Notepad can view this data file) |
||
Technical indicators
When measuring pure iron bar samples according to the national standard GB/T13888-2009, the technical indicators are as follows:
|
Tested parameters |
Hc(A/m） |
|
Uncertainty (k=2) |
2%±2A/m |
|
Repeatability (constant temperature) |
1%±1A/m |
Testable samples
Software interface
