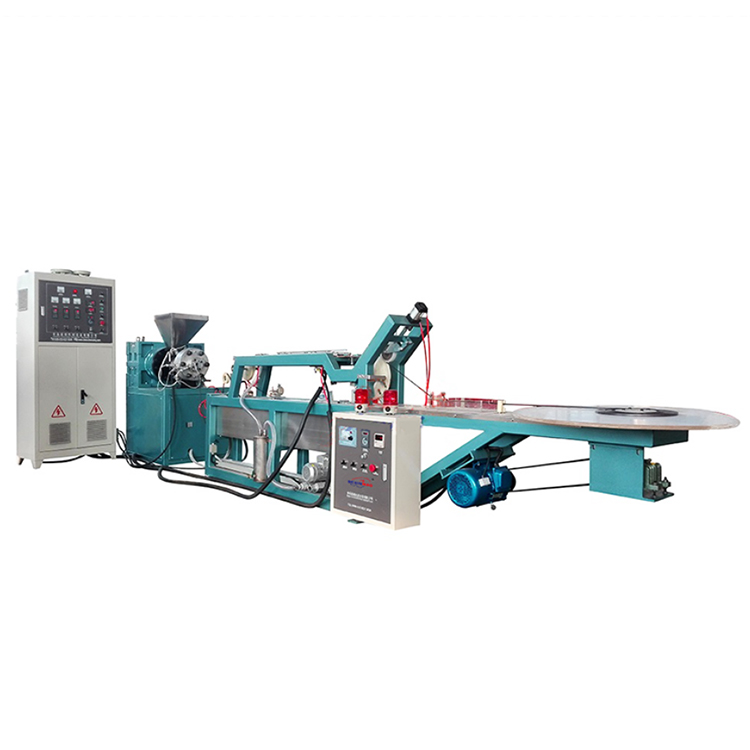

Magnetic Strip Extruder
Magnetic Strip Extruder
Features of Magnetic strip extrusion line
1. Good plasticization, low energy consumption, low noise, stable operation, large bearing capacity and long service life
2. The geometric parameters of the screw can be specially customized according to customer requirements. For different raw materials and different products, the screw uses different length-to-diameter ratios and structures to meet the needs of different customers.
3. The screw and barrel are made of new high-performance alloy steel, which has the advantages of corrosion resistance, wear resistance and high strength.
4. The heating section of the barrel has two structures: grooved section and smooth section to meet the needs of different raw materials.
5. The design of the whole machine is compact and reasonable, easy to maintain and easy to operate.
Technical parameters
|
1. Screw diameter: |
ø60mm |
|
2. Barrel material: |
Cr12 |
|
3. L/D: |
9 |
|
4. Compression ratio: |
1.39 |
|
5. Screw rotation speed: |
0-24r/min |
|
6. Extruder motor power: |
11kw |
|
7. Drawing motor power: |
0.75kw |
|
8. twisting motor power: |
0.55kw |
|
9. Heating power: |
2.9kw |
|
10. Cooling water volume: |
0.6m3/h |
|
11. Heating temperature controlling range: |
0-120℃ |
|
12. Installed gross capacity: |
25kw |
|
13. Magnetize capacitance: |
6000UF |
|
14. Voltage: |
500V |
|
15. Capability: |
10-12m/min |
|
16. Surface magnetic field intensity: |
same pole: 720---850 GS, different pole: 1300---1500 GS |
|
17. Weight: |
about 3000kg |
