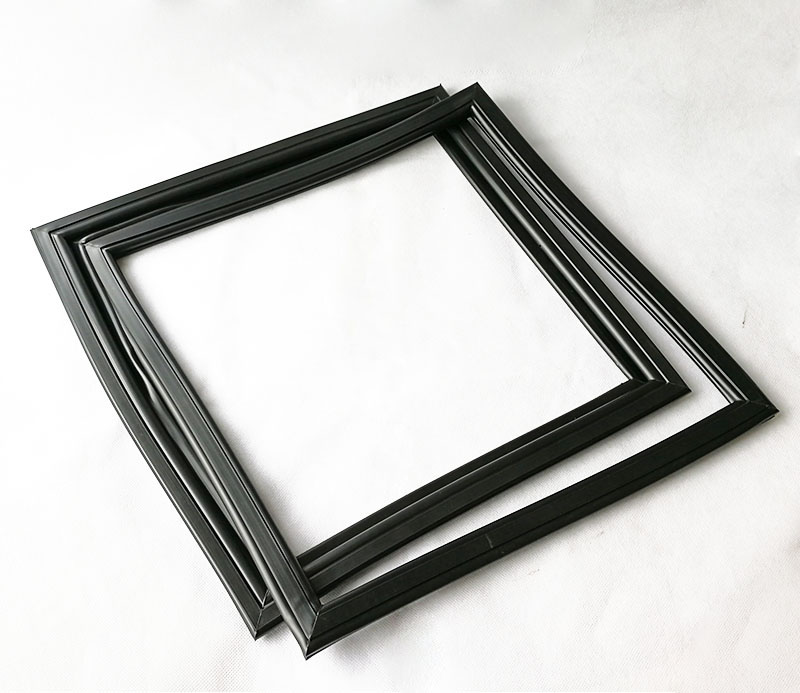

Refrigerator Door Gasket
The sealing function of the refrigerator door gasket seal is the key to the refrigerator's energy-saving efficiency and determines the life of the refrigerator air compressor to a great extent. Our R&D team has the capabilities to adjust the gasket properties through formula change and modify the cross-section design through FEA analysis of contact shape deform, press recovery, etc. to ensure maximum sealing function.

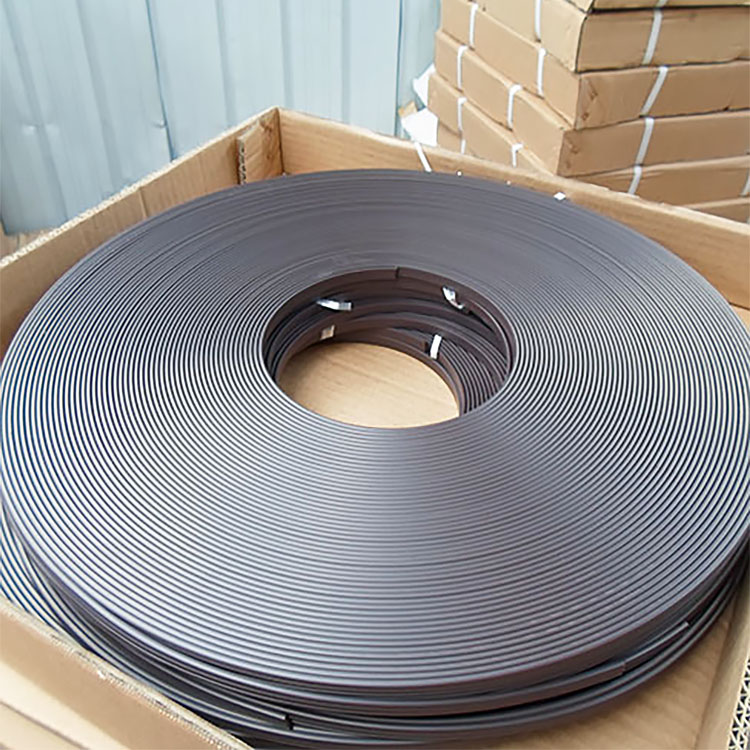

We have over 300 kinds of profiles for magnetic door gaskets. Our accumulated technology and know-how in this special field can add great value to refrigerator makers. The gaskets made of soft PVC granules can also have a wide application in the wood, architecture, and metal industries as elements for sealing doors and windows. Flexible PVC with magnetic strip inserts provides energy-efficient seals without door latches. These gaskets are NSF-approved. Standard colors include light gray, black and white. PVC temperature range is -20°F brittle point to +150°F melt point.
Profiles of the refrigerator door gasket seals
Features of Magnetic refrigerator door gasket:
1. Stable performance
2. Demagnetization-resistant
3. Low-temperature and high-temperature resistant
4. Corruption-resistant and aging-resistant.
Technical requirements to PVC compound used for refrigerating appliances
|
Value/item |
Hard |
Stretch Strength |
Crack Elongation rate |
Plasticiser Migration |
Cold and Heat-resistant |
Mildew |
Appeal |
Welding |
Scope |
|---|---|---|---|---|---|---|---|---|---|
| Low-temperature door gasket | 70±3 Hs(A) |
≥8.6MPa | ≥250％ | ≤0.3％ | -20℃-70℃ | Less Than Grade | Slippy and No Burr |
≥70N | Door Gasket for Refrigeration Ice-cabinet and water fountain |
| High-temperature door gasket | 70-85 Hs(A) |
≥10MPa | ≥200％ |
-15℃-150℃ |
Slippy and No Burr |
≥70N | Door Gasket Fordisinfector and Cabinet |
Technical requirements to PVC compound used for refrigerating appliances
|
Parameter |
Unit of measurement |
Value |
|
Specific gravity
|
g/cm3 |
1,4-1,42 |
|
Breaking strength, not less |
MPa |
10 |
|
Elongation, not less |
% |
250 |
|
Shore A hardness, (3+1) s |
Standard unit |
77±3 |
|
Plasticizer migration at polystyrene within 7 days at temperature 70°С |
% |
<1,0 |
|
Brittle temperature, not more |
°С |
-30 |
|
Light fastness to UV, IR radiation within 50 hours. |
|
Insignificant color changes without losses of plasticizer |
|
Possibility of welding |
|
Welding is possible |
|
Color |
|
RAL9003 or bluish white |
|
Stabilization |
|
Absence of heavy metals (lead, barium, cadmium) |
|
Odor |
|
Insignificant |

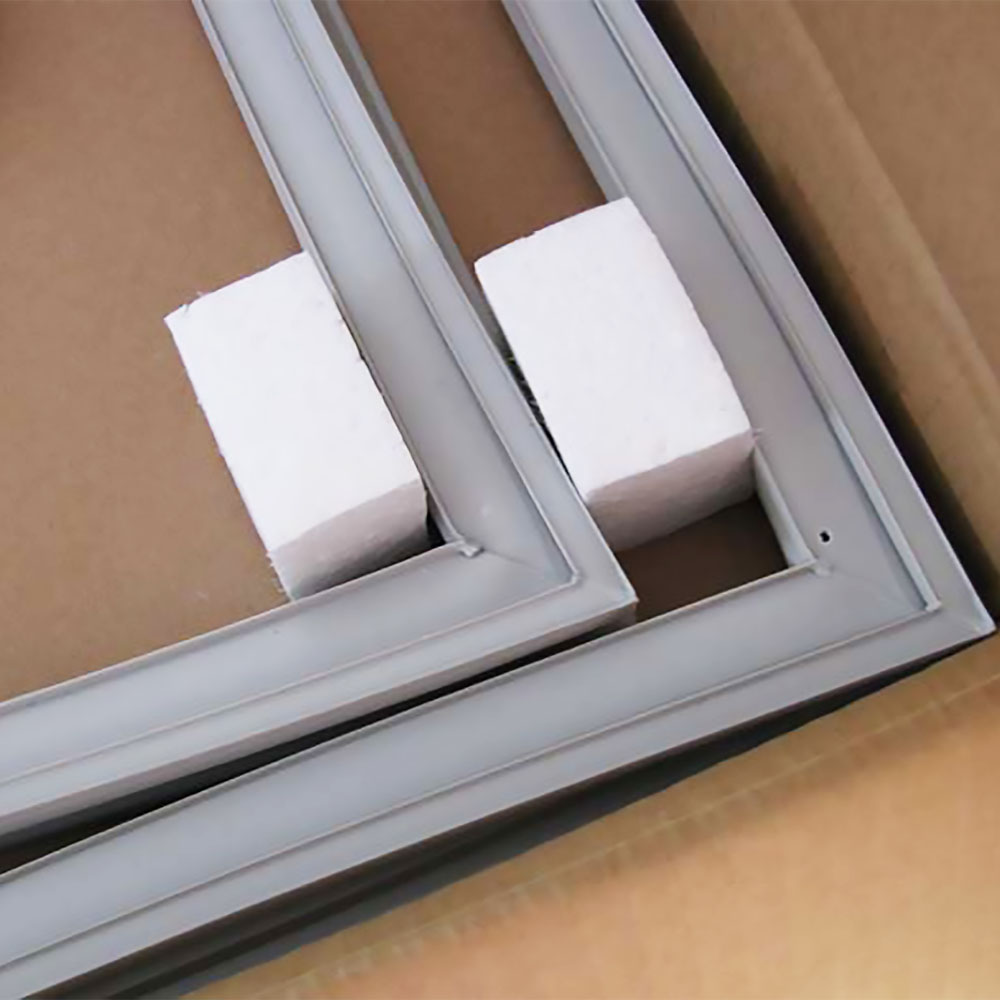

We will fabricate complete three-or four-sided magnetic gasket assemblies to the exact dimensions of your door. Corners of assemblies are mitered and heat-sealed with precision splicing fixtures for air-tight fit. Back-up magnets are available for non-magnetic door frames. Mounting hole slots can be punched in screw-on gaskets. Screw-on and glue-on gaskets are typically measured to the outside dimensions of the gasket. Snap-on gaskets are measured to the center line/arrowhead of the gasket.
Our die shop will produce a custom die for your particular needs and our engineers will help you design your magnetic gasket. We can extrude flexible, semi-rigid, rigid and dual durometer profiles in PVC. Fax us a sketch for a quick response.
A mold of refrigerator door gasket
