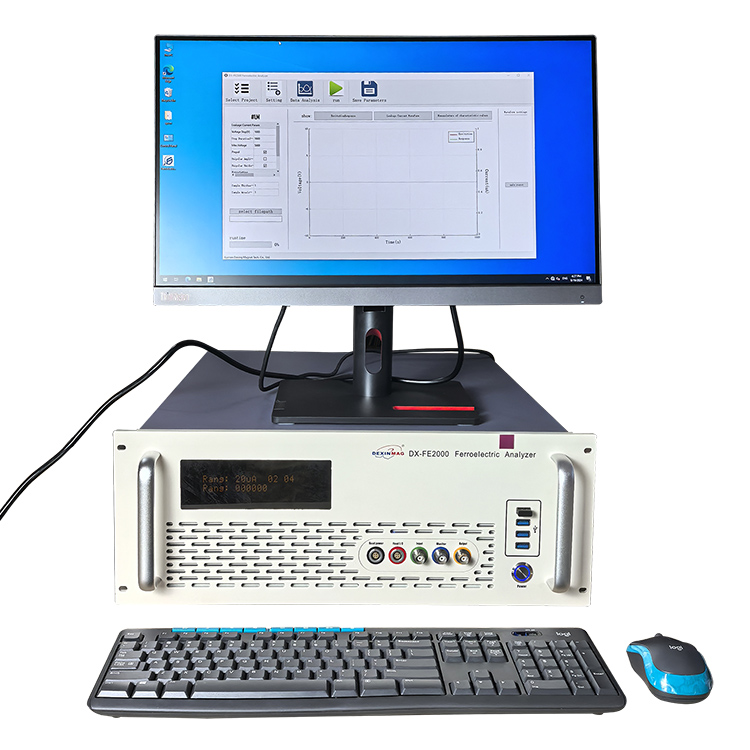

Ferroelectric Test System
Many engineers of Dexinmag Company have developed the Ferroelectric Analyzer for many years based on drawing lessons from the most advanced test methods in the world. It has more powerful test functions, the maximum test frequency of the equipment can reach 1MHz, and a high-speed sampling speed of 40M Spend. Some technical indicators exceed imported instruments, which is a real domestic independent innovation. At the same time, the measurement functions of the dielectric spectrum, electric card test, TSDC, resistance and other measurement functions have also been added. It can perform continuous and high-speed measurements under different measurement conditions and measurement modes, and only one Dexinmag ferroelectric instrument can replace the measurement functions of many instruments for functional material testing!
 |
 |

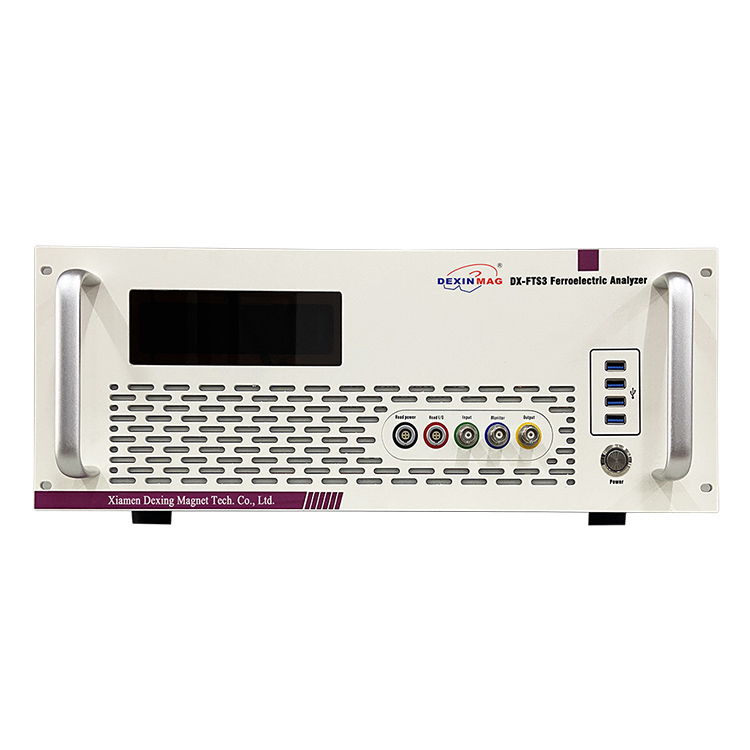

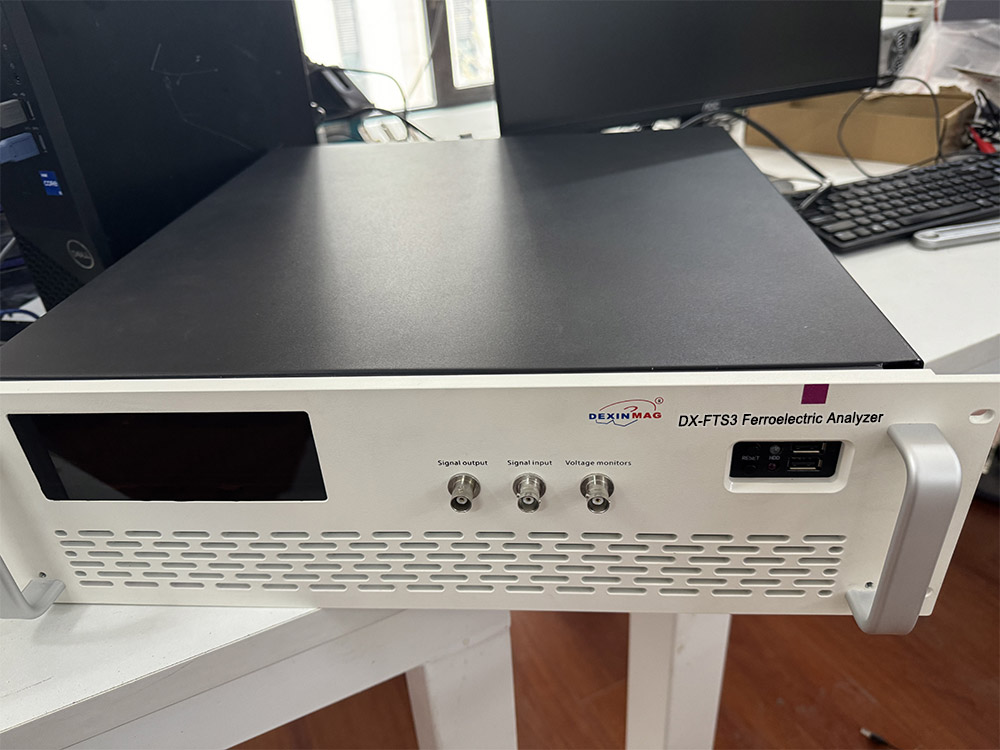

| DX-FTS2 standard type | DX-FTS3 Extended Type |
Measuring Functions:
DHM Dynamic Hysteresis Loop Measurement
CVM CV Measurement
LM Leakage Current Measurement
FM Fatigue Measurement
PM Pulse Measurement
PYM Pyroelectric Measurement
DTS Dielectric Thermometry Measurement
RT Resistance Measurement
PZM Piezoelectric Measurement
CHM Static Hysteresis Loop Measurement
IM Blot Measurement
RM Retention Measurement
BDM breakdown test
TSDC thermally stimulated current measurement
ECM electric card test
POM oil bath polarization
Technical Parameters
|
Measurement Parameters |
DEXINMAG |
|||
|
Built-in voltage (can be connected to an external high-voltage amplifier) |
±10V （Different types of amplifiers can be connected externally) |
|||
|
External high-voltage amplifiers can be connected (up to 20KV high-voltage amplifiers can be connected with high-voltage protection modules) |
±20V, ±100V, ±200V, ±500V, 4KV, 10kV, 20KV | |||
|
ADC bits |
18 |
|||
|
Minimum Charge Resolution |
<10fC |
|||
|
Minimum Area Resolution |
<1μ2 |
|||
|
Maximum Charge Resolution |
276μC |
|||
|
Maximum Area Resolution |
2.76cm2 |
|||
|
Maximum Charge Resolution |
27.6mC |
|||
|
Maximum Area Resolution |
>100cm2 |
|||
|
Maximum hysteresis loop test frequency (all indicators are better than imported equipment) |
500KHz @10V 500KHz @20V 500KHz @100V 500KHz @200V 500KHz @400V |
|||
|
Minimum Test Frequency |
0.03Hz |
|||
|
Minimum pulse width (this index is better than imported equipment) |
0.5us |
|||
|
Minimum pulse rise time (5V) (this index is better than imported equipment) |
400ns |
|||
|
Maximum pulse width |
1s |
|||
|
Maximum delay time between pulses |
40ks |
|||
|
Internal Clock |
25ns |
|||
|
Minimum Leakage Current (assuming max current integration period = 20 seconds) |
<1pA |
|||
|
Maximum small signal upper limit frequency (this index is better than imported equipment) |
500KHz |
|||
|
Minimum small signal upper limit frequency (this index is better than imported equipment) |
1MHz |
|||
|
Output Rise Time Control |
103 scaling |
|||
|
Input Capacitance |
~60fF |
|||
|
Impedance input |
Yes |
|||
Measurement Curve ( Part)
Instrument Configuration
Dexinmag FTS series ferroelectric test system is the most advanced equipment in the market, with a wide frequency response range and wide test voltage range, and its high test accuracy capability is second to none in the field of ferroelectric testing in the world. Under the built-in voltage of ±10V, the hysteresis loop test frequency can be as high as 500KHz; (the test index of this instrument has exceeded the imported equipment. For the extended high-voltage amplifier, the maximum test frequency of the hysteresis loop is related to the frequency of the external amplifier.) This system includes Dexinmag basic ferroelectric management test software. In addition, the voltage can be extended externally to 4kV, 10kV, and 20kV. The Dexinmag host can perform hysteresis loop, pulse, leakage current, IV, CV, and breakdown tests without changing the sample connection, and can also be loaded with options to achieve Piezoelectric, pyroelectric, TSDC and electric card, impedance analysis, resistance measurement and other characteristic test functions. Built-in complete dedicated industrial computer host, test circuit, operational amplifier, data processing unit, etc., including dedicated industrial computer motherboard, CPU (i5 or higher), RAM (8G or greater), solid state hard drive (250G or greater), network card, USB interface, DVD drive, VGA interface, pre-installed Windows 7 operating system, special test software for ferroelectric analyzer, etc.
Calibration and extension
Calibration Module: Each instrument is equipped with high-precision resistance and capacitance test modules. It can realize the self-calibration of the instrument and make the test data more accurate!

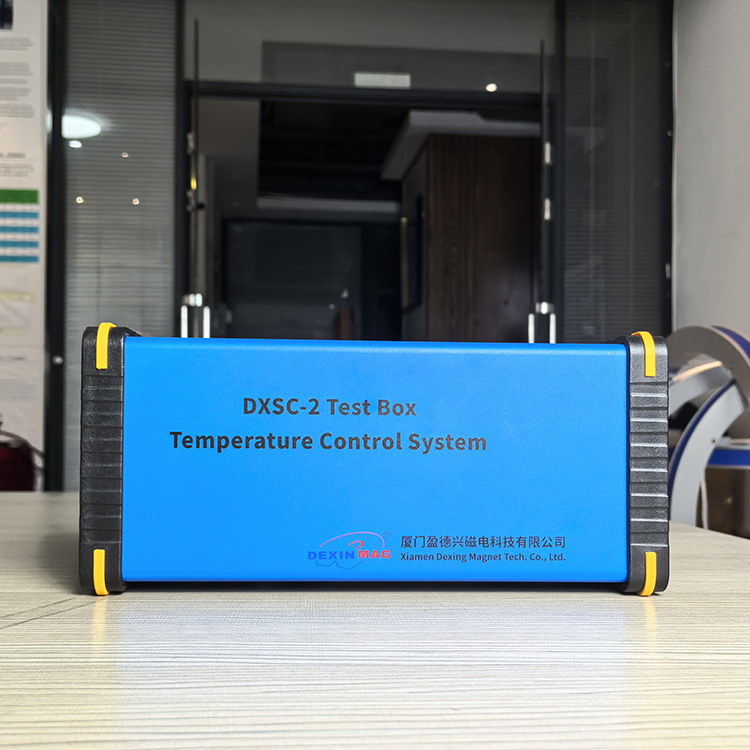

Device expansion: High and low-temperature hot and cold tables, high-temperature test equipment, probe stations, high voltage amplifiers, high resistance meters, impedance analyzers, laser interferometer temperature control controllers, digital source meters, etc.
Expandable parts:
 |
|||

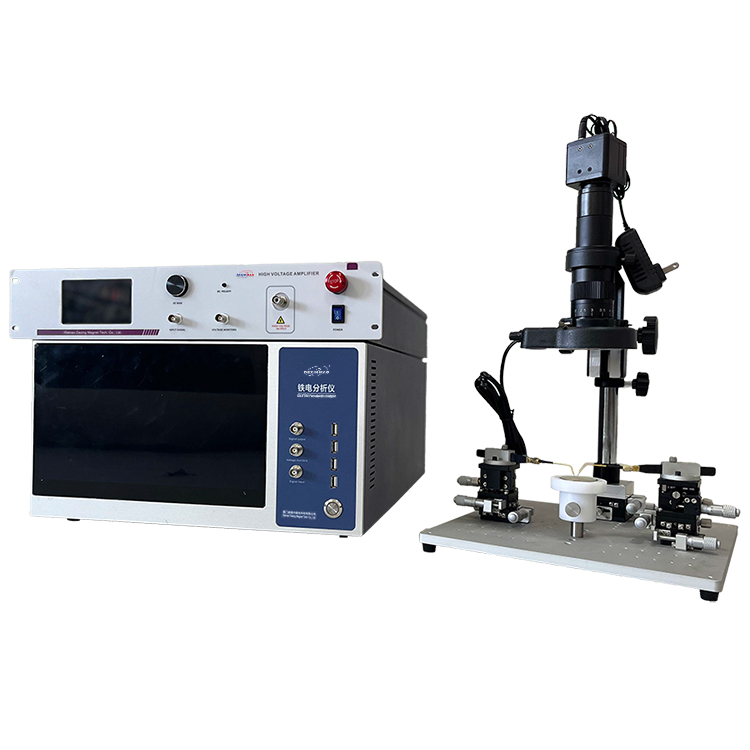

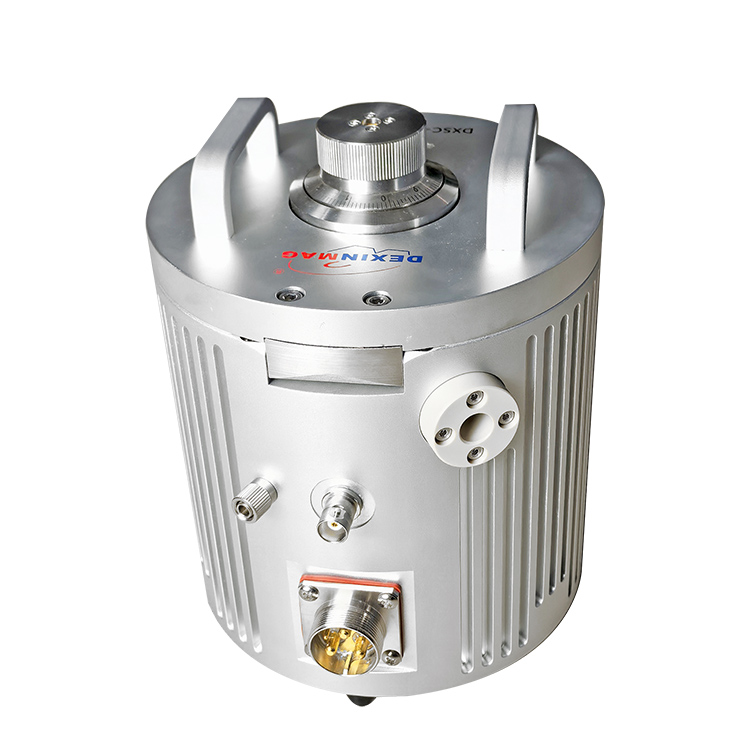

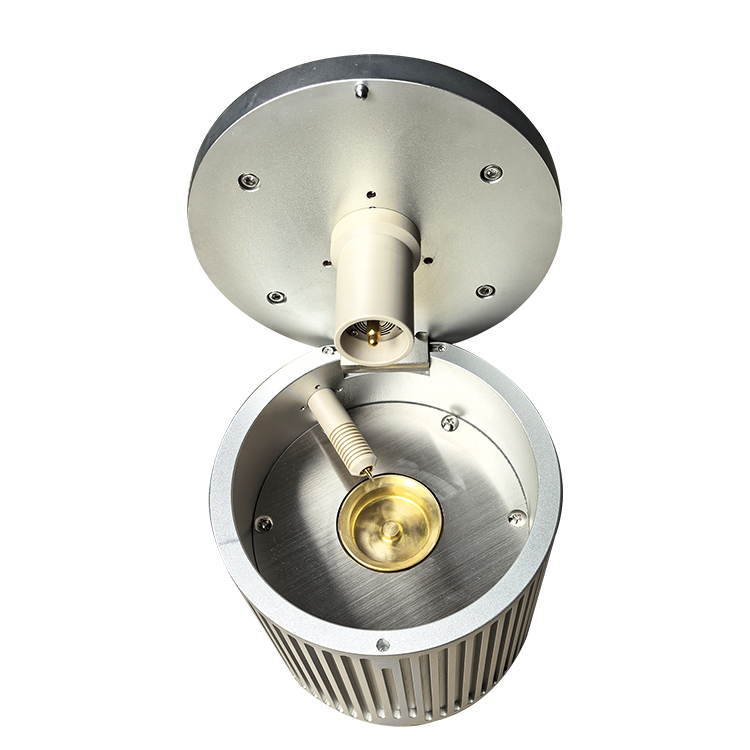

| Block test fixture For thick film, bulk ferroelectric, breakdown testing |
Thin film four-probe probe station (room temperature to 200℃) Can be used for thick film ferroelectric, piezoelectric (e31), and pyroelectric testing. |
Thin film wide temperature zone probe hot and cold stage (-196℃ to +600℃) It can be used for ferroelectric and pyroelectric testing of thin films and thick films with variable temperature. |
Thin film probe station (Room temperature ferroelectric test) Can be used for room-temperature ferroelectric property testing of thin films and thick films. |
High voltage amplifier options for bulk materials testing:
 |
||
| DXAM-10KV Voltage Range: ±10kV Current Range: 0-20mA Maximum Frequency: 5KHz |
Trek 609E-6 Voltage range: ±4kV Current range: 0-20mA Frequency max: 6000Hz |
Trek 610E Voltage range: ±10kV Current range: 0-2mA Frequency max: 600Hz |
Piezoelectric testing of thick film and bulk materials (butterfly curve and d33) laser interferometer options:
SIOS laser interferometer single-channel optical probe
Resolution min: 0.3nm
Deformation test range: 100nm-2579.50μm

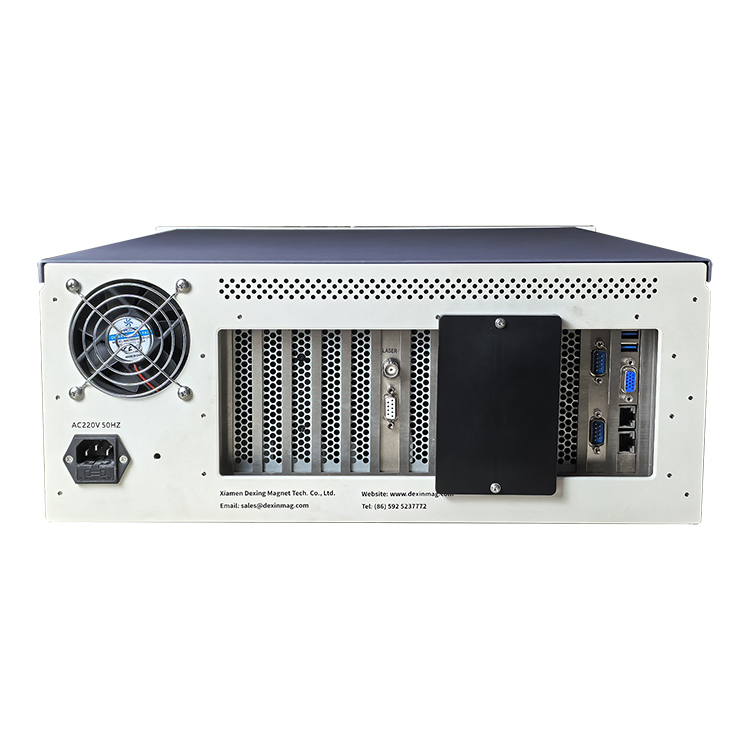

Interface
| USB Host Port | Universal Serial Bus receptacle, Type A configuration; female; accepts a mouse, keyboard, printer, or USB flash drive. |
| USB (USBTMC) Interface Port | Universal Serial Bus receptacle, Type B configuration (4 direct plug-in ports); female; connectable to an external PC; compatible with USBTMC-USB488 and USB 2.0.LA Test and Measurement Class (TMC) interfaces supporting USB interface communications; IEEE 488.1 and IEEE 488.2 standards. |
| LAN | 10/100/1000 Base T Ethernet, 8-pin configuration; supports automatic selection between two data rates |
| Video Output | 15-pin mini D-Sub connector; female; can drive VGA-compatible monitors |
Analyzer Environmental Indicators
Measuring Circuit Protection
Breakdown protection max.
Measurement circuit withstand voltage max value: 25kV
Note: When testing an external TREK high-voltage amplifier, please refer to the high-voltage protection module produced by Dexinmag to protect the TPEK high-voltage amplifier from breakdown.
Working Environment
| Temperature | +5°Cto +40°C |
| Humidity | Wet bulb temperature < +29°C: 20% to 80% (non-condensing) |
| Altitude | 0 to 2,000 meters (0 to 6561 feet) |
| Vibration | 0.21GrmsMax Vibration imum, 5Hz to 500Hz |
Non-working Environment
| Temperature | -10°Cto+60°C |
| Humidity | Wet bulb temperature < +40°C: 20% to 90% (non-condensing) |
| Altitude | 0 to 4,572 meters (0 to 15,000 feet ) |
| Vibration | 2.09GrmsMax imum, 5Hz to 500Hz |
