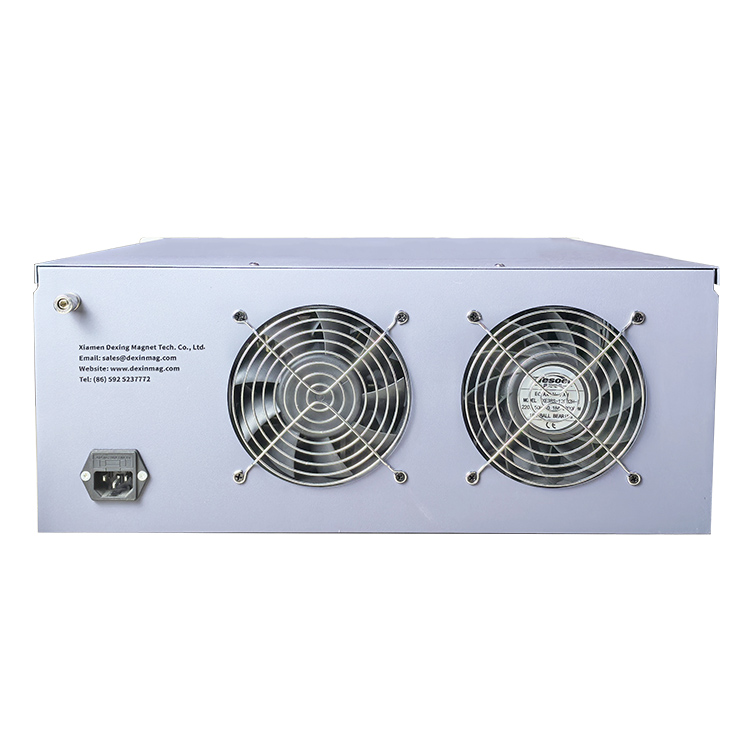

High Voltage Power Amplifier
Power amplifiers can be used with mainstream signal generators to amplify signals and are widely used in fields such as MEMS testing, ultrasonic testing, electromagnetic field driving, wireless power transmission, and college electronic experimental testing.
Working principle of high voltage amplifier

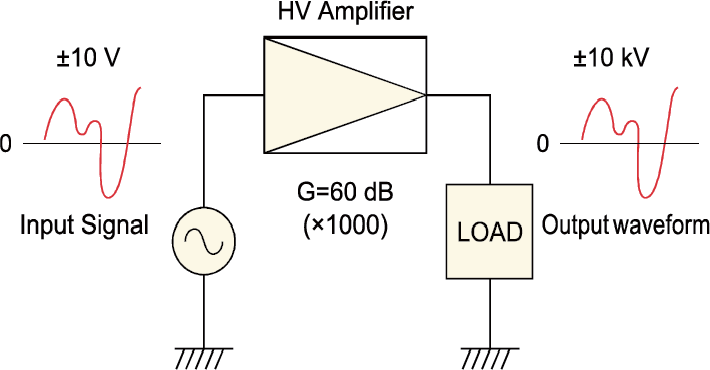

As shown in the figure above, the high-voltage amplifier converts the input voltage into high voltage and outputs the waveform.
Currently, the demand for high voltage amplifiers is getting bigger and bigger and now it has become a very important tool in research and developing, testing, and integrating a system for fields such as electronics, physics, biology, chemistry, medicine and other industries. Dexinmag produces various high-voltage amplifiers to meet customers' requirements for functional material testing.
Features
- Four-quadrant output is used to drive capacitive loads;
- Closed-loop circuit system achieves high accuracy;
- The short circuit protection function is used for equipment protection;
- Output stable for programmable power supply applications;
- Low output noise ensures ultra-high precision output;
Parameters
| Model | DXAM-4KV | DXAM-10KV |
| Output voltage range | 0 - ±4KV DC or peak AC | 0 - ±10 kV DC or peak AC |
| Output current range | 0 - ±10mA DC or peak AC | 0 - ±40 mA DC or peak AC |
| Input voltage range | 0 - ±10V DC or peak AC | |
| Input resistance | 25kΩ | |
| DC voltage gain | 400 V/V | 1000 V/V |
| DC voltage gain accuracy | Better than 0.2% of full scale | |
| DC offset voltage | Below ±1V | Below ±2V |
| Output noise | Less than 30mV rms | Less than 40mV rms |
| Conversion rate (10% to 90%) | Better than 1000 V/μs | Better than 750 V/μs |
| Small signal bandwidth (-3dB) | DC better than 10 KHz | |
| Large signal bandwidth (-3dB) | DC better than 20 KHz | DC better than 5 kHz |
| Whether it can be DC biased | yes | |
| Internal capacitor | 300 pF (high voltage output) | |
| Automatic power limit | The output can be limited to protect the machine when overloaded | |
| Stability | Drift over time: Less than 100ppm/hr, non-cumulative | |
| Drift with temperature: less than 120ppm/℃ | ||
| Voltage monitoring | ||
| Ratio | 1V/400V | 1V/1000V |
| Noise | Less than 20 mV rms | |
| Voltage accuracy | Better than 0.5% of full scale | |
| Current monitoring | ||
| Ratio | 1V/4mA | 1 V/2mA |
| Noise | 10Vrms | 12 V rms |
| DC accuracy | Better than 2% of full scale | |
| Equipment size and weight | ||
| Width, height and depth | 400x210x450mm | 420 x 220 x 480 mm |
| Weight | 12kg | 16kg |
| High voltage output interface | MHV coaxial connector | High voltage connector |
| Power supply requirements | ||
| The output voltage | AC：220V 50/60 Hz | |

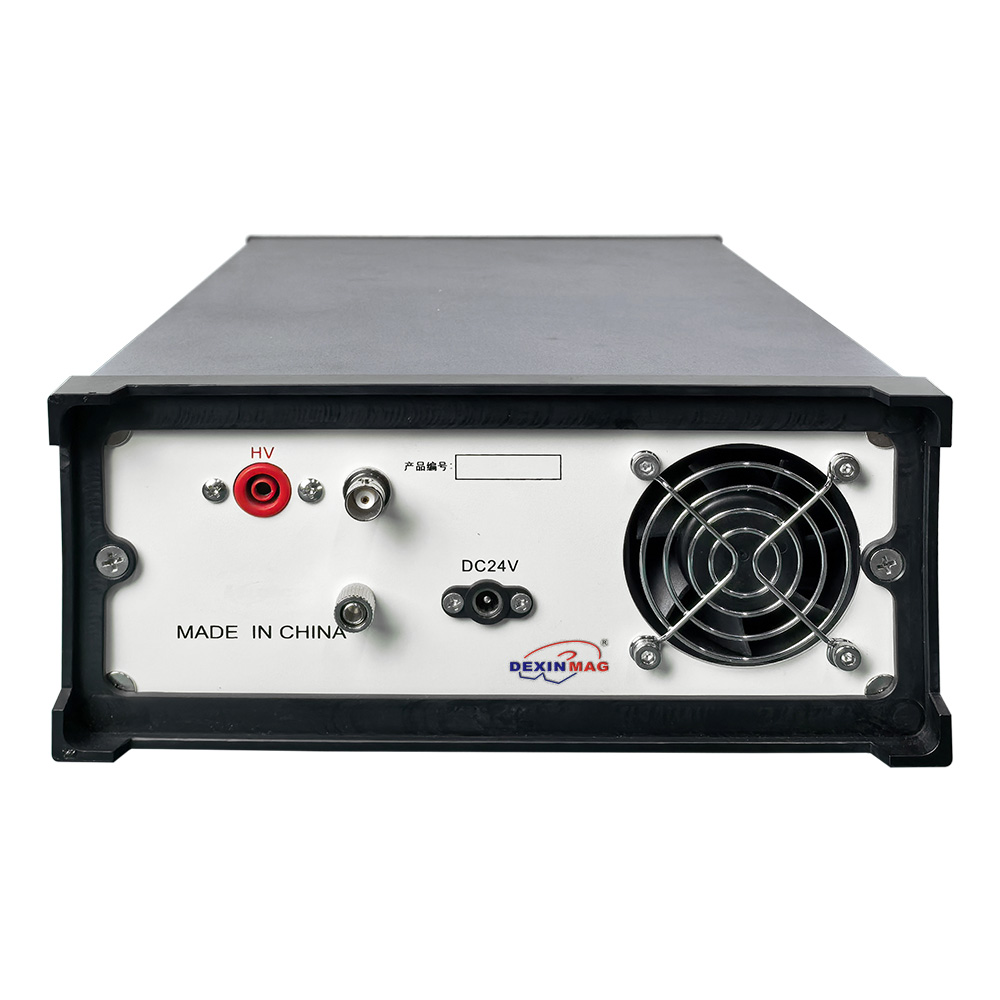

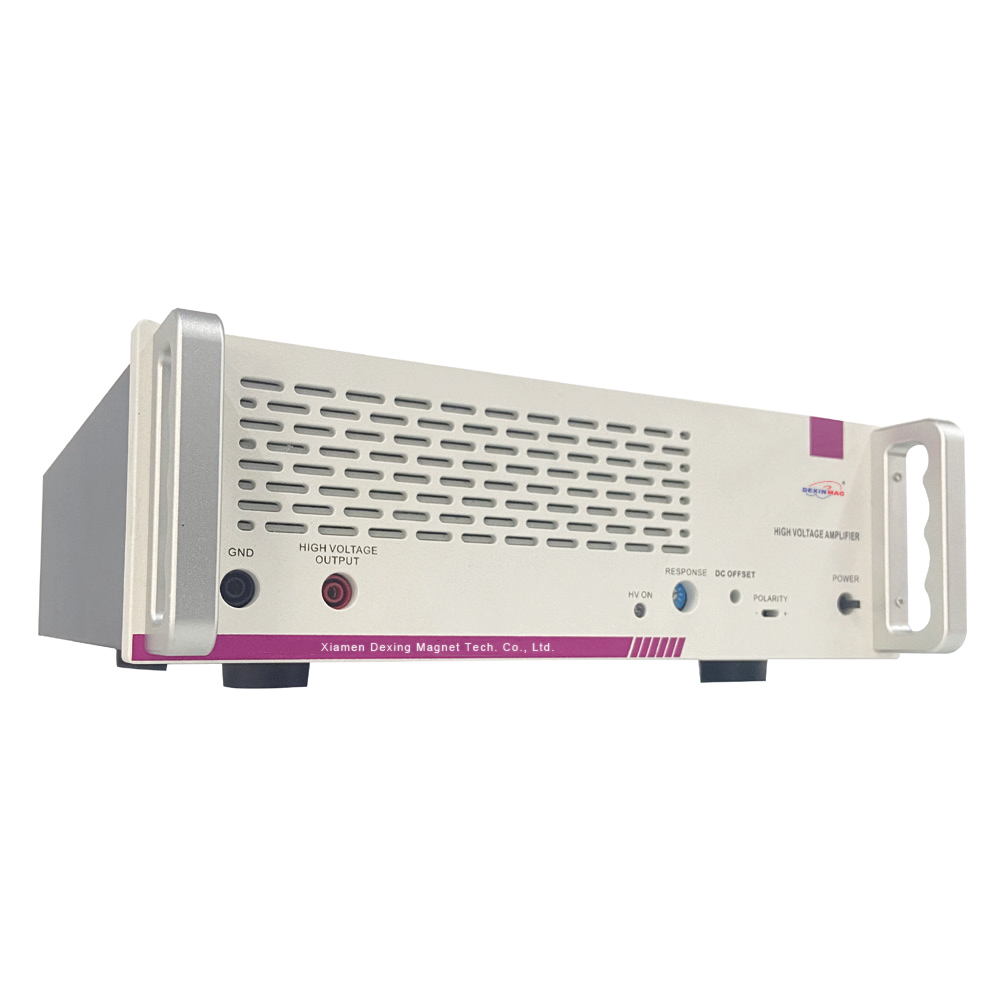

Product description of DX series high-voltage power amplifier
 |

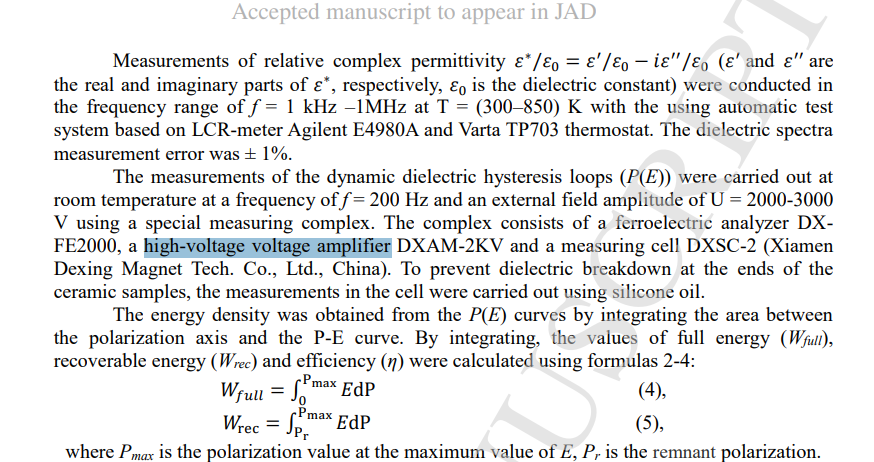

The DXAM-2KV series is an ideal high-voltage amplifier that can amplify AC and DC signals. Differential output max: 1600Vp-p (±800Vp) high voltage, can drive high-voltage loads. The voltage gain is digitally adjustable, and frequently used settings can be saved with one click, providing you with convenient and simple operation options. At the same time, the dual-channel high-voltage amplifier output can also be adjusted synchronously, and can be used with mainstream signal generators to achieve signal amplification. |
 |

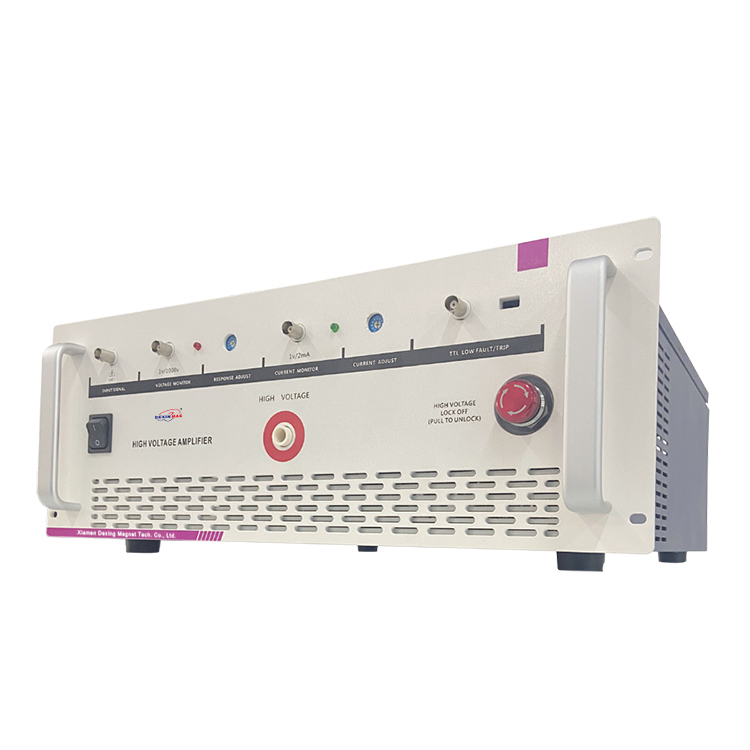

The DXAM-4KV series is an ideal high-voltage power amplifier that can amplify AC and DC signals. The maximum output voltage is 310Vp-p (±155Vp) and the power is 452Wp, which can drive high-voltage power loads. Voltage gain and DC bias are finely adjustable by numerical control, providing customers with a wealth of testing options. |
 |

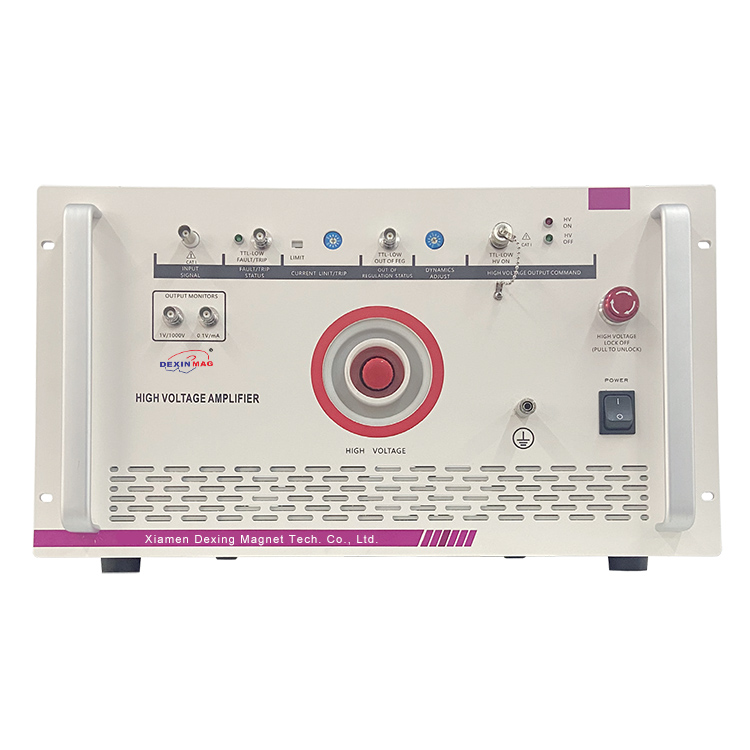

The DXAM-10KV series is an ideal high-voltage power amplifier that can amplify AC and DC signals. The maximum output voltage is 310Vp-p (±155Vp) and the power is 452Wp, which can drive high-voltage power loads. Voltage gain and DC bias are finely adjustable by numerical control, providing customers with a wealth of testing options. |
