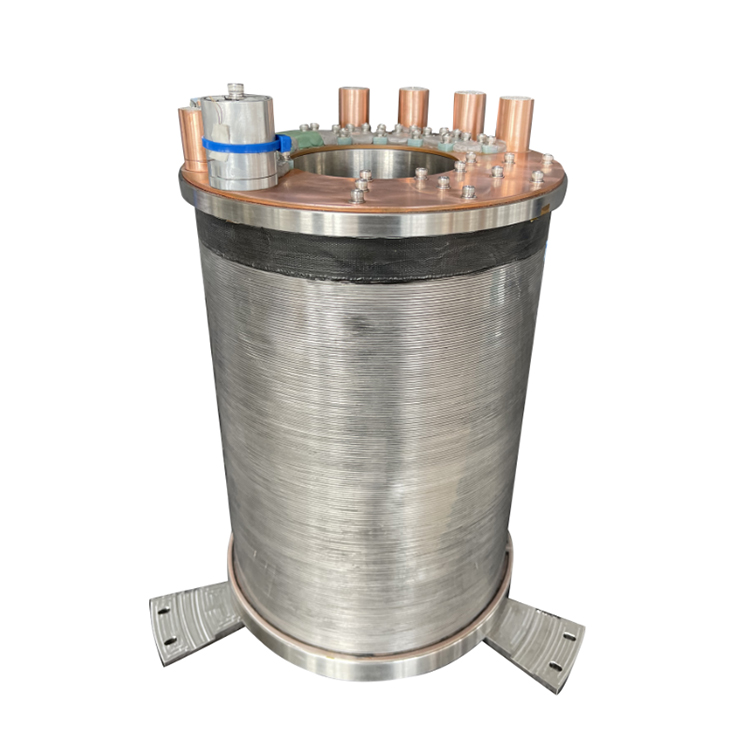

Solenoid Superconducting Magnet
Features:
• We can provide you with dry (liquid helium-free) or wet (liquid helium immersed) solenoid superconducting magnets;
• We can provide superconducting magnets with different cold hole diameters;
• We can provide continuous current working mode with superconducting switches;
• Fast field scanning;
• High magnetic field uniformity (spherical uniform area or columnar uniform area) and high magnetic field stability;
• We can provide superconducting magnets with low operating current;
• We can provide niobium titanium + niobium three tin composite superconducting magnets. If you need higher field strength, please contact us;
• Magnetic field strength, magnetic field uniformity, and cold hole diameter can be customized according to your requirements;
• Superconducting magnets are compatible with dilution refrigerators of various brands.
Parameters
| Magnetic field strength | 6T | 7T | 9T | 12T | 14T |
| Cooling method | Dry/Wet | Dry/Wet | Dry/Wet | Dry/Wet | Dry/Wet |
| Cold hole diameter | 54/78/90 | 54/78/90 | 54/78/90 | 54/78 | 54/65/78 |
| Magnetic field uniformity @10mmDSV | ±0.1% | ± 0.1% | ±0.1%，±10ppm | ±0.1% | ± 0.1% |
| Superconducting switch | Optional | Optional | Optional | Optional | Optional |
| Quench protection | Diode passive protection | Diode passive protection | Diode passive protection | Diode passive protection | Diode passive protection |
| HTS current lead | Optional | Optional | Optional | Optional | Optional |
