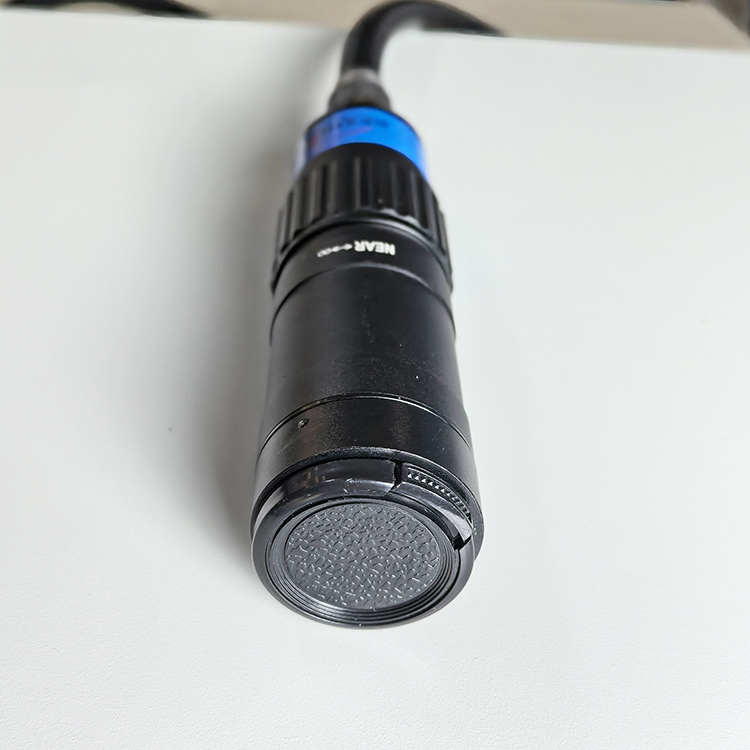

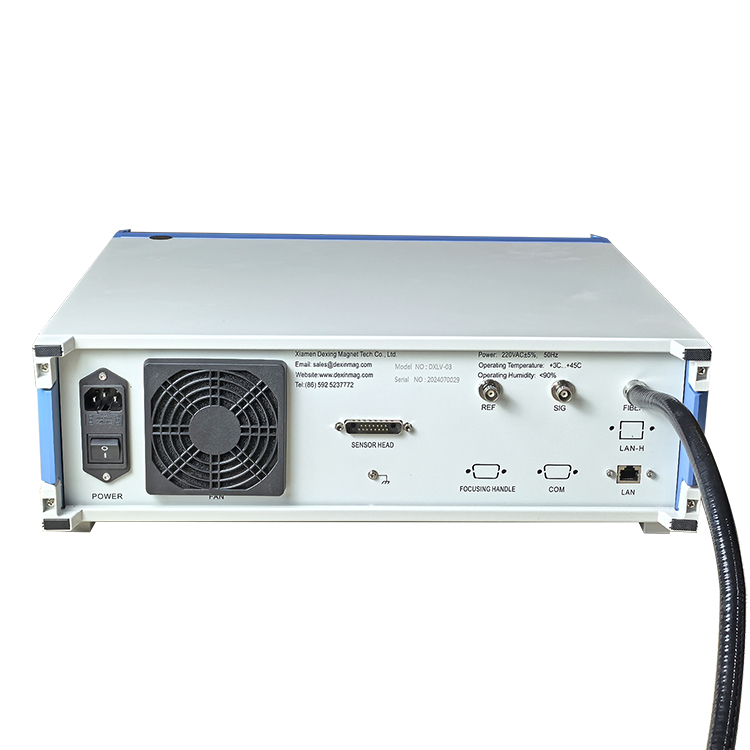

Laser Doppler Vibrometer
As we all know, the measurement and analysis of vibration characteristics is an important measurement method to identify and confirm the quality characteristics and working conditions of machines and components. Non-contact laser Doppler vibrometer technology based on the principle of laser interferometry has gradually become the most important vibration measurement method due to its better displacement and velocity measurement resolution, and has been widely used in basic science and engineering measurement fields.
Features:
- Non-contact measurement, high precision, high resolution;
- Miniaturization, integration, strong anti-interference ability;
- Not affected by ambient light and material color;
- Coaxial transmission and reception without measurement blind spots.
Parameters:
- Optoelectronic integrated chip technology;
- Sensor sampling rate 5MHZ;
- Displacement resolution 0.01 nm;
- Measurement laser wavelength 1310nm;
- Support measurement frequency range DC-2.5MHz;
- Vibration frequency accuracy 0.02%;
- Measure vibration 4.5m/s, high-speed version can reach 20m/s;
- ±5V analog output;
- The software can provide raw data interface and SDK for development and integration;
- Power supply voltage 12V, power consumption 4W;
- Abnormal light interference is greater than 60000lux.
Application case
 |

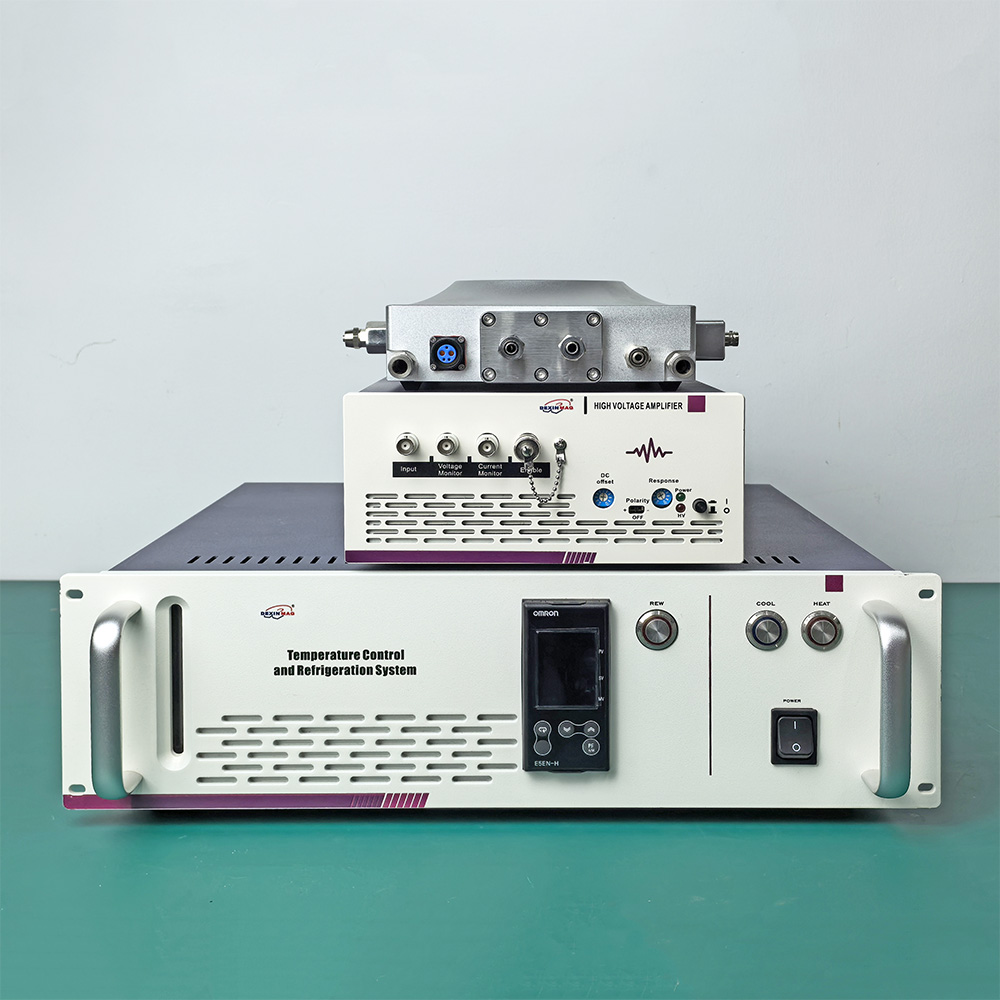

Laser vibrometer + variable temperature block test box
1. The adjustable stroke of the electrode is not less than 3mm, and the resolution is 0.01mm; |
 |
Laser vibrometer + high temperature block test box
1. The adjustable stroke of the electrode is not less than 3mm, and the resolution is 0.01mm; 2. The sample size is less than 30mm; 3. The test voltage of the sample box is not less than 10kV; 4. Heating temperature: RT~800℃; 5. Imported brand temperature controller is used; 6. It has over-temperature and over-current protection functions. |
 |
Laser vibrometer + high and low temperature test fixture
1. Suitable for strain measurement of devices and bulk materials; 2. Sample size is less than 40mm; 3. Sample box test voltage is not less than 2kV; 4. Heating temperature: -196℃ - 250℃; 5. Use imported brand temperature controller; 6. With over-temperature and over-current protection functions. |
 |
Laser Vibrometer + Thin Film Cantilever Beam Test Fixture
The laser vibrometer combined with the Thin Film Piezoelectric Test (E31) allows the measurement of the piezoelectric coefficients (E31, D31 and E33) of piezoelectric films deposited on the cantilever. Voltage applied to the piezoelectric film causes the substrate to bend in all directions. The displacement is measured by the laser test vibrometer at high speed. Measurements made with the Thin Film Piezoelectric Test Kit include (but are not limited to): E31, D31, D33, E33 and Thickness Displacement vs. Voltage. |
You may also like
DXSC-2 Test Box
Temperature Control System

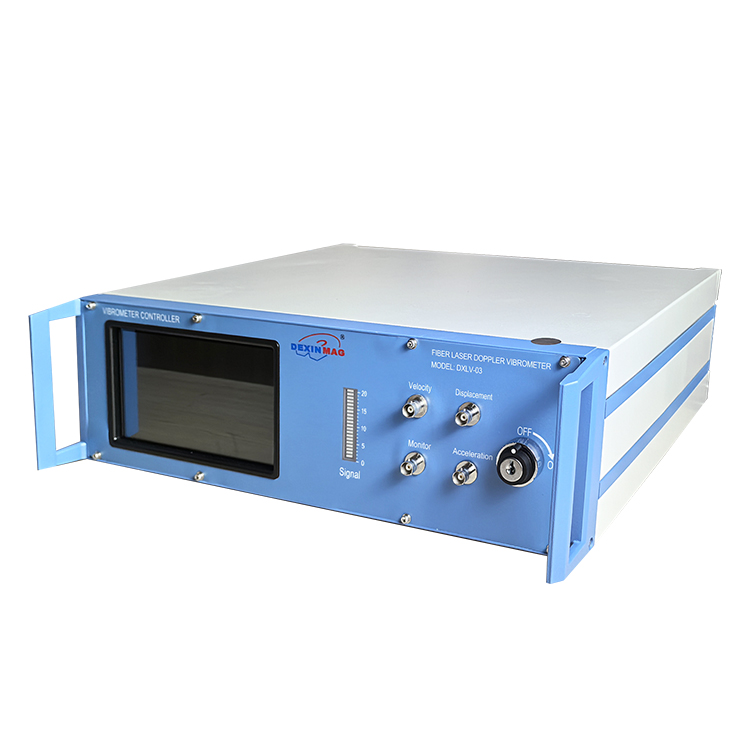

DXLV-03 Fiber Laser Doppler Vibrometer
