Pulse Magnetic Field Measurement System
System composition
1. DX-160 gauss meter
This instrument can measure and display 6 parameters simultaneously. Units of measure optional Gauss, Tesla, A / M or Oe. This instrument also provides an RS232 interface for communication with the PC. It is designed and manufactured in accordance with ISO-9001 standard. With the functions of bright VGA color graphics, full menu operation, 5 ¾-bit readings, and high-resolution 1 / 600000, it makes it convenient to observe 0.0001mT weak changes in the high magnetic field measurements. It is able to measure a maximum of 100KGs (10T). It has a large-capacity data storage and you can review the historical data according to storage time and it can upload data to a PC. Products are mainly sold to large institutes, universities and research departments of large factories.
| Model DX-160 | |||||
| Range | ±100KGs(10T) | ||||
| Range gear switching (Auto) |
0.6mT | 30mT | 300mT | 3T | 10T |
| DC Resolution | 0.01uT | 0.0001mT | 0.001mT | 0.01mT | 0.1mT |
| AC Resolution | 0.1Gs/10uT | ||||
| Accuracy (display value) | DC | ±0.20% of reading ± 0.05% of range(0-2T) | |||
| AC | ±1% of reading ± 0.5% of range | ||||
| Frequency | DC - 50KHz | ||||
| Analog Output | Output voltage | ±3V F.S. | |||
| Connectors | Standard BNC | ||||
| Temperature coefficient of probe | -(0.02% ±1 count)/ ºC | ||||
| Temperature compensation coefficient of probe | -(0.007% ±1 count)/ ºC | ||||
| Temperature range | Working temperature | 0ºC to 50ºC | |||
| Storage temperature | -20ºC to 60ºC | ||||
| Panel display | 320 x 240 pixel, 3.5-inch full view color screen | ||||
| Communication interface | RS-232 Standard 9-pin D-type connectors | ||||
| Supply power | Voltage: 200/240v Frequency: 50-60 Hz | ||||

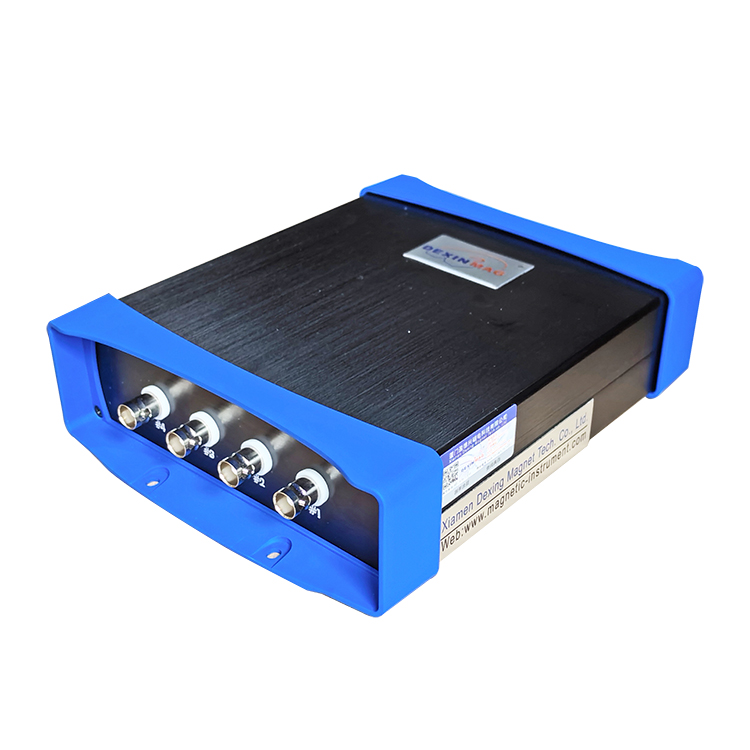

2. Signal collector
The network port data collector is one of the high-speed and high-precision network port data collectors produced by our company. Its advantages are: 24-bit A/D, high dynamic range, high precision; the highest sampling frequency is 50KHZ/per channel. The sampling frequency 1-50000HZ can be set arbitrarily and accurately, with a resolution of 1HZ, and the acquisition channel can be set arbitrarily. It supports various network transmission methods such as wired and wireless. It can collect and store data independently and automatically. It can also be equipped with a touch screen to form a field acquisition, mobile acquisition or handheld acquisition device. It can be widely used in scientific experiments and industrial control fields.
Optional synchronous clock interface, more channel applications can be applied in parallel with multiple units, and multiple synchronous acquisitions can be realized.
1. AD resolution: 24bit; accuracy: 0.01% (full scale);
2. Sampling rate: 500kHz/channel (optional 1MHZ or 50kHZ), frequency can be set, step length 1HZ;
3. Range: ±2.5V, ±5V, ±10V optional;
4. 8 DI / 8 DO TTL level compatible;
5. External interface: 100M network port, TCP/IP protocol.
3. Software
Software Interface
Function
- Customize the acquisition frequency;
- Automatically capture pulse signals;
- Set alarm thresholds;
- Select channels at will, view and enlarge channel waveforms;
- Display real-time values, maximum values, minimum values; Real-time display of time domain graphs and frequency domain graphs;
- Record and export data to Excel.
Time-domain graphics
