Hard Metal Magnetometer

DX-9700HC Magnetometer independently developed by Dexinmag company is the latest technology for measuring the magnetic properties of cemented carbides (WC in Co matrix) and semi-hard magnetic materials.


The DX-9700HC magnetometer provides accurate magnetic parameters to evaluate other correlated properties; for example hardness or the presence of undesired phases. This revolutionary measuring equipment utilizes a technique that provides the fastest, repeatable and accurate measurements available on the market today.


The DX-9700HC magnetometer meets the International Standards IEC 60404-4 and ASTM A596.

Functions:

◆ Supports Win XP/7/8/10 Chinese or English operating system, and supports Chinese or English display;
◆ The test waveform curve is displayed in real time during the measurement process, and the measurement can be stopped at any time;
◆ Automatic saving of measurement results (save by test number or manually intervene)
◆ Sample number, size, parameters and other data can be saved automatically to reduce manual errors;
◆ The software has a print preview function and can also directly print the measurement results and test curves;
◆ The measurement results and test curves can be output in BMP and other image formats and can also be exported in the form of data tables;
◆ At most, 4 measuring result curves can be superimposed and displayed at the same time, which can more intuitively compare the differences under different conditions;
◆ Built-in temperature coefficient of various materials can provide data reference for temperature correction;
◆ The measuring period is 30-120 seconds (depending on the type of sample and the proficiency of the operator).

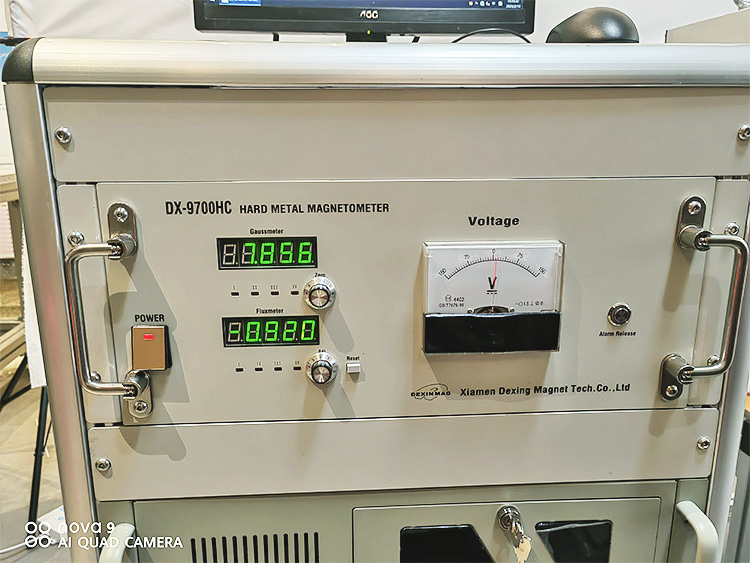

DX-9700HC Hard Metal Magnetometer

Home > Measuring Equipment > Cemented Carbides Measuring > Product Introduction

Technical index

Test accuracy

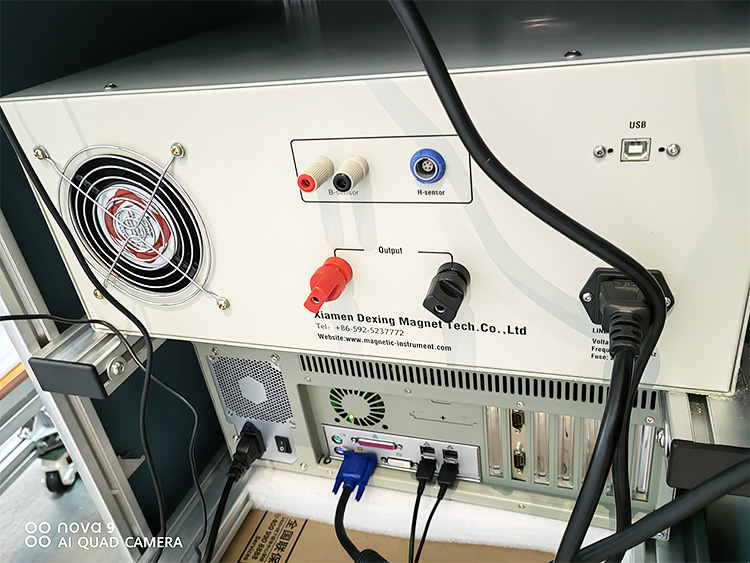

Excitation power supply

Different electromagnets can generate different ranges (higher) of magnetic fields. There are various specifications for different customers to choose from. The output power is from 2kVA to 16kVA.

Power supply for 140 electromagnet:

The input power is 220V 56/60Hz

The current to drive the electromagnet from the excitation power supply is 20A, 100V ( 2000W)

Gaussmeter

DX-210H Gauss meter is designed based on the Hall effect principle, and its main performance indicators are as follows:

Display: 4 1/2 LED indicator display;

Range: 0.5/1.0/1.5/3.0 T or 0.5/1.0/2.0/4.0 T; Automatic range control.

Resolution: 1 mT;

Error: 0.3%;

Fluxmeter

The DX-210B fluxmeter is designed based on the principle of RC electronic integrator. Its main performance indicators are as follows:

Display: 4 1/2 LED indicator display;

Range: 2.5/5.0/10/20 mWb; Automatic range control.

Resolution: 1 µ Wb;

Error: 0.3%;

Drift: 1 µ Wb/min;

Impedance: 10k Ω;

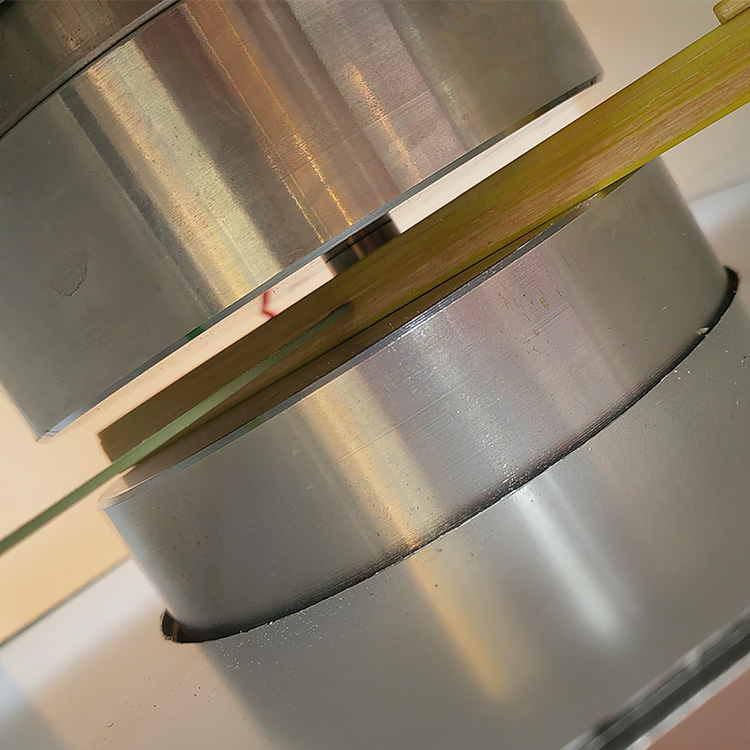

Electromagnet

Select different electromagnets according to the size of the sample or the size of the coercive force. There are several options:

Data acquisition card

There are two types of data acquisition cards used by DX-9700 HC permanent magnetic material magnetic measuring instrument: MP411 (12 bits) and USB2817 (16 bits).

Technical indicators of MP411:

Input voltage: 5V/10V/± 5V, controlled by software.

AD converter: 12-bit AD, speed 2000-20000 channels/second (USB2.0 interface).

Input impedance: 1 megaohm.

System accuracy: ± 0.1% FSR.

Resolution: 12 bits.

Noise: Less than ± 1LSB (typical, 500 sampling points)

Input withstand voltage: - 6V -+12V, instantaneous ± 30V.

Technical indicators of USB2817:

Input voltage: 5V/10V/± 5V/± 10V, controlled by software.

AD converter: 16-bit AD, speed 2000-250000 channels/second (USB2.0 interface).

Input impedance: 10 megaohms.

System accuracy: 0.01% FSR.

Resolution: 16 bits.

Noise: Less than ± 1LSB (typical, 500 sampling points)

Input withstand voltage: - 10V -+10V, instantaneous ± 30V.

Basic configuration
