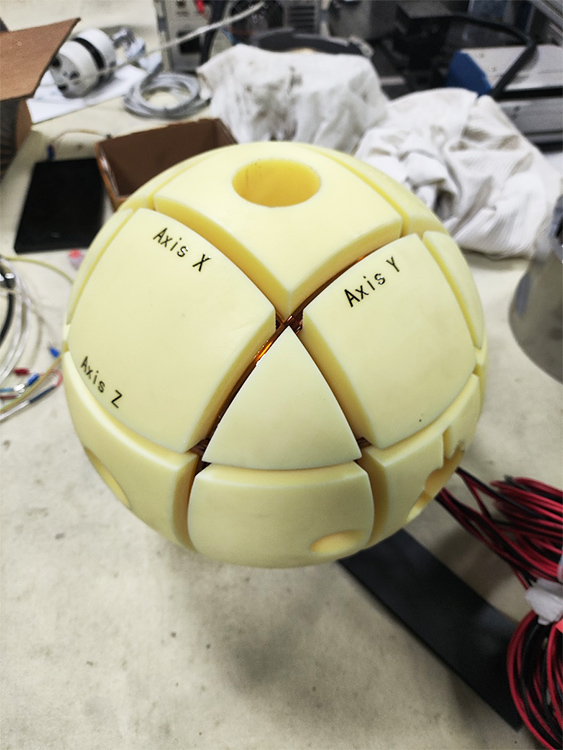

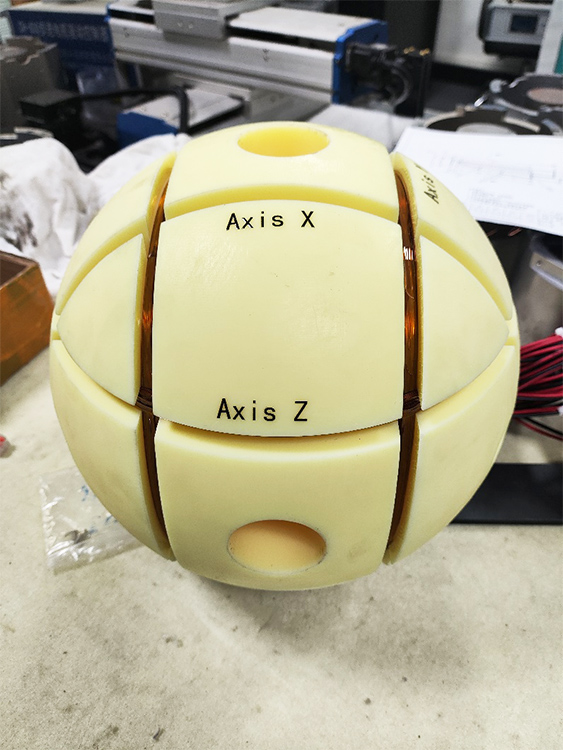

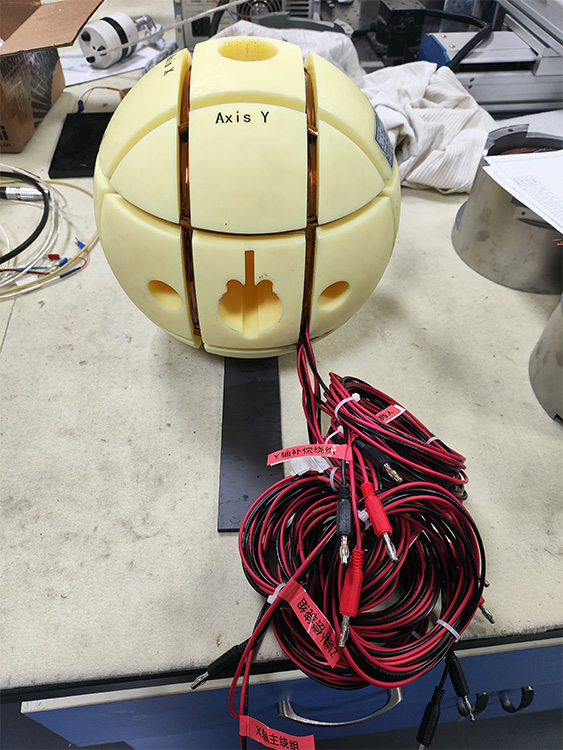

Small Triaxial Helmholtz Coil: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Helmholtz Coil  ꄲ  Small Triaxial Helmholtz Coil: Quality Inspection Report





Overall Dimensions: 250mm(L) x 250mm(W) x 250mm(H)

Weight: 4.61kg



Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
3D Helmholtz coil		 Product model: Custom
Test time: April 18th, 2025
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
16.0℃ 16.0℃ 　 0~30000nT
Table 1 Measurement environment data
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-330F fluxgate magnetometer
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
No. Display current (A) Display voltage Voltage (V) Magnetic field
strength（nT）
X-axis main winding 0.07 - 52914
X-axis compensation winding 0.07 - 52689
Y-axis main winding 0.07 - 53706
Y-axis compensation winding 0.07 - 53356
Z-axis main winding 0.07 - 52944
Z-axis compensation winding 0.07 - 53177
Table 2 Magnetic field strength data
　
Magnetic field uniformity
No. Area Current Max Min Uniformity Note
X-axis main winding Axis 16mm 0.07A 53102nT 52411nT -0.95% 　
X-axis compensation winding Axis 16mm 0.07A 52859nT 52215nT -0.90% 　
Y-axis main winding Axis 50mm 0.07A 53706nT 53213nT -0.92% 　
Y-axis compensation winding Axis 50mm 0.07A 53359nT 52849nT -0.95% 　
Z-axis main winding Axis 50mm 0.07A 52946nT 52440nT -0.95% 　
Z-axis compensation winding Axis 50mm 0.07A 53177nT 52669nT -0.96% 　
Table 3 Uniformity data


Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
No. Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
X-axis main winding 16.0℃ 45.860Ω 46.720Ω 60.689Ω
X-axis compensation winding 16.0℃ 46.410Ω 47.280Ω 61.417Ω
Y-axis main winding 16.0℃ 52.550Ω 53.535Ω 69.542Ω
Y-axis compensation winding 16.0℃ 52.980Ω 53.973Ω 70.111Ω
Z-axis main winding 16.0℃ 53.180Ω 54.177Ω 70.376Ω
Z-axis compensation winding 16.0℃ 53.720Ω 54.727Ω 71.090Ω
Table 4 Resistance R data
　
X Axis main winding Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 6.74571m  1.00000k  7.08221m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
45.8966 20 62.5526  1.00000k
Table 5 inductance Ls and reactance Z data
　
X Axis main winding Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  7.08221m 45.8966 102 514.9  6.75033m 50.8877
2 24.9  6.97851m 45.9042 103 519.8  6.75036m 50.9776
3 29.8  6.92847m 45.9121 104 524.7  6.75028m 51.0682
4 34.7  6.89239m 45.9205 105 529.6  6.75023m 51.1594
5 39.6  6.86252m 45.9303 106 534.5  6.75027m 51.2515
6 44.5  6.84706m 45.9399 107 539.4  6.75022m 51.344
7 49.4  6.83275m 45.9505 108 544.3  6.74992m 51.4354
8 54.3  6.82574m 45.9625 109 549.2  6.74989m 51.5293
9 59.2  6.82069m 45.9739 110 554.1  6.74980m 51.624
10 64.1  6.81249m 45.9868 111 559  6.74976m 51.7192
11 69  6.80647m 46.0009 112 563.9  6.74971m 51.815
12 73.9  6.79954m 46.0158 113 568.8  6.74966m 51.9117
13 78.8  6.79313m 46.0313 114 573.7  6.74956m 52.0085
14 83.7  6.78959m 46.0476 115 578.6  6.74951m 52.1065
15 88.6  6.78709m 46.0647 116 583.5  6.74940m 52.2048
16 93.5  6.78477m 46.0828 117 588.4  6.74936m 52.3038
17 98.4  6.78292m 46.1028 118 593.3  6.74942m 52.4039
18 103.3  6.78127m 46.1226 119 598.2  6.74971m 52.5048
19 108.2  6.77958m 46.1435 120 603.1  6.74986m 52.6066
20 113.1  6.77790m 46.1656 121 608  6.74964m 52.7081
21 118  6.77651m 46.1883 122 612.9  6.74960m 52.8102
22 122.9  6.77489m 46.212 123 617.8  6.74956m 52.9133
23 127.8  6.77356m 46.2369 124 622.7  6.74944m 53.0168
24 132.7  6.77199m 46.263 125 627.6  6.74938m 53.1207
25 137.6  6.76928m 46.2894 126 632.5  6.74933m 53.2254
26 142.5  6.76675m 46.3165 127 637.4  6.74924m 53.3308
27 147.4  6.76571m 46.3452 128 642.3  6.74915m 53.4365
28 152.3  6.76487m 46.3746 129 647.2  6.74909m 53.5432
29 157.2  6.76446m 46.4052 130 652.1  6.74900m 53.65
30 162.1  6.76440m 46.4366 131 657  6.74895m 53.7577
31 167  6.76425m 46.4696 132 661.9  6.74887m 53.8659
32 171.9  6.76431m 46.5019 133 666.8  6.74886m 53.9752
33 176.8  6.76416m 46.5359 134 671.7  6.74873m 54.0843
34 181.7  6.76357m 46.5704 135 676.6  6.74871m 54.1943
35 186.6  6.76324m 46.6063 136 681.5  6.74866m 54.3048
36 191.5  6.76277m 46.6425 137 686.4  6.74859m 54.4161
37 196.4  6.76257m 46.6797 138 691.3  6.74850m 54.5277
38 201.3  6.76219m 46.7182 139 696.2  6.74847m 54.6399
39 206.2  6.76157m 46.7571 140 701.1  6.74839m 54.7527
40 211.1  6.76084m 46.7967 141 706  6.74836m 54.8658
41 216  6.76038m 46.8376 142 710.9  6.74830m 54.9801
42 220.9  6.75991m 46.8793 143 715.8  6.74825m 55.0947
43 225.8  6.75925m 46.9218 144 720.7  6.74819m 55.2098
44 230.7  6.75881m 46.9652 145 725.6  6.74812m 55.3252
45 235.6  6.75841m 47.0097 146 730.5  6.74815m 55.4415
46 240.5  6.75788m 47.0546 147 735.4  6.74808m 55.5582
47 245.4  6.75731m 47.1009 148 740.3  6.74814m 55.6756
48 250.3  6.75671m 47.1477 149 745.2  6.74800m 55.793
49 255.2  6.75678m 47.1962 150 750.1  6.74801m 55.9115
50 260.1  6.75661m 47.2448 151 755  6.74795m 56.0301
51 265  6.75661m 47.2948 152 759.9  6.74791m 56.1493
52 269.9  6.75636m 47.3455 153 764.8  6.74792m 56.2691
53 274.8  6.75630m 47.3973 154 769.7  6.74784m 56.3892
54 279.7  6.75632m 47.4492 155 774.6  6.74783m 56.5101
55 284.6  6.75620m 47.5024 156 779.5  6.74779m 56.6312
56 289.5  6.75613m 47.5563 157 784.4  6.74777m 56.7529
57 294.4  6.75599m 47.6108 158 789.3  6.74768m 56.8751
58 299.3  6.75587m 47.6661 159 794.2  6.74768m 56.9979
59 304.2  6.75564m 47.7209 160 799.1  6.74765m 57.1208
60 309.1  6.75547m 47.7783 161 804  6.74758m 57.2444
61 314  6.75522m 47.8361 162 808.9  6.74761m 57.3687
62 318.9  6.75504m 47.8951 163 813.8  6.74759m 57.4933
63 323.8  6.75477m 47.9546 164 818.7  6.74764m 57.6186
64 328.7  6.75456m 48.0148 165 823.6  6.74757m 57.7439
65 333.6  6.75440m 48.0761 166 828.5  6.74758m 57.87
66 338.5  6.75424m 48.1379 167 833.4  6.74753m 57.9965
67 343.4  6.75395m 48.2005 168 838.3  6.74756m 58.1236
68 348.3  6.75373m 48.2641 169 843.2  6.74753m 58.251
69 353.2  6.75363m 48.3287 170 848.1  6.74749m 58.3789
70 358.1  6.75349m 48.3939 171 853  6.74753m 58.5073
71 363  6.75398m 48.461 172 857.9  6.74751m 58.6361
72 367.9  6.75383m 48.528 173 862.8  6.74746m 58.7651
73 372.8  6.75370m 48.5956 174 867.7  6.74743m 58.8949
74 377.7  6.75354m 48.6642 175 872.6  6.74744m 59.0251
75 382.6  6.75344m 48.7334 176 877.5  6.74744m 59.1555
76 387.5  6.75322m 48.8032 177 882.4  6.74744m 59.2867
77 392.4  6.75312m 48.8744 178 887.3  6.74740m 59.4181
78 397.3  6.75291m 48.9459 179 892.2  6.74740m 59.55
79 402.2  6.75276m 49.0181 180 897.1  6.74742m 59.6826
80 407.1  6.75264m 49.0913 181 902  6.74740m 59.8153
81 412  6.75252m 49.1652 182 906.9  6.74736m 59.9483
82 416.9  6.75241m 49.24 183 911.8  6.74737m 60.0821
83 421.8  6.75234m 49.3153 184 916.7  6.74737m 60.2161
84 426.7  6.75215m 49.3916 185 921.6  6.74735m 60.3506
85 431.6  6.75205m 49.4685 186 926.5  6.74732m 60.4853
86 436.5  6.75203m 49.5464 187 931.4  6.74730m 60.6206
87 441.4  6.75184m 49.6248 188 936.3  6.74729m 60.7562
88 446.3  6.75177m 49.704 189 941.2  6.74732m 60.8924
89 451.2  6.75175m 49.7843 190 946.1  6.74726m 61.0287
90 456.1  6.75170m 49.8649 191 951  6.74724m 61.1655
91 461  6.75149m 49.9461 192 955.9  6.74727m 61.3029
92 465.9  6.75100m 50.0275 193 960.8  6.74683m 61.4392
93 470.8  6.75071m 50.1099 194 965.7  6.74593m 61.5752
94 475.7  6.75064m 50.1935 195 970.6  6.74581m 61.7129
95 480.6  6.75057m 50.2779 196 975.5  6.74581m 61.8519
96 485.5  6.75050m 50.3631 197 980.4  6.74580m 61.9911
97 490.4  6.75069m 50.4496 198 985.3  6.74581m 62.1314
98 495.3  6.75042m 50.5352 199 990.2  6.74578m 62.2715
99 500.2  6.75044m 50.6224 200 995.1  6.74575m 62.4117
100 505.1  6.75043m 50.7104 201  1.00000k  6.74571m 62.5526
101 510  6.75036m 50.7987 　 　 　 　
Table 6 Detailed frequency data of inductance Ls and reactance Z



X Axis compensation winding Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 6.71318m 652.1  7.05505m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
46.4735 20 62.8388  1.00000k
Table 7 inductance Ls and reactance Z data
　
X Axis compensation winding Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  7.05505m 46.4735 102 514.9  6.71552m 51.363
2 24.9  6.95053m 46.4815 103 519.8  6.71550m 51.4508
3 29.8  6.89661m 46.4893 104 524.7  6.71549m 51.5395
4 34.7  6.85737m 46.4979 105 529.6  6.71545m 51.6292
5 39.6  6.82612m 46.5062 106 534.5  6.71543m 51.7191
6 44.5  6.81305m 46.5158 107 539.4  6.71543m 51.8102
7 49.4  6.79904m 46.5262 108 544.3  6.71501m 51.8997
8 54.3  6.79166m 46.538 109 549.2  6.71492m 51.9915
9 59.2  6.78518m 46.5507 110 554.1  6.71486m 52.0845
10 64.1  6.77794m 46.5632 111 559  6.71483m 52.178
11 69  6.77101m 46.5769 112 563.9  6.71477m 52.2717
12 73.9  6.76347m 46.5911 113 568.8  6.71471m 52.3666
13 78.8  6.75840m 46.6068 114 573.7  6.71464m 52.462
14 83.7  6.75468m 46.6227 115 578.6  6.71452m 52.5576
15 88.6  6.75199m 46.639 116 583.5  6.71448m 52.6542
16 93.5  6.74983m 46.6568 117 588.4  6.71445m 52.7515
17 98.4  6.74794m 46.6765 118 593.3  6.71444m 52.8495
18 103.3  6.74609m 46.6959 119 598.2  6.71441m 52.9477
19 108.2  6.74467m 46.7162 120 603.1  6.71432m 53.0467
20 113.1  6.74253m 46.7374 121 608  6.71417m 53.1465
21 118  6.74134m 46.7596 122 612.9  6.71409m 53.2467
22 122.9  6.73958m 46.7829 123 617.8  6.71401m 53.3477
23 127.8  6.73781m 46.8073 124 622.7  6.71385m 53.4493
24 132.7  6.73603m 46.8324 125 627.6  6.71382m 53.5513
25 137.6  6.73502m 46.8584 126 632.5  6.71378m 53.6542
26 142.5  6.73364m 46.8853 127 637.4  6.71369m 53.7576
27 147.4  6.73261m 46.9134 128 642.3  6.71361m 53.8614
28 152.3  6.73165m 46.9422 129 647.2  6.71328m 53.965
29 157.2  6.73123m 46.9732 130 652.1  6.71318m 54.0702
30 162.1  6.73110m 47.0155 131 657  6.71529m 54.1788
31 167  6.73105m 47.044 132 661.9  6.71659m 54.2882
32 171.9  6.73098m 47.0744 133 666.8  6.71650m 54.3948
33 176.8  6.73076m 47.1054 134 671.7  6.71647m 54.5023
34 181.7  6.73055m 47.1357 135 676.6  6.71659m 54.612
35 186.6  6.72999m 47.1694 136 681.5  6.71632m 54.7206
36 191.5  6.72968m 47.2062 137 686.4  6.71628m 54.8303
37 196.4  6.72938m 47.2432 138 691.3  6.71629m 54.9393
38 201.3  6.72891m 47.2817 139 696.2  6.71613m 55.049
39 206.2  6.72825m 47.3202 140 701.1  6.71603m 55.16
40 211.1  6.72755m 47.3582 141 706  6.71605m 55.2721
41 216  6.72698m 47.3969 142 710.9  6.71598m 55.3841
42 220.9  6.72644m 47.4376 143 715.8  6.71593m 55.4952
43 225.8  6.72569m 47.4791 144 720.7  6.71591m 55.6082
44 230.7  6.72528m 47.5219 145 725.6  6.71582m 55.722
45 235.6  6.72470m 47.5655 146 730.5  6.71582m 55.836
46 240.5  6.72440m 47.6097 147 735.4  6.71581m 55.9506
47 245.4  6.72371m 47.6545 148 740.3  6.71579m 56.0658
48 250.3  6.72327m 47.7006 149 745.2  6.71571m 56.1815
49 255.2  6.72312m 47.7475 150 750.1  6.71572m 56.2976
50 260.1  6.72296m 47.7953 151 755  6.71569m 56.4145
51 265  6.72296m 47.8444 152 759.9  6.71563m 56.5316
52 269.9  6.72289m 47.8941 153 764.8  6.71562m 56.6489
53 274.8  6.72272m 47.9439 154 769.7  6.71555m 56.7672
54 279.7  6.72268m 47.9948 155 774.6  6.71553m 56.8858
55 284.6  6.72251m 48.0464 156 779.5  6.71551m 57.0051
56 289.5  6.72258m 48.0992 157 784.4  6.71545m 57.1247
57 294.4  6.72226m 48.1525 158 789.3  6.71542m 57.2451
58 299.3  6.72215m 48.2067 159 794.2  6.71535m 57.3656
59 304.2  6.72187m 48.26 160 799.1  6.71531m 57.4866
60 309.1  6.72134m 48.3162 161 804  6.71528m 57.6082
61 314  6.72094m 48.3734 162 808.9  6.71530m 57.7304
62 318.9  6.72076m 48.4312 163 813.8  6.71526m 57.8529
63 323.8  6.72052m 48.4892 164 818.7  6.71528m 57.9761
64 328.7  6.72017m 48.5482 165 823.6  6.71529m 58.0999
65 333.6  6.72003m 48.608 166 828.5  6.71521m 58.2237
66 338.5  6.71980m 48.6683 167 833.4  6.71523m 58.3483
67 343.4  6.71959m 48.7301 168 838.3  6.71521m 58.473
68 348.3  6.71934m 48.7924 169 843.2  6.71525m 58.599
69 353.2  6.71920m 48.8559 170 848.1  6.71517m 58.7246
70 358.1  6.71895m 48.9196 171 853  6.71518m 58.8511
71 363  6.71890m 48.9846 172 857.9  6.71519m 58.9779
72 367.9  6.71853m 49.0503 173 862.8  6.71516m 59.105
73 372.8  6.71837m 49.1163 174 867.7  6.71512m 59.2326
74 377.7  6.71819m 49.1847 175 872.6  6.71511m 59.3607
75 382.6  6.71806m 49.2514 176 877.5  6.71512m 59.4895
76 387.5  6.71784m 49.3198 177 882.4  6.71512m 59.6184
77 392.4  6.71761m 49.3891 178 887.3  6.71506m 59.7478
78 397.3  6.71745m 49.4591 179 892.2  6.71503m 59.8777
79 402.2  6.71742m 49.5301 180 897.1  6.71504m 60.0079
80 407.1  6.71725m 49.6016 181 902  6.71506m 60.1391
81 412  6.71711m 49.6741 182 906.9  6.71500m 60.2699
82 416.9  6.71698m 49.7471 183 911.8  6.71501m 60.4015
83 421.8  6.71692m 49.8212 184 916.7  6.71498m 60.5335
84 426.7  6.71682m 49.8958 185 921.6  6.71499m 60.6661
85 431.6  6.71679m 49.9712 186 926.5  6.71494m 60.7987
86 436.5  6.71653m 50.0471 187 931.4  6.71495m 60.9319
87 441.4  6.71664m 50.1245 188 936.3  6.71489m 61.0655
88 446.3  6.71637m 50.2018 189 941.2  6.71493m 61.1997
89 451.2  6.71633m 50.2803 190 946.1  6.71492m 61.3343
90 456.1  6.71621m 50.359 191 951  6.71485m 61.4689
91 461  6.71609m 50.4387 192 955.9  6.71486m 61.6041
92 465.9  6.71609m 50.5196 193 960.8  6.71446m 61.7393
93 470.8  6.71597m 50.6009 194 965.7  6.71440m 61.8751
94 475.7  6.71595m 50.6828 195 970.6  6.71442m 62.0118
95 480.6  6.71589m 50.7661 196 975.5  6.71441m 62.1488
96 485.5  6.71580m 50.8493 197 980.4  6.71434m 62.2855
97 490.4  6.71569m 50.9328 198 985.3  6.71439m 62.4236
98 495.3  6.71561m 51.0175 199 990.2  6.71436m 62.5616
99 500.2  6.71561m 51.1028 200 995.1  6.71437m 62.7001
100 505.1  6.71567m 51.1891 201  1.00000k  6.71430m 62.8388
101 510  6.71553m 51.2757 　 　 　 　
Table 8 Detailed frequency data of inductance Ls and reactance Z





Y Axis main winding Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 8.51191m 965.7  8.90110m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
52.6133 20 75.1014  1.00000k
Table 9  inductance Ls and reactance Z data
Y Axis main winding Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  8.90110m 52.6133 102 514.9  8.51427m 59.4526
2 24.9  8.77955m 52.6233 103 519.8  8.51432m 59.5749
3 29.8  8.71953m 52.6345 104 524.7  8.51428m 59.6977
4 34.7  8.67338m 52.6459 105 529.6  8.51429m 59.8219
5 39.6  8.63714m 52.6589 106 534.5  8.51428m 59.9471
6 44.5  8.62081m 52.6722 107 539.4  8.51429m 60.0728
7 49.4  8.60492m 52.6866 108 544.3  8.51375m 60.1977
8 54.3  8.59557m 52.703 109 549.2  8.51388m 60.3257
9 59.2  8.58885m 52.7193 110 554.1  8.51376m 60.4543
10 64.1  8.58000m 52.7366 111 559  8.51375m 60.5834
11 69  8.57185m 52.7554 112 563.9  8.51372m 60.7138
12 73.9  8.56400m 52.7758 113 568.8  8.51369m 60.8446
13 78.8  8.55761m 52.7983 114 573.7  8.51365m 60.9766
14 83.7  8.55331m 52.8202 115 578.6  8.51366m 61.1095
15 88.6  8.55054m 52.844 116 583.5  8.51355m 61.2425
16 93.5  8.54723m 52.8694 117 588.4  8.51349m 61.3769
17 98.4  8.54627m 52.8969 118 593.3  8.51350m 61.5119
18 103.3  8.54322m 52.9239 119 598.2  8.51352m 61.6476
19 108.2  8.54150m 52.9529 120 603.1  8.51349m 61.7844
20 113.1  8.53989m 52.9832 121 608  8.51339m 61.9222
21 118  8.53811m 53.0149 122 612.9  8.51333m 62.0603
22 122.9  8.53618m 53.0478 123 617.8  8.51328m 62.1996
23 127.8  8.53446m 53.0829 124 622.7  8.51323m 62.3394
24 132.7  8.53291m 53.1178 125 627.6  8.51311m 62.4801
25 137.6  8.53139m 53.1547 126 632.5  8.51311m 62.6217
26 142.5  8.52968m 53.1926 127 637.4  8.51304m 62.7638
27 147.4  8.52895m 53.232 128 642.3  8.51296m 62.9067
28 152.3  8.52798m 53.2728 129 647.2  8.51300m 63.051
29 157.2  8.52783m 53.3152 130 652.1  8.51291m 63.1956
30 162.1  8.52744m 53.3586 131 657  8.51285m 63.3409
31 167  8.52750m 53.4032 132 661.9  8.51274m 63.4869
32 171.9  8.52749m 53.447 133 666.8  8.51278m 63.6337
33 176.8  8.52706m 53.4938 134 671.7  8.51272m 63.781
34 181.7  8.52662m 53.541 135 676.6  8.51264m 63.9292
35 186.6  8.52635m 53.5904 136 681.5  8.51267m 64.0784
36 191.5  8.52588m 53.6407 137 686.4  8.51261m 64.2286
37 196.4  8.52564m 53.6923 138 691.3  8.51259m 64.3789
38 201.3  8.52505m 53.7454 139 696.2  8.51263m 64.5305
39 206.2  8.52421m 53.799 140 701.1  8.51255m 64.6821
40 211.1  8.52368m 53.8538 141 706  8.51249m 64.8341
41 216  8.52310m 53.9102 142 710.9  8.51255m 64.9884
42 220.9  8.52242m 53.9679 143 715.8  8.51251m 65.1422
43 225.8  8.52193m 54.0264 144 720.7  8.51252m 65.2966
44 230.7  8.52134m 54.0864 145 725.6  8.51247m 65.4524
45 235.6  8.52077m 54.1473 146 730.5  8.51242m 65.6079
46 240.5  8.52022m 54.2096 147 735.4  8.51241m 65.7645
47 245.4  8.51972m 54.2729 148 740.3  8.51242m 65.9218
48 250.3  8.51943m 54.3378 149 745.2  8.51240m 66.0803
49 255.2  8.51929m 54.4043 150 750.1  8.51243m 66.2389
50 260.1  8.51927m 54.4718 151 755  8.51243m 66.3983
51 265  8.51921m 54.5399 152 759.9  8.51237m 66.5581
52 269.9  8.51899m 54.6089 153 764.8  8.51235m 66.7186
53 274.8  8.51889m 54.6795 154 769.7  8.51232m 66.8798
54 279.7  8.51888m 54.7511 155 774.6  8.51236m 67.042
55 284.6  8.51877m 54.8238 156 779.5  8.51228m 67.2043
56 289.5  8.51892m 54.8977 157 784.4  8.51225m 67.3672
57 294.4  8.51869m 54.9724 158 789.3  8.51221m 67.5307
58 299.3  8.51854m 55.0485 159 794.2  8.51221m 67.6951
59 304.2  8.51818m 55.124 160 799.1  8.51218m 67.86
60 309.1  8.51786m 55.2026 161 804  8.51216m 68.0258
61 314  8.51781m 55.2822 162 808.9  8.51225m 68.1922
62 318.9  8.51758m 55.3628 163 813.8  8.51219m 68.3586
63 323.8  8.51729m 55.4444 164 818.7  8.51220m 68.5261
64 328.7  8.51707m 55.5276 165 823.6  8.51225m 68.6944
65 333.6  8.51685m 55.6121 166 828.5  8.51219m 68.8624
66 338.5  8.51664m 55.6972 167 833.4  8.51226m 69.0319
67 343.4  8.51646m 55.7835 168 838.3  8.51224m 69.2014
68 348.3  8.51625m 55.871 169 843.2  8.51224m 69.3719
69 353.2  8.51612m 55.9594 170 848.1  8.51222m 69.5425
70 358.1  8.51599m 56.0491 171 853  8.51227m 69.7143
71 363  8.51583m 56.1395 172 857.9  8.51227m 69.8862
72 367.9  8.51552m 56.2314 173 862.8  8.51226m 70.0587
73 372.8  8.51579m 56.3222 174 867.7  8.51219m 70.2314
74 377.7  8.51570m 56.4163 175 872.6  8.51221m 70.4049
75 382.6  8.51557m 56.5113 176 877.5  8.51223m 70.5793
76 387.5  8.51545m 56.6074 177 882.4  8.51224m 70.7541
77 392.4  8.51529m 56.7041 178 887.3  8.51225m 70.9293
78 397.3  8.51514m 56.8022 179 892.2  8.51230m 71.1054
79 402.2  8.51504m 56.9013 180 897.1  8.51226m 71.2815
80 407.1  8.51487m 57.0008 181 902  8.51225m 71.4585
81 412  8.51478m 57.1024 182 906.9  8.51228m 71.6359
82 416.9  8.51470m 57.2046 183 911.8  8.51227m 71.8136
83 421.8  8.51468m 57.3081 184 916.7  8.51231m 71.9923
84 426.7  8.51464m 57.4123 185 921.6  8.51231m 72.1712
85 431.6  8.51455m 57.5172 186 926.5  8.51229m 72.3506
86 436.5  8.51445m 57.6234 187 931.4  8.51224m 72.5303
87 441.4  8.51437m 57.731 188 936.3  8.51228m 72.7108
88 446.3  8.51427m 57.8393 189 941.2  8.51228m 72.8918
89 451.2  8.51431m 57.949 190 946.1  8.51229m 73.0733
90 456.1  8.51425m 58.059 191 951  8.51227m 73.2551
91 461  8.51416m 58.17 192 955.9  8.51230m 73.4376
92 465.9  8.51418m 58.282 193 960.8  8.51194m 73.6206
93 470.8  8.51417m 58.3951 194 965.7  8.51191m 73.8038
94 475.7  8.51443m 58.5086 195 970.6  8.51194m 73.9877
95 480.6  8.51725m 58.6263 196 975.5  8.51192m 74.1721
96 485.5  8.51428m 58.7381 197 980.4  8.51198m 74.3573
97 490.4  8.51432m 58.855 198 985.3  8.51200m 74.5427
98 495.3  8.51425m 58.9728 199 990.2  8.51201m 74.7284
99 500.2  8.51428m 59.0915 200 995.1  8.51202m 74.9147
100 505.1  8.51440m 59.2113 201  1.00000k  8.51200m 75.1014
101 510  8.51436m 59.3315 　 　 　 　
Table 10  Detailed frequency data of inductance Ls and reactance Z



Y Axis compensation winding Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 8.44994m 970.6  8.83547m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
53.0658 20 75.1289  1.00000k
Table 11  inductance Ls and reactance Z data
Y Axis compensation winding Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  8.83547m 53.0658 102 514.9  8.45262m 59.7491
2 24.9  8.71966m 53.0756 103 519.8  8.45259m 59.8685
3 29.8  8.65827m 53.0857 104 524.7  8.45252m 59.9889
4 34.7  8.61203m 53.097 105 529.6  8.45263m 60.1109
5 39.6  8.57791m 53.1098 106 534.5  8.45269m 60.2336
6 44.5  8.55977m 53.1221 107 539.4  8.45254m 60.3566
7 49.4  8.54477m 53.1361 108 544.3  8.45211m 60.4794
8 54.3  8.53365m 53.1515 109 549.2  8.45211m 60.6043
9 59.2  8.52864m 53.1671 110 554.1  8.45198m 60.7302
10 64.1  8.51945m 53.1844 111 559  8.45199m 60.857
11 69  8.51151m 53.203 112 563.9  8.45196m 60.9847
12 73.9  8.50380m 53.2224 113 568.8  8.45195m 61.1132
13 78.8  8.49663m 53.2436 114 573.7  8.45193m 61.2425
14 83.7  8.49264m 53.2653 115 578.6  8.45191m 61.3726
15 88.6  8.48957m 53.2883 116 583.5  8.45185m 61.5037
16 93.5  8.48634m 53.3122 117 588.4  8.45175m 61.6352
17 98.4  8.48517m 53.339 118 593.3  8.45174m 61.7675
18 103.3  8.48208m 53.3651 119 598.2  8.45173m 61.9009
19 108.2  8.48089m 53.3932 120 603.1  8.45175m 62.0351
20 113.1  8.47923m 53.4227 121 608  8.45162m 62.1702
21 118  8.47717m 53.453 122 612.9  8.45154m 62.3058
22 122.9  8.47532m 53.485 123 617.8  8.45156m 62.4428
23 127.8  8.47350m 53.5183 124 622.7  8.45147m 62.5799
24 132.7  8.47191m 53.5527 125 627.6  8.45131m 62.7178
25 137.6  8.47041m 53.5882 126 632.5  8.45133m 62.8571
26 142.5  8.46911m 53.6256 127 637.4  8.45123m 62.9967
27 147.4  8.46742m 53.6638 128 642.3  8.45118m 63.1369
28 152.3  8.46685m 53.7034 129 647.2  8.45112m 63.2781
29 157.2  8.46663m 53.7445 130 652.1  8.45112m 63.4203
30 162.1  8.46664m 53.7872 131 657  8.45103m 63.5627
31 167  8.46624m 53.8304 132 661.9  8.45098m 63.7062
32 171.9  8.46643m 53.8732 133 666.8  8.45098m 63.8505
33 176.8  8.46609m 53.9186 134 671.7  8.45097m 63.9955
34 181.7  8.46570m 53.965 135 676.6  8.45089m 64.1409
35 186.6  8.46549m 54.0131 136 681.5  8.45081m 64.2873
36 191.5  8.46522m 54.0623 137 686.4  8.45084m 64.4345
37 196.4  8.46488m 54.1123 138 691.3  8.45077m 64.5825
38 201.3  8.46441m 54.1641 139 696.2  8.45073m 64.7307
39 206.2  8.46354m 54.2166 140 701.1  8.45070m 64.8801
40 211.1  8.46310m 54.2701 141 706  8.45073m 65.0297
41 216  8.46245m 54.3249 142 710.9  8.45070m 65.1809
42 220.9  8.46169m 54.3809 143 715.8  8.45062m 65.3318
43 225.8  8.46106m 54.438 144 720.7  8.45064m 65.4837
44 230.7  8.46048m 54.4966 145 725.6  8.45065m 65.637
45 235.6  8.46001m 54.5561 146 730.5  8.45057m 65.7898
46 240.5  8.45948m 54.6171 147 735.4  8.45054m 65.9436
47 245.4  8.45875m 54.679 148 740.3  8.45057m 66.0984
48 250.3  8.45843m 54.7423 149 745.2  8.45053m 66.2536
49 255.2  8.45837m 54.8069 150 750.1  8.45053m 66.4095
50 260.1  8.45813m 54.8725 151 755  8.45051m 66.566
51 265  8.45826m 54.9396 152 759.9  8.45049m 66.7233
52 269.9  8.45816m 55.0075 153 764.8  8.45051m 66.8811
53 274.8  8.45804m 55.0763 154 769.7  8.45049m 67.0396
54 279.7  8.45788m 55.1462 155 774.6  8.45045m 67.1985
55 284.6  8.45795m 55.2173 156 779.5  8.45034m 67.3579
56 289.5  8.45788m 55.2896 157 784.4  8.45036m 67.5182
57 294.4  8.45782m 55.3627 158 789.3  8.45035m 67.6794
58 299.3  8.45768m 55.4372 159 794.2  8.45029m 67.8406
59 304.2  8.45733m 55.5106 160 799.1  8.45030m 68.003
60 309.1  8.45698m 55.5873 161 804  8.45031m 68.1659
61 314  8.45687m 55.6655 162 808.9  8.45031m 68.3296
62 318.9  8.45669m 55.7442 163 813.8  8.45035m 68.4933
63 323.8  8.45650m 55.8241 164 818.7  8.45038m 68.6582
64 328.7  8.45634m 55.9055 165 823.6  8.45032m 68.8231
65 333.6  8.45605m 55.9877 166 828.5  8.45033m 68.9887
66 338.5  8.45578m 56.0707 167 833.4  8.45032m 69.1551
67 343.4  8.45557m 56.1553 168 838.3  8.45037m 69.3222
68 348.3  8.45531m 56.2406 169 843.2  8.45034m 69.4896
69 353.2  8.45537m 56.3271 170 848.1  8.45037m 69.6578
70 358.1  8.45512m 56.4147 171 853  8.45032m 69.8262
71 363  8.45492m 56.5033 172 857.9  8.45033m 69.9955
72 367.9  8.45467m 56.5929 173 862.8  8.45039m 70.1655
73 372.8  8.45462m 56.6835 174 867.7  8.45027m 70.3354
74 377.7  8.45448m 56.7754 175 872.6  8.45038m 70.5063
75 382.6  8.45423m 56.868 176 877.5  8.45036m 70.6779
76 387.5  8.45421m 56.9621 177 882.4  8.45041m 70.85
77 392.4  8.45405m 57.0569 178 887.3  8.45037m 71.0221
78 397.3  8.45383m 57.1529 179 892.2  8.45039m 71.1952
79 402.2  8.45369m 57.2497 180 897.1  8.45039m 71.3687
80 407.1  8.45364m 57.3478 181 902  8.45035m 71.5427
81 412  8.45355m 57.447 182 906.9  8.45035m 71.7171
82 416.9  8.45348m 57.5469 183 911.8  8.45041m 71.8923
83 421.8  8.45341m 57.6478 184 916.7  8.45037m 72.0677
84 426.7  8.45331m 57.7498 185 921.6  8.45039m 72.2441
85 431.6  8.45327m 57.853 186 926.5  8.45037m 72.4207
86 436.5  8.45314m 57.9567 187 931.4  8.45033m 72.5975
87 441.4  8.45301m 58.0616 188 936.3  8.45034m 72.7753
88 446.3  8.45300m 58.1678 189 941.2  8.45034m 72.9535
89 451.2  8.45298m 58.275 190 946.1  8.45033m 73.1319
90 456.1  8.45301m 58.3829 191 951  8.45037m 73.3113
91 461  8.45291m 58.4916 192 955.9  8.45035m 73.4907
92 465.9  8.45281m 58.6012 193 960.8  8.44994m 73.6707
93 470.8  8.45273m 58.7118 194 965.7  8.44997m 73.8513
94 475.7  8.45275m 58.8234 195 970.6  8.44994m 74.0322
95 480.6  8.45274m 58.9357 196 975.5  8.45001m 74.2142
96 485.5  8.45267m 59.0491 197 980.4  8.45000m 74.396
97 490.4  8.45265m 59.1637 198 985.3  8.45003m 74.5789
98 495.3  8.45258m 59.2786 199 990.2  8.45001m 74.7616
99 500.2  8.45261m 59.3951 200 995.1  8.45003m 74.9452
100 505.1  8.45265m 59.512 201  1.00000k  8.44999m 75.1289
101 510  8.45264m 59.63 　 　 　 　
Table 12  Detailed frequency data of inductance Ls and reactance Z



Z Axis main winding Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 8.57715m  1.00000k  9.02745m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
53.8263 20 76.2865  1.00000k
Table 13 inductance Ls and reactance Z data
Z Axis main winding Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  9.02745m 53.8263 102 514.9  8.58592m 60.6662
2 24.9  8.90015m 53.8374 103 519.8  8.58581m 60.7878
3 29.8  8.83413m 53.8494 104 524.7  8.58571m 60.9107
4 34.7  8.78573m 53.862 105 529.6  8.58567m 61.0345
5 39.6  8.74892m 53.8754 106 534.5  8.58553m 61.1589
6 44.5  8.72661m 53.8884 107 539.4  8.58540m 61.2844
7 49.4  8.71092m 53.9035 108 544.3  8.58485m 61.4087
8 54.3  8.69863m 53.9207 109 549.2  8.58477m 61.536
9 59.2  8.69181m 53.9372 110 554.1  8.58464m 61.6642
10 64.1  8.67992m 53.9551 111 559  8.58449m 61.793
11 69  8.67074m 53.9742 112 563.9  8.58431m 61.9226
12 73.9  8.66194m 53.9953 113 568.8  8.58427m 62.0534
13 78.8  8.65384m 54.0171 114 573.7  8.58412m 62.1846
14 83.7  8.64888m 54.0399 115 578.6  8.58407m 62.3172
15 88.6  8.64430m 54.0637 116 583.5  8.58390m 62.4503
16 93.5  8.64086m 54.0888 117 588.4  8.58378m 62.5843
17 98.4  8.63856m 54.1165 118 593.3  8.58363m 62.7189
18 103.3  8.63546m 54.1442 119 598.2  8.58351m 62.8541
19 108.2  8.63312m 54.1732 120 603.1  8.58344m 62.9906
20 113.1  8.63013m 54.2038 121 608  8.58332m 63.1281
21 118  8.62816m 54.2356 122 612.9  8.58314m 63.2658
22 122.9  8.62577m 54.2682 123 617.8  8.58301m 63.405
23 127.8  8.62355m 54.3029 124 622.7  8.58283m 63.5445
24 132.7  8.62133m 54.3385 125 627.6  8.58265m 63.6847
25 137.6  8.61939m 54.3749 126 632.5  8.58256m 63.8262
26 142.5  8.61724m 54.4133 127 637.4  8.58243m 63.968
27 147.4  8.61536m 54.4529 128 642.3  8.58230m 64.1106
28 152.3  8.61416m 54.4935 129 647.2  8.58218m 64.2541
29 157.2  8.61374m 54.536 130 652.1  8.58210m 64.3984
30 162.1  8.61287m 54.5797 131 657  8.58190m 64.5434
31 167  8.61267m 54.6245 132 661.9  8.58176m 64.689
32 171.9  8.61243m 54.6689 133 666.8  8.58169m 64.8357
33 176.8  8.61159m 54.7155 134 671.7  8.58158m 64.9828
34 181.7  8.61086m 54.7635 135 676.6  8.58147m 65.1307
35 186.6  8.61002m 54.8128 136 681.5  8.58135m 65.2795
36 191.5  8.60956m 54.8632 137 686.4  8.58125m 65.429
37 196.4  8.60877m 54.9144 138 691.3  8.58113m 65.579
38 201.3  8.60810m 54.9674 139 696.2  8.58108m 65.7301
39 206.2  8.60716m 55.0212 140 701.1  8.58097m 65.8817
40 211.1  8.60600m 55.0759 141 706  8.58090m 66.0335
41 216  8.60531m 55.1321 142 710.9  8.58074m 66.1871
42 220.9  8.60428m 55.1895 143 715.8  8.58068m 66.3407
43 225.8  8.60340m 55.2481 144 720.7  8.58059m 66.4952
44 230.7  8.60260m 55.3079 145 725.6  8.58051m 66.6505
45 235.6  8.60186m 55.3692 146 730.5  8.58040m 66.8063
46 240.5  8.60114m 55.4314 147 735.4  8.58035m 66.9626
47 245.4  8.60032m 55.4949 148 740.3  8.58027m 67.1196
48 250.3  8.59975m 55.5601 149 745.2  8.58016m 67.2772
49 255.2  8.59935m 55.6258 150 750.1  8.58019m 67.4359
50 260.1  8.59914m 55.6932 151 755  8.58007m 67.5949
51 265  8.59870m 55.7617 152 759.9  8.57993m 67.7542
52 269.9  8.59850m 55.8315 153 764.8  8.57991m 67.9146
53 274.8  8.59822m 55.902 154 769.7  8.57986m 68.0754
54 279.7  8.59791m 55.9736 155 774.6  8.57977m 68.237
55 284.6  8.59777m 56.0465 156 779.5  8.57968m 68.3992
56 289.5  8.59751m 56.1204 157 784.4  8.57960m 68.5621
57 294.4  8.59726m 56.1953 158 789.3  8.57951m 68.7253
58 299.3  8.59689m 56.2711 159 794.2  8.57943m 68.8894
59 304.2  8.59640m 56.3465 160 799.1  8.57935m 69.0539
60 309.1  8.59577m 56.4251 161 804  8.57927m 69.2193
61 314  8.59558m 56.5048 162 808.9  8.57931m 69.3858
62 318.9  8.59522m 56.5853 163 813.8  8.57920m 69.5518
63 323.8  8.59493m 56.6672 164 818.7  8.57920m 69.7191
64 328.7  8.59441m 56.7497 165 823.6  8.57913m 69.8868
65 333.6  8.59408m 56.8336 166 828.5  8.57908m 70.055
66 338.5  8.59374m 56.9186 167 833.4  8.57906m 70.2241
67 343.4  8.59331m 57.0044 168 838.3  8.57899m 70.3933
68 348.3  8.59302m 57.0915 169 843.2  8.57892m 70.5636
69 353.2  8.59271m 57.1798 170 848.1  8.57890m 70.734
70 358.1  8.59239m 57.269 171 853  8.57886m 70.9053
71 363  8.59212m 57.3595 172 857.9  8.57881m 71.077
72 367.9  8.59164m 57.4508 173 862.8  8.57874m 71.2492
73 372.8  8.59139m 57.5435 174 867.7  8.57865m 71.422
74 377.7  8.59117m 57.6372 175 872.6  8.57865m 71.5956
75 382.6  8.59086m 57.7317 176 877.5  8.57858m 71.7695
76 387.5  8.59054m 57.8273 177 882.4  8.57855m 71.9441
77 392.4  8.59023m 57.924 178 887.3  8.57854m 72.1193
78 397.3  8.58998m 58.022 179 892.2  8.57846m 72.2946
79 402.2  8.58969m 58.1206 180 897.1  8.57843m 72.4709
80 407.1  8.58953m 58.2206 181 902  8.57840m 72.6476
81 412  8.58925m 58.3214 182 906.9  8.57836m 72.8249
82 416.9  8.58902m 58.4233 183 911.8  8.57828m 73.0024
83 421.8  8.58885m 58.5263 184 916.7  8.57822m 73.1805
84 426.7  8.58853m 58.6301 185 921.6  8.57823m 73.3596
85 431.6  8.58842m 58.7349 186 926.5  8.57813m 73.5387
86 436.5  8.58824m 58.8411 187 931.4  8.57814m 73.7185
87 441.4  8.58801m 58.9478 188 936.3  8.57803m 73.8986
88 446.3  8.58786m 59.056 189 941.2  8.57800m 74.0794
89 451.2  8.58769m 59.1648 190 946.1  8.57798m 74.2608
90 456.1  8.58761m 59.2748 191 951  8.57794m 74.4425
91 461  8.58738m 59.3858 192 955.9  8.57787m 74.6248
92 465.9  8.58719m 59.4976 193 960.8  8.57740m 74.8063
93 470.8  8.58704m 59.6102 194 965.7  8.57737m 74.9897
94 475.7  8.58693m 59.724 195 970.6  8.57730m 75.1734
95 480.6  8.58674m 59.8383 196 975.5  8.57731m 75.3579
96 485.5  8.58658m 59.9538 197 980.4  8.57729m 75.5427
97 490.4  8.58648m 60.0702 198 985.3  8.57729m 75.728
98 495.3  8.58633m 60.1875 199 990.2  8.57723m 75.9135
99 500.2  8.58627m 60.3058 200 995.1  8.57718m 76.0996
100 505.1  8.58619m 60.4251 201  1.00000k  8.57715m 76.2865
101 510  8.58595m 60.545 　 　 　 　
Table 14 Detailed frequency data of inductance Ls and reactance Z



Z Axis compensation windingInductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 8.57715m  1.00000k  9.02745m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
53.8263 20 76.2865  1.00000k
Table 15 inductance Ls and reactance Z data
Z Axis compensation winding Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  8.87316m 53.2676 102 514.9  8.45658m 59.9892
2 24.9  8.75747m 53.2784 103 519.8  8.45651m 60.1087
3 29.8  8.69745m 53.2896 104 524.7  8.45640m 60.229
4 34.7  8.65072m 53.3026 105 529.6  8.45626m 60.3505
5 39.6  8.61521m 53.3159 106 534.5  8.45622m 60.473
6 44.5  8.59455m 53.33 107 539.4  8.45604m 60.5959
7 49.4  8.57674m 53.3449 108 544.3  8.45553m 60.718
8 54.3  8.56659m 53.3616 109 549.2  8.45545m 60.8426
9 59.2  8.55793m 53.3775 110 554.1  8.45527m 60.9684
10 64.1  8.54924m 53.3962 111 559  8.45515m 61.0949
11 69  8.53934m 53.4152 112 563.9  8.45500m 61.2224
12 73.9  8.53018m 53.4359 113 568.8  8.45490m 61.3507
13 78.8  8.52289m 53.4579 114 573.7  8.45481m 61.4796
14 83.7  8.51830m 53.4802 115 578.6  8.45468m 61.6096
15 88.6  8.51458m 53.5039 116 583.5  8.45456m 61.7402
16 93.5  8.51059m 53.5289 117 588.4  8.45445m 61.8717
17 98.4  8.50795m 53.5561 118 593.3  8.45436m 62.0039
18 103.3  8.50514m 53.5836 119 598.2  8.45419m 62.1366
19 108.2  8.50242m 53.6124 120 603.1  8.45410m 62.2708
20 113.1  8.50039m 53.6424 121 608  8.45398m 62.4058
21 118  8.49803m 53.6739 122 612.9  8.45377m 62.5408
22 122.9  8.49570m 53.7063 123 617.8  8.45366m 62.6774
23 127.8  8.49323m 53.74 124 622.7  8.45353m 62.8145
24 132.7  8.49122m 53.775 125 627.6  8.45332m 62.952
25 137.6  8.48920m 53.8114 126 632.5  8.45328m 63.0908
26 142.5  8.48727m 53.849 127 637.4  8.45316m 63.2303
27 147.4  8.48538m 53.8881 128 642.3  8.45301m 63.3704
28 152.3  8.48437m 53.9282 129 647.2  8.45296m 63.5114
29 157.2  8.48363m 53.9698 130 652.1  8.45278m 63.6528
30 162.1  8.48326m 54.013 131 657  8.45261m 63.7951
31 167  8.48271m 54.057 132 661.9  8.45253m 63.9383
32 171.9  8.48233m 54.1006 133 666.8  8.45243m 64.0821
33 176.8  8.48178m 54.1467 134 671.7  8.45231m 64.2268
34 181.7  8.48108m 54.1936 135 676.6  8.45219m 64.3718
35 186.6  8.48026m 54.2423 136 681.5  8.45210m 64.5179
36 191.5  8.47967m 54.2917 137 686.4  8.45198m 64.6645
37 196.4  8.47935m 54.3422 138 691.3  8.45185m 64.8121
38 201.3  8.47840m 54.394 139 696.2  8.45174m 64.9602
39 206.2  8.47730m 54.4467 140 701.1  8.45167m 65.109
40 211.1  8.47655m 54.5007 141 706  8.45154m 65.2579
41 216  8.47544m 54.556 142 710.9  8.45148m 65.4089
42 220.9  8.47458m 54.6123 143 715.8  8.45141m 65.5598
43 225.8  8.47383m 54.6699 144 720.7  8.45131m 65.7113
44 230.7  8.47296m 54.7288 145 725.6  8.45121m 65.864
45 235.6  8.47229m 54.7888 146 730.5  8.45117m 66.0169
46 240.5  8.47137m 54.8501 147 735.4  8.45103m 66.1703
47 245.4  8.47080m 54.9125 148 740.3  8.45100m 66.3245
48 250.3  8.47011m 54.9762 149 745.2  8.45089m 66.4795
49 255.2  8.46977m 55.0412 150 750.1  8.45083m 66.6349
50 260.1  8.46941m 55.1071 151 755  8.45078m 66.7913
51 265  8.46922m 55.1747 152 759.9  8.45068m 66.9479
52 269.9  8.46891m 55.2432 153 764.8  8.45063m 67.1053
53 274.8  8.46865m 55.3124 154 769.7  8.45056m 67.2634
54 279.7  8.46833m 55.3828 155 774.6  8.45052m 67.422
55 284.6  8.46812m 55.4541 156 779.5  8.45040m 67.5811
56 289.5  8.46801m 55.5269 157 784.4  8.45031m 67.7411
57 294.4  8.46775m 55.6007 158 789.3  8.45024m 67.9014
58 299.3  8.46746m 55.6753 159 794.2  8.45014m 68.0624
59 304.2  8.46675m 55.7491 160 799.1  8.45005m 68.2242
60 309.1  8.46643m 55.8261 161 804  8.44999m 68.3865
61 314  8.46606m 55.9043 162 808.9  8.45002m 68.5498
62 318.9  8.46570m 55.9835 163 813.8  8.44996m 68.7131
63 323.8  8.46529m 56.0635 164 818.7  8.44988m 68.8769
64 328.7  8.46490m 56.1449 165 823.6  8.44987m 69.042
65 333.6  8.46449m 56.2273 166 828.5  8.44978m 69.2069
66 338.5  8.46421m 56.3103 167 833.4  8.44975m 69.373
67 343.4  8.46392m 56.3949 168 838.3  8.44974m 69.5394
68 348.3  8.46353m 56.4805 169 843.2  8.44965m 69.7066
69 353.2  8.46331m 56.5673 170 848.1  8.44964m 69.8741
70 358.1  8.46288m 56.6547 171 853  8.44960m 70.0424
71 363  8.46255m 56.7433 172 857.9  8.44959m 70.2111
72 367.9  8.46227m 56.8334 173 862.8  8.44946m 70.3801
73 372.8  8.46199m 56.924 174 867.7  8.44942m 70.55
74 377.7  8.46160m 57.0159 175 872.6  8.44942m 70.7203
75 382.6  8.46139m 57.1087 176 877.5  8.44936m 70.8912
76 387.5  8.46113m 57.2026 177 882.4  8.44929m 71.0627
77 392.4  8.46083m 57.2974 178 887.3  8.44930m 71.2348
78 397.3  8.46051m 57.3937 179 892.2  8.44921m 71.407
79 402.2  8.46028m 57.4908 180 897.1  8.44922m 71.5801
80 407.1  8.46005m 57.5885 181 902  8.44915m 71.7538
81 412  8.45982m 57.6877 182 906.9  8.44909m 71.9276
82 416.9  8.45960m 57.7877 183 911.8  8.44906m 72.1023
83 421.8  8.45941m 57.8886 184 916.7  8.44903m 72.2774
84 426.7  8.45923m 57.9908 185 921.6  8.44898m 72.453
85 431.6  8.45906m 58.0938 186 926.5  8.44895m 72.6291
86 436.5  8.45884m 58.1979 187 931.4  8.44892m 72.8058
87 441.4  8.45862m 58.3024 188 936.3  8.44883m 72.9826
88 446.3  8.45843m 58.4086 189 941.2  8.44883m 73.1604
89 451.2  8.45826m 58.5154 190 946.1  8.44879m 73.3385
90 456.1  8.45816m 58.6233 191 951  8.44872m 73.517
91 461  8.45789m 58.7318 192 955.9  8.44869m 73.6963
92 465.9  8.45787m 58.8419 193 960.8  8.44820m 73.8746
93 470.8  8.45765m 58.9524 194 965.7  8.44815m 74.0545
94 475.7  8.45751m 59.0643 195 970.6  8.44813m 74.2352
95 480.6  8.45734m 59.1765 196 975.5  8.44807m 74.416
96 485.5  8.45717m 59.2898 197 980.4  8.44809m 74.5977
97 490.4  8.45707m 59.4042 198 985.3  8.44799m 74.7794
98 495.3  8.45693m 59.5191 199 990.2  8.44798m 74.9619
99 500.2  8.45688m 59.6353 200 995.1  8.44799m 75.145
100 505.1  8.45681m 59.7524 201  1.00000k  8.44789m 75.3284
101 510  8.45667m 59.8702 　 　 　 　
Table 16 Detailed frequency data of inductance Ls and reactance Z



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2025

Get A Quote!
녕
