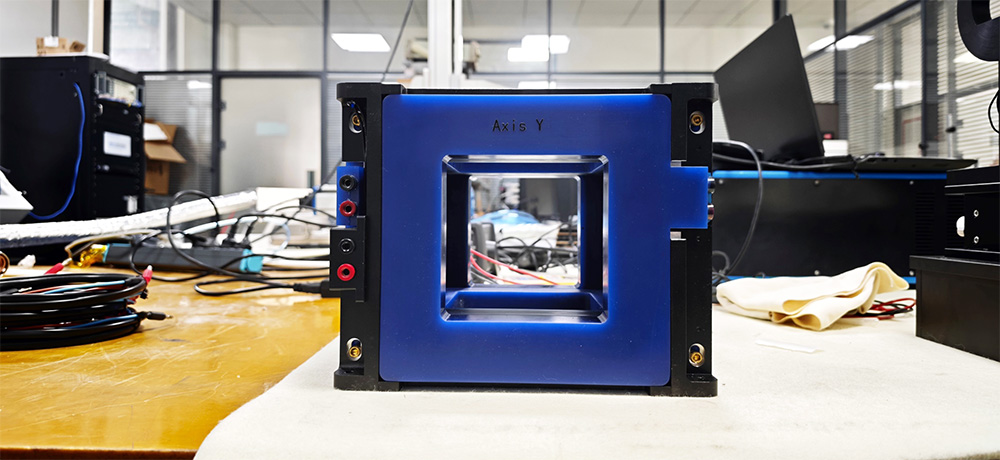

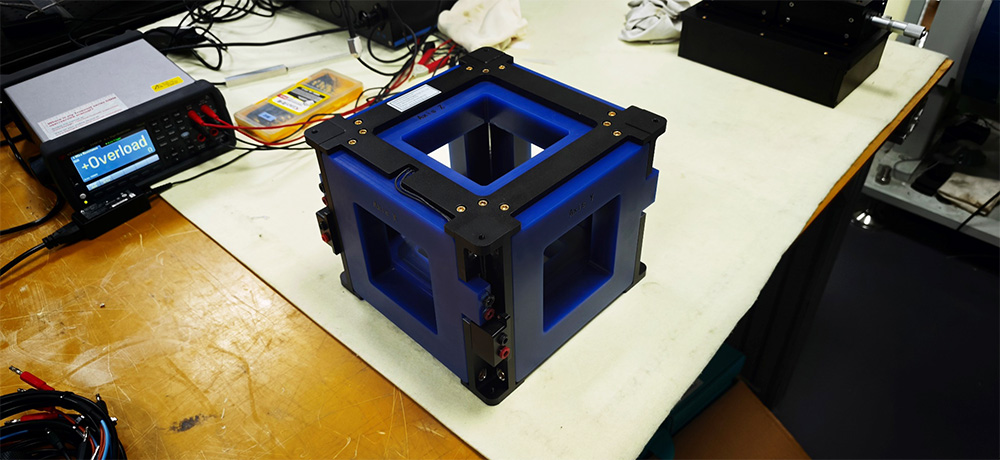

3DXF-30-2 Three-dimensional Square Helmholtz Coil 13DXF-30-2 Three-dimensional Square Helmholtz Coil 23DXF-30-2 Three-dimensional Square Helmholtz Coil 3



Overall Dimensions: 250mm(L) x 250mm(W) x 200mm(H)



Packing list

Three-dimensional square coil
Name Specifications Quantity
3D Square Coil 3DXF-30-2 1 unit
Power Connection Cable - 3 packs
Series Wire - 3 packs
Probe Mount 100mm 1 piece
Certificate of Conformity; - 1 set
Test Report - 1 set



Packaging Type: Wooden crate
Packaging Filler: Foam board

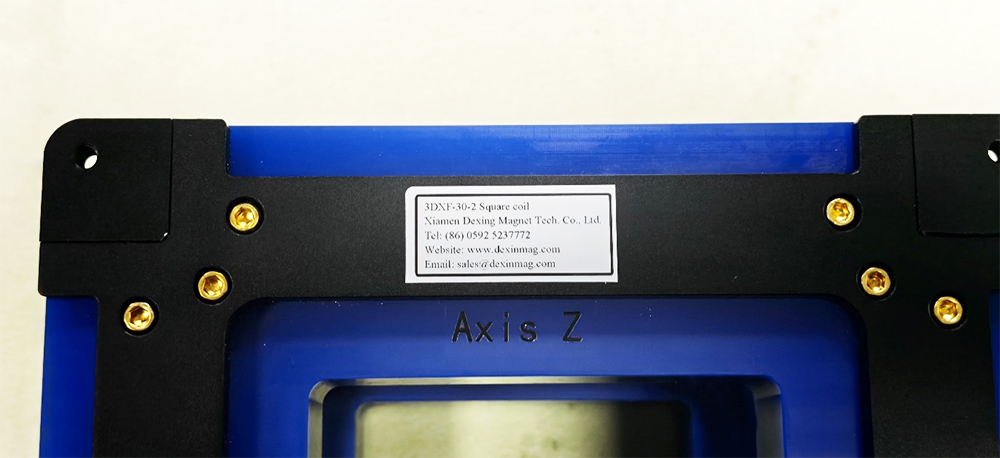

Labeling: Product nameplate
Total Weight of Equipment: 19kg





Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
Three-dimensional square coil		 Product model: 3DXF-30-2
Test time: April 13, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
15.0℃ 15.0℃ 　 0~30000nT
Table 1 Measurement environment data
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
No. Display current (A) Display voltage Voltage (V) Magnetic field
strength（Gs）
X Axis 0.5 1.94 5.640
1 3.91 11.270
1.5 5.88 16.890
2 7.85 22.509
Y Axis 0.5 1.95 5.610
1 3.92 11.250
1.5 5.87 16.870
2 7.86 22.512
Z Axis 0.5 1.43 8.290
1 2.89 16.590
1.5 4.34 24.860
2 5.79 33.173
Note The coil operating time is better than 8 hours.
Table 2 Magnetic field strength data
　
Magnetic field uniformity
No. Area Current Central(Gs) Maximum(Gs) Minimum(Gs) Uniformity
X Axis 3*3*3mm 2A 22.509 22.547 22.469 -0.178%
Coordinates Magnetic Field Strength (Gs)
(-1.5,-1.5,1.5) 22.472
(0,-1.5,1.5) 22.480
(1.5,-1.5,1.5) 22.500
(1.5,0,1.5) 22.500
(0,0,1.5) 22.489
(-1.5,0,1.5) 22.483
(-1.5,1.5,1.5) 22.480
(0,1.5,1.5) 22.469
(1.5,1.5,1.5) 22.487
(1.5,1.5,0) 22.511
(0,1.5,0) 22.495
(-1.5,1.5,0) 22.499
(-1.5,0,0) 22.510
(0,0,0) 22.509
(1.5,0,0) 22.516
(1.5,-1.5,0) 22.521
(0,-1.5,0) 22.500
(-1.5,-1.5,0) 22.500
(-1.5,-1.5,-1.5) 22.526
(0,-1.5,-1.5) 22.512
(1.5,-1.5,-1.5) 22.547
(1.5,0,-1.5) 22.541
(0,0,-1.5) 22.536
(-1.5,0,-1.5) 22.514
(-1.5,1.5,-1.5) 22.529
(0,1.5,-1.5) 22.516
(1.5,1.5,-1.5) 22.528
Magnetic field uniformity
No. Area Current Central(Gs) Maximum(Gs) Minimum(Gs) Uniformity
Y Axis 3*3*3mm 2A 22.512 22.554 22.474 0.187%
Coordinates Magnetic Field Strength (Gs)
(-1.5,-1.5,1.5) 22.482
(0,-1.5,1.5) 22.489
(1.5,-1.5,1.5) 22.479
(1.5,0,1.5) 22.474
(0,0,1.5) 22.480
(-1.5,0,1.5) 22.480
(-1.5,1.5,1.5) 22.491
(0,1.5,1.5) 22.504
(1.5,1.5,1.5) 22.503
(1.5,1.5,0) 22.520
(0,1.5,0) 22.532
(-1.5,1.5,0) 22.520
(-1.5,0,0) 22.508
(0,0,0) 22.512
(1.5,0,0) 22.504
(1.5,-1.5,0) 22.514
(0,-1.5,0) 22.520
(-1.5,-1.5,0) 22.499
(-1.5,-1.5,-1.5) 22.508
(0,-1.5,-1.5) 22.526
(1.5,-1.5,-1.5) 22.527
(1.5,0,-1.5) 22.526
(0,0,-1.5) 22.533
(-1.5,0,-1.5) 22.523
(-1.5,1.5,-1.5) 22.541
(0,1.5,-1.5) 22.548
(1.5,1.5,-1.5) 22.554
Magnetic field uniformity
No. Area Current Central(Gs) Maximum(Gs) Minimum(Gs) Uniformity
Z Axis 3*3*3mm 2A 33.173 33.222 33.116 -0.172%
Coordinates Magnetic Field Strength (Gs)
(-1.5,-1.5,1.5) 33.222
(0,-1.5,1.5) 33.22
(1.5,-1.5,1.5) 33.207
(1.5,0,1.5) 33.206
(0,0,1.5) 33.218
(-1.5,0,1.5) 33.214
(-1.5,1.5,1.5) 33.203
(0,1.5,1.5) 33.204
(1.5,1.5,1.5) 33.185
(1.5,1.5,0) 33.148
(0,1.5,0) 33.163
(-1.5,1.5,0) 33.158
(-1.5,0,0) 33.167
(0,0,0) 33.173
(1.5,0,0) 33.158
(1.5,-1.5,0) 33.154
(0,-1.5,0) 33.162
(-1.5,-1.5,0) 33.165
(-1.5,-1.5,-1.5) 33.155
(0,-1.5,-1.5) 33.145
(1.5,-1.5,-1.5) 33.135
(1.5,0,-1.5) 33.139
(0,0,-1.5) 33.147
(-1.5,0,-1.5) 33.144
(-1.5,1.5,-1.5) 33.139
(0,1.5,-1.5) 33.128
(1.5,1.5,-1.5) 33.116
Table 3 Uniformity data

Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
No. Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
X axis 15.0℃ 3.930Ω 4.023Ω 5.225Ω
Y axis 15.0℃ 3.940Ω 4.033Ω 5.239Ω
Z axis 15.0℃ 2.880Ω 2.948Ω 3.829Ω
Table 4 Resistance R data
　
X Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 46.8321m  1.00000k  47.9198m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
7.23126 20 294.375  1.00000k
Table 5 X axis inductance Ls and reactance Z data
　
X Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  47.9198m 7.23126 102 514.9  47.0450m 152.316
2 24.9  47.9045m 8.50114 103 519.8  47.0418m 153.754
3 29.8  47.8778m 9.82598 104 524.7  47.0387m 155.191
4 34.7  47.8481m 11.1853 105 529.6  47.0358m 156.63
5 39.6  47.8189m 12.5678 106 534.5  47.0326m 158.067
6 44.5  47.7991m 13.9686 107 539.4  47.0297m 159.505
7 49.4  47.7813m 15.3811 108 544.3  47.0250m 160.936
8 54.3  47.7679m 16.8029 109 549.2  47.0218m 162.373
9 59.2  47.7488m 18.2299 110 554.1  47.0189m 163.81
10 64.1  47.7286m 19.6605 111 559  47.0159m 165.247
11 69  47.7112m 21.0955 112 563.9  47.0128m 166.683
12 73.9  47.6942m 22.5332 113 568.8  47.0101m 168.121
13 78.8  47.6806m 23.9744 114 573.7  47.0072m 169.558
14 83.7  47.6654m 25.4164 115 578.6  47.0044m 170.995
15 88.6  47.6508m 26.8594 116 583.5  47.0016m 172.431
16 93.5  47.6351m 28.3027 117 588.4  46.9985m 173.867
17 98.4  47.6139m 29.7434 118 593.3  46.9957m 175.304
18 103.3  47.5993m 31.1883 119 598.2  46.9930m 176.74
19 108.2  47.5898m 32.6368 120 603.1  46.9904m 178.177
20 113.1  47.5771m 34.0832 121 608  46.9878m 179.614
21 118  47.5635m 35.5291 122 612.9  46.9853m 181.05
22 122.9  47.5506m 36.9754 123 617.8  46.9829m 182.488
23 127.8  47.5384m 38.422 124 622.7  46.9805m 183.925
24 132.7  47.5255m 39.8678 125 627.6  46.9778m 185.361
25 137.6  47.5129m 41.3136 126 632.5  46.9754m 186.797
26 142.5  47.5005m 42.7593 127 637.4  46.9730m 188.234
27 147.4  47.4903m 44.2065 128 642.3  46.9708m 189.671
28 152.3  47.4761m 45.65 129 647.2  46.9684m 191.107
29 157.2  47.4645m 47.0952 130 652.1  46.9659m 192.543
30 162.1  47.4532m 48.5404 131 657  46.9635m 193.979
31 167  47.4411m 49.9843 132 661.9  46.9612m 195.415
32 171.9  47.4318m 51.4312 133 666.8  46.9592m 196.853
33 176.8  47.4219m 52.8766 134 671.7  46.9569m 198.289
34 181.7  47.4123m 54.3219 135 676.6  46.9544m 199.724
35 186.6  47.4025m 55.7666 136 681.5  46.9523m 201.16
36 191.5  47.3931m 57.2113 137 686.4  46.9501m 202.597
37 196.4  47.3842m 58.6564 138 691.3  46.9479m 204.033
38 201.3  47.3750m 60.1005 139 696.2  46.9458m 205.469
39 206.2  47.3655m 61.544 140 701.1  46.9435m 206.904
40 211.1  47.3569m 62.9882 141 706  46.9415m 208.341
41 216  47.3482m 64.4318 142 710.9  46.9395m 209.777
42 220.9  47.3392m 65.8747 143 715.8  46.9373m 211.212
43 225.8  47.3308m 67.3179 144 720.7  46.9353m 212.648
44 230.7  47.3227m 68.7612 145 725.6  46.9332m 214.084
45 235.6  47.3145m 70.2039 146 730.5  46.9313m 215.52
46 240.5  47.3066m 71.6468 147 735.4  46.9293m 216.956
47 245.4  47.2984m 73.0887 148 740.3  46.9271m 218.39
48 250.3  47.2910m 74.5316 149 745.2  46.9252m 219.827
49 255.2  47.2841m 75.9746 150 750.1  46.9233m 221.262
50 260.1  47.2768m 77.4167 151 755  46.9212m 222.697
51 265  47.2701m 78.8594 152 759.9  46.9194m 224.133
52 269.9  47.2633m 80.3017 153 764.8  46.9174m 225.568
53 274.8  47.2569m 81.7442 154 769.7  46.9155m 227.004
54 279.7  47.2504m 83.1863 155 774.6  46.9135m 228.439
55 284.6  47.2443m 84.6288 156 779.5  46.9115m 229.873
56 289.5  47.2386m 86.0716 157 784.4  46.9097m 231.308
57 294.4  47.2327m 87.5137 158 789.3  46.9076m 232.743
58 299.3  47.2272m 88.9563 159 794.2  46.9060m 234.179
59 304.2  47.2228m 90.4005 160 799.1  46.9041m 235.613
60 309.1  47.2172m 91.8422 161 804  46.9021m 237.048
61 314  47.2116m 93.2837 162 808.9  46.9004m 238.483
62 318.9  47.2062m 94.7255 163 813.8  46.8984m 239.917
63 323.8  47.2009m 96.1669 164 818.7  46.8963m 241.35
64 328.7  47.1953m 97.6076 165 823.6  46.8946m 242.785
65 333.6  47.1898m 99.0482 166 828.5  46.8927m 244.219
66 338.5  47.1850m 100.49 167 833.4  46.8908m 245.653
67 343.4  47.1793m 101.929 168 838.3  46.8889m 247.087
68 348.3  47.1744m 103.37 169 843.2  46.8871m 248.521
69 353.2  47.1698m 104.812 170 848.1  46.8853m 249.955
70 358.1  47.1650m 106.252 171 853  46.8835m 251.389
71 363  47.1602m 107.693 172 857.9  46.8817m 252.823
72 367.9  47.1557m 109.133 173 862.8  46.8798m 254.256
73 372.8  47.1509m 110.573 174 867.7  46.8781m 255.69
74 377.7  47.1466m 112.014 175 872.6  46.8762m 257.124
75 382.6  47.1422m 113.454 176 877.5  46.8745m 258.558
76 387.5  47.1379m 114.895 177 882.4  46.8728m 259.991
77 392.4  47.1337m 116.335 178 887.3  46.8710m 261.424
78 397.3  47.1292m 117.774 179 892.2  46.8693m 262.858
79 402.2  47.1250m 119.214 180 897.1  46.8676m 264.292
80 407.1  47.1211m 120.654 181 902  46.8657m 265.724
81 412  47.1170m 122.094 182 906.9  46.8639m 267.157
82 416.9  47.1130m 123.533 183 911.8  46.8622m 268.591
83 421.8  47.1093m 124.973 184 916.7  46.8604m 270.023
84 426.7  47.1054m 126.413 185 921.6  46.8589m 271.457
85 431.6  47.1017m 127.853 186 926.5  46.8571m 272.889
86 436.5  47.0980m 129.292 187 931.4  46.8555m 274.323
87 441.4  47.0944m 130.732 188 936.3  46.8540m 275.757
88 446.3  47.0905m 132.17 189 941.2  46.8524m 277.19
89 451.2  47.0872m 133.61 190 946.1  46.8506m 278.622
90 456.1  47.0836m 135.049 191 951  46.8489m 280.055
91 461  47.0801m 136.489 192 955.9  46.8473m 281.487
92 465.9  47.0767m 137.928 193 960.8  46.8448m 282.915
93 470.8  47.0733m 139.367 194 965.7  46.8432m 284.348
94 475.7  47.0699m 140.805 195 970.6  46.8415m 285.78
95 480.6  47.0666m 142.244 196 975.5  46.8401m 287.214
96 485.5  47.0634m 143.683 197 980.4  46.8386m 288.647
97 490.4  47.0604m 145.123 198 985.3  46.8372m 290.081
98 495.3  47.0573m 146.562 199 990.2  46.8356m 291.513
99 500.2  47.0543m 148.001 200 995.1  46.8339m 292.944
100 505.1  47.0513m 149.439 201  1.00000k  46.8321m 294.375
101 510  47.0480m 150.877 　 　 　 　
Table 6 X axis Detailed frequency data of inductance Ls and reactance Z



Y Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 47.2329m  1.00000k  48.1774m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
7.26785 20 296.891  1.00000k
Table 7 Y axis inductance Ls and reactance Z data
Y Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  48.1774m 7.26785 102 514.9  47.4380m 153.585
2 24.9  48.1764m 8.54557 103 519.8  47.4350m 155.035
3 29.8  48.1646m 9.88054 104 524.7  47.4317m 156.485
4 34.7  48.1316m 11.2468 105 529.6  47.4289m 157.935
5 39.6  48.1232m 12.6428 106 534.5  47.4261m 159.386
6 44.5  48.1006m 14.051 107 539.4  47.4230m 160.836
7 49.4  48.0927m 15.4758 108 544.3  47.4191m 162.282
8 54.3  48.0785m 16.906 109 549.2  47.4163m 163.732
9 59.2  48.0702m 18.3458 110 554.1  47.4133m 165.181
10 64.1  48.0498m 19.7863 111 559  47.4104m 166.63
11 69  48.0397m 21.234 112 563.9  47.4077m 168.08
12 73.9  48.0280m 22.684 113 568.8  47.4048m 169.53
13 78.8  48.0127m 24.1344 114 573.7  47.4021m 170.979
14 83.7  48.0011m 25.5886 115 578.6  47.3994m 172.428
15 88.6  47.9903m 27.0444 116 583.5  47.3964m 173.877
16 93.5  47.9779m 28.4997 117 588.4  47.3936m 175.325
17 98.4  47.9590m 29.9524 118 593.3  47.3910m 176.775
18 103.3  47.9545m 31.4144 119 598.2  47.3882m 178.223
19 108.2  47.9424m 32.872 120 603.1  47.3857m 179.673
20 113.1  47.9320m 34.3308 121 608  47.3832m 181.122
21 118  47.9194m 35.7883 122 612.9  47.3809m 182.572
22 122.9  47.9094m 37.2479 123 617.8  47.3784m 184.021
23 127.8  47.8989m 38.7069 124 622.7  47.3762m 185.471
24 132.7  47.8882m 40.1658 125 627.6  47.3737m 186.919
25 137.6  47.8772m 41.6245 126 632.5  47.3714m 188.369
26 142.5  47.8653m 43.0817 127 637.4  47.3688m 189.817
27 147.4  47.8565m 44.5418 128 642.3  47.3666m 191.266
28 152.3  47.8411m 45.995 129 647.2  47.3647m 192.717
29 157.2  47.8343m 47.4564 130 652.1  47.3621m 194.164
30 162.1  47.8233m 48.9133 131 657  47.3596m 195.612
31 167  47.8136m 50.3714 132 661.9  47.3578m 197.063
32 171.9  47.8059m 51.8312 133 666.8  47.3551m 198.509
33 176.8  47.7969m 53.2891 134 671.7  47.3529m 199.958
34 181.7  47.7878m 54.7468 135 676.6  47.3507m 201.407
35 186.6  47.7800m 56.2054 136 681.5  47.3487m 202.856
36 191.5  47.7710m 57.6622 137 686.4  47.3466m 204.304
37 196.4  47.7622m 59.119 138 691.3  47.3445m 205.753
38 201.3  47.7538m 60.5759 139 696.2  47.3422m 207.201
39 206.2  47.7448m 62.0318 140 701.1  47.3402m 208.649
40 211.1  47.7366m 63.4883 141 706  47.3380m 210.097
41 216  47.7291m 64.9453 142 710.9  47.3360m 211.546
42 220.9  47.7209m 66.4011 143 715.8  47.3340m 212.994
43 225.8  47.7130m 67.8568 144 720.7  47.3320m 214.442
44 230.7  47.7054m 69.3125 145 725.6  47.3300m 215.891
45 235.6  47.6969m 70.7668 146 730.5  47.3279m 217.338
46 240.5  47.6892m 72.2217 147 735.4  47.3260m 218.787
47 245.4  47.6827m 73.6779 148 740.3  47.3239m 220.234
48 250.3  47.6726m 75.1283 149 745.2  47.3221m 221.683
49 255.2  47.6693m 76.5891 150 750.1  47.3199m 223.129
50 260.1  47.6624m 78.0436 151 755  47.3181m 224.578
51 265  47.6567m 79.5 152 759.9  47.3161m 226.025
52 269.9  47.6490m 80.9526 153 764.8  47.3144m 227.474
53 274.8  47.6430m 82.4077 154 769.7  47.3122m 228.92
54 279.7  47.6371m 83.8627 155 774.6  47.3106m 230.369
55 284.6  47.6318m 85.3186 156 779.5  47.3088m 231.817
56 289.5  47.6255m 86.7721 157 784.4  47.3068m 233.264
57 294.4  47.6196m 88.2262 158 789.3  47.3050m 234.711
58 299.3  47.6143m 89.6812 159 794.2  47.3032m 236.159
59 304.2  47.6103m 91.1382 160 799.1  47.3015m 237.607
60 309.1  47.6045m 92.5916 161 804  47.2999m 239.055
61 314  47.5994m 94.0461 162 808.9  47.2980m 240.502
62 318.9  47.5941m 95.4998 163 813.8  47.2962m 241.949
63 323.8  47.5892m 96.9542 164 818.7  47.2944m 243.396
64 328.7  47.5838m 98.4072 165 823.6  47.2925m 244.842
65 333.6  47.5784m 99.86 166 828.5  47.2907m 246.289
66 338.5  47.5731m 101.313 167 833.4  47.2891m 247.737
67 343.4  47.5682m 102.766 168 838.3  47.2878m 249.186
68 348.3  47.5639m 104.22 169 843.2  47.2855m 250.63
69 353.2  47.5589m 105.673 170 848.1  47.2837m 252.076
70 358.1  47.5545m 107.126 171 853  47.2819m 253.522
71 363  47.5499m 108.579 172 857.9  47.2805m 254.97
72 367.9  47.5454m 110.032 173 862.8  47.2789m 256.418
73 372.8  47.5410m 111.484 174 867.7  47.2770m 257.863
74 377.7  47.5369m 112.938 175 872.6  47.2752m 259.309
75 382.6  47.5326m 114.39 176 877.5  47.2738m 260.757
76 387.5  47.5285m 115.843 177 882.4  47.2720m 262.203
77 392.4  47.5244m 117.296 178 887.3  47.2706m 263.65
78 397.3  47.5201m 118.747 179 892.2  47.2687m 265.095
79 402.2  47.5162m 120.2 180 897.1  47.2672m 266.542
80 407.1  47.5122m 121.652 181 902  47.2655m 267.988
81 412  47.5082m 123.104 182 906.9  47.2637m 269.433
82 416.9  47.5046m 124.557 183 911.8  47.2620m 270.879
83 421.8  47.5007m 126.008 184 916.7  47.2606m 272.326
84 426.7  47.4970m 127.46 185 921.6  47.2591m 273.772
85 431.6  47.4934m 128.912 186 926.5  47.2574m 275.218
86 436.5  47.4900m 130.365 187 931.4  47.2558m 276.664
87 441.4  47.4861m 131.816 188 936.3  47.2545m 278.111
88 446.3  47.4826m 133.267 189 941.2  47.2523m 279.553
89 451.2  47.4790m 134.719 190 946.1  47.2510m 281
90 456.1  47.4758m 136.171 191 951  47.2501m 282.45
91 461  47.4725m 137.623 192 955.9  47.2481m 283.893
92 465.9  47.4691m 139.074 193 960.8  47.2453m 285.33
93 470.8  47.4656m 140.525 194 965.7  47.2434m 286.774
94 475.7  47.4623m 141.976 195 970.6  47.2419m 288.22
95 480.6  47.4592m 143.427 196 975.5  47.2405m 289.666
96 485.5  47.4558m 144.878 197 980.4  47.2393m 291.113
97 490.4  47.4530m 146.33 198 985.3  47.2377m 292.557
98 495.3  47.4499m 147.781 199 990.2  47.2364m 294.004
99 500.2  47.4472m 149.233 200 995.1  47.2348m 295.448
100 505.1  47.4439m 150.683 201  1.00000k  47.2329m 296.891
101 510  47.4409m 152.134 　 　 　 　
Table 8 Y axis Detailed frequency data of inductance Ls and reactance Z



Z Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 20.4320m 701.1  26.5885m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
4.64009 20 128.672  1.00000k
Table 9 Z axis inductance Ls and reactance Z data
Z Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  26.5885m 4.64009 102 514.9  20.7006m 67.3005
2 24.9  26.1839m 5.28293 103 519.8  20.6962m 67.9223
3 29.8  25.7834m 5.93878 104 524.7  20.6920m 68.5445
4 34.7  25.4006m 6.59381 105 529.6  20.6878m 69.1666
5 39.6  25.0420m 7.24529 106 534.5  20.6837m 69.7886
6 44.5  24.7084m 7.89054 107 539.4  20.6796m 70.4105
7 49.4  24.4017m 8.52874 108 544.3  20.6765m 71.0357
8 54.3  24.1301m 9.16225 109 549.2  20.6725m 71.6575
9 59.2  23.8787m 9.78891 110 554.1  20.6686m 72.2794
10 64.1  23.6415m 10.4103 111 559  20.6647m 72.9012
11 69  23.4300m 11.0269 112 563.9  20.6608m 73.5228
12 73.9  23.2377m 11.6403 113 568.8  20.6572m 74.1449
13 78.8  23.0633m 12.2515 114 573.7  20.6534m 74.7664
14 83.7  22.9047m 12.8607 115 578.6  20.6497m 75.3881
15 88.6  22.7608m 13.4689 116 583.5  20.6462m 76.01
16 93.5  22.6299m 14.0764 117 588.4  20.6425m 76.6315
17 98.4  22.5095m 14.6825 118 593.3  20.6390m 77.2529
18 103.3  22.4001m 15.2889 119 598.2  20.6354m 77.8741
19 108.2  22.3005m 15.8958 120 603.1  20.6320m 78.4958
20 113.1  22.2090m 16.5027 121 608  20.6285m 79.117
21 118  22.1248m 17.11 122 612.9  20.6250m 79.7381
22 122.9  22.0475m 17.7178 123 617.8  20.6217m 80.3594
23 127.8  21.9763m 18.3262 124 622.7  20.6183m 80.9803
24 132.7  21.9104m 18.9352 125 627.6  20.6150m 81.6018
25 137.6  21.8496m 19.5449 126 632.5  20.6118m 82.2228
26 142.5  21.7929m 20.155 127 637.4  20.6086m 82.844
27 147.4  21.7408m 20.7664 128 642.3  20.6053m 83.4647
28 152.3  21.6920m 21.3782 129 647.2  20.6021m 84.0857
29 157.2  21.6463m 21.9902 130 652.1  20.5990m 84.7066
30 162.1  21.6038m 22.603 131 657  20.5959m 85.3276
31 167  21.5635m 23.216 132 661.9  20.5928m 85.9479
32 171.9  21.5241m 23.8278 133 666.8  20.5898m 86.5691
33 176.8  21.4887m 24.4421 134 671.7  20.5868m 87.1898
34 181.7  21.4553m 25.0568 135 676.6  20.5839m 87.8106
35 186.6  21.4238m 25.6721 136 681.5  20.5809m 88.4311
36 191.5  21.3942m 26.2878 137 686.4  20.5780m 89.0518
37 196.4  21.3661m 26.9041 138 691.3  20.5750m 89.6719
38 201.3  21.3396m 27.5209 139 696.2  20.5722m 90.2927
39 206.2  21.3145m 28.138 140 701.1  20.5693m 90.9127
40 211.1  21.2907m 28.7557 141 706  20.5664m 91.5329
41 216  21.2679m 29.3736 142 710.9  20.5636m 92.1533
42 220.9  21.2466m 29.9922 143 715.8  20.5609m 92.7738
43 225.8  21.2260m 30.6109 144 720.7  20.5582m 93.3941
44 230.7  21.2066m 31.2303 145 725.6  20.5554m 94.0139
45 235.6  21.1897m 31.8524 146 730.5  20.5528m 94.6344
46 240.5  21.1718m 32.472 147 735.4  20.5501m 95.2547
47 245.4  21.1543m 33.0913 148 740.3  20.5474m 95.8745
48 250.3  21.1377m 33.7113 149 745.2  20.5448m 96.4946
49 255.2  21.1220m 34.3316 150 750.1  20.5422m 97.1144
50 260.1  21.1065m 34.9516 151 755  20.5397m 97.7346
51 265  21.0917m 35.5719 152 759.9  20.5371m 98.3543
52 269.9  21.0776m 36.1927 153 764.8  20.5345m 98.974
53 274.8  21.0638m 36.8132 154 769.7  20.5315m 99.5914
54 279.7  21.0505m 37.4341 155 774.6  20.5289m 100.211
55 284.6  21.0377m 38.055 156 779.5  20.5266m 100.831
56 289.5  21.0252m 38.676 157 784.4  20.5241m 101.451
57 294.4  21.0131m 39.2971 158 789.3  20.5216m 102.07
58 299.3  21.0016m 39.9184 159 794.2  20.5192m 102.69
59 304.2  20.9902m 40.5395 160 799.1  20.5169m 103.31
60 309.1  20.9793m 41.1612 161 804  20.5145m 103.929
61 314  20.9690m 41.7832 162 808.9  20.5122m 104.548
62 318.9  20.9587m 42.4047 163 813.8  20.5099m 105.168
63 323.8  20.9486m 43.0264 164 818.7  20.5075m 105.787
64 328.7  20.9396m 43.6496 165 823.6  20.5052m 106.406
65 333.6  20.9305m 44.272 166 828.5  20.5028m 107.025
66 338.5  20.9214m 44.8941 167 833.4  20.5006m 107.644
67 343.4  20.9126m 45.5163 168 838.3  20.4983m 108.264
68 348.3  20.9043m 46.1392 169 843.2  20.4961m 108.883
69 353.2  20.8959m 46.7615 170 848.1  20.4939m 109.502
70 358.1  20.8879m 47.3842 171 853  20.4917m 110.121
71 363  20.8801m 48.0069 172 857.9  20.4895m 110.74
72 367.9  20.8724m 48.6293 173 862.8  20.4873m 111.359
73 372.8  20.8650m 49.2522 174 867.7  20.4851m 111.978
74 377.7  20.8577m 49.8748 175 872.6  20.4830m 112.596
75 382.6  20.8505m 50.4974 176 877.5  20.4809m 113.215
76 387.5  20.8435m 51.1201 177 882.4  20.4788m 113.834
77 392.4  20.8366m 51.7425 178 887.3  20.4766m 114.453
78 397.3  20.8299m 52.365 179 892.2  20.4747m 115.072
79 402.2  20.8233m 52.9876 180 897.1  20.4725m 115.69
80 407.1  20.8169m 53.6104 181 902  20.4705m 116.309
81 412  20.8105m 54.2327 182 906.9  20.4685m 116.928
82 416.9  20.8043m 54.8553 183 911.8  20.4665m 117.546
83 421.8  20.7982m 55.4776 184 916.7  20.4644m 118.164
84 426.7  20.7922m 56.1001 185 921.6  20.4624m 118.783
85 431.6  20.7864m 56.7227 186 926.5  20.4604m 119.402
86 436.5  20.7806m 57.3449 187 931.4  20.4585m 120.02
87 441.4  20.7750m 57.9676 188 936.3  20.4564m 120.638
88 446.3  20.7694m 58.5898 189 941.2  20.4545m 121.256
89 451.2  20.7639m 59.2122 190 946.1  20.4526m 121.875
90 456.1  20.7585m 59.8343 191 951  20.4506m 122.492
91 461  20.7532m 60.4567 192 955.9  20.4488m 123.111
92 465.9  20.7480m 61.0789 193 960.8  20.4470m 123.73
93 470.8  20.7429m 61.7013 194 965.7  20.4451m 124.348
94 475.7  20.7379m 62.3235 195 970.6  20.4432m 124.965
95 480.6  20.7330m 62.9457 196 975.5  20.4414m 125.584
96 485.5  20.7282m 63.568 197 980.4  20.4394m 126.201
97 490.4  20.7234m 64.1901 198 985.3  20.4376m 126.819
98 495.3  20.7186m 64.8119 199 990.2  20.4358m 127.437
99 500.2  20.7141m 65.4345 200 995.1  20.4339m 128.054
100 505.1  20.7095m 66.0563 201  1.00000k  20.4320m 128.672
101 510  20.7050m 66.6785 　 　 　 　
Table 10 Z axis Detailed frequency data of inductance Ls and reactance Z





Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2026

Get A Quote!
녕
