3DXHC7-50 3D AC Helmholtz coil: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Helmholtz Coil  ꄲ  3DXHC7-50 3D AC Helmholtz coil: Quality Inspection Report

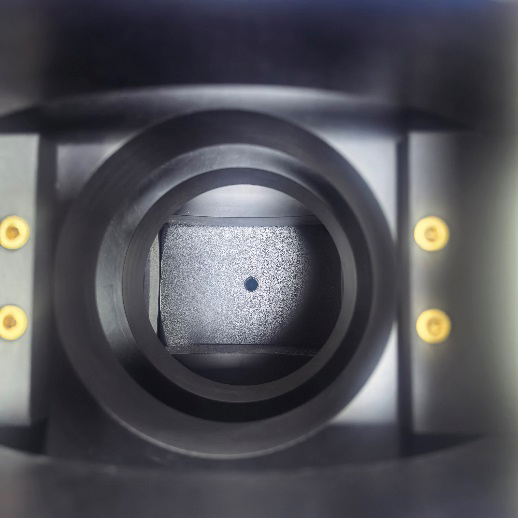

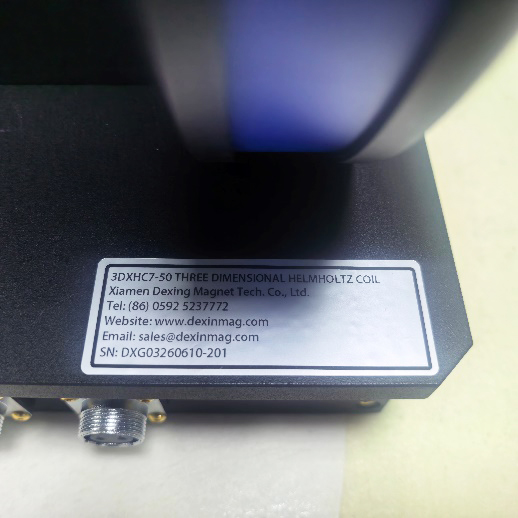

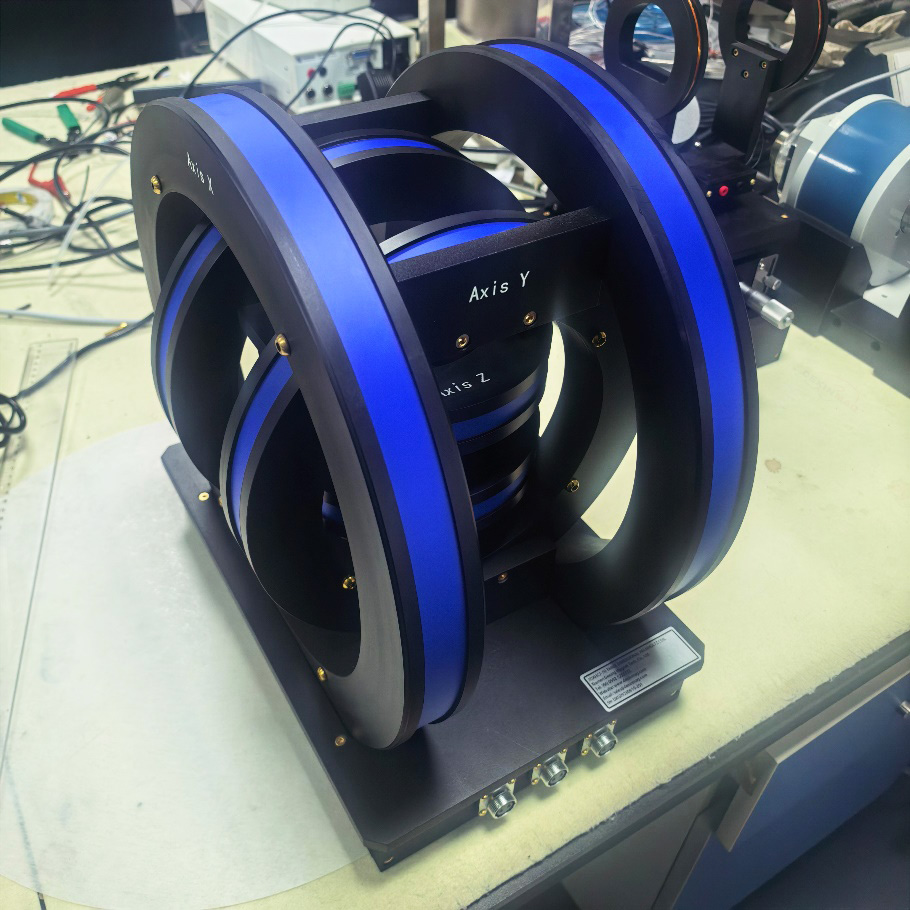

3DXHC7-50 3D AC Helmholtz coil P1 3DXHC7-50 3D AC Helmholtz coil P2 3DXHC7-50 3D AC Helmholtz coil P3 3DXHC7-50 3D AC Helmholtz coil P4



Overall Dimensions: 260mm(L) x 380mm(W) x 390mm(H)

Weight: 23.4kg







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
3D AC Helmholtz coil		 Product model: 3DXHC7-50
Test time: July 9th, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
20.0℃ 20.0℃ - 0~30000nT
Table 1 Measurement environment data
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss meter
DX-33OF Fluxgate Magnetometer
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point



Magnetic field strength
No. Display current (A) Display voltage (V) Magnetic field
strength（Gs）
X Axis 2 2.1 10.586
4 4.2 21.172
6 6.3 31.762
8 8.41 42.374
10 10.52 52.968
Y Axis 2 1.16 10.926
4 2.32 21.931
6 3.48 32.973
8 4.64 43.986
10 5.8 54.975
Z Axis 0.5 2.09 13.615
1 4.16 27.216
1.5 6.25 40.802
2 8.36 54.461
No. Display current（Ap） Display voltage（Vp） Magnetic field
strength（Gs）
X Axis 10 40.3 -
Y Axis 10 15 -
Z Axis 2 16.2 -
Table 2 Magnetic field strength data
　
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
X Axis Sф80mm 10A 52.968Gs 52.968Gs 52.756Gs -0.4%
Coordinates Magnetic Field Strength (Gs)
(0,0,0) 52.968
(40,0,0) 52.779
(-40,0,0) 52.756
(0,40,0) 52.806
(0,-40,0) 52.793
(0,0,40) 52.839
(0,0,-40) 52.852
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
Y Axis Sф60mm 10A 54.975Gs 54.975Gs 54.763Gs -0.39%
Coordinates Magnetic Field Strength (Gs)
(0,0,0) 54.975
(30,0,0) 54.853
(-30,0,0) 54.865
(0,30,0) 54.766
(0,-30,0) 54.763
(0,0,30) 54.802
(0,0,-30) 54.791
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
Z Axis Sф35mm 2A 54.461Gs 54.461Gs 54.248Gs -0.39%
Coordinates Magnetic Field Strength (Gs)
(0,0,0) 54.461
(17.5,0,0) 54.326
(-17.5,0,0) 54.331
(0,17.5,0) 54.376
(0,-17.5,0) 54.286
(0,0,17.5) 54.248
(0,0,-17.5) 54.268
Table 3 Uniformity data



Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
No. Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
X axis 20.0℃ 1.013Ω 1.013Ω 1.316Ω
Y axis 20.0℃ 0.581Ω 0.581Ω 0.755Ω
Z axis 20.0℃ 4.148Ω 4.148Ω 5.388Ω
Table 4 Resistance R data



X Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 13.8569m  1.00000k  13.9588m 54.75
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
4.51271 50 87.0883  1.00000k
Table 5 X axis inductance Ls and reactance Z data
　
X Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 50  13.9567m 4.51271 102 529.75  13.8755m 46.2055
2 54.75  13.9588m 4.9197 103 534.5  13.8753m 46.6189
3 59.5  13.9572m 5.32632 104 539.25  13.8750m 47.0319
4 64.25  13.9541m 5.73443 105 544  13.8751m 47.4464
5 69  13.9471m 6.1414 106 548.75  13.8749m 47.8599
6 73.75  13.9423m 6.54999 107 553.5  13.8749m 48.2737
7 78.5  13.9423m 6.96137 108 558.25  13.8746m 48.6867
8 83.25  13.9407m 7.37221 109 563  13.8743m 49.1
9 88  13.9366m 7.78207 110 567.75  13.8741m 49.5132
10 92.75  13.9353m 8.19371 111 572.5  13.8740m 49.9267
11 97.5  13.9326m 8.60431 112 577.25  13.8738m 50.34
12 102.25  13.9299m 9.01555 113 582  13.8736m 50.7534
13 107  13.9286m 9.42774 114 586.75  13.8734m 51.1666
14 111.75  13.9267m 9.83982 115 591.5  13.8732m 51.58
15 116.5  13.9230m 10.2509 116 596.25  13.8731m 51.9935
16 121.25  13.9215m 10.6632 117 601  13.8728m 52.4065
17 126  13.9196m 11.0752 118 605.75  13.8726m 52.8198
18 130.75  13.9179m 11.4875 119 610.5  13.8725m 53.2332
19 135.5  13.9170m 11.9004 120 615.25  13.8722m 53.6464
20 140.25  13.9143m 12.312 121 620  13.8721m 54.0599
21 145  13.9144m 12.7259 122 624.75  13.8719m 54.4732
22 149.75  13.9135m 13.1392 123 629.5  13.8717m 54.8862
23 154.5  13.9124m 13.552 124 634.25  13.8715m 55.2995
24 159.25  13.9110m 13.9645 125 639  13.8713m 55.7128
25 164  13.9112m 14.3789 126 643.75  13.8711m 56.1258
26 168.75  13.9080m 14.7894 127 648.5  13.8709m 56.539
27 173.5  13.9065m 15.2019 128 653.25  13.8708m 56.9524
28 178.25  13.9057m 15.6152 129 658  13.8705m 57.3652
29 183  13.9051m 16.0286 130 662.75  13.8703m 57.7784
30 187.75  13.9037m 16.4411 131 667.5  13.8701m 58.1915
31 192.5  13.9028m 16.8542 132 672.25  13.8699m 58.6045
32 197.25  13.9017m 17.267 133 677  13.8697m 59.0178
33 202  13.9010m 17.6803 134 681.75  13.8695m 59.4309
34 206.75  13.9002m 18.0935 135 686.5  13.8693m 59.8438
35 211.5  13.8994m 18.5065 136 691.25  13.8691m 60.2569
36 216.25  13.8991m 18.9204 137 696  13.8689m 60.6699
37 221  13.8983m 19.3336 138 700.75  13.8687m 61.0829
38 225.75  13.8977m 19.747 139 705.5  13.8684m 61.4959
39 230.5  13.8973m 20.1606 140 710.25  13.8683m 61.9091
40 235.25  13.8970m 20.5743 141 715  13.8680m 62.322
41 240  13.8964m 20.9877 142 719.75  13.8679m 62.735
42 244.75  13.8960m 21.4014 143 724.5  13.8677m 63.1481
43 249.5  13.8947m 21.8136 144 729.25  13.8675m 63.561
44 254.25  13.8947m 22.2278 145 734  13.8673m 63.974
45 259  13.8942m 22.6412 146 738.75  13.8671m 64.3872
46 263.75  13.8938m 23.0548 147 743.5  13.8668m 64.7999
47 268.5  13.8931m 23.4679 148 748.25  13.8666m 65.2126
48 273.25  13.8925m 23.8811 149 753  13.8665m 65.6258
49 278  13.8921m 24.2947 150 757.75  13.8662m 66.0386
50 282.75  13.8916m 24.7079 151 762.5  13.8661m 66.4517
51 287.5  13.8909m 25.121 152 767.25  13.8658m 66.8642
52 292.25  13.8905m 25.5345 153 772  13.8656m 67.2774
53 297  13.8902m 25.9481 154 776.75  13.8655m 67.6903
54 301.75  13.8883m 26.359 155 781.5  13.8652m 68.1029
55 306.5  13.8879m 26.7724 156 786.25  13.8650m 68.516
56 311.25  13.8875m 27.1857 157 791  13.8648m 68.9288
57 316  13.8871m 27.5993 158 795.75  13.8646m 69.3416
58 320.75  13.8868m 28.0129 159 800.5  13.8645m 69.7546
59 325.5  13.8864m 28.4263 160 805.25  13.8642m 70.1671
60 330.25  13.8860m 28.8397 161 810  13.8640m 70.5798
61 335  13.8857m 29.2531 162 814.75  13.8639m 70.9931
62 339.75  13.8855m 29.6669 163 819.5  13.8637m 71.4059
63 344.5  13.8850m 30.0801 164 824.25  13.8634m 71.8183
64 349.25  13.8848m 30.4937 165 829  13.8632m 72.2311
65 354  13.8844m 30.9071 166 833.75  13.8631m 72.6442
66 358.75  13.8854m 31.3236 167 838.5  13.8629m 73.0568
67 363.5  13.8851m 31.7371 168 843.25  13.8627m 73.4696
68 368.25  13.8847m 32.1505 169 848  13.8625m 73.8824
69 373  13.8845m 32.5642 170 852.75  13.8623m 74.2951
70 377.75  13.8843m 32.978 171 857.5  13.8621m 74.7079
71 382.5  13.8839m 33.3913 172 862.25  13.8619m 75.1206
72 387.25  13.8837m 33.805 173 867  13.8617m 75.5332
73 392  13.8835m 34.2185 174 871.75  13.8615m 75.9459
74 396.75  13.8832m 34.632 175 876.5  13.8614m 76.3588
75 401.5  13.8829m 35.0455 176 881.25  13.8612m 76.7714
76 406.25  13.8827m 35.4592 177 886  13.8609m 77.1839
77 411  13.8824m 35.8727 178 890.75  13.8609m 77.5972
78 415.75  13.8822m 36.2862 179 895.5  13.8606m 78.0095
79 420.5  13.8818m 36.6994 180 900.25  13.8605m 78.4225
80 425.25  13.8815m 37.1129 181 905  13.8603m 78.8351
81 430  13.8813m 37.5264 182 909.75  13.8601m 79.2479
82 434.75  13.8810m 37.9397 183 914.5  13.8600m 79.6609
83 439.5  13.8808m 38.3532 184 919.25  13.8597m 80.0729
84 444.25  13.8805m 38.7666 185 924  13.8595m 80.4857
85 449  13.8802m 39.1799 186 928.75  13.8593m 80.8982
86 453.75  13.8799m 39.5933 187 933.5  13.8592m 81.3109
87 458.5  13.8796m 40.0067 188 938.25  13.8590m 81.7235
88 463.25  13.8793m 40.4199 189 943  13.8588m 82.1362
89 468  13.8791m 40.8335 190 947.75  13.8586m 82.5488
90 472.75  13.8789m 41.2469 191 952.5  13.8584m 82.9614
91 477.5  13.8786m 41.6601 192 957.25  13.8583m 83.3742
92 482.25  13.8782m 42.0732 193 962  13.8585m 83.7892
93 487  13.8779m 42.4864 194 966.75  13.8583m 84.2016
94 491.75  13.8777m 42.8998 195 971.5  13.8582m 84.6144
95 496.5  13.8774m 43.313 196 976.25  13.8580m 85.027
96 501.25  13.8771m 43.7262 197 981  13.8578m 85.4393
97 506  13.8768m 44.1394 198 985.75  13.8576m 85.8517
98 510.75  13.8767m 44.553 199 990.5  13.8574m 86.2643
99 515.5  13.8764m 44.9662 200 995.25  13.8573m 86.6769
100 520.25  13.8761m 45.3794 201  1.00000k  13.8569m 87.0883
101 525  13.8759m 45.7926 　 　 　 　
Table 6 X axis Detailed frequency data of inductance Ls and reactance Z



Y Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 4.71150m  1.00000k  4.72682m 54.75
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
1.60475 50 29.6175  1.00000k
Table 7 Y axis inductance Ls and reactance Z data
Y Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 50  4.72662m 1.60475 102 529.75  4.71682m 15.7158
2 54.75  4.72682m 1.73545 103 534.5  4.71679m 15.8564
3 59.5  4.72621m 1.86788 104 539.25  4.71675m 15.9969
4 64.25  4.72619m 2.0022 105 544  4.71623m 16.1359
5 69  4.72535m 2.13663 106 548.75  4.71621m 16.2765
6 73.75  4.72441m 2.27191 107 553.5  4.71615m 16.417
7 78.5  4.72482m 2.4081 108 558.25  4.71607m 16.5574
8 83.25  4.72436m 2.54439 109 563  4.71604m 16.698
9 88  4.72378m 2.6811 110 567.75  4.71599m 16.8384
10 92.75  4.72355m 2.81855 111 572.5  4.71596m 16.979
11 97.5  4.72360m 2.9565 112 577.25  4.71587m 17.1194
12 102.25  4.72342m 3.09438 113 582  4.71585m 17.26
13 107  4.72341m 3.23269 114 586.75  4.71581m 17.4005
14 111.75  4.72319m 3.37119 115 591.5  4.71574m 17.541
15 116.5  4.72299m 3.50981 116 596.25  4.71571m 17.6815
16 121.25  4.72294m 3.64876 117 601  4.71566m 17.822
17 126  4.72230m 3.7873 118 605.75  4.71562m 17.9626
18 130.75  4.72182m 3.92608 119 610.5  4.71559m 18.1032
19 135.5  4.72123m 4.06484 120 615.25  4.71551m 18.2435
20 140.25  4.72079m 4.20388 121 620  4.71548m 18.3841
21 145  4.72011m 4.34276 122 624.75  4.71547m 18.5248
22 149.75  4.71931m 4.48153 123 629.5  4.71542m 18.6653
23 154.5  4.71995m 4.62186 124 634.25  4.71536m 18.8057
24 159.25  4.72005m 4.76177 125 639  4.71536m 18.9464
25 164  4.72058m 4.90216 126 643.75  4.71531m 19.0869
26 168.75  4.72054m 5.04176 127 648.5  4.71526m 19.2274
27 173.5  4.72073m 5.18192 128 653.25  4.71523m 19.368
28 178.25  4.72054m 5.32181 129 658  4.71518m 19.5085
29 183  4.72053m 5.46188 130 662.75  4.71509m 19.6488
30 187.75  4.72050m 5.60222 131 667.5  4.71513m 19.7897
31 192.5  4.72056m 5.74229 132 672.25  4.71508m 19.9303
32 197.25  4.72065m 5.88259 133 677  4.71504m 20.0708
33 202  4.72052m 6.0226 134 681.75  4.71501m 20.2113
34 206.75  4.72046m 6.16273 135 686.5  4.71498m 20.3519
35 211.5  4.72031m 6.30276 136 691.25  4.71491m 20.4923
36 216.25  4.72025m 6.44295 137 696  4.71490m 20.6329
37 221  4.72022m 6.58321 138 700.75  4.71486m 20.7734
38 225.75  4.72016m 6.72343 139 705.5  4.71482m 20.9139
39 230.5  4.72014m 6.86374 140 710.25  4.71479m 21.0545
40 235.25  4.72010m 7.00406 141 715  4.71476m 21.195
41 240  4.72011m 7.14445 142 719.75  4.71472m 21.3356
42 244.75  4.72012m 7.2849 143 724.5  4.71471m 21.4762
43 249.5  4.71993m 7.42504 144 729.25  4.71464m 21.6166
44 254.25  4.72004m 7.5657 145 734  4.71463m 21.7572
45 259  4.71995m 7.70605 146 738.75  4.71456m 21.8976
46 263.75  4.71997m 7.84661 147 743.5  4.71455m 22.0382
47 268.5  4.71997m 7.98713 148 748.25  4.71451m 22.1788
48 273.25  4.71986m 8.12746 149 753  4.71445m 22.3191
49 278  4.71989m 8.26806 150 757.75  4.71446m 22.4599
50 282.75  4.71982m 8.40847 151 762.5  4.71442m 22.6004
51 287.5  4.71983m 8.54906 152 767.25  4.71438m 22.7409
52 292.25  4.71979m 8.68952 153 772  4.71433m 22.8813
53 297  4.71968m 8.82987 154 776.75  4.71429m 23.0218
54 301.75  4.71948m 8.96994 155 781.5  4.71424m 23.1623
55 306.5  4.71940m 9.11036 156 786.25  4.71422m 23.3028
56 311.25  4.71929m 9.25076 157 791  4.71419m 23.4434
57 316  4.71918m 9.3911 158 795.75  4.71416m 23.5839
58 320.75  4.71908m 9.53151 159 800.5  4.71411m 23.7244
59 325.5  4.71898m 9.67193 160 805.25  4.71407m 23.8648
60 330.25  4.71887m 9.81231 161 810  4.71402m 24.0053
61 335  4.71838m 9.95184 162 814.75  4.71400m 24.1458
62 339.75  4.71829m 10.0923 163 819.5  4.71394m 24.2862
63 344.5  4.71833m 10.233 164 824.25  4.71388m 24.4266
64 349.25  4.71824m 10.3734 165 829  4.71384m 24.5671
65 354  4.71809m 10.5137 166 833.75  4.71379m 24.7075
66 358.75  4.71807m 10.6542 167 838.5  4.71376m 24.848
67 363.5  4.71800m 10.7947 168 843.25  4.71368m 24.9883
68 368.25  4.71790m 10.9351 169 848  4.71367m 25.1289
69 373  4.71787m 11.0757 170 852.75  4.71363m 25.2694
70 377.75  4.71793m 11.2165 171 857.5  4.71357m 25.4097
71 382.5  4.71802m 11.3588 172 862.25  4.71354m 25.5502
72 387.25  4.71771m 11.4983 173 867  4.71348m 25.6906
73 392  4.71762m 11.6386 174 871.75  4.71343m 25.831
74 396.75  4.71762m 11.7792 175 876.5  4.71340m 25.9715
75 401.5  4.71753m 11.9195 176 881.25  4.71333m 26.1118
76 406.25  4.71749m 12.0601 177 886  4.71326m 26.2521
77 411  4.71749m 12.2008 178 890.75  4.71323m 26.3926
78 415.75  4.71743m 12.3413 179 895.5  4.71318m 26.533
79 420.5  4.71737m 12.4818 180 900.25  4.71312m 26.6733
80 425.25  4.71734m 12.6224 181 905  4.71304m 26.8136
81 430  4.71728m 12.7629 182 909.75  4.71299m 26.954
82 434.75  4.71730m 12.9036 183 914.5  4.71290m 27.0941
83 439.5  4.71721m 13.0441 184 919.25  4.71283m 27.2343
84 444.25  4.71720m 13.1847 185 924  4.71278m 27.3747
85 449  4.71718m 13.3254 186 928.75  4.71273m 27.5151
86 453.75  4.71717m 13.4661 187 933.5  4.71265m 27.6553
87 458.5  4.71720m 13.6068 188 938.25  4.71257m 27.7955
88 463.25  4.71713m 13.7473 189 943  4.71251m 27.9357
89 468  4.71713m 13.888 190 947.75  4.71247m 28.0762
90 472.75  4.71713m 14.0287 191 952.5  4.71241m 28.2165
91 477.5  4.71711m 14.1693 192 957.25  4.71234m 28.3567
92 482.25  4.71707m 14.3098 193 962  4.71198m 28.4953
93 487  4.71700m 14.4503 194 966.75  4.71196m 28.6358
94 491.75  4.71703m 14.591 195 971.5  4.71189m 28.776
95 496.5  4.71699m 14.7316 196 976.25  4.71183m 28.9164
96 501.25  4.71701m 14.8723 197 981  4.71178m 29.0567
97 506  4.71695m 15.0128 198 985.75  4.71173m 29.197
98 510.75  4.71693m 15.1534 199 990.5  4.71166m 29.3373
99 515.5  4.71685m 15.2939 200 995.25  4.71161m 29.4775
100 520.25  4.71684m 15.4345 201  1.00000k  4.71150m 29.6175
101 525  4.71685m 15.5752 　 　 　 　
Table 8 Y axis Detailed frequency data of inductance Ls and reactance Z



Z Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 21.6078m  1.00000k  21.6276m 59.5
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
7.98076 50 135.843  1.00000k
Table 9 Z axis inductance Ls and reactance Z data
Z Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 50  21.6184m 7.98076 102 529.75  21.6091m 72.0552
2 54.75  21.6262m 8.5384 103 534.5  21.6090m 72.699
3 59.5  21.6276m 9.1058 104 539.25  21.6090m 73.3429
4 64.25  21.6263m 9.68348 105 544  21.6100m 73.9898
5 69  21.6203m 10.2686 106 548.75  21.6100m 74.6338
6 73.75  21.6187m 10.8606 107 553.5  21.6100m 75.2777
7 78.5  21.6180m 11.4585 108 558.25  21.6100m 75.9219
8 83.25  21.6176m 12.0614 109 563  21.6100m 76.5658
9 88  21.6171m 12.6684 110 567.75  21.6100m 77.2099
10 92.75  21.6174m 13.2794 111 572.5  21.6100m 77.8538
11 97.5  21.6157m 13.8911 112 577.25  21.6099m 78.4976
12 102.25  21.6149m 14.5072 113 582  21.6099m 79.1418
13 107  21.6143m 15.1258 114 586.75  21.6098m 79.7855
14 111.75  21.6139m 15.7467 115 591.5  21.6098m 80.4297
15 116.5  21.6137m 16.3694 116 596.25  21.6098m 81.0736
16 121.25  21.6135m 16.9938 117 601  21.6098m 81.7179
17 126  21.6134m 17.6197 118 605.75  21.6097m 82.3617
18 130.75  21.6135m 18.2471 119 610.5  21.6097m 83.0057
19 135.5  21.6135m 18.8756 120 615.25  21.6096m 83.6496
20 140.25  21.6138m 19.5054 121 620  21.6096m 84.2939
21 145  21.6142m 20.1362 122 624.75  21.6097m 84.9382
22 149.75  21.6140m 20.7675 123 629.5  21.6096m 85.5823
23 154.5  21.6142m 21.3997 124 634.25  21.6097m 86.2267
24 159.25  21.6141m 22.0325 125 639  21.6096m 86.8707
25 164  21.6142m 22.6662 126 643.75  21.6096m 87.5148
26 168.75  21.6115m 23.2978 127 648.5  21.6095m 88.1589
27 173.5  21.6113m 23.9325 128 653.25  21.6094m 88.8029
28 178.25  21.6112m 24.5677 129 658  21.6094m 89.4468
29 183  21.6109m 25.2033 130 662.75  21.6094m 90.0913
30 187.75  21.6110m 25.8397 131 667.5  21.6095m 90.7358
31 192.5  21.6108m 26.4763 132 672.25  21.6094m 91.3798
32 197.25  21.6109m 27.1134 133 677  21.6095m 92.0245
33 202  21.6110m 27.751 134 681.75  21.6093m 92.6682
34 206.75  21.6110m 28.3889 135 686.5  21.6093m 93.3125
35 211.5  21.6110m 29.027 136 691.25  21.6093m 93.9566
36 216.25  21.6112m 29.6656 137 696  21.6093m 94.6011
37 221  21.6114m 30.3046 138 700.75  21.6092m 95.2453
38 225.75  21.6114m 30.9435 139 705.5  21.6092m 95.8895
39 230.5  21.6137m 31.5861 140 710.25  21.6094m 96.5346
40 235.25  21.6137m 32.2254 141 715  21.6092m 97.1784
41 240  21.6136m 32.8651 142 719.75  21.6092m 97.8225
42 244.75  21.6133m 33.5045 143 724.5  21.6092m 98.4669
43 249.5  21.6132m 34.1445 144 729.25  21.6084m 99.1079
44 254.25  21.6131m 34.7845 145 734  21.6084m 99.7523
45 259  21.6131m 35.4249 146 738.75  21.6084m 100.397
46 263.75  21.6128m 36.0651 147 743.5  21.6084m 101.041
47 268.5  21.6127m 36.7056 148 748.25  21.6084m 101.686
48 273.25  21.6125m 37.3462 149 753  21.6084m 102.33
49 278  21.6122m 37.9867 150 757.75  21.6084m 102.975
50 282.75  21.6120m 38.6276 151 762.5  21.6084m 103.619
51 287.5  21.6118m 39.2684 152 767.25  21.6084m 104.263
52 292.25  21.6115m 39.9094 153 772  21.6084m 104.908
53 297  21.6114m 40.5508 154 776.75  21.6084m 105.552
54 301.75  21.6110m 41.192 155 781.5  21.6084m 106.197
55 306.5  21.6110m 41.8338 156 786.25  21.6085m 106.842
56 311.25  21.6110m 42.4756 157 791  21.6085m 107.486
57 316  21.6110m 43.1175 158 795.75  21.6085m 108.131
58 320.75  21.6111m 43.7597 159 800.5  21.6085m 108.775
59 325.5  21.6112m 44.4021 160 805.25  21.6085m 109.42
60 330.25  21.6112m 45.0444 161 810  21.6086m 110.064
61 335  21.6112m 45.6866 162 814.75  21.6086m 110.709
62 339.75  21.6112m 46.3289 163 819.5  21.6085m 111.353
63 344.5  21.6112m 46.9713 164 824.25  21.6085m 111.998
64 349.25  21.6113m 47.6139 165 829  21.6085m 112.642
65 354  21.6113m 48.2565 166 833.75  21.6086m 113.287
66 358.75  21.6113m 48.8991 167 838.5  21.6086m 113.931
67 363.5  21.6112m 49.5415 168 843.25  21.6085m 114.576
68 368.25  21.6111m 50.1842 169 848  21.6086m 115.22
69 373  21.6111m 50.827 170 852.75  21.6085m 115.865
70 377.75  21.6112m 51.4699 171 857.5  21.6085m 116.509
71 382.5  21.6111m 52.1126 172 862.25  21.6085m 117.154
72 387.25  21.6110m 52.7553 173 867  21.6086m 117.799
73 392  21.6109m 53.3981 174 871.75  21.6085m 118.443
74 396.75  21.6108m 54.0409 175 876.5  21.6085m 119.088
75 401.5  21.6108m 54.6839 176 881.25  21.6086m 119.733
76 406.25  21.6107m 55.3269 177 886  21.6086m 120.377
77 411  21.6106m 55.9699 178 890.75  21.6086m 121.022
78 415.75  21.6106m 56.613 179 895.5  21.6087m 121.667
79 420.5  21.6105m 57.2559 180 900.25  21.6087m 122.312
80 425.25  21.6104m 57.8991 181 905  21.6086m 122.956
81 430  21.6103m 58.5421 182 909.75  21.6086m 123.6
82 434.75  21.6102m 59.1853 183 914.5  21.6086m 124.245
83 439.5  21.6101m 59.8283 184 919.25  21.6085m 124.888
84 444.25  21.6100m 60.4715 185 924  21.6086m 125.534
85 449  21.6100m 61.1148 186 928.75  21.6085m 126.178
86 453.75  21.6100m 61.7583 187 933.5  21.6086m 126.823
87 458.5  21.6098m 62.4014 188 938.25  21.6086m 127.468
88 463.25  21.6097m 63.0447 189 943  21.6086m 128.112
89 468  21.6097m 63.6884 190 947.75  21.6086m 128.757
90 472.75  21.6097m 64.3318 191 952.5  21.6085m 129.401
91 477.5  21.6096m 64.9753 192 957.25  21.6085m 130.046
92 482.25  21.6096m 65.6189 193 962  21.6081m 130.688
93 487  21.6094m 66.262 194 966.75  21.6080m 131.332
94 491.75  21.6094m 66.9058 195 971.5  21.6081m 131.977
95 496.5  21.6092m 67.5489 196 976.25  21.6080m 132.621
96 501.25  21.6092m 68.1927 197 981  21.6081m 133.266
97 506  21.6092m 68.8364 198 985.75  21.6080m 133.911
98 510.75  21.6092m 69.48 199 990.5  21.6079m 134.554
99 515.5  21.6091m 70.1237 200 995.25  21.6080m 135.199
100 520.25  21.6091m 70.7674 201  1.00000k  21.6078m 135.843
101 525  21.6092m 71.4116 　 　 　 　
Table 10 Z axis Detailed frequency data of inductance Ls and reactance Z



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2026

Get A Quote!
녕
