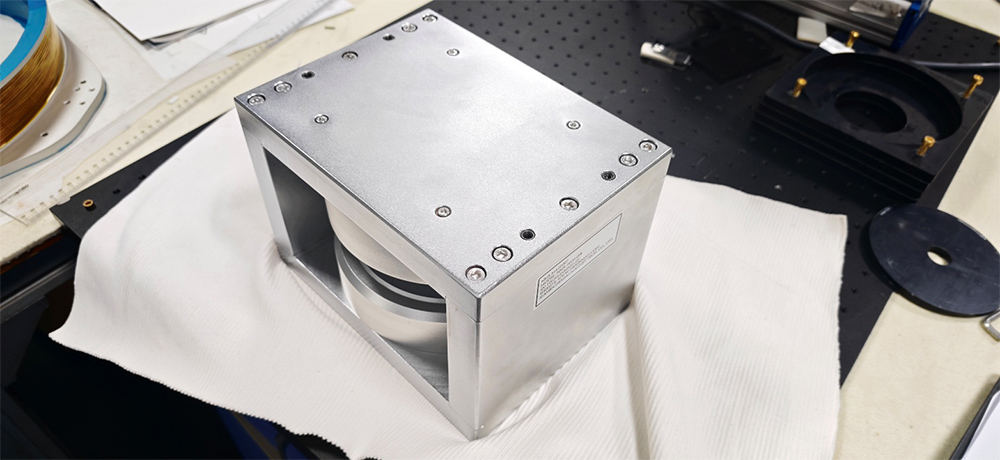

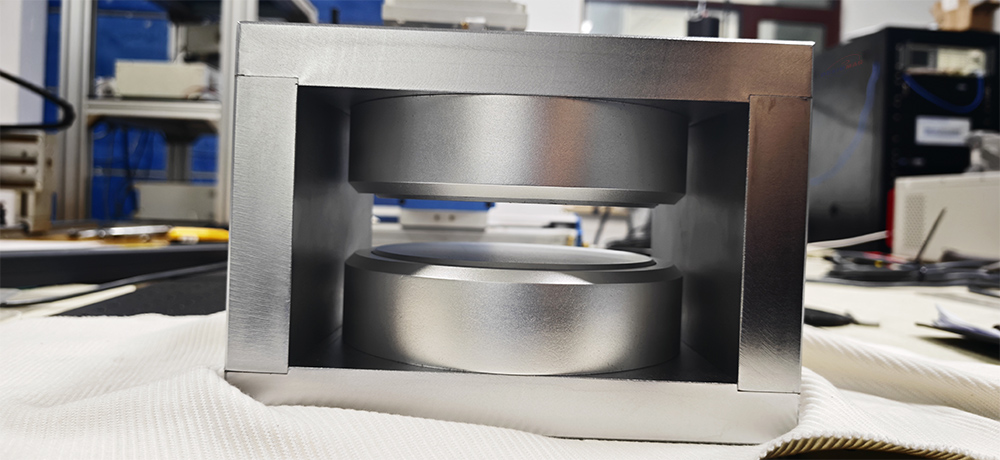

NMR 14025-058 Permanent Magnet: Quality Inspection Report
1. Mechanical Dimensions
Overall dimensions:
Length * Width * Height
223 mm * 170 mm * 160 mm
2. Packing List
|
Item |
Specifications | Quantity |
| Permanent Magnet | NMR 14025-058 |
1 |
| Certificate of Conformity |
- |
1 |
| Test Report |
- |
1 |
3. Packaging Type
Wooden packaging box
4. Packaging Filler
Foam board
5. Labeling
Product Nameplate
6. Total Equipment Weight
33 kg
| Performance test report | |||||||
| Introduction | |||||||
| 1. Test purpose | |||||||
| Through the analysis of the test results, the evaluation of the product performance is obtained; Evaluate whether the test product meets the technical requirements; Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory. |
|||||||
| 2. Basic information | |||||||
| Product Name: Permanent Magnet |
Product model: | NMR14025-058 | |||||
| Test time: | July 27, 2026 | ||||||
| 3. Testing environment | |||||||
| The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1. | |||||||
| Measurement environment | |||||||
| Environment temperature | Product initial temperature | Lead length | Environmental magnetic field | ||||
| 20.0℃ | 20.0℃ | - | 0~30000nT | ||||
| Table 1 Measurement environment data | |||||||
| Magnetic field parameter test | |||||||
| 1. Using the device | |||||||
DX-180 Gauss Meter |
|||||||
| 2. Magnetic field measurement | |||||||
| This product uses the following measurement methods: Fixed-point measurement: measure the magnetic field at the target point |
|||||||
| Magnetic field strength | |||||||
| No. | Magnetic field strength(mT) | ||||||
| 1 | 609.83 | ||||||
| Table 2 Magnetic field strength data | |||||||
| Magnetic field uniformity | |||||||
| No. | Measurement area | Central (mT) | Maximum (mT) | Minimum (mT) | Uniformity | ||
| 1 | Φ15*10mm | 609.83 | 609.83 | 609.82 | -0.0016% | ||
| XYZ | Magnetic field strength(mT) | ||||||
| (0,0,0) | 609.83 | ||||||
| (7.5,0,0) | 609.82 | ||||||
| (-7.5,0,0) | 609.82 | ||||||
| (0,7.5,0) | 609.83 | ||||||
| (0,-7.5,0) | 609.83 | ||||||
| (0,0,5) | 609.83 | ||||||
| (7.5,0,5) | 609.83 | ||||||
| (-7.5,0,5) | 609.82 | ||||||
| (0,7.5,5) | 609.83 | ||||||
| (0,-7.5,5) | 609.83 | ||||||
| (0,0,-5) | 609.83 | ||||||
| (7.5,0,-5) | 609.83 | ||||||
| (-7.5,0,-5) | 609.82 | ||||||
| (0,7.5,-5) | 609.83 | ||||||
| (0,-7.5,-5) | 609.83 | ||||||
| Table 3 Magnetic field uniformity | |||||||
| Conclusion | |||||||
| The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document. | |||||||
