DXSBV-200 Electromagnet: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Electromagnet  ꄲ  DXSBV-200 Electromagnet: Quality Inspection Report

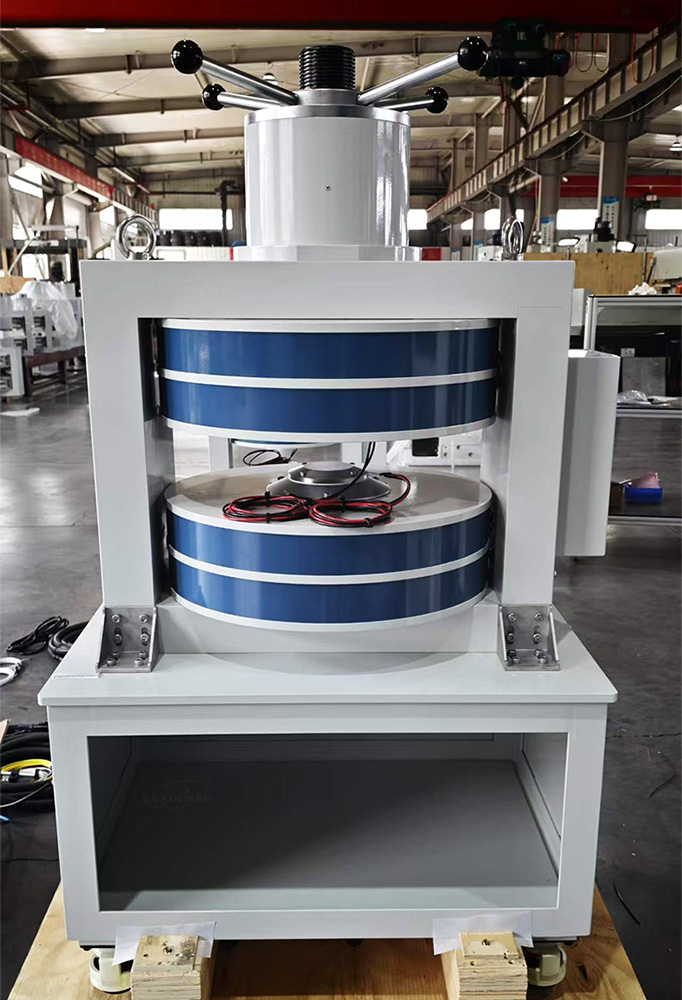

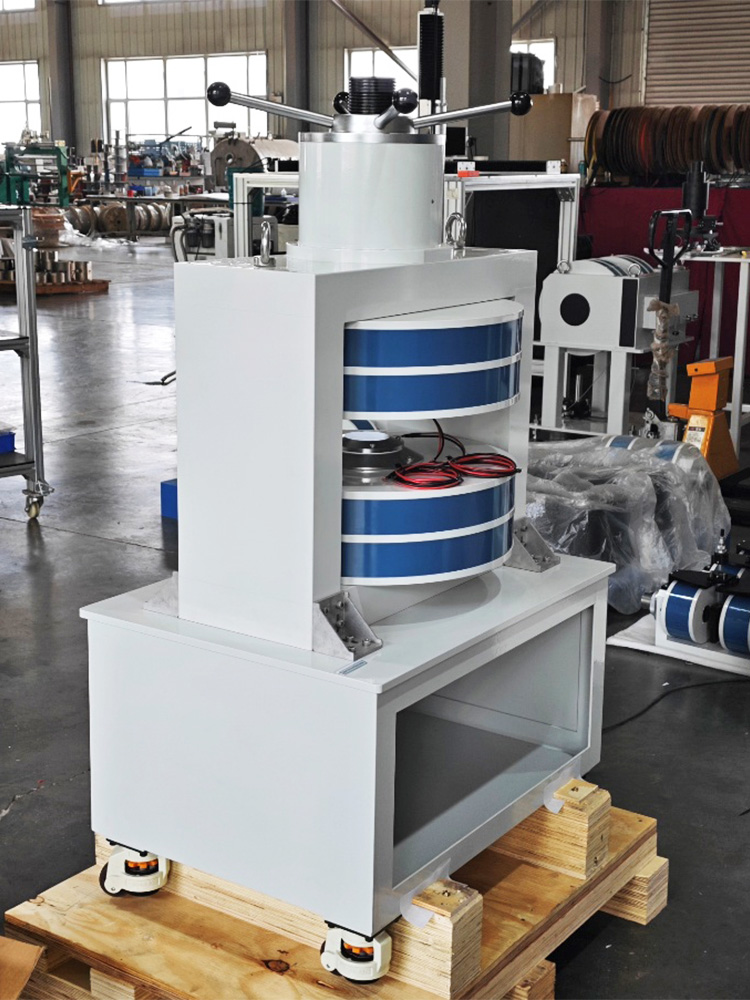

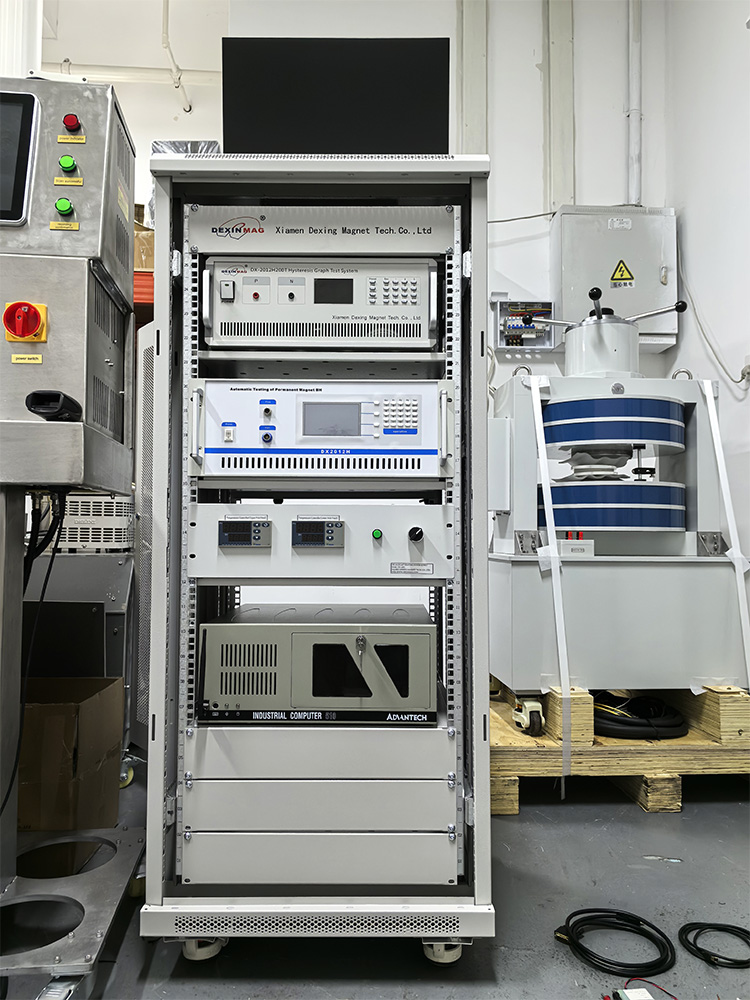

DXSBV-200 Electromagnet P1 DXSBV-200 Electromagnet P2 DXSBV-200 Electromagnet P3



1. Mechanical Dimensions
Overall dimensions:
Length * Width * Height
840 mm * 600 mm * 1430 mm



2. Packing List

Name Specifications Quantity
Electromagnet DXSBV-200

1
Power Connection Cable

-

1
PT100 Wire

-

1
Probe holder

-

1
Grounding Wire

-

1
Pole head   1
Base Housing   1
Certificate of Conformity

-

1
Test Report

-

1
Heating Power Supply
Heating Power Supply - 1
220V Power Cord - 1
Heated Pole Piece PT100 Cable - 2



3. Packaging Type
Wooden packaging box



4. Packaging Filler
Foam board



5. Labeling

Product Nameplate



6. Total Equipment Weight
925 kg







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
Electromagnet		 Product model: DXSBV-200
Test time: May 14, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
15.0℃ 15.0℃ - 0~30000nT
Table 1 Measurement environment data
　
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
DXACP Power Amplifier
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
Air gap Display current (A) Display voltage (V) Magnetic field
strength（Gs）
DXSBV-200 Electromagnet: Ø80 mm Pure Iron Pole Head 10mmGap 10 33.14 21085.7
20 66.29 25786.9
30 99.54 27454.3
40 133.32 28347.4
5mmGap 10 33.14 24729.3
20 66.29 27728.8
30 99.54 28997.1
40 133.32 29757.3
3mmGap 10 33.14 25773.7
20 66.29 28438.2
30 99.54 29609.6
40 133.32 30.271k
DXSBV-200 Electromagnet: Ø80 mm Pure Iron Heated Pole Head 10mmGap 10 33.14 10857.3
20 66.29 18488.9
30 99.54 22249.4
40 133.32 23796.3
5mmGap 10 33.14 14803.9
20 66.29 21847.4
30 99.54 24066.3
40 133.32 25168.5
3mmGap 10 33.14 16749.1
20 66.29 22645.4
30 99.54 24623.5
40 133.32 25588.3
Table 2 Magnetic field strength data

Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
Environment temp Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
15.0℃ 15.0℃ 3.283Ω 3.360Ω 4.365Ω
Table 3 Resistance R data
　

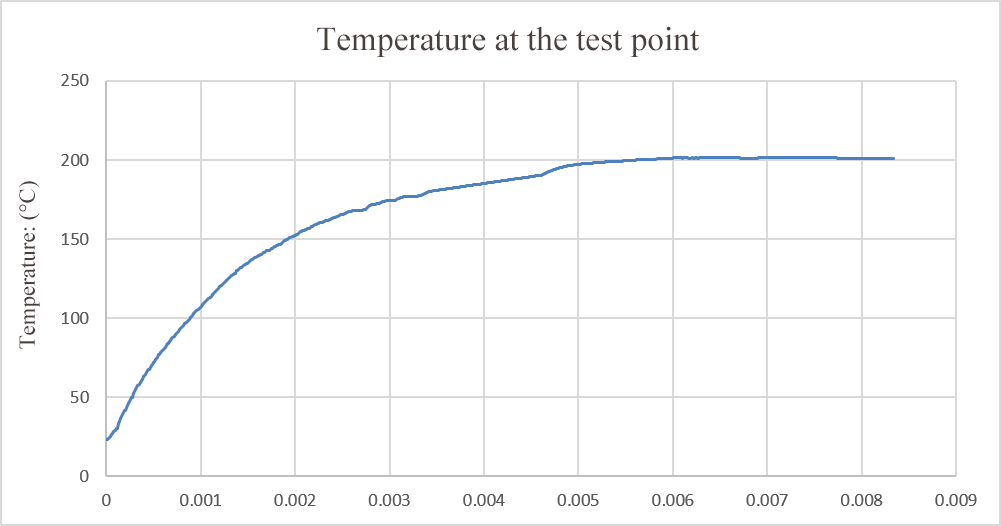

Temperature Rise Data for Heated Pole Head
DXSBV-200 Electromagnet P5　
Note: The test point is located at the center of the lower pole piece; the air gap between the upper and lower pole pieces is 10 mm; both pole pieces are in a heated state.

Conclusion
The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
