DXHC10-400 One-dimensional Helmholtz Coil: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Helmholtz Coil  ꄲ  DXHC10-400 One-dimensional Helmholtz Coil: Quality Inspection Report

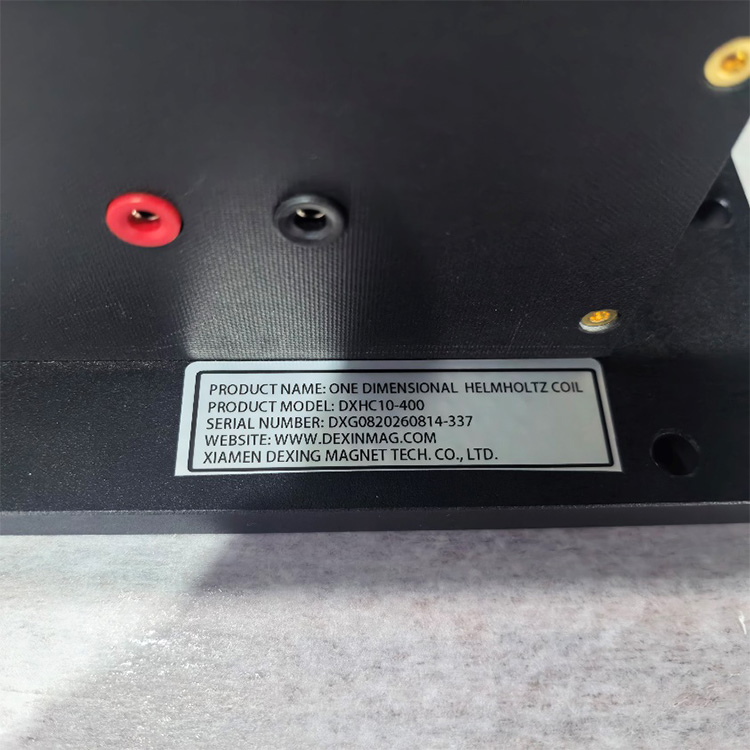

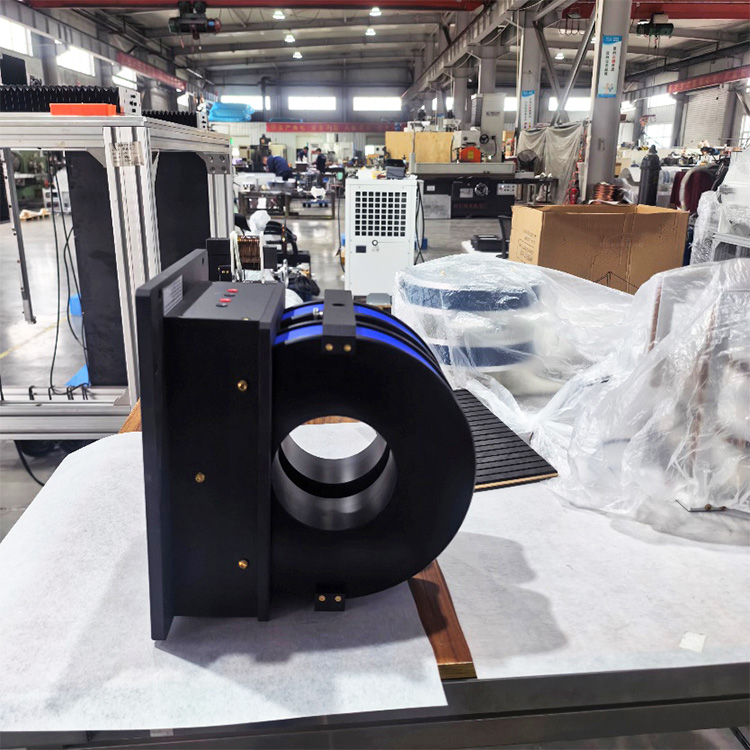

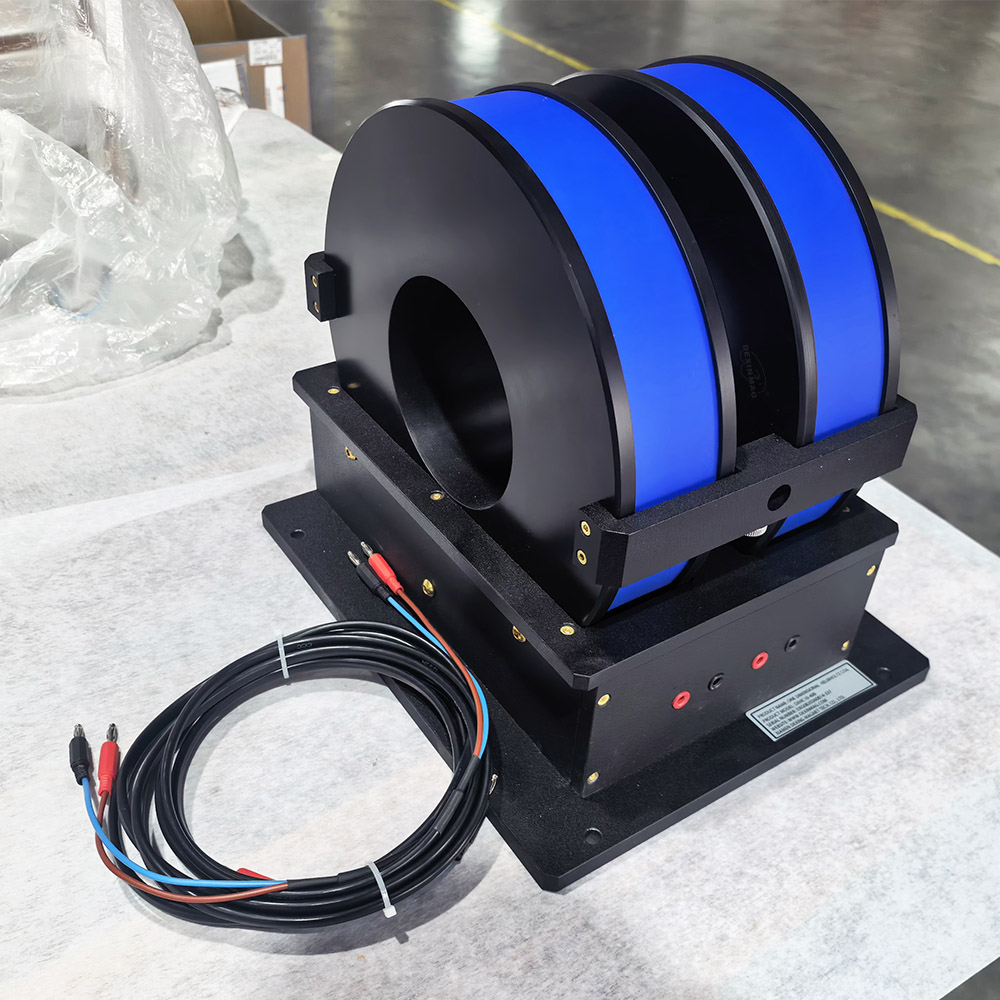

DXHC10-400 One-dimensional Helmholtz Coil p1 DXHC10-400 One-dimensional Helmholtz Coil p2 DXHC10-400 One-dimensional Helmholtz Coil p3 DXHC10-400 One-dimensional Helmholtz Coil p4



Overall Dimensions: 275mm(L) x330mm(W) x 305mm(H)

Weight: 30.5kg





Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
One-dimensional Helmholtz coil		 Product model: DXHC10-400
Test time: 20260920-400
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
20.0℃ 20.0℃ - 0~30000nT
Table 1 Measurement environment data
　
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
DXACP Power Amplifier
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point



Magnetic field strength in a series-aiding connection
No. Display current (A) Display voltage (V) Magnetic field
strength（Gs）
1 2 8.94 109.754
2 4 17.87 218.92
3 6 26.82 328.3
4 8 35.81 437.62
6 9 40.31 492.21
Magnetic field strength with series-opposing connection
No. Measurement position (mm) Measurement current (A) Magnetic field
strength（Gs）
1 -20 9A 119.308
2 -16 97.026
3 -12 73.596
4 -8 49.452
5 -4 24.802
6 0 0.069
7 4 24.893
8 8 49.536
9 12 73.709
10 16 97.27
11 20 119.547
Table 2 Magnetic field strength data

Magnetic field uniformity in series-connected forward configuration
No. Measurement area Current Central
magnetic field		 Maximum
magnetic field		 Minimum
magnetic field		 Uniformity
1 Sф50mm 9A 492.21Gs 493.53Gs 488.87Gs -0.68%
Coordinates Magnetic Field Strength (Gs)
(0,0,0) 492.21
(25,0,0) 489.47
(-25,0,0) 488.94
(0,25,0) 493.18
(0,-25,0) 493.53
(0,0,25) 488.87
(0,0,-25) 489.69
Table 3 Uniformity data



Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
Environment temp Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
20.0℃ 20.0℃ 4.317Ω 4.317Ω 5.608Ω
Table 4 Resistance R data



Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 185.275m 862.8 186.256m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
14.8458 20 25.6359  1.00000k
Table 5 inductance Ls and reactance Z data
　
Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20 186.256m 4.24568 102 514.9  185.316m 10.6101
2 24.9  186.124m 4.34388 103 519.8  185.293m 10.6497
3 29.8  186.133m 4.36329 104 524.7  185.315m 10.8108
4 34.7  186.068m 4.38264 105 529.6  185.297m 10.9103
5 39.6  186.074m 4.40008 106 534.5  185.296m 10.9528
6 44.5  186.036m 4.43366 107 539.4  185.305m 11.1447
7 49.4  185.987m 4.46148 108 544.3  185.298m 11.1759
8 54.3  185.976m 4.48729 109 549.2  185.297m 11.2832
9 59.2  185.953m 4.51277 110 554.1  185.302m 11.3915
10 64.1  185.901m 4.55077 111 559  185.307m 11.615
11 69  185.901m 4.56619 112 563.9  185.303m 11.7445
12 73.9  185.867m 4.58792 113 568.8  185.300m 11.8297
13 78.8  185.867m 4.63419 114 573.7  185.298m 11.9384
14 83.7  185.830m 4.65794 115 578.6  185.301m 12.0773
15 88.6  185.808m 4.69586 116 583.5  185.307m 12.2307
16 93.5  185.801m 4.72815 117 588.4  185.297m 12.1397
17 98.4  185.760m 4.7748 118 593.3  185.309m 12.3493
18 103.3  185.758m 4.77884 119 598.2  185.292m 12.5279
19 108.2  185.726m 4.8148 120 603.1  185.305m 12.5703
20 113.1  185.732m 4.88963 121 608  185.311m 12.7434
21 118  185.744m 4.94655 122 612.9  185.300m 12.9188
22 122.9  185.713m 4.94838 123 617.8  185.311m 13.0143
23 127.8  185.708m 4.98596 124 622.7  185.302m 13.1037
24 132.7  185.674m 5.02497 125 627.6  185.305m 13.1708
25 137.6  185.652m 5.07877 126 632.5  185.311m 13.3849
26 142.5  185.623m 5.08996 127 637.4  185.306m 13.5585
27 147.4  185.607m 5.13253 128 642.3  185.308m 13.713
28 152.3  185.569m 5.20843 129 647.2  185.322m 13.8559
29 157.2  185.579m 5.27151 130 652.1  185.304m 13.8758
30 162.1  185.577m 5.24483 131 657  185.306m 14.0393
31 167  185.566m 5.32224 132 661.9  185.309m 14.0585
32 171.9  185.570m 5.38991 133 666.8  185.314m 14.3508
33 176.8  185.555m 5.42812 134 671.7  185.317m 14.4578
34 181.7  185.530m 5.48981 135 676.6  185.306m 14.4932
35 186.6  185.524m 5.48891 136 681.5  185.314m 14.619
36 191.5  185.545m 5.53761 137 686.4  185.324m 14.883
37 196.4  185.509m 5.64153 138 691.3  185.309m 14.9003
38 201.3  185.503m 5.64593 139 696.2  185.328m 15.2423
39 206.2  185.509m 5.70982 140 701.1  185.320m 15.3676
40 211.1  185.484m 5.73194 141 706  185.327m 15.441
41 216  185.475m 5.78419 142 710.9  185.322m 15.5903
42 220.9  185.456m 5.82092 143 715.8  185.317m 15.6868
43 225.8  185.456m 5.94949 144 720.7  185.325m 15.8737
44 230.7  185.436m 5.936 145 725.6  185.330m 16.0367
45 235.6  185.428m 5.99643 146 730.5  185.330m 16.1991
46 240.5  185.434m 6.09483 147 735.4  185.330m 16.3283
47 245.4  185.452m 6.11967 148 740.3  185.329m 16.4075
48 250.3  185.441m 6.15894 149 745.2  185.316m 16.533
49 255.2  185.382m 6.19543 150 750.1  185.328m 16.8721
50 260.1  185.418m 6.29984 151 755  185.336m 16.9499
51 265  185.402m 6.31071 152 759.9  185.324m 17.0593
52 269.9  185.389m 6.41573 153 764.8  185.342m 17.3012
53 274.8  185.400m 6.51366 154 769.7  185.343m 17.4208
54 279.7  185.374m 6.56212 155 774.6  185.326m 17.4328
55 284.6  185.383m 6.61598 156 779.5  185.337m 17.7227
56 289.5  185.350m 6.61719 157 784.4  185.330m 17.8105
57 294.4  185.405m 6.7511 158 789.3  185.334m 17.9897
58 299.3  185.353m 6.83481 159 794.2  185.338m 18.0954
59 304.2  185.359m 6.83316 160 799.1  185.343m 18.3778
60 309.1  185.364m 6.99741 161 804  185.337m 18.4536
61 314  185.362m 7.06091 162 808.9  185.328m 18.5419
62 318.9  185.361m 7.093 163 813.8  185.341m 18.7298
63 323.8  185.342m 7.11125 164 818.7  185.340m 18.9652
64 328.7  185.350m 7.20885 165 823.6  185.351m 19.1446
65 333.6  185.337m 7.22745 166 828.5  185.336m 19.2537
66 338.5  185.330m 7.38159 167 833.4  185.340m 19.3843
67 343.4  185.328m 7.4147 168 838.3  185.355m 19.6136
68 348.3  185.338m 7.52762 169 843.2  185.338m 19.6457
69 353.2  185.336m 7.58249 170 848.1  185.357m 20.0571
70 358.1  185.331m 7.70187 171 853  185.282m 20.0625
71 363  185.326m 7.78017 172 857.9  185.302m 20.3243
72 367.9  185.324m 7.84541 173 862.8  185.275m 20.3125
73 372.8  185.324m 7.82468 174 867.7  185.302m 20.7127
74 377.7  185.310m 7.93839 175 872.6  185.276m 20.6446
75 382.6  185.315m 8.05135 176 877.5  185.305m 21.0227
76 387.5  185.314m 8.07593 177 882.4  185.287m 21.0966
77 392.4  185.326m 8.24231 178 887.3  185.299m 21.3466
78 397.3  185.306m 8.26863 179 892.2  185.283m 21.414
79 402.2  185.307m 8.38289 180 897.1  185.282m 21.5641
80 407.1  185.307m 8.47546 181 902  185.295m 21.834
81 412  185.320m 8.59384 182 906.9  185.292m 22.0708
82 416.9  185.305m 8.66141 183 911.8  185.290m 22.1691
83 421.8  185.318m 8.78633 184 916.7  185.286m 22.4108
84 426.7  185.310m 8.87056 185 921.6  185.310m 22.668
85 431.6  185.318m 8.9355 186 926.5  185.288m 22.7152
86 436.5  185.310m 8.97415 187 931.4  185.298m 22.9895
87 441.4  185.299m 9.05225 188 936.3  185.292m 23.142
88 446.3  185.291m 9.21312 189 941.2  185.297m 23.3568
89 451.2  185.324m 9.30881 190 946.1  185.292m 23.5029
90 456.1  185.279m 9.34378 191 951  185.301m 23.6985
91 461  185.304m 9.46075 192 955.9  185.292m 23.8292
92 465.9  185.310m 9.61981 193 960.8  185.295m 24.1754
93 470.8  185.300m 9.62598 194 965.7  185.289m 24.2132
94 475.7  185.312m 9.77133 195 970.6  185.300m 24.4163
95 480.6  185.302m 9.87189 196 975.5  185.302m 24.7782
96 485.5  185.310m 9.98035 197 980.4  185.293m 24.7991
97 490.4  185.298m 10.0547 198 985.3  185.294m 24.9532
98 495.3  185.290m 10.0301 199 990.2  185.296m 25.2502
99 500.2  185.319m 10.3106 200 995.1  185.287m 25.4124
100 505.1  185.289m 10.3427 201  1.00000k  185.295m 25.6359
101 510  185.301m 10.4871 　 　 　 　
Table 6 Detailed frequency data of inductance Ls and reactance Z
Note: Can operate for 20 minutes.


Conclusion

The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.





Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
