DX-103B AC and DC Teslameter

Application:
1. DC and AC magnetic field measurement and peak value measurement;
2. DC and AC magnetic field distribution measurement;
3. The magnetizing measurement of the permanent magnets;
4. The magnetic field distribution measurement inside the AC and DC coils;
5. The air gap magnetic field measurement of electromagnets;
6. Normal DC and AC magnetic field measurement.

Features:
1. Direct reading of magnetic field;
2. DC and AC magnetic polarity judgment;
3. Calibration function for probe change;
4. mT/Gs unit switch;
5. AC/DC magnetic field conversion;
6. Magnetic field peaking value locking and unlocking;

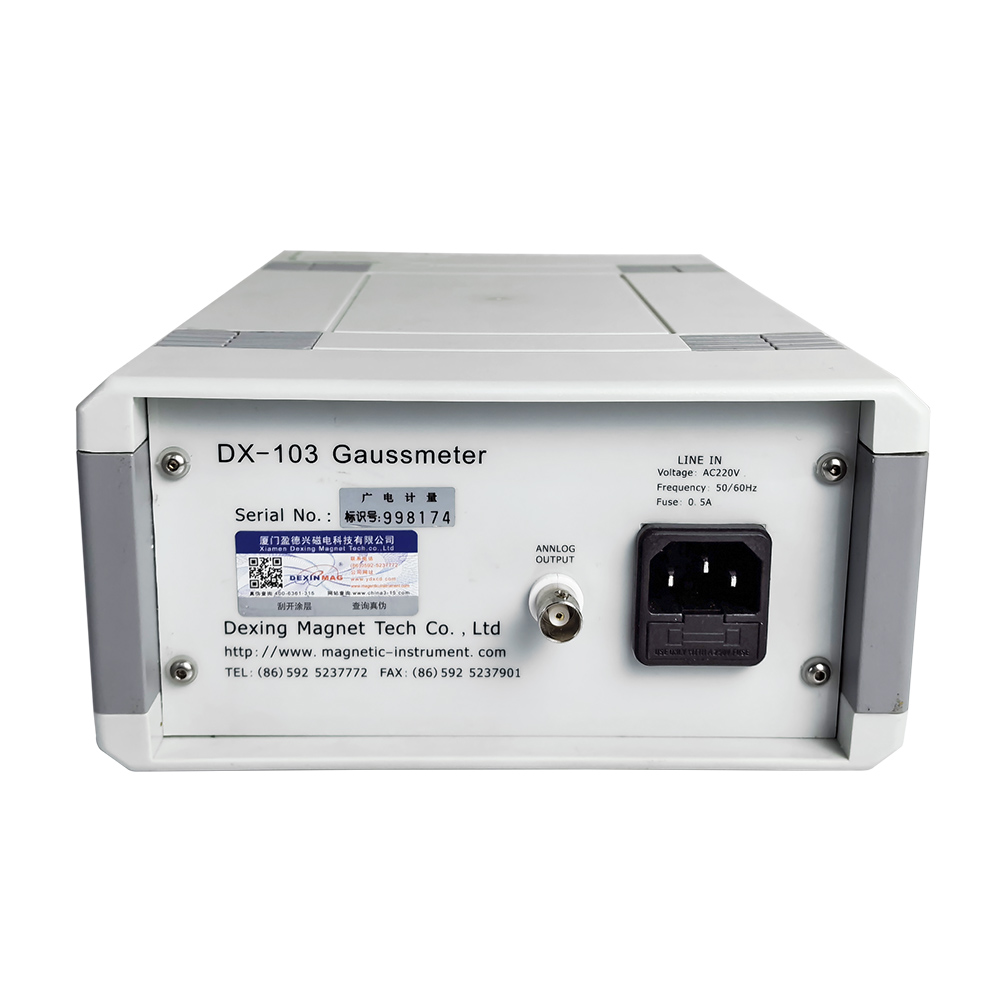

7. Simulation output for customers' expansion.

Parameters:
1. Power supply: 220V ± 20V/0.5A, 50Hz
2. Range: 200.0mT, 2000mT two gears
3. Accuracy: better than 1.0% (0 ~ ±1000mT); better than 2.0% (1000mT ~ ±2000mT);
4. DC/AC field measurement and peak value locking
5. Minimum resolution: 0.01mT (0.1Gs)
6. Dimension: 248mm × 180mm × 90mm
7. Weight: 2kg

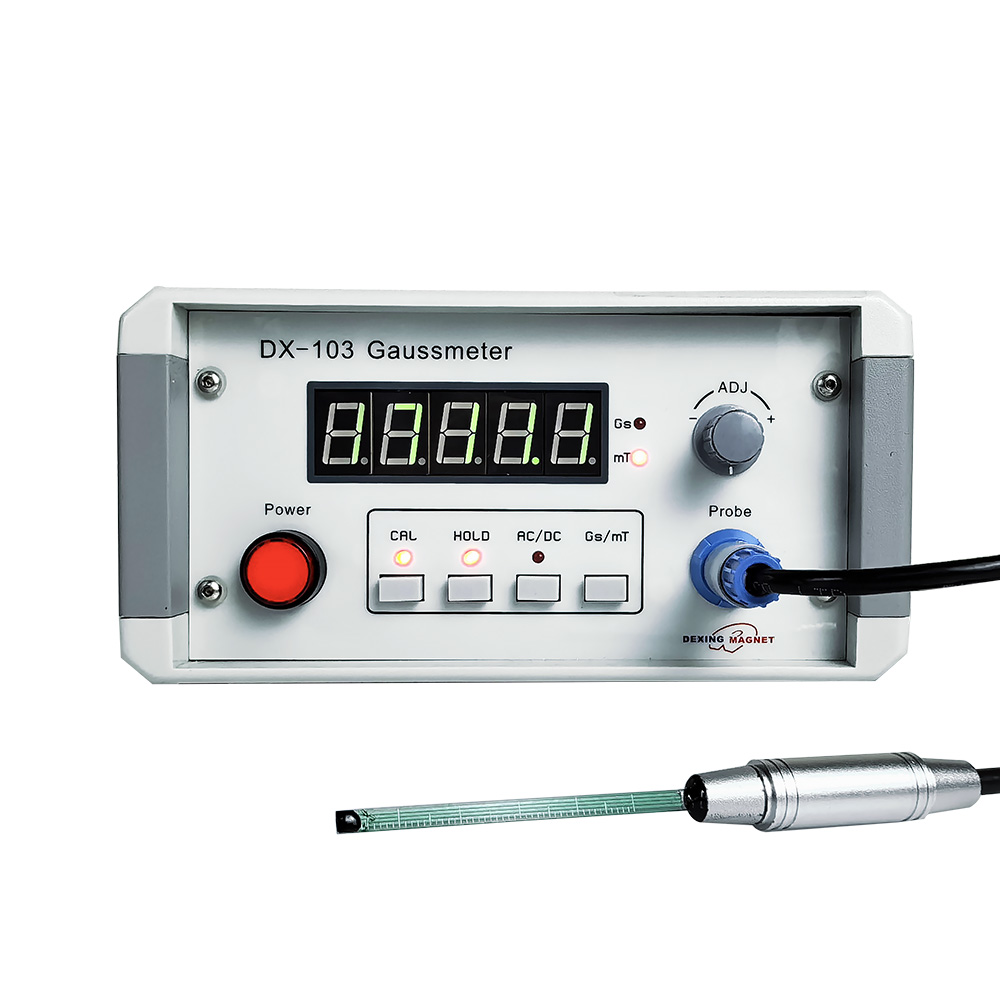

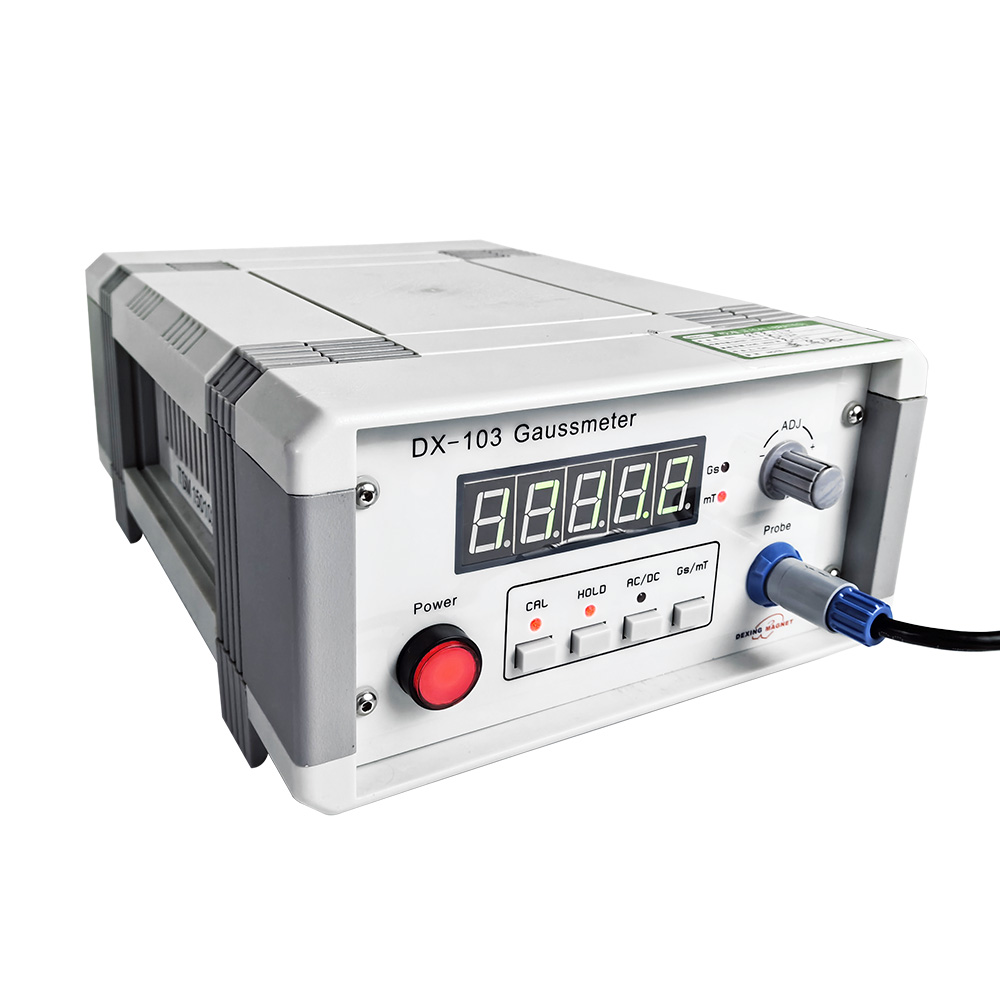

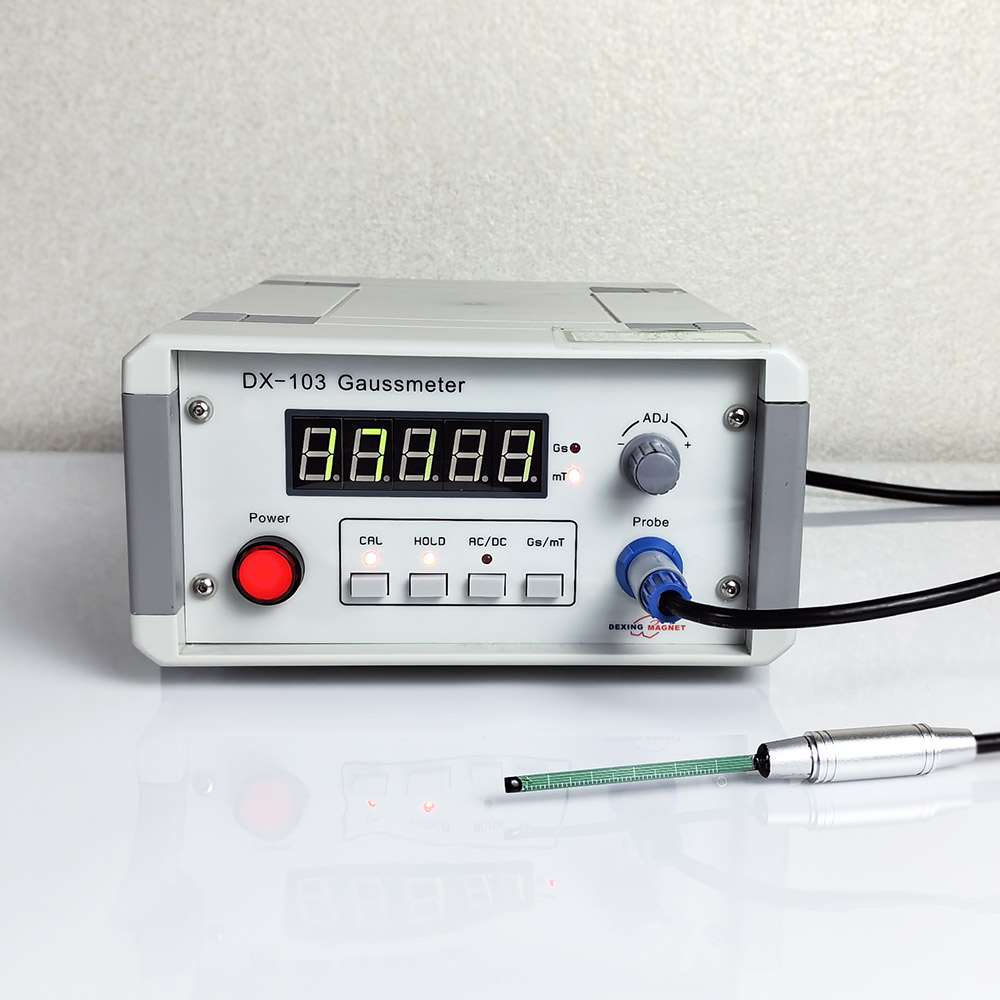

DX-103B Teslameter is a desktop tesla meter.
Based on the latest progress of the Hall Effect magnetic field measuring instrument.
Adapt the high stability constant current source circuit technology to design and manufacture.
Test probes adapt imported GaAs linear Hall-chip, the difference between probes is small.
Can be replaced directly when it is damaged, and is an ideal AC & DC magnetic field test instrument.
