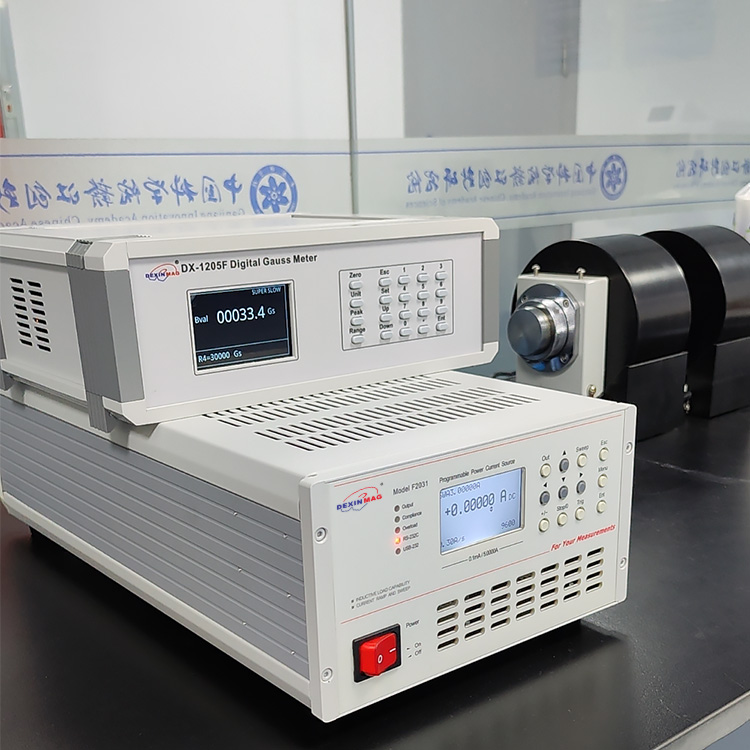

DX-F1205gaussmeter

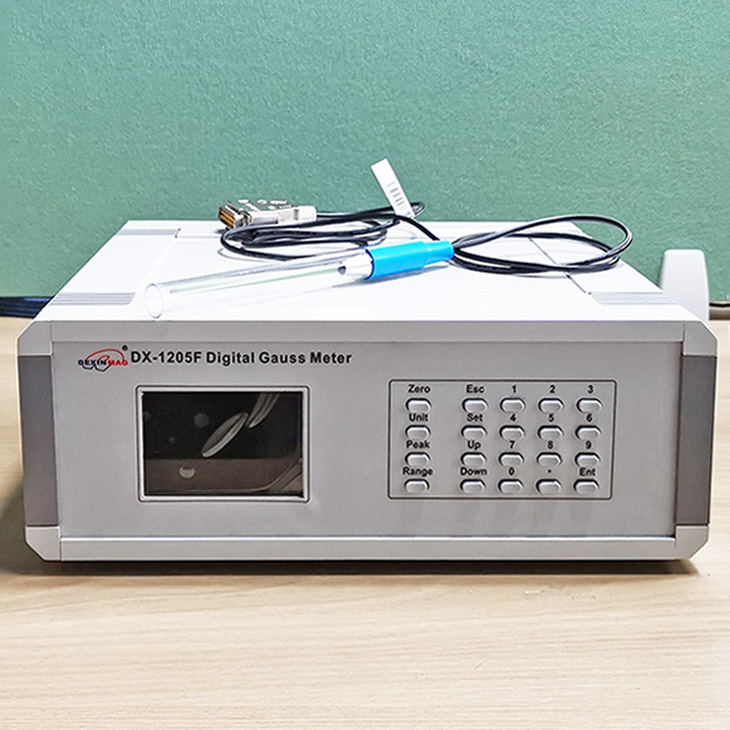

DX-F1205gaussmeter-2

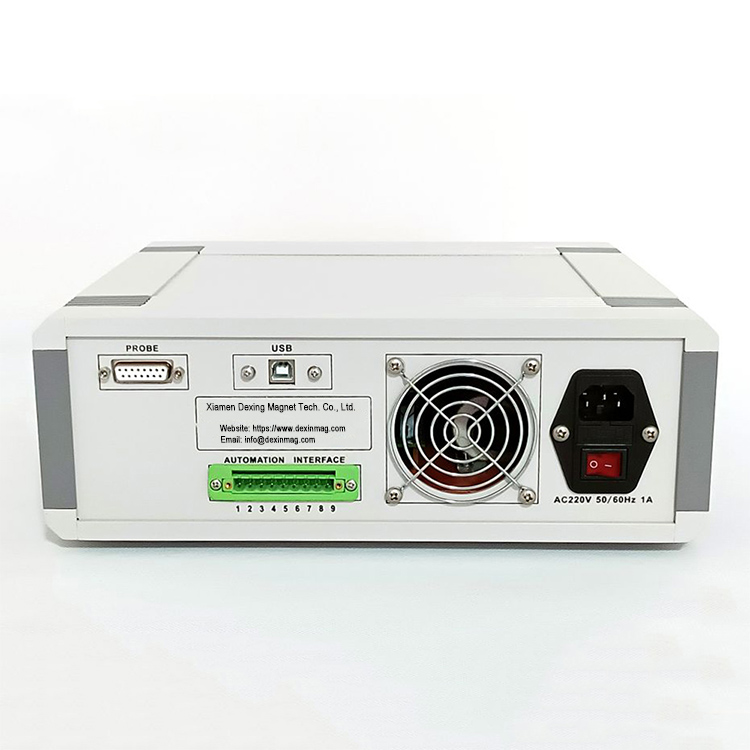

DX-F1205gaussmeter-3
DX-F1205gaussmeter-4

DX-1205F Desktop DC Gauss Meter

Application:

1. DC magnetic field measurement;
2. DC magnetic field distribution measurement;
3. The magnetizing measurement of the permanent magnets;
4. The magnetic field distribution measurement inside the DC coils;
5. The air gap magnetic field measurement of DC electromagnets.



Features:

1. Direct reading of measured magnetic field;
2. DC polarity judgment;
3. One key of auto-zero;
4. One key of range switch;
5. Setting the maximum and minimum values of the measured magnetic field;
6. Hints when exceeding maximum and minimum values setting;
7. With RS232 interface and software, connected with PC.



Parameters:

1. Power supply: 220V ± 10V/0.5A, 50Hz
2. Range: 1000Gs/3000Gs/10000GS/30000GS
3. Accuracy: better than 0.5% ;
4. Minimum resolution: 0.01Gs
5. Operating environment: Temperature: 0℃~50℃, Humidity: 35~80%
6. Dimension: 304mm × 260mm × 120mm
7. Weight: 3kg

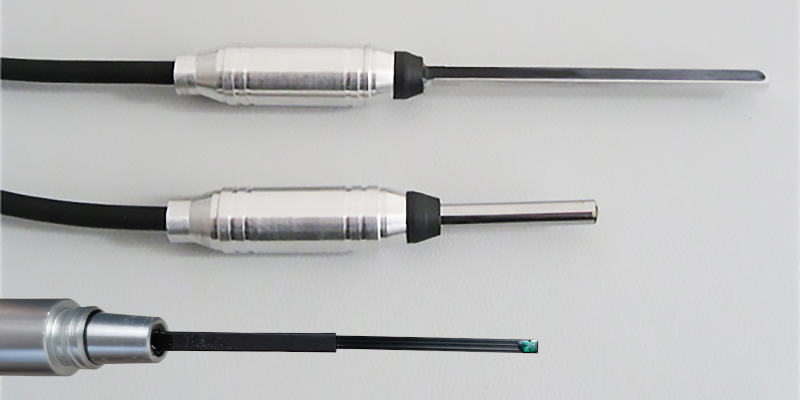

Probe options:

DX-105 Gaussmeter can be matched with one of the following three probes according to actual measurement:
1. Axial probe: L60mm, Dia. 5.0mm, Sensitive area: 0.5mm×0.5mm;
2. Transverse probe (Standard probe): L60mm, W4.0mm, T1.0mm, Senstive area: 0.5mm×0.5mm;
3. Superthin probe: L40mm, W1.2mm, T0.45mm, Senstive area: 0.25mm×0.25mm.

dx-105-gaussmeter-probe

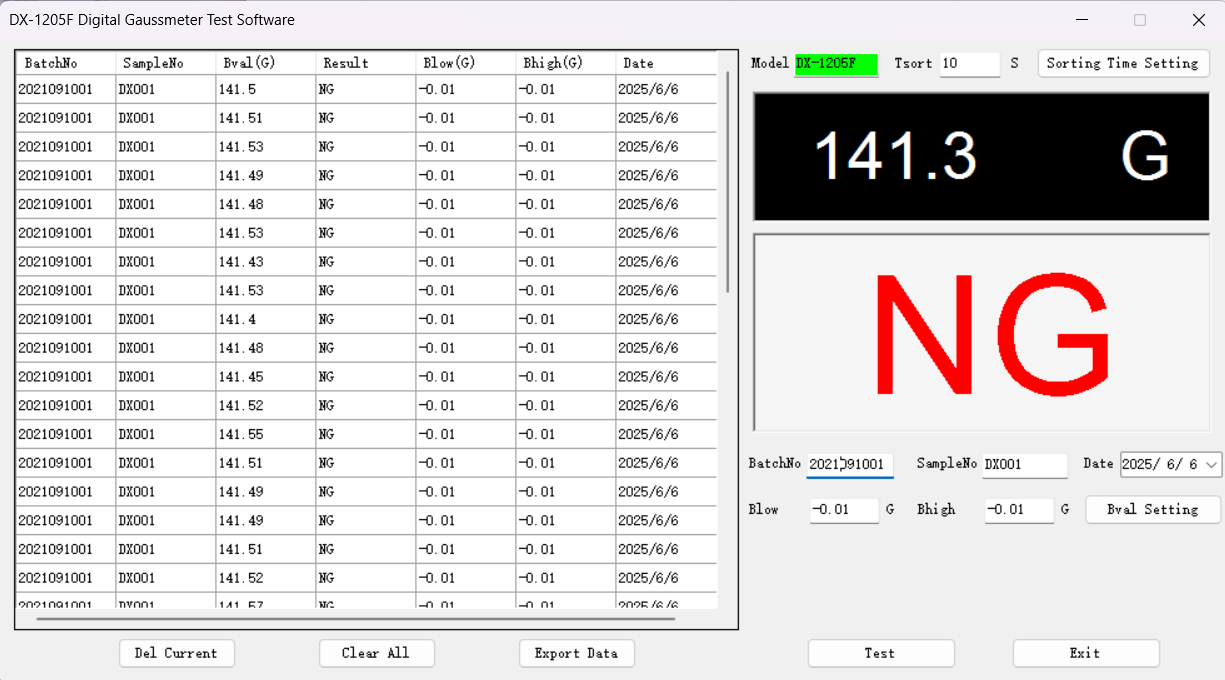

Software interface:

dx-105-gaussmeter





You may also like



The User's Manual of DX-1205F Gaussmeter(.PDF 1.5M)



DX-1205F Gaussmeter is a desktop gaussmeter.
Based on the latest progress of the Hall Effect magnetic field measuring instrument.
Adapt the high stability constant current source circuit technology to design and manufacture.
Test probe adopts imported GaAs linear Hall-chip, the difference between any two probes is small, which can be replaced directly when it is damaged.
DX-1205F Gaussmeter is an ideal DC magnetic field test instrument.
