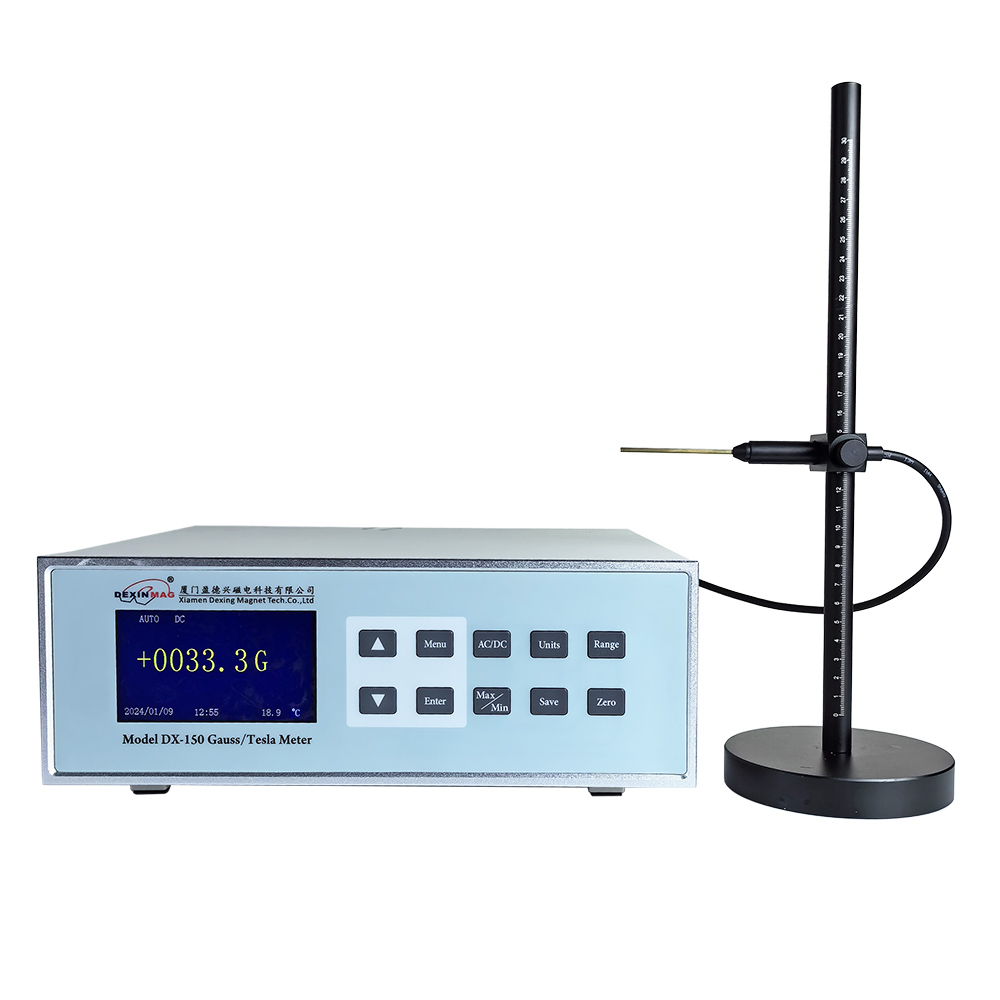

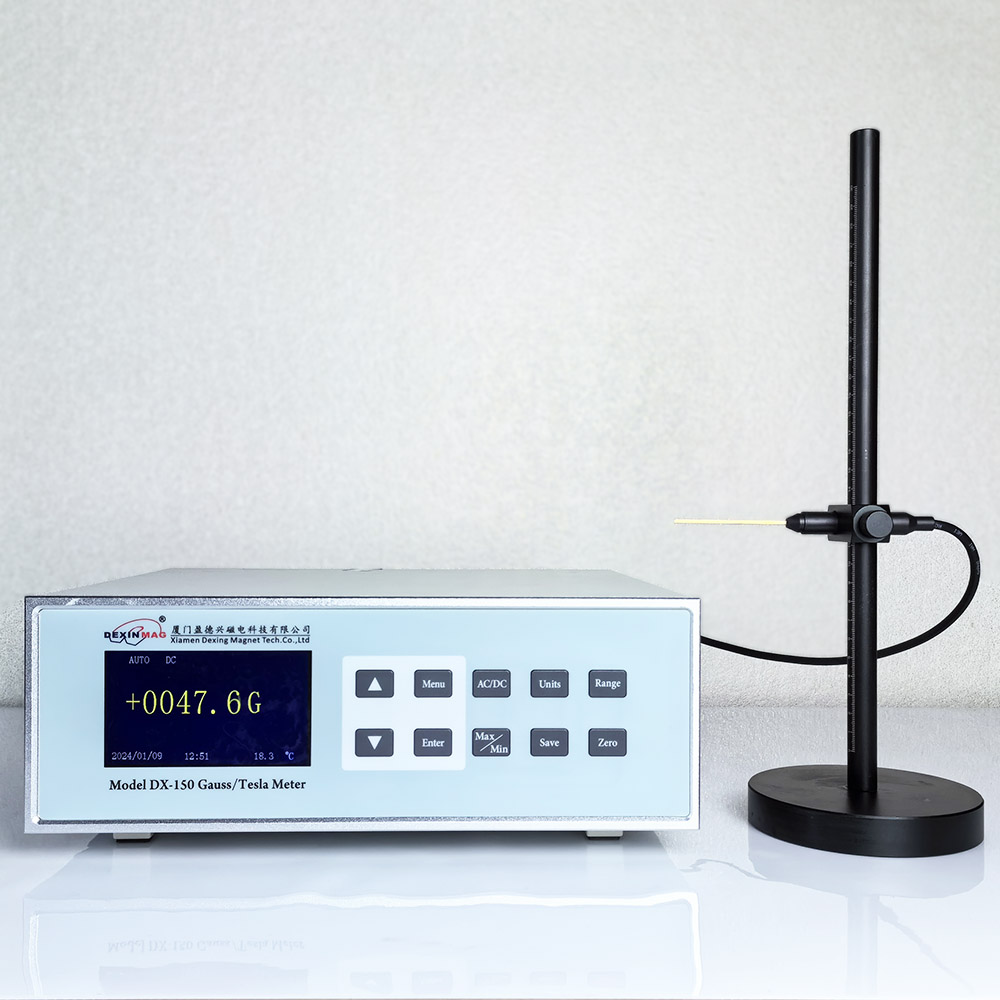

DX-150 AC and DC Magnetic Gauss Meter

DX-150 magnetic gauss meter takes advantage of microprocessor technology to provide you with high precision, higher refresh rate and display resolution and high measurement repeatability and stability in your research and production. With a simple and convenient operation panel and the full menu, 4 ¾-bit resolution readings, and a high-resolution 1 / 60000, you can view 0.1Gs weak changes in the high magnetic field measurement. It has a maximum range of up to 30KGs (3T). It has a large capacity of data storage and you can review data according to storage time. In one word, it is suitable for a full range of DC magnetic field measurements, and it is mainly sold to research institutes and various types of production units.



Features

4 ¾-bit resolution on wide-screen LCD panel

Auto-zero, automatic/manual range

Maximum/ minimum/ interface locking

RS-232C interface

Display units optional Gauss or Tesla

Threshold setting and alarming

Probe auto calibration

Dozens of optional basic or customized probes

Communication baud rate adjustment

Standard 1.00mm ultra-thin consistency probe

Data-storage(auto/manual)/Historical-data reviewing

Time setting/ Temperature display



Specifications

Model-150 Specifications

Range

(0.1Gs-3000Gs)/( 1Gs-30KG)

Resolution

0.1Gs(0.01mT)

Accuracy (display value)

DC

±0.3% of reading ±0.05% of range

AC

±2.0% of reading ±0.5% of range

Frequency Range

DC mode

DC

AC mode

AC20Hz to 20kHz

Additional effects

Temperature coefficient

±(0.03% ±1 count)/ ºC

Temperature range

Working temperature

0ºC to 50ºC

Storage temperature

-10ºC to 60ºC

Panel display

128 * 64 pixels, widescreen LCD

Communication Interface

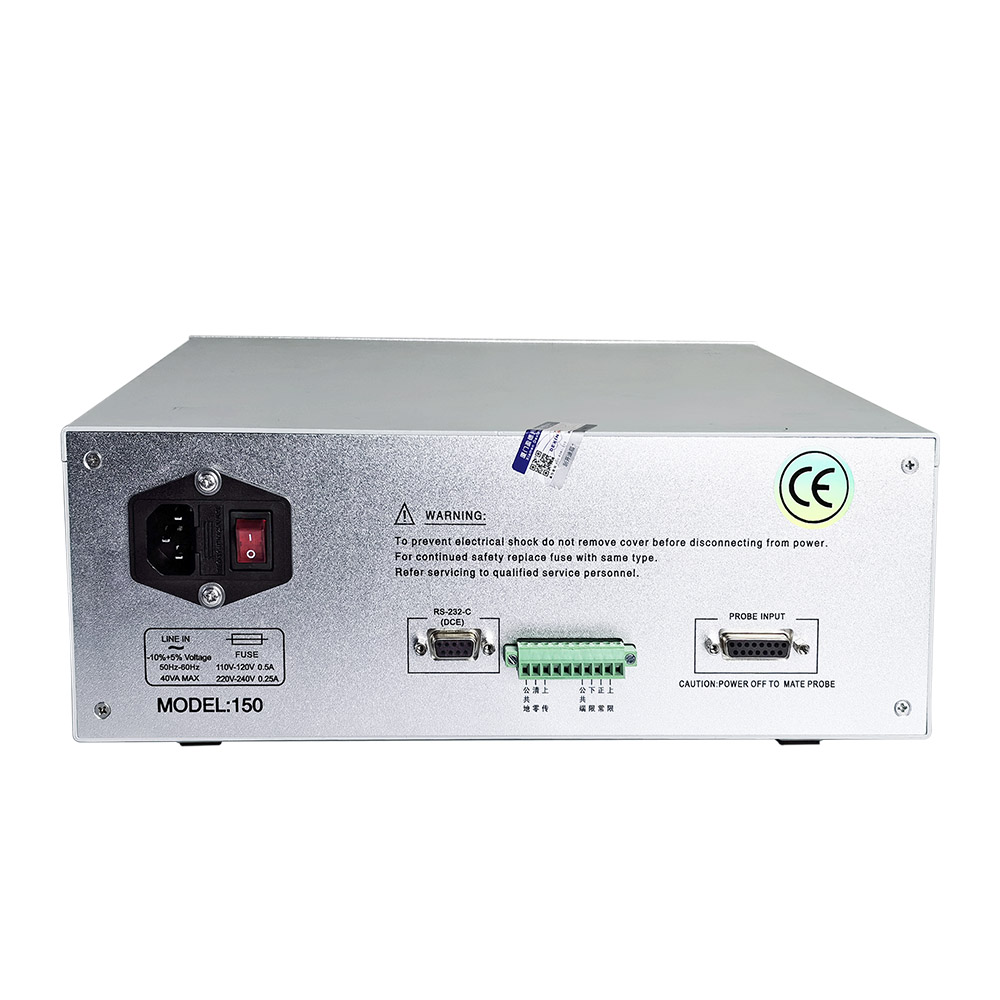

RS-232 Standard 9-pin D-type connectors

Supply power

Voltage: 200/240v  Frequency: 50-60 Hz

Peripheral: computer, oscilloscope, industrial equipment, bus system



Using occasions

Permanent magnet material surface magnetic field, DC motors, speakers, magnetic separator, and permanent magnetic separator magnetic field of work. Magnetic circuit gap and slit field within the magnetic field. Also it can be applied to the detection machining residual magnetic field of the goods, distribution of magnetic field, the remaining magnetic after demagnetization, the magnetic of motor and magnetic flux leakage of electromagnetic fields and other kinds of magnetic field intensity of magnetic induction.



Main Function

High–precision magnetic field measurement

Automatic / Manual Storage: This machine provides 500 data storage spaces and automatically stores data according to a set time (1-60 seconds). Also it provides random storage and can be reviewed as per time and stored order.

Max / Min Lock: Turn on or off the peak measurement function. Capture and display the highest and the lowest magnetic field readings, and lock the interface.
First gear: Maximum/minimum holding
Second gear: interface locking
Third gear: relieving

Auto zeroing mode
1)relative zero magnetic field mode: put the probe into the chamber of the Zero-Gauss calibrator, zeroing and storing the data.
2)eliminate geomagnetic field mode: horizontally put the probe make sure it is to be vertical against the geomagnetic field, zeroing and storing the data.

Communications and drawing:
The RS-232C interface function
1) the user can use the computer to read test data, draw various survey maps with professional mapping software, and transmit and print chart
2) with serial real-time transmission function of real-time monitoring real-time data in a computer
3) query real-time data through fixed instruction



DX-150 Optional accessories

Remote control system
Gauss meter professional mapping software
Zero Gauss Chamber
Industrial control output components

teslameter-2-2

teslameter-2-3



View other Gaussmeters



Go to see Hall Probes

DX-150 Full-Digital magnetic gauss meter is designed for applications requiring high precision, high-resolution magnetic field measurement. It is an intelligent solution against the traditional analog, digital table header type Gauss / Tesla meter. It is a high-precision intelligent apparatus, which integrates measuring, storage, industrial control, and communication just in one machine.
