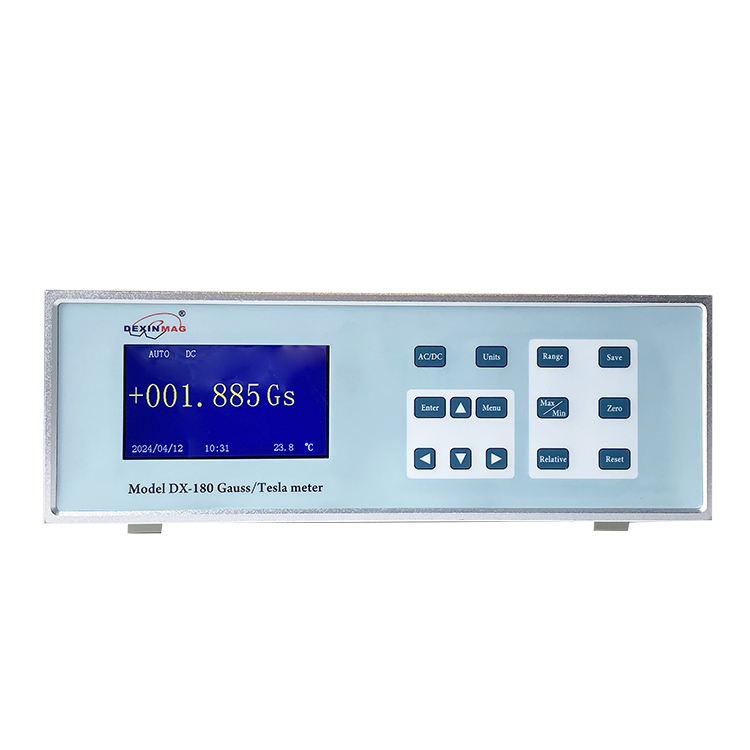

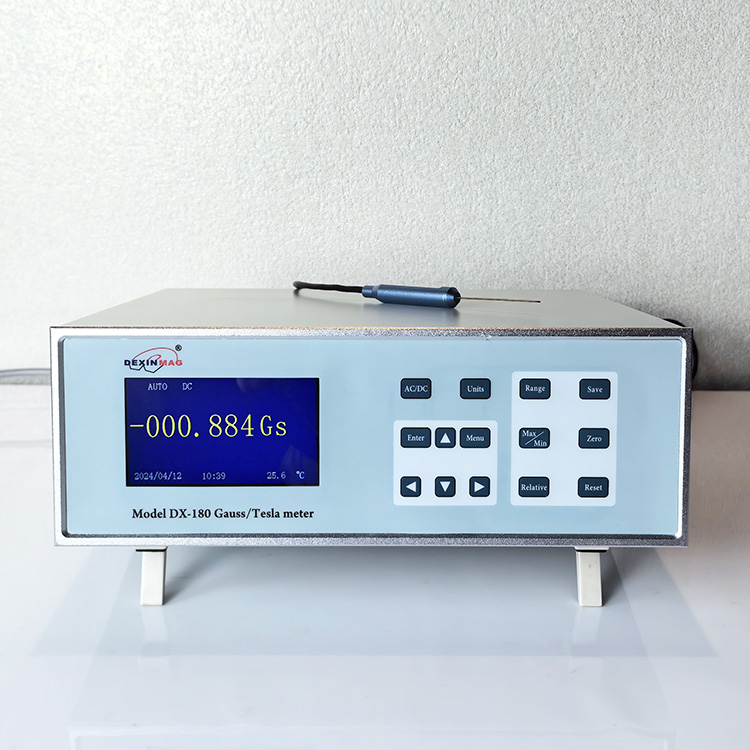

DX-180 High-precision AC and DC Gauss Tesla Meter
DX-180 Gauss tesla meter can measure and display a variety of parameters simultaneously. High precision analog output（±3.0V）. Units of measure optional Gauss, Tesla, A / M or Oe. This instrument also provides an RS232 interface for communications with a PC. It is designed and manufactured in accordance with ISO-9001 standard. With the functions of bright VGA color graphics, excellent self-drawing, full menu operation, 5 ¾-bit readings, and high-resolution 1 / 600000, it makes it convenient to observe 0.0001mT weak changes in the high magnetic field measurements. It is able to measure a maximum of 100KGs (10T). It has a large-capacity data storage and you can review the historical data according to storage time and it can upload data to PC or plot curves in the machine. We provide specially designed professional graphics software which can draw the chart, according to the magnetic field strength and high-precision digital probes. With this Gauss meter, you can achieve goals of measuring, storing, communicating, and drawing automatically just in one machine. Products are mainly sold to large institutes, universities and research departments of large factories.
Features of DX-180 Gauss tesla meter
|
5 ¾-bit resolution on VGA color panel |
Time and brightness setting |
|---|---|
|
Self-Drawing and displaying function |
Threshold setting and alarming |
|
Maximum/minimum/peak/valley value keeping and interface locking |
Auto-zero, automatic/manual range |
|
Data-storage(auto/manual)/Historical-data reviewing |
RS-232C interface / data output |
|
Probe auto-calibration / Auto memory operation mode / Probe temperature compensation |
Zero setting / relative measurement mode |
|
Display units: Gauss, Tesla, A / M or Oe |
Matched with professional mapping software |
|
Communication baud rate adjustment / Temperature display |
Dozens of optional basic and customized probes (standard 0.8mm ultra-thin probe) |
Specifications of DX-180 Gauss tesla meter
|
Model-180 Specifications |
||
|---|---|---|
|
Range |
*(0.1mG-30Gs)/ (1mGs-300Gs)/ (0.01Gs-3000Gs)/ (0.1Gs-30KG)/ *(1Gs-100kGs) |
|
|
Resolution |
0.1mGs(0.01uT) |
|
|
Accuracy (display value) |
DC |
±0.05% of reading ± 0.005% range |
|
AC |
±1% of reading ±0.5% range |
|
|
Frequency Range |
DC mode |
DC |
|
AC mode |
AC2Hz to 100kHz |
|
|
Analog Output |
Output Voltage |
±3V F.S. |
|
Connectors |
Standard BNC |
|
|
Additional effects |
Temperature Coefficient |
±(0.015% ±1 count)/ ºC |
|
Temperature range |
Working temperature |
0ºC to 50ºC |
|
Storage temperature |
-20ºC to 60ºC |
|
|
Panel Display |
320 x 240 Pixel, 3.5-inch full view color screen |
|
|

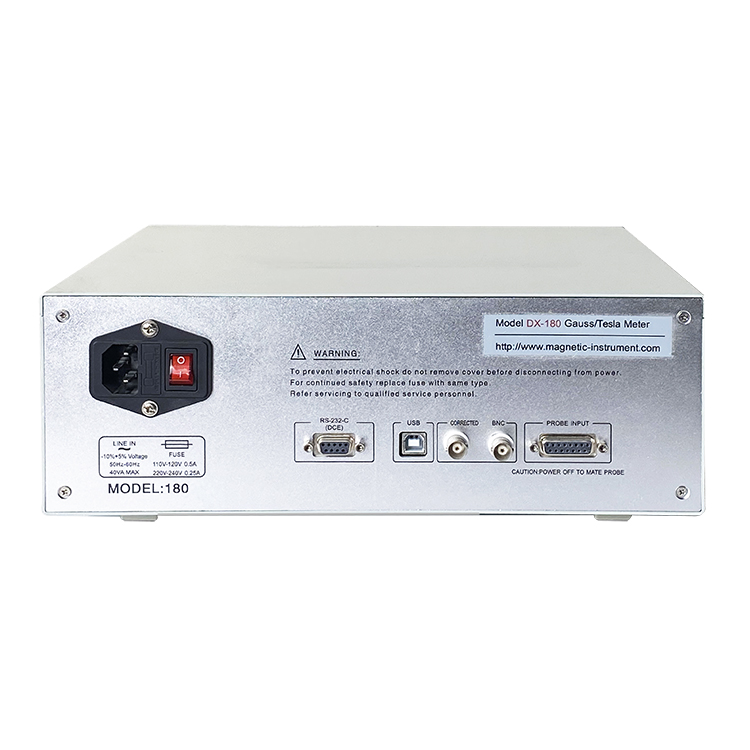

Communication Interface |
RS-232 Standard 9-pin D-type connectors |
|
|
Supply power |
Voltage: 200/240v Frequency: 50-60 Hz |
|
Marked * range needs to change probe (self-recognition)
Main Function
1. Ultra high-precision AC / DC magnetic field measurement/ Automic temperature compensation system/ Multipole variable speed test function
2. Excellent graphical display of magnetic field strength and self-drawing.
3. Extremely wide range: This machine can measure 0.01uT-10T, automatic identification of low and ultra-high magnetic field probes, automatically adjusts to the suitable range when choosing an auto range, manul-selected has three gears.
4. Excellent real-time wired or wireless remote control system (1500 M).
The interface of the mapping software
Picture 1: D plot of rectangular magnets
Picture2: D plot of elliptic magnets
Picture3: D plot of cylindrical magnets
Picture4: D plot of circular magnets
Picture5: D plot of multipole ring magnets
Picture6: Magnets 3D distribution vector diagram

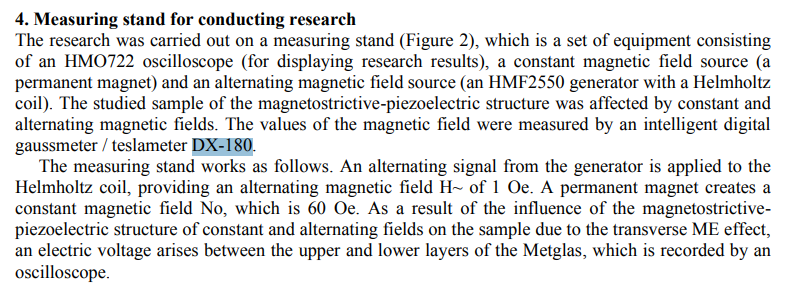

You may also like
