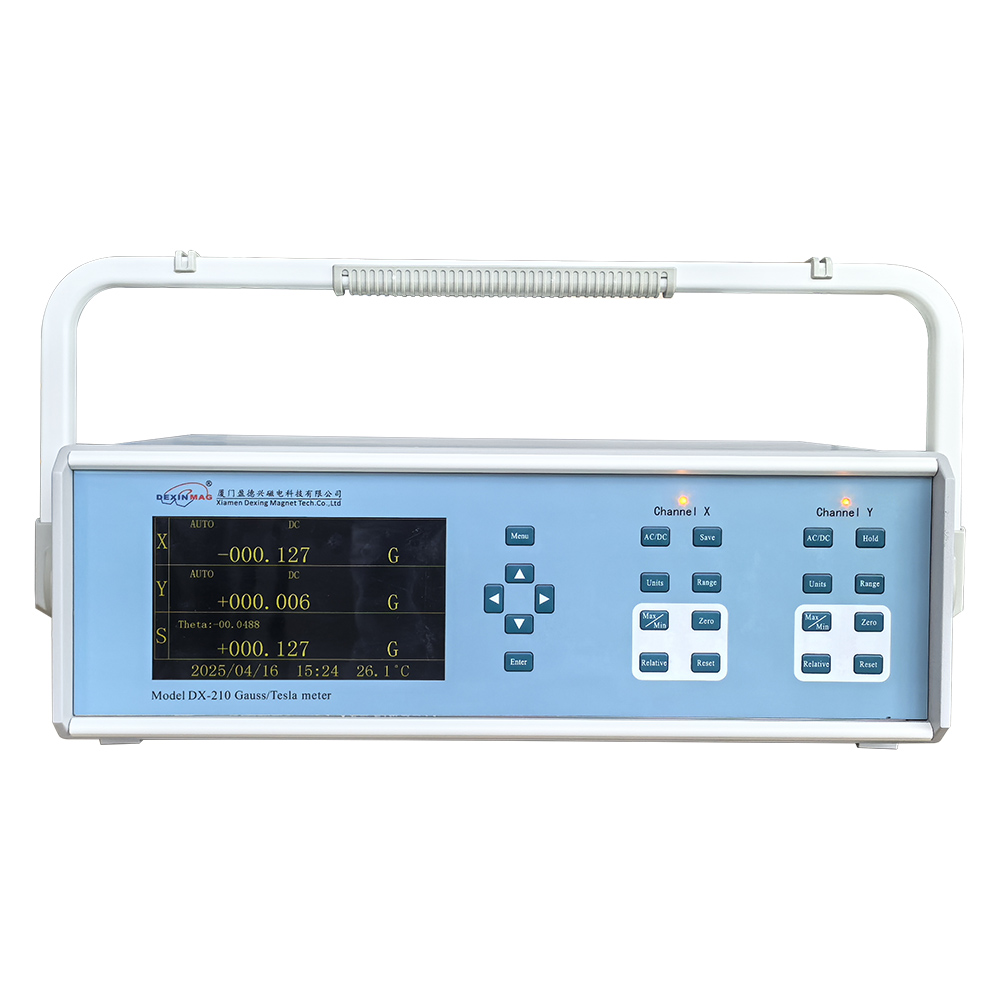

DX-210 Two Dimensional Gauss Meter
With the functions of bright VGA color graphics, excellent self-drawing, full menu operation, 5 ¾-bit readings, and high-resolution 1 / 600000, it makes it convenient to observe 0.0001mT weak changes in the high magnetic field measurements. It has a large-capacity data storage and you can review the historical data according to storage time. Specially designed professional graphics software can draw the chart, according to the magnetic field strength. With this Gauss meter, you can achieve the goals of measuring, storing, and communicating automatically just in one machine. Advanced 2D operational mode, makes it great value in material analysis and magnetic field mapping. Real-time graphics test displays can display two-channel readings and vector readings. All function keys provide convenience for measuring characteristics. Products are mainly sold to major research institutes, universities and research departments of large factories.
Features
| 5 ¾-bit resolution on VGA color panel | Basic DC accuracy: ±0.2% of reading |
|---|---|
| Maximum/minimum/peak/valley value keeping and interface locking | Basic resolution: 0.0001 mT |
| Data-storage(auto/manual)/historical-data reviewing | Auto-zero, automatic/manual range |
| Probe Auto Calibration / Auto Memory operation mode | RS-232C interface / data output |
| Automatic zero, temperature compensation | Date, Time and Brightness setting |
| Display units: Gauss, Tesla, A / M or Oe | Zero setting / relative measurement mode |
| Communication baud rate adjustment / working temperature display | Threshold setting and alarming |
| Time and brightness setting | dozens of optional square, circular or customized probes (matched 2.5mm two-dimensional circular probe) |
Specifications
| Model-210 Specifications | ||
|---|---|---|
| Note | 0.1mT=1Gs, marked* has to change probe | |
| Range | *（0.1mG-30G）(1mGs-300Gs)/(0.01Gs-3000Gs)/(0.1Gs-30KG) | |
| Resolution | 0.1mGs(0.01uT) | |
| Accuracy (display value) | DC | ±0.15% of reading , ±0.05% of range |
| AC | ±1% of reading | |
| Frequency Range | DC mode | DC |
| AC mode | 20Hz to 50kHz | |
| Analog Output | Output Voltage | ±3V F.S. |
| Connectors | Standard BNC | |
| Additional effects | Temperature Coefficient | ±(0.03% ±1 count)/ ºC |
| Temperature range | Working temperature | 0ºC to 50ºC |
| Storage temperature | -20ºC to 60ºC | |

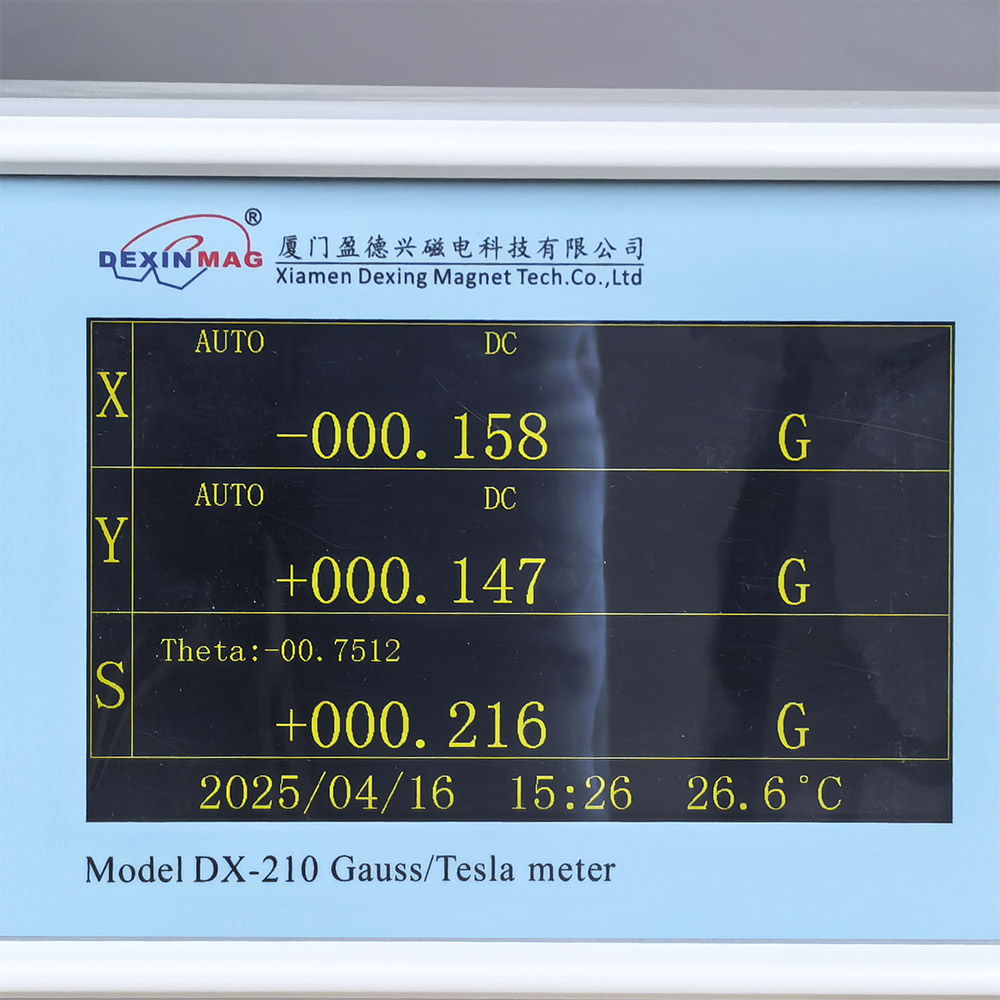

| Panel Display | VGA,800 x 480 Pixel, 7” color screen | |

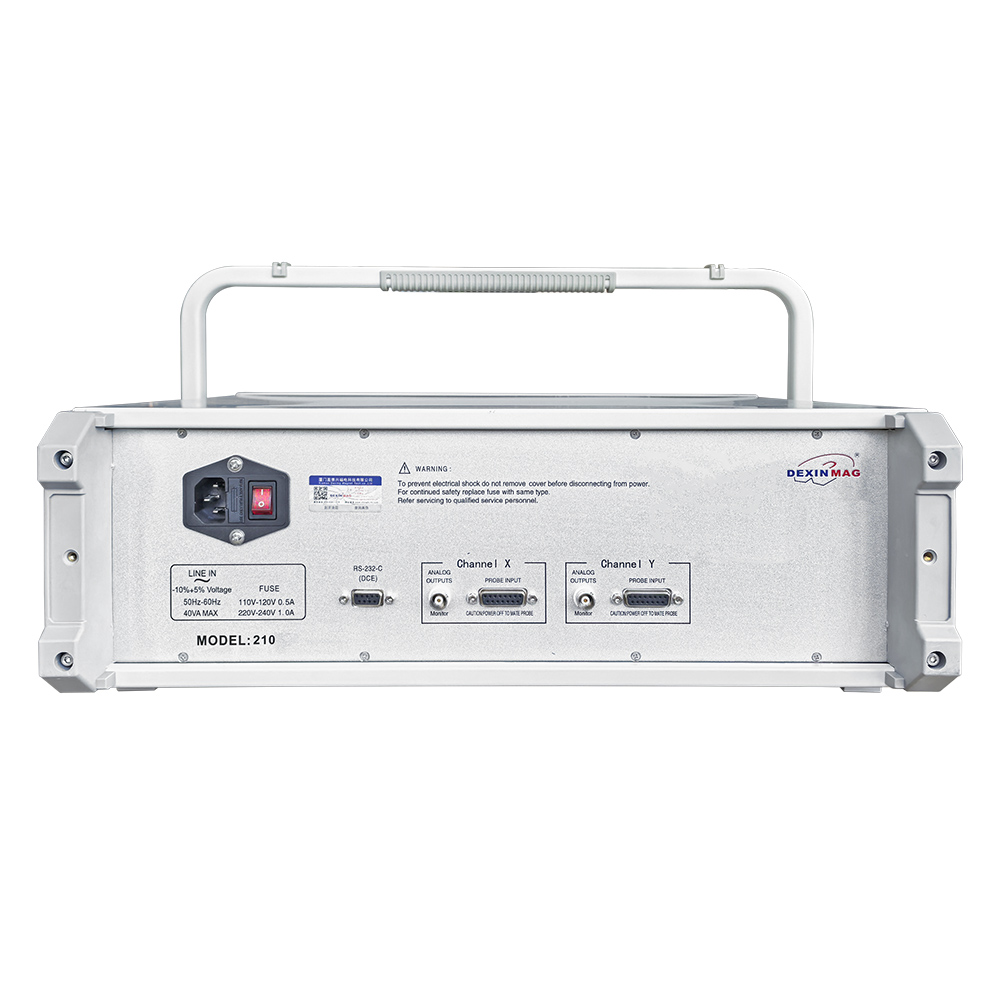

| Communication Interface | RS-232 Standard 9-pin D-type connectors | |
| Supply power | Voltage： 200/240v Frequency： 50-60 Hz | |
Main Function
*Measure two-dimensional space magnetic field with high precision or for dual channel test
*High-precision AC / DC magnetic field measurement
*Auto/Manual Range: automatically adjusts to the suitable range when choosing an auto range, manul-selected has three gears.
* Auto/ Manual Storage: This machine provides 3000 data storage space and automatically stores data according to set time (1-60 seconds). Also, it provides random storage and can be reviewed as per time and stored order.
*Max / Min Lock: Turn on or off the peak measurement function. Capture and display the highest and the lowest magnetic field readings, and lock the interface.
First gear: Maximum/minimum/peak/valley holding
Second gear: interface locking
Third gear: relieving
*Auto Zeroing Mode
1）relative zero magnetic field mode: put the probe into the chamber of the Zero-Gauss calibrator, zeroing and storing the data.
2）eliminate geomagnetism mode: put the probe horizontally to make sure it is vertical against the geomagnetic field, zeroing and storing the data.
*Communications and drawing: Through the RS-232 interface to transmit the stored data to the computer, inquire about historical data, and use the Gauss meter drawing software to draw high-precision charts according to the strength of the magnetic field to select coordinate, print and send.
At the same time, DX-180 monitoring analog output ( BNC ) can provide auxiliary automation capabilities without PC circumstances.
* Industrial Output ( optional): standard industry interface, output control signals according to the requirements.
DX-210 optional accessories
Gauss meter professional drawing software(including database)
Zero Gauss Chamber of Gauss meter
Serial port USB2.0 connector
Gauss meter probe fixing rack
