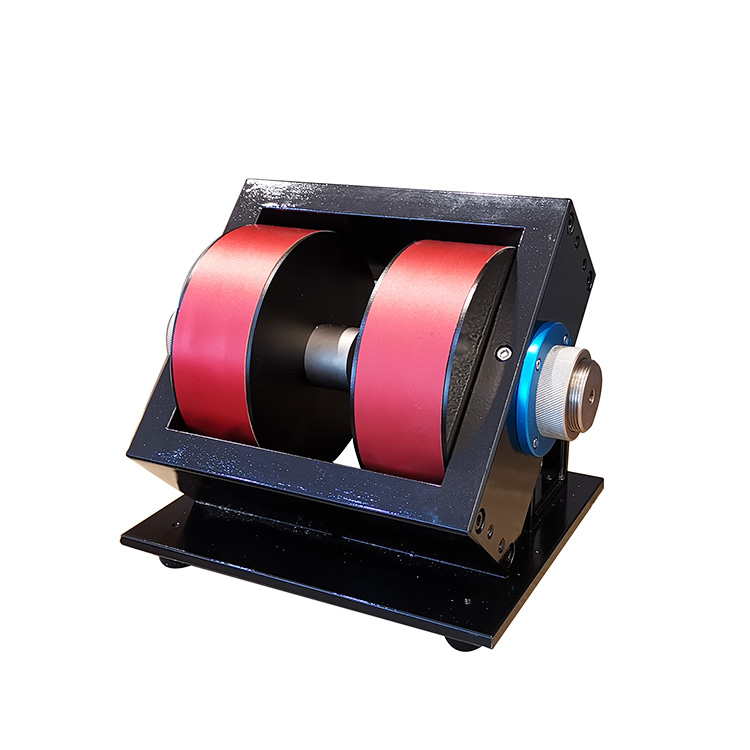

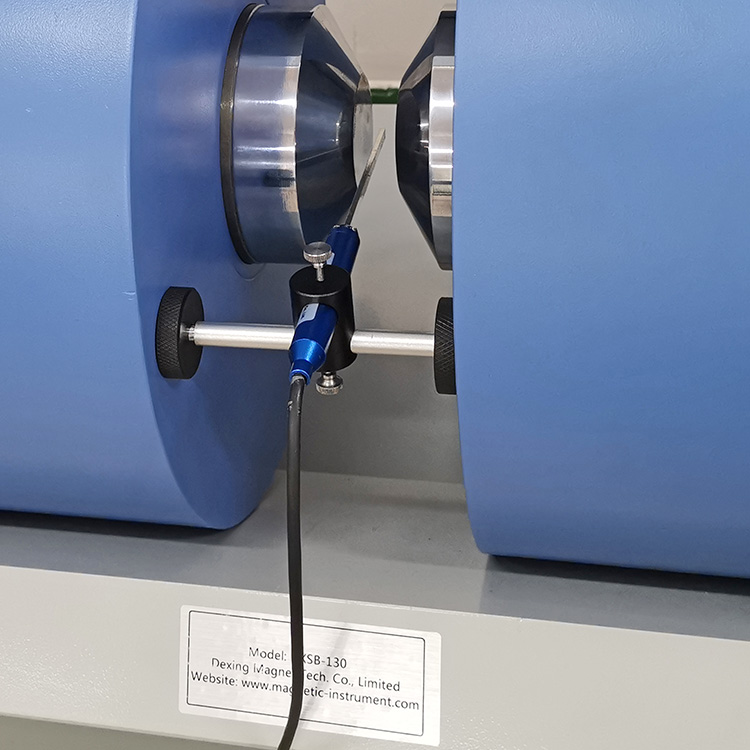

DXSB Double-Yoke Double-Tuning Adjustable Air Gap Electromagnet

DXSB-ELECTROMAGNET



 Names of parts
1: Horizontal yoke 2: Vertical yoke 3: Coil 4: Pole Cap Surface 5: Pole Cap
6: Handle  7: Pole Sleeve
A: Coil Gap B: Pole Gap C: Center Height D: Horizontal distance of Diameter E: Coil Diameter



Main Dimension

DXSB Electromagnet Series Main Dimension
Model

Pole

Diameter

A B C D E Weight
(mm) (mm) (mm) (mm) (mm) (mm) (Kg)
DXSB-50 50 80/ Custom 0 ~ 80 130 130 200 40
DXSB-80 80 100/ Custom 0 ~ 100 175 175 280 135
DXSB-100 100 120/ Custom 0 ~ 120 200 200 300 200
DXSB-130 130 120/ Custom 0 ~ 120 240 240 380 430
DXSB-175 175 120/ Custom 0 ~ 120 310 310 500 630
DXSB-200 200 120/ Custom 0 ~ 120 320 320 550 930
DXSB-220 220 120/ Custom 0 ~ 120 330 330 600 1060
DXSB-250 250 120/ Custom 0 ~ 120 350 350 670 1920
DXSB-280 280 150/ Custom 0 ~ 150 380 380 720 2570
DXSB-300 300 150/ Custom 0 ~ 150 400 400 740 3580
DXSB-380 380 200/ Custom 0 ~ 150 440 440 850 6800



Technical Parameters

DXSB Double Yoke Double-tuned Air Gap Alterable Electromagnet

Model

Pole

Diameter

(mm)

Air Gap Range

(mm)

Pole Face

(mm)

Air Gap

(mm)

Maxium Magnetic Field(T)

Power

DXSB-50

Φ50

0-80

Φ50

10

1.0

0.3KW

DXSB-80

Φ80

0-80

Φ80

20

0.9

0.6KW

DXSB-100

Φ100

0-100

Φ60

10

2.0

2.0KW

Φ100

10

1.5

DXSB-130

Φ130

0-120

Φ60

10

2.5

3.8KW

Φ100

30

1.2

DXSB-175

Φ175

0-120

Φ80

10

2.4

6.5KW

Φ100

30

1.8

DXSB-200

Φ200

0-140

Φ80

10

2.6

10.0KW

Φ120

30

1.9

DXSB-250

Φ250

0-140

Φ120

25

2.3

12.0KW

DXSB-280

Φ280

0-140

Φ120

25

2.6

12.0KW



Typical Cases

DXSB-100-electromagnet-2

DXSB-100

1, The electromagnet is a double-yoke double-type structure, oblique 45-degree seat, the direction of the magnetic field on the ground, pole diameter 100mm, line spacing 100mm, adjustable air gap range: 0-100mm.
2, The diameter of the solenoid pole is 100mm. When the air gap is 10 mm, the center magnetic field Hmax? 1.5T; when the air gap is 80 mm, the center magnetic field Hmax? 0.4T. In the center 5 * 5 * 5mm area, the magnetic field uniformity is 1 * 10-5
3, Electromagnet natural cooling structure. In the 80mm air gap 0.4T magnetic field can work for 0.5 hours.
4, The weight of 200KG.
5, Power supply 10A 120V.

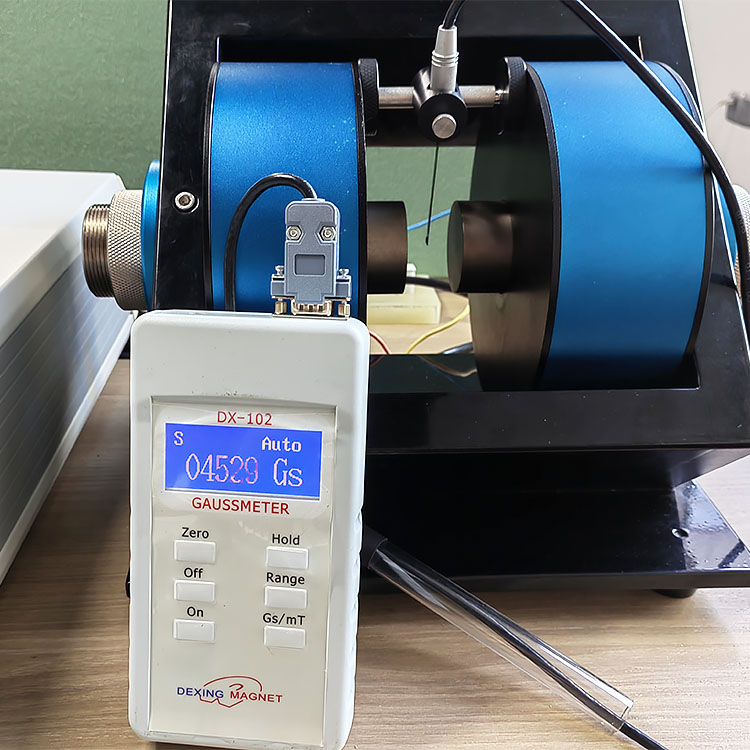

DXSB-electromagnet-6

DXSB-80

1, The solenoid model for the SB-80 type, the electromagnet for the double-yoke frame structure, inclined 45-degree angle seat, the magnetic field in the horizontal direction, pole diameter 80mm, line spacing 100mm, magnetic field air gap two-way adjustable range 0 ~ 100mm.
2, Electromagnet with a pair of poles, pole diameter Φ80mm.
3, Magnetic field index: air gap is 40mm, the central magnetic field Hmax ≥ 0.5T;
4, Electromagnet bilateral pole open light hole, pole at the hole diameter 5mm;
5, Working time: when the magnetic field air gap is 40mm, the magnetic field strength of 0.4T, and the continuous working time of 1 hour.
6, Electromagnet Dimensions: 440 * 450 * 360; weight of 100Kg
7, Power supply 10A 60V

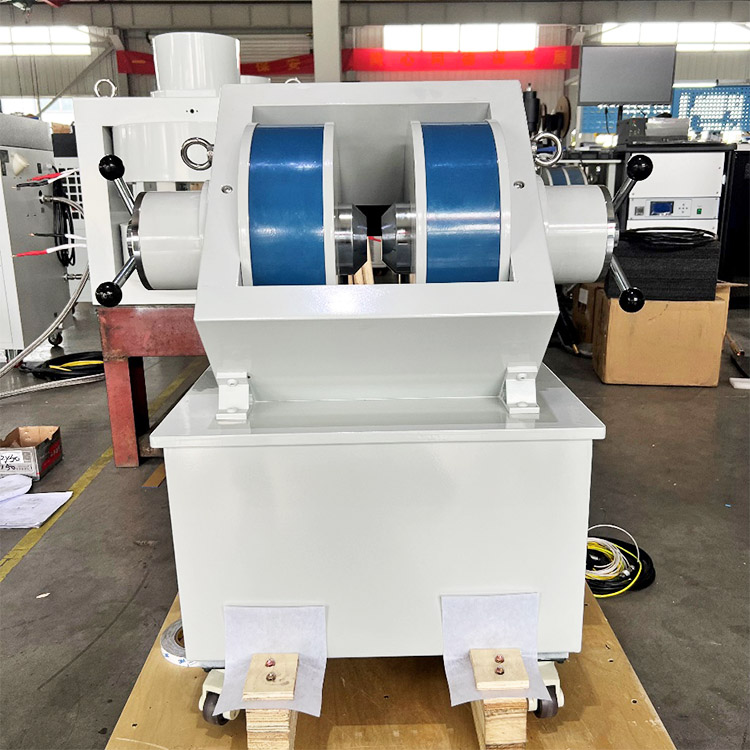

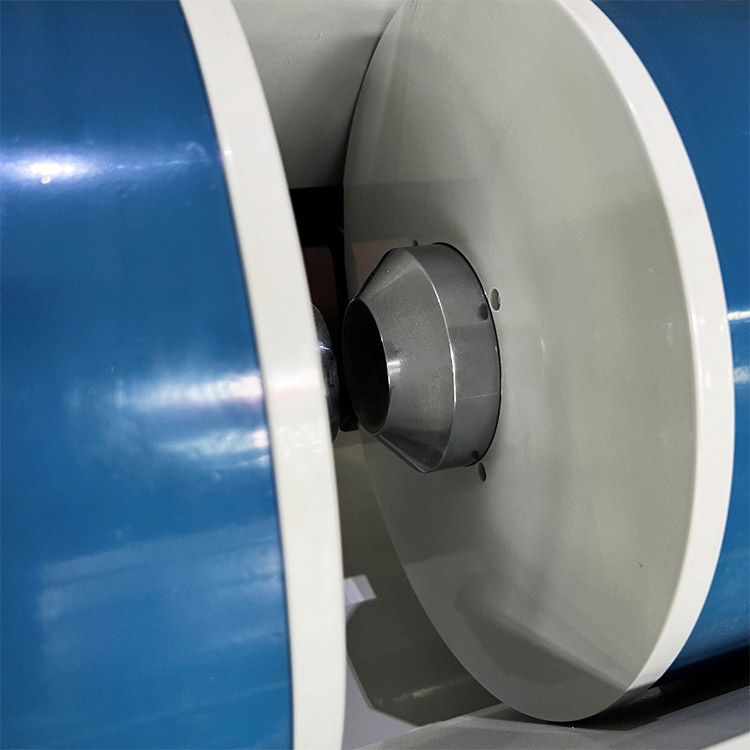

DXSB-250-electromagnet

DXSB-250

1, The solenoid model for the SB-250 type, the solenoid for the double-yoke frame structure, inclined 45-degree angle seat, the magnetic field in the horizontal direction, the pole diameter of 250mm, line spacing 120mm, magnetic field air gap two-way adjustable range 20 ~ 120mm.
2, Electromagnet with a pair of poles, pole diameter Φ70mm.
3, Magnetic field index: air gap is 50mm, the central magnetic field Hmax ≥ 2.1T;

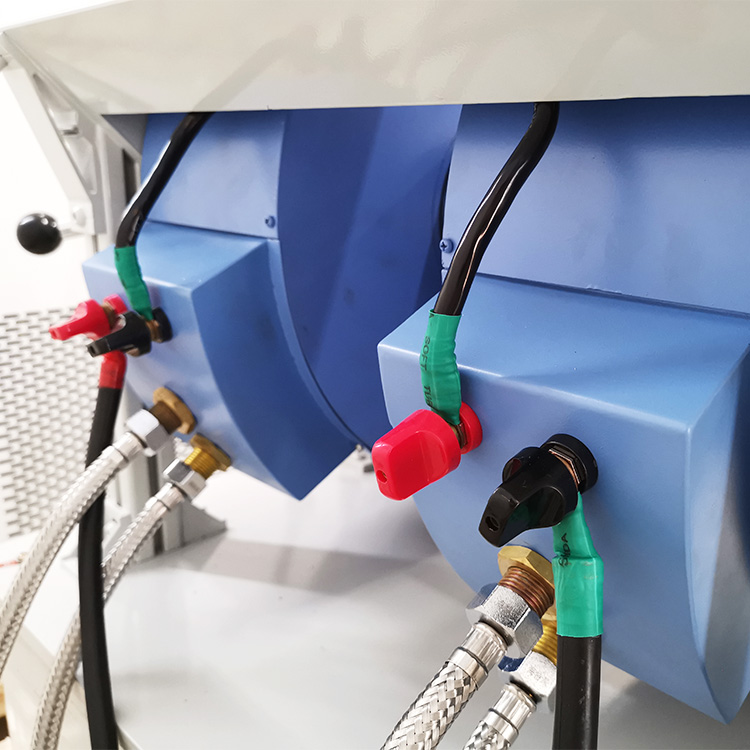

4, The electromagnet uses internal cooling water-cooled structure; when the magnetic field air gap is 50mm, the magnetic field strength of 2.1T, the continuous working time of 0.5 hours
5, The weight of the electromagnet is 2200 kg.
6, The user power 75A 180V






You may also like

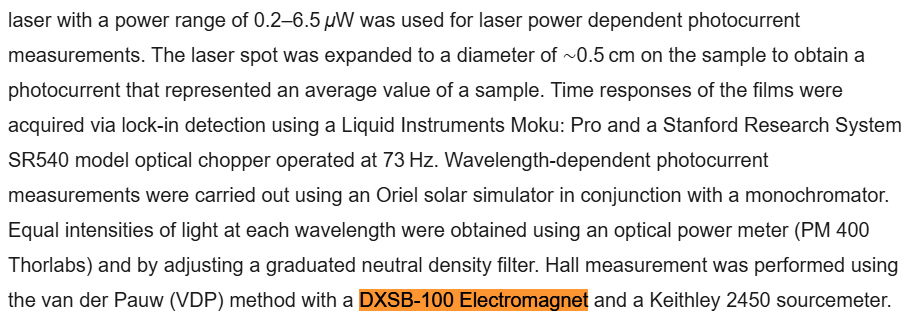

The Application of Water Cooled Electromagnet in Droplet Merging on a Lab-on-a-Chip Platform by Uniform Magnetic Fields

The Application of Water Cooled Electromagnet in "Droplet Merging on a Lab-on-a-Chip Platform by Uniform Magnetic Fields"



The Application of electromagnet in Spreading of a ferrofluid core in three‑stream micromixer channels

The Application of Electromagnet in "Spreading of a ferrofluid core in three‑stream micromixer channels"



The magnetic field is both-way adjustable, the yoke structure is a closed magnetic circuit, so it has good rigidity, the magnetic field direction is horizontal, and the supporting yoke rises 45° to the ground for operating the sample easily. Apply to Hall effect studies, magnetoresistance effect studies, magnetostriction studies, torque magnetometer, force method magnetometer, VSM, magnetic ability measuring equipment, magnetic materials measuring equipment, etc.
