AC solenoid Impulse solenoid

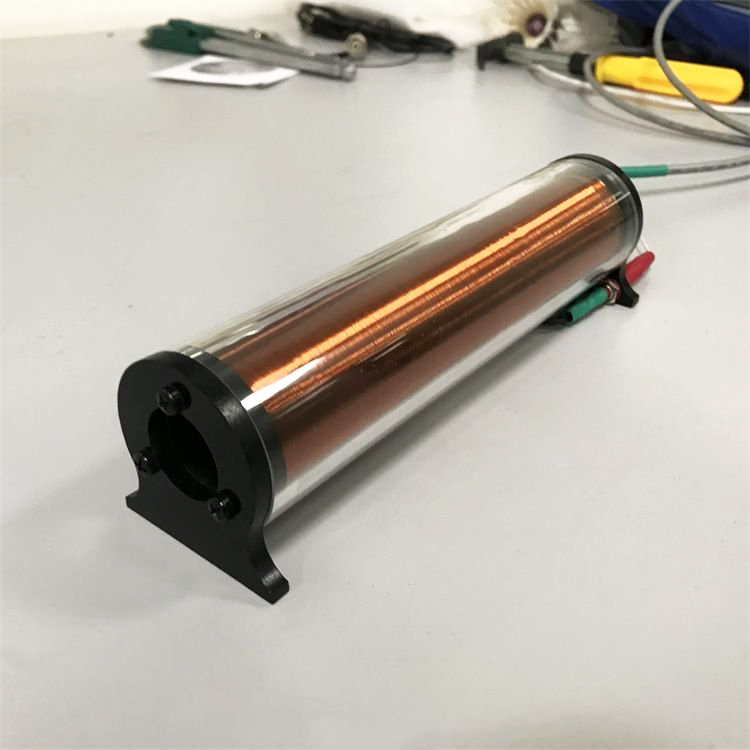

AC solenoid

Length: 200mm
Inner diameter: 150mm,
Magnetic field strength: 50Gs,
Frequency: 400Hz,
AC source power: 1KW.

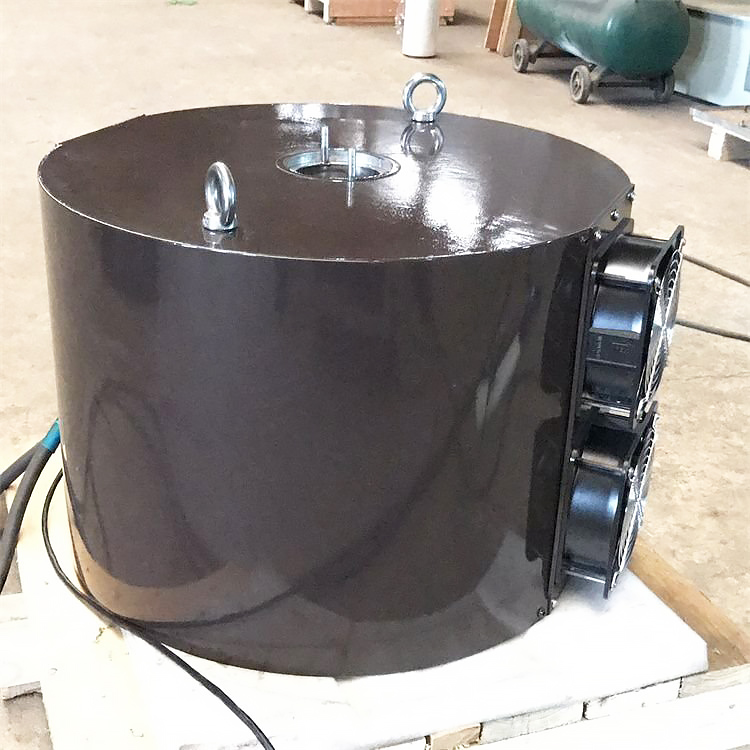

Impulse solenoid

Center magnetic field strength H_max: 0.6T,
Magnetic field center uniformity (△H/H)/uniform area length 100mm,
Uniformity: 5%;
Outside diameter: 440mm,
Inner diameter: 80mm,
Length: 440mm,
Weight: 320Kg, : Continuous pulsed magnetic field, Output frequency: 0-25Hz, duty cycle: 0.2, power: 180KW

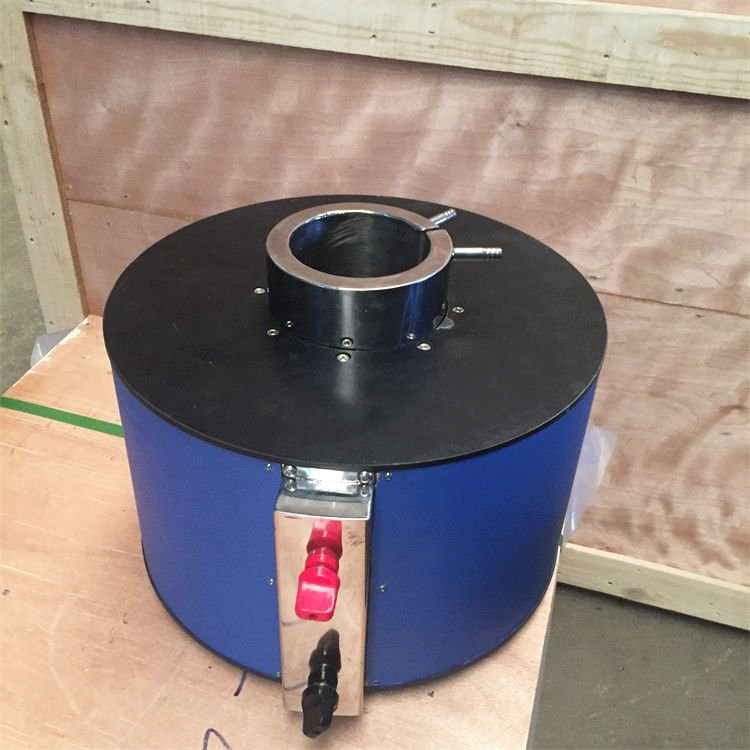

Impulse solenoid

Center magnetic field strength: H_max: 0.12T,
Magnetic field center uniformity (△H/H)/uniform zone length 50mm,
Uniformity: 1.5%;
Outside diameter: 320mm,
Inner diameter: 100mm,
Length: 360mm,
Weight: 110Kg,
Continuous pulsed magnetic field, output frequency: 0-10Hz, duty cycle: 0.5, power: 60KW,
Built-in heat-insulated water-cooled layer applies a continuous pulsed magnetic field to the crucible furnace.

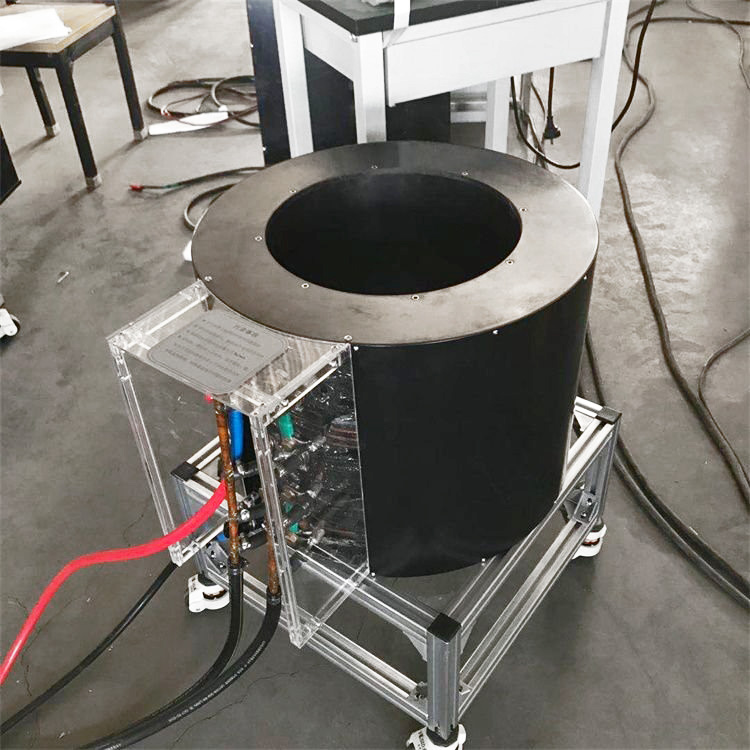

AC solenoid

Length: 320mm,
Inner diameter: 120mm,
Uniform zone length: 30mm,
Uniformity: 0.5%;
Frequency: 10KHz,
AC power: 1600W.
