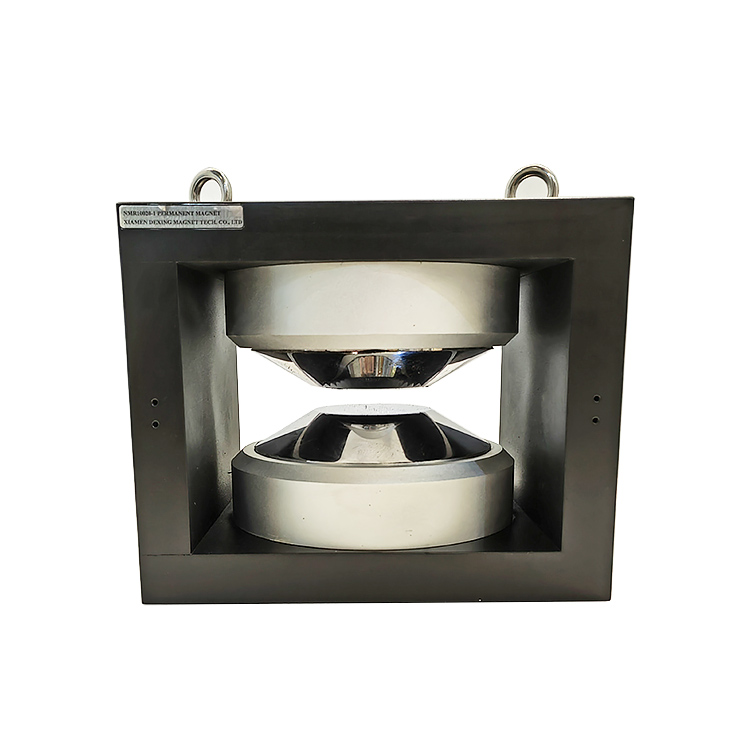

Constant Magnetic Field Permanent Magnet

1. No power supply, energy saving, long-term use does not heat, small size, light weight, low cost.
2. Air gap fixed rigidity, magnetic field stability, can do standard magnetic field use.
3. Wide range of use, you can choose according to the different requirements of instruments and equipment permanent magnets. For high-precision magnetic field source requirements such as nuclear magnetic resonance instrument, permanent magnet magnetic field source is the best choice.
4. We can according to the user's specific requirements of the magnetic field design of special-shaped permanent magnet.



Technical parameters of DX series permanent magnet



Model

Polar diameter

(mm)

Air gap

(mm)

Magnetic field

(T)

DX5010-04 50 10 0.4
DX5010-06 50 10 0.6
DX5010-11 50 10 1.1
DX5020-04 50 20 0.4
DX5020-07 50 20 0.7
DX10020-06 100 20 0.6
DX10020-08 100 20 0.8
DX10020-10 100 20 1
DX10030-05 100 30 0.5
DX10030-07 100 30 0.7
DX10030-11 100 30 1.1
DX14040-05 140 40 0.5
DX15020-14 150 20 1.4
DX15070-05 150 70 0.5
DX165100-05 165 100 0.5
DX200110-05 200 110 0.5
Dexinmag series constant magnetic field permanent magnets have the characteristics of no power supply, energy saving, long-term use without heat, low cost, small size, and lightweight. Due to the fixed air gap, it has good rigidity and the magnetic field is stable, which can be used as a standard magnetic field.
