The Uniform Magnetic Field for NMR
Parameters of uniform magnetic field for NMR
| Model |
Pole Face Dia. (mm) |
Air gap (mm) |
Center magnetic field（T） |
Size of uniform field (mm) |
Shape (mm) |
Weight (Kg) |
|---|---|---|---|---|---|---|
|

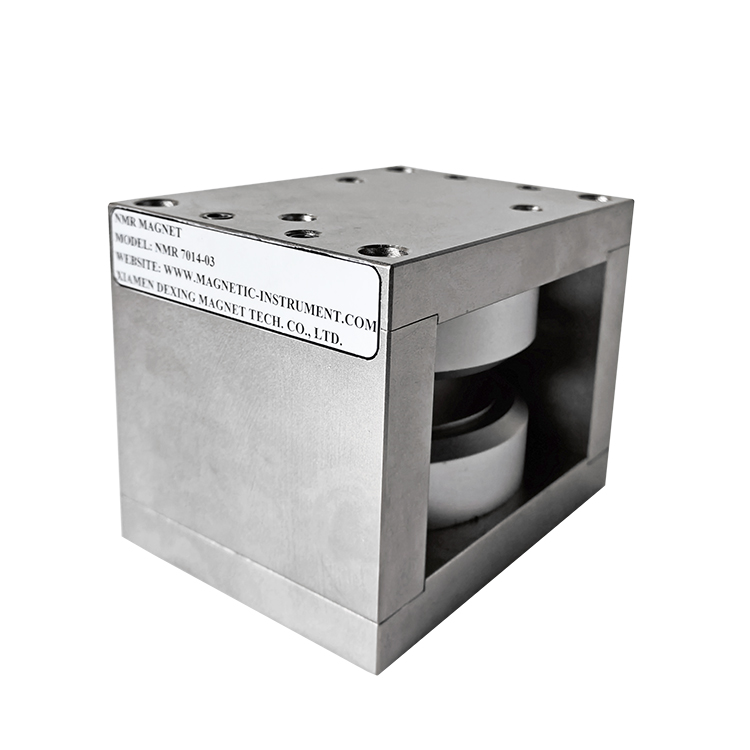

NMR 7014-03 |
70 | 14 | 0.3 | Φ6*3 |
100 x 124 x 130 |
8.2 |
|

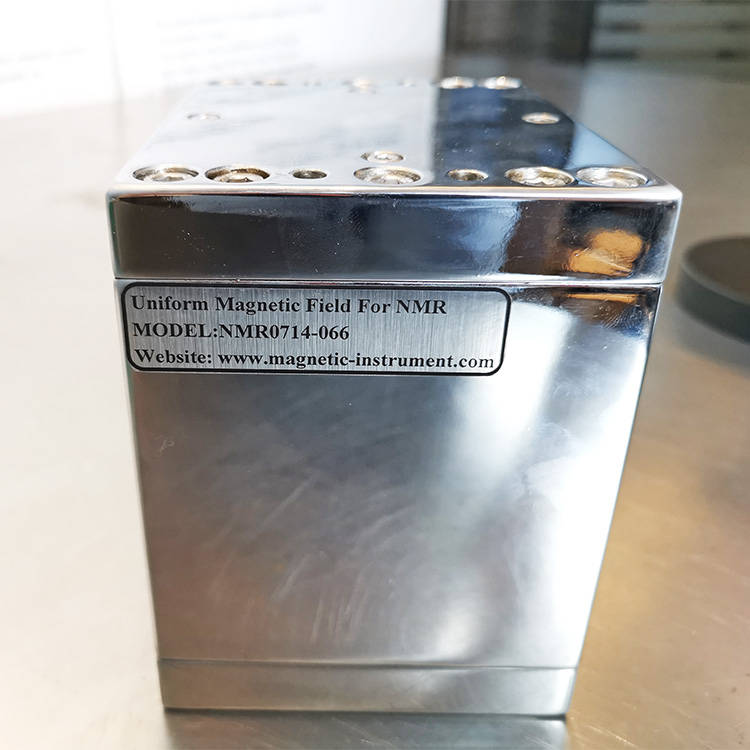

NMR 7014-066 |
70 | 14 | 0.66 | Φ6*3 |
100 x 124 x 130 |
10 |
|
NMR 10020-03 |
100 | 20 | 0.3 | Φ8*5 |
130 x 136 x 166 |
15 |
|
NMR 10020-05 |
100 | 20 | 0.5 | Φ8*5 |
130 x 136 x 166 |
18 |
|
NMR 10030-05 |
100 | 30 | 0.5 | Φ6*5 |
150 x 130 x 134 |
21 |
|
NMR 14025-03 |
140 | 25 | 0.3 | Φ10*7 |
170 x 145 x 210 |
25 |
|
NMR 14025-058 |
140 | 25 | 0.58 | Φ10*7 |
170 x 145 x 210 |
30 |
|
NMR 14030-037 |
140 | 30 | 0.37 | Φ8*8 |
170 x 158 x 210 |
30 |
|
NMR 5030-045 |
50 | 30 | 0.45 | Φ6*3 |
140 x 200 x 160 |
8.2 |
|
NMR 470120-027 |
470 | 120 | 0.27 | Φ50*30 |
440 x 640 x 600 |
780 |
|
NMR 15030-04 |
150 | 30 | 0.4 | Φ10*8 |
230 x 180 x 170 |
40 |
|
NMR 6525-09 |
65 | 25 | 0.9 | Φ8*5 |
285 x 320 x 320 |
72 |
| Uniformity: 5*10⁻4 | ||||||
You may also like

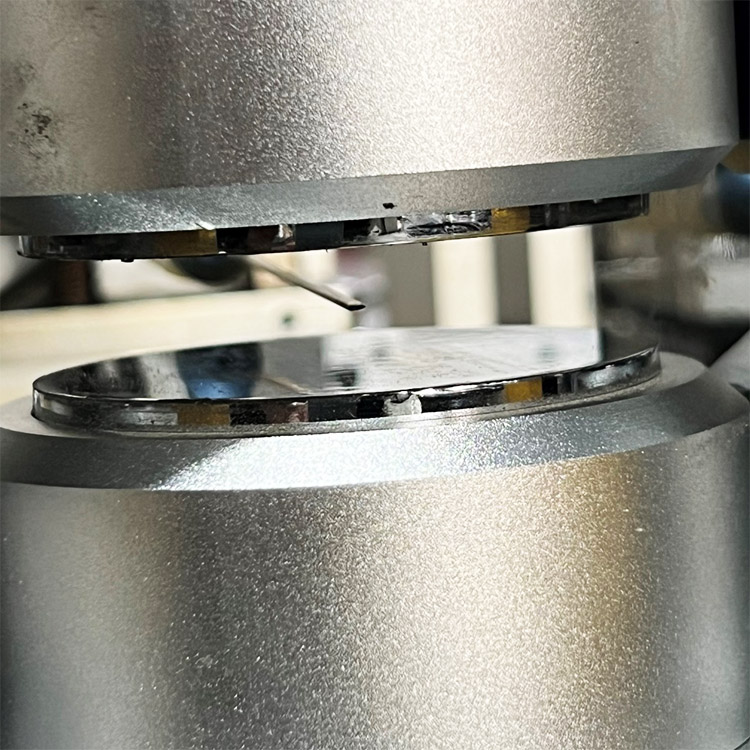

Nuclear magnetic resonance (NMR) series permanent magnets have high machining accuracy, good stability, and a very uniform magnetic field. The uniformity of the uniform region is guaranteed to be 1 ~ 5 *10⁻⁴.
