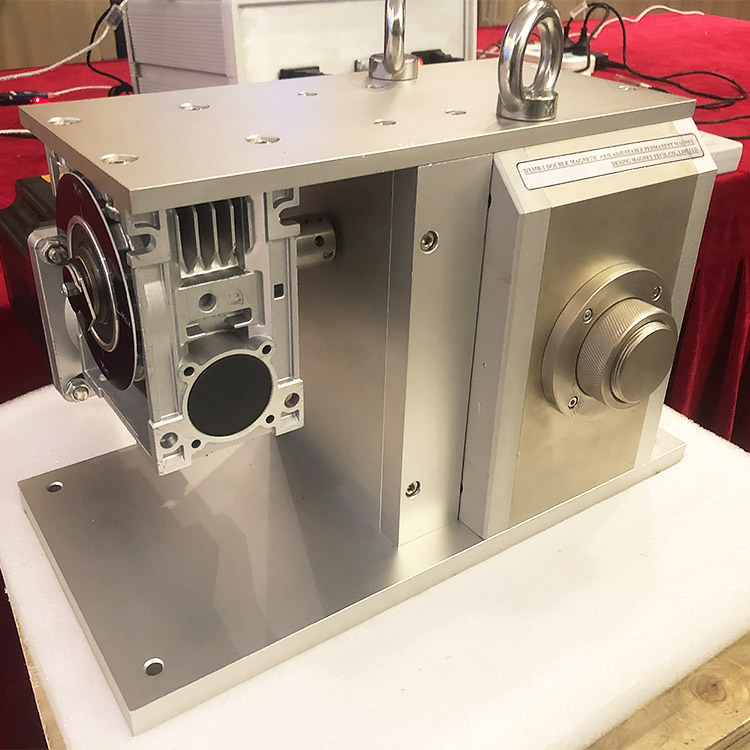

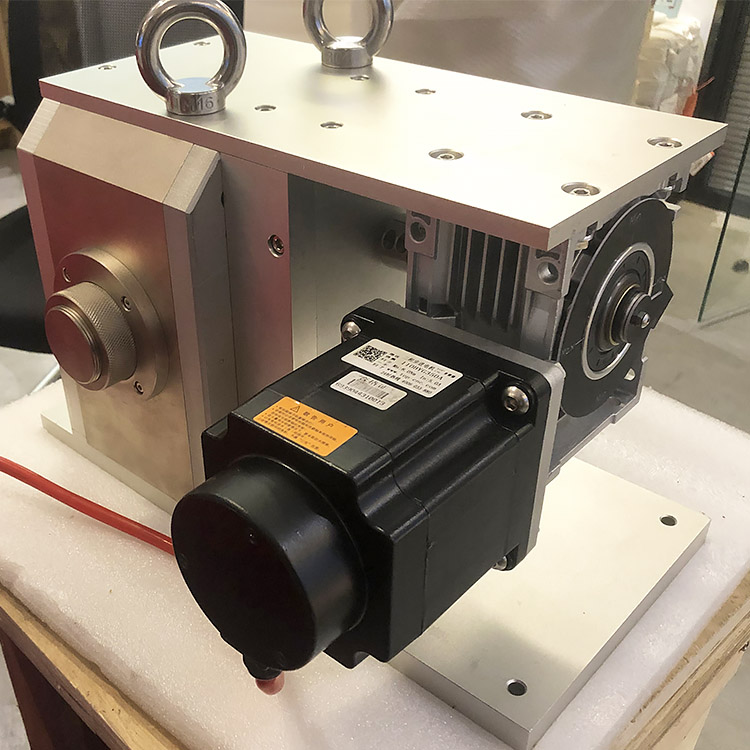

Axial Permanent Magnets
Technical parameters of axial permanent magnet
| Model |
Air gap （mm） |
Center magnetic field （T） |
Center bore （mm） |
Dimensions （mm） |
Weight （Kg） |
|---|---|---|---|---|---|
| DX2508-04 | 8 | 0.3 | Φ8 | 70x100x100 | 7 |
| DX2508-07 | 8 | 0.7 | Φ8 | 70x100x100 | 7 |
| DX2508-10 | 8 | 1 | Φ8 | 70x100x100 | 7 |
| DX2508-13 | 8 | 1.3 | Φ8 | 70x100x100 | 7 |
| DX2508-16 | 8 | 1.6 | Φ8 | 130x136x140 | 12 |
| DX2508-20 | 8 | 2 | Φ8 | 130x136x166 | 14 |
|
Pole Face（mm）: 25*25 |
|||||
Axial permanent magnets are composed of a combination of special shapes of neodymium-iron-boron magnetic block arrays. Its magnetic field central axis has through holes, high magnetic field strength, and small volume, suitable for optical experiments, and axial probe calibration.
