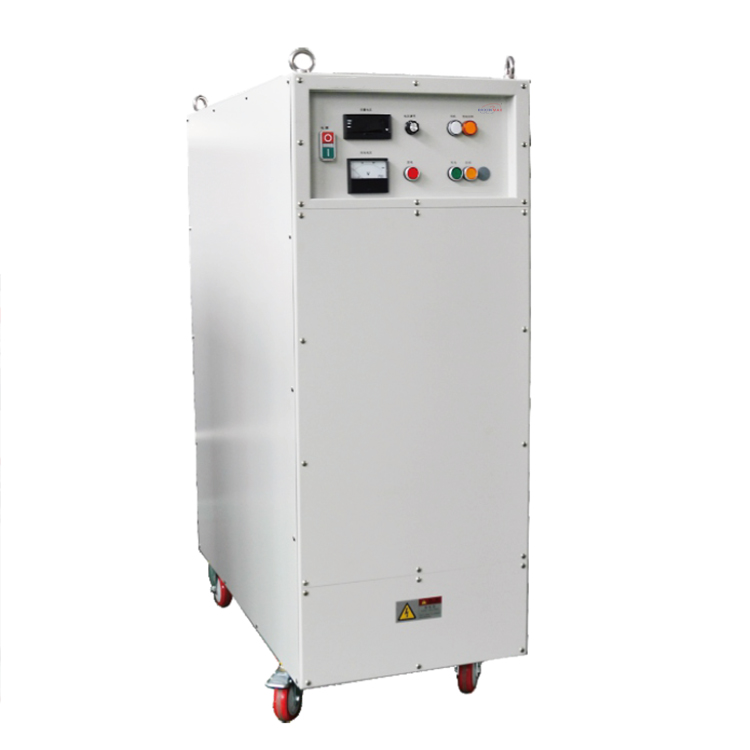

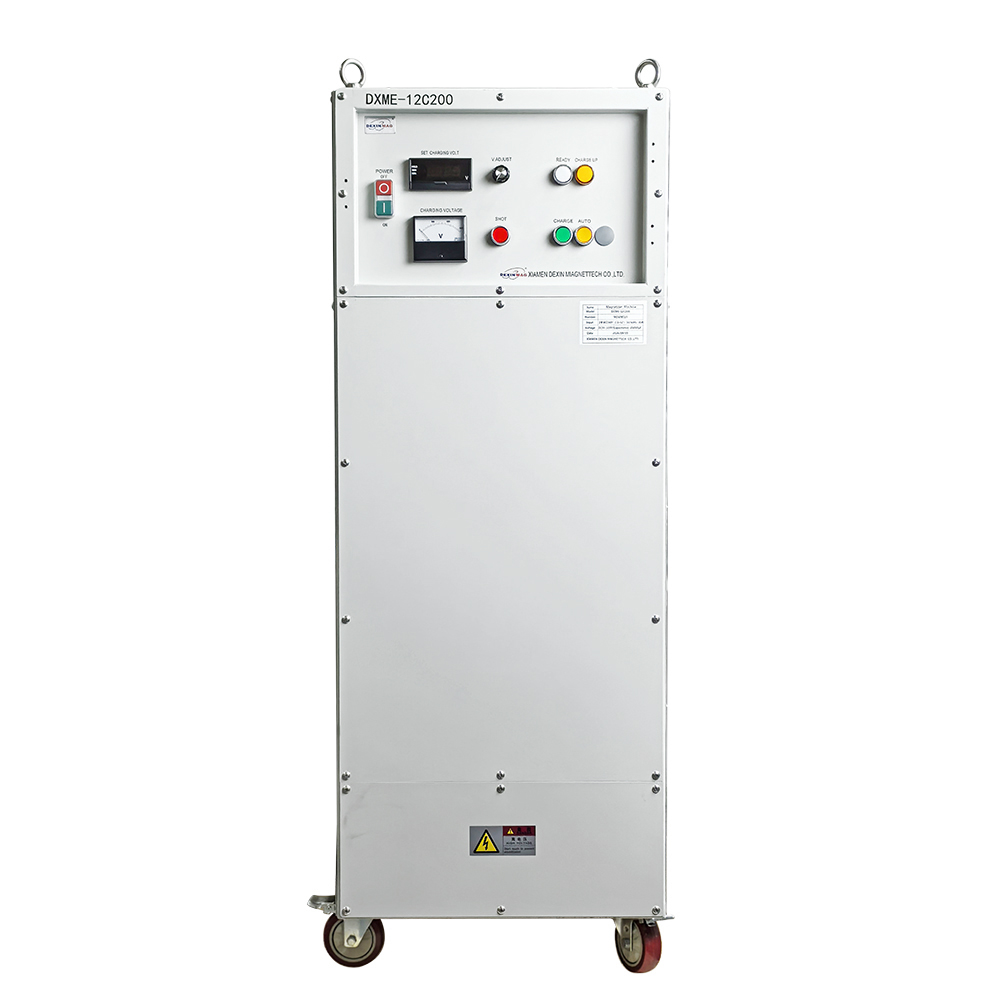

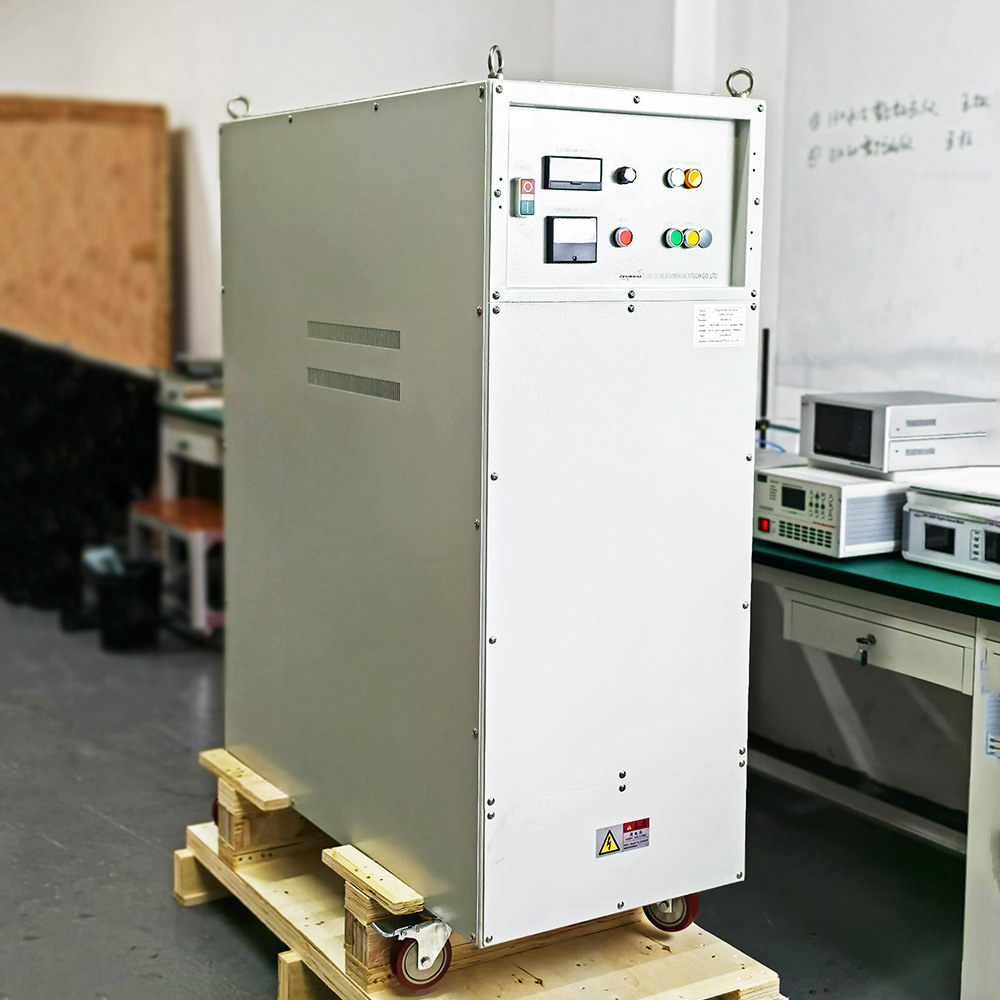

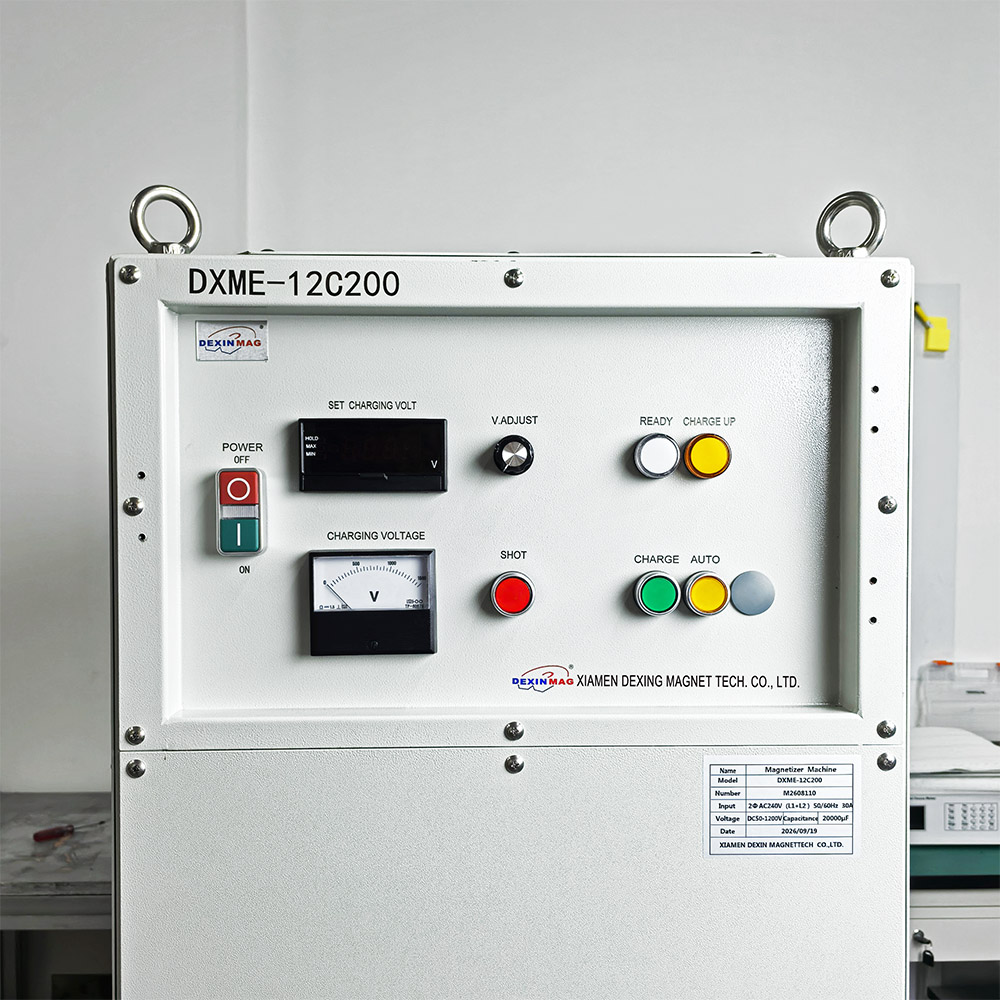

DXME Series Magnetizing Source

Features of DXME Series Magnetizing Source



1. Using Siemens operation components.
2. Easy to operate.
3. Safety and reliability.
4. Lasting durability.



Technical parameters



Model

DXME-10C100

DXME-10C200

DXME-

10C400

DXME-25C20

DXME-25C30

DXME-

25C100

DXME-

25C200

Input  power


220V 50~60Hz 30A

220V 50~60Hz 40A

220V 50~60Hz 60A

Charge voltage


50~1000V

50~2500V

50~2500V

Max. output current

15,000A

30,000A

Repeat precision of charge voltage

±1V

The capacity of condenser

10,000μF

20,000μF

40,000μF

2,000μF

3,000μF

10,000μF

20,000μF

Charge  time

5S

9S

18S

5S

8S

18S

36S

Max. energy


5,000J

10,000J

20,000J

6,250J

9,375J

31,250J

62500J

Enclosure dimension (mm)


500W × 1000D × 1400H

1000 × 1000D × 1400H

500W × 1000D × 1400H

1000W × 1000D × 1400H

1500W × 1000D × 1400H

Weight

250Kg

350Kg

600Kg

300Kg

400Kg

600Kg

1000Kg

Documentation Manual

Chinese or English



Small Energy Fast Magnetizer



In order to meet the rapid magnetization of micro-motor, AlNiCo, Ferrite and NdFeB small size magnets, we offer a variety of small energy, fast magnetizer.



Model

DXME-10C25

DXME-15C10

DXME-15C20

Input power

50-1000V

50V-1500V

Max. output current

15,000A

20,000A

Repeat precision of charge voltage

±V

Capacity

2,500uF

1,000uF

2,000uF

Charge time

4S

2S

3S

Max. energy

1,250J

1,125J

2,250J

Dimension

500*600*900

Weight

120kg

100kg

120kg

User's manual

Chinese or English





You may also like



DXME-15C10 Operation manual





In order to meet different customer needs, the downwardly expanding strategy we used in the product line, we have developed the DXME series magnetizer. These series magnetizers are more cost-effective, more convenient operation, and easy to use.
