DXMG Series Magnetizing Power Supply
Technical parameters
|
Model |
DXMG-10C100 |
MG-10C200 |
DXMG-25C10 |
DXMG-25C20 |
DXMG-25C30 |
DXMG-35C30 |
DXMG-35C60 |
|
Input |
220V 50～60Hz 30A |
220V 50～60Hz 40A |
220V 50～60Hz 60A |
||||
|
Charge voltage |
50～1000V |
50～2500V |
50～3500V |
||||
|
Max.output current |
15,000A |
30,000A |
|||||
|
Repeat precision of charge voltage |
±1V |
||||||
|
Capacitor |
10,000μF |
20,000μF |
1,000μF |
2,000μF |
3,000μF |
3,000μF |
6,000μF |
|
The capacitance charging |
5,000 / 10,000 |
10,000 / 20,000 |
1,000 |
1,000 / 2,000 |
1,000 / 2,000 / 3,000 |
1,000 / 2,000 / 3,000 |
3,000 / 4,000 / |
|
Charge time |
5S |
9S |
4S |
5S |
8S |
12S |
24S |
|
Max. Output energy |
5,000J |
10,000J |
3,125J |
6,250J |
9,375J |
18,375J |
36750J |
|
Dimension |
500W * 1000D * 1400H |
1000W * 1000D * 2000H |
2000W * 1000D * 2000H |
||||
|
Weight |
250Kg |
350Kg |
200Kg |
300Kg |
400Kg |
1000Kg |
1800Kg |
|
User’s manual |
Chinese or English |
||||||
DXMG Series Large Energy Magnetizer Machine
|
Moel |
DXMG-40C30 |
DXMG-40C60 |
DXMG-40C90 |
DXMG-40C120 |
DXMG-40C180 |
DXMG-40C240 |
DXMG-40C300 |
|
Input |
220V 50～60Hz 60A |
380V 50～60Hz 60A |
220V 50～60Hz 60A |
||||
|
Charge voltage |
200～4000V |
50～3500V |
|||||
|
Max.output current |
30,000A |
||||||
|
Repeat precision of charge voltage |
±1V |
||||||
|
Capacitor |
3,000μF |
6,000μF |
9,000μF |
12,000μF |
18,000μF |
24,000μF |
30,000μF |
|
The capacitance charging |
1,000 / 2,000 / 3,000 |
According to requirements |
|||||
|
Charge time |
12S |
24S |
12S |
16S |
24S |
32S |
40S |
|
Max. Outpur energy |
24,000J |
48,000J |
72,000J |
96,000J |
144,000J |
192,000J |
240,000J |
|
Dimension |
According to requirements |
||||||
|
Weight |
100Kg |
1600Kg |
2200Kg |
2800Kg |
3400Kg |
4000Kg |
4600Kg |
|
User’s manual |
Chinese or English |
||||||
DXMG Series Special Magnetizer & Demagnetizer
1. Multi-stage Magnetization of Rare Earth with Extremely Small Pole Pitch, selected dual output magnetizer.
2. Orientation magnet positioned magnetizing, selected dual voltage magnetizer.
|
Model |
DXMG-15C10P |
DXMG-15C10V |
DXMG-15C20D |
DXMG-25C10P |
DXMG-25C20V |
DXMG-25C20D |
DXMG-35C30D |
||
|
Input power |
220V 50～60Hz 30A |
220V 50～60Hz 40A |
220V 50～60Hz 60A |
||||||
|
Charge voltage |
50～1500V |
50～2500V |
50～3500V |
||||||
|
Max. output current |
30,000A |
||||||||
|
Repeat precision of charge voltage |
±1V |
||||||||
|
The capacity of condenser |
1,000μF |
1,000μF |
2,000μF |
1,000μF |
2,000μF |
2,000μF |
3,000μF |
||
|
The capacitance charging |
NO |
1,000 / 2000 |
NO |
1,000 / 2,000 |
1,000 / 2,000 |
1,000 / 2,000 / 3,000 |
|||
|
Charge time |
4S |
5S |
6S |
12S |
|||||
|
Max energy |
1,125J |
2,250J |
3,125J |
6,250J |
1,8375J |
||||
|
Enclosure dimension(mm) |
500W × 1000D × 1400H |
1000W × 1000D × 2000H |
|||||||
|
Weight |
200Kg |
250Kg |
250Kg |
350Kg |
500Kg |
||||
|
Documentation Manual |
Chinese or English |
||||||||

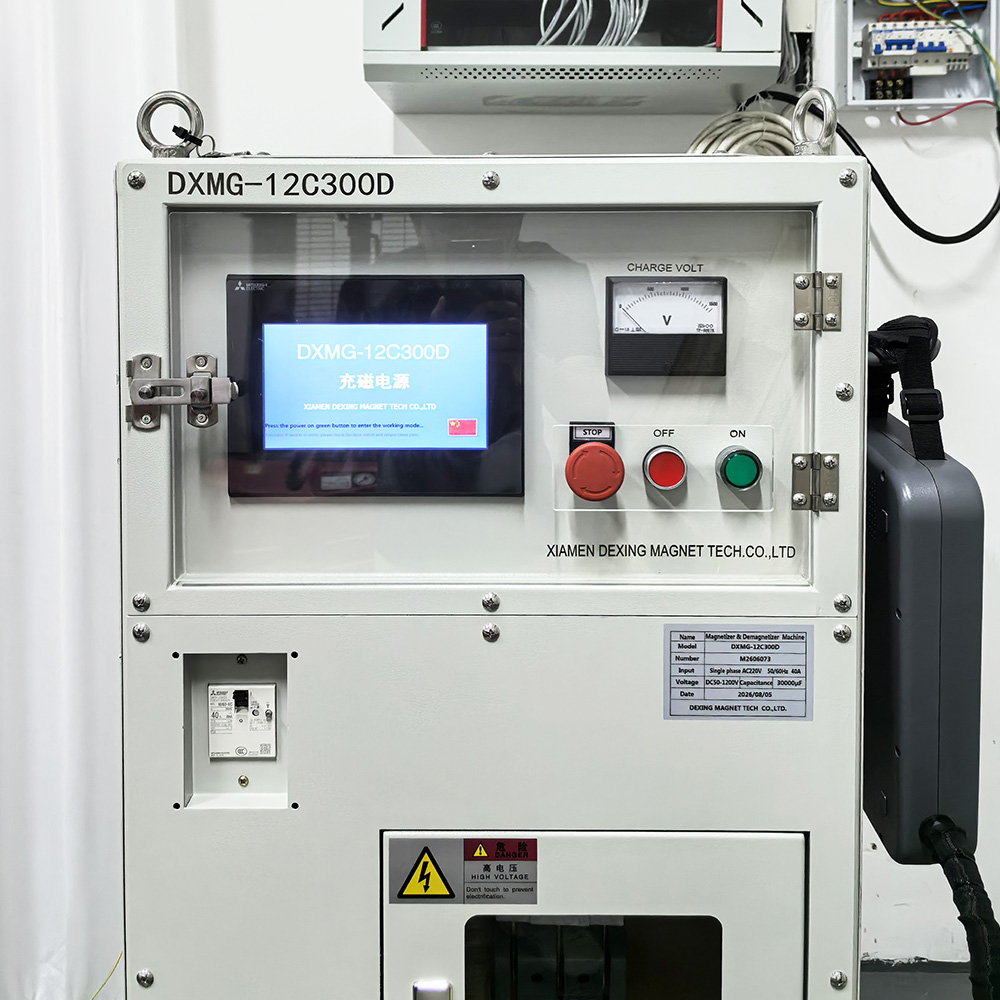

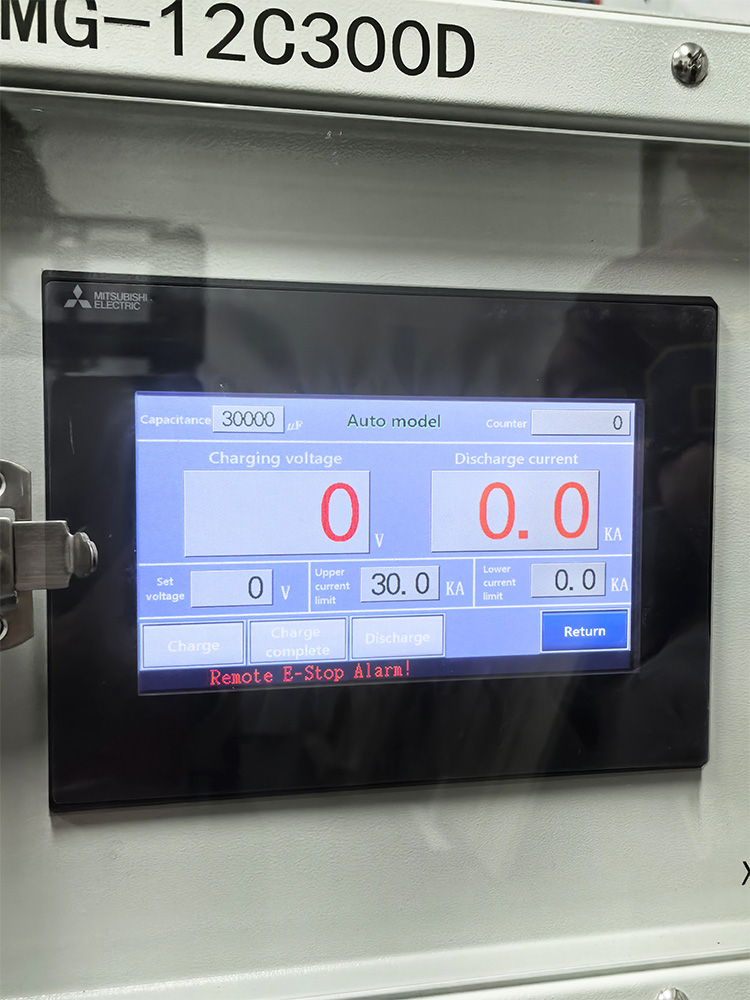

2. Digital display of preset voltage and output current.
3. Charge time is adjustable.
4. The capacity of the condenser can be switched and the capacity indication.

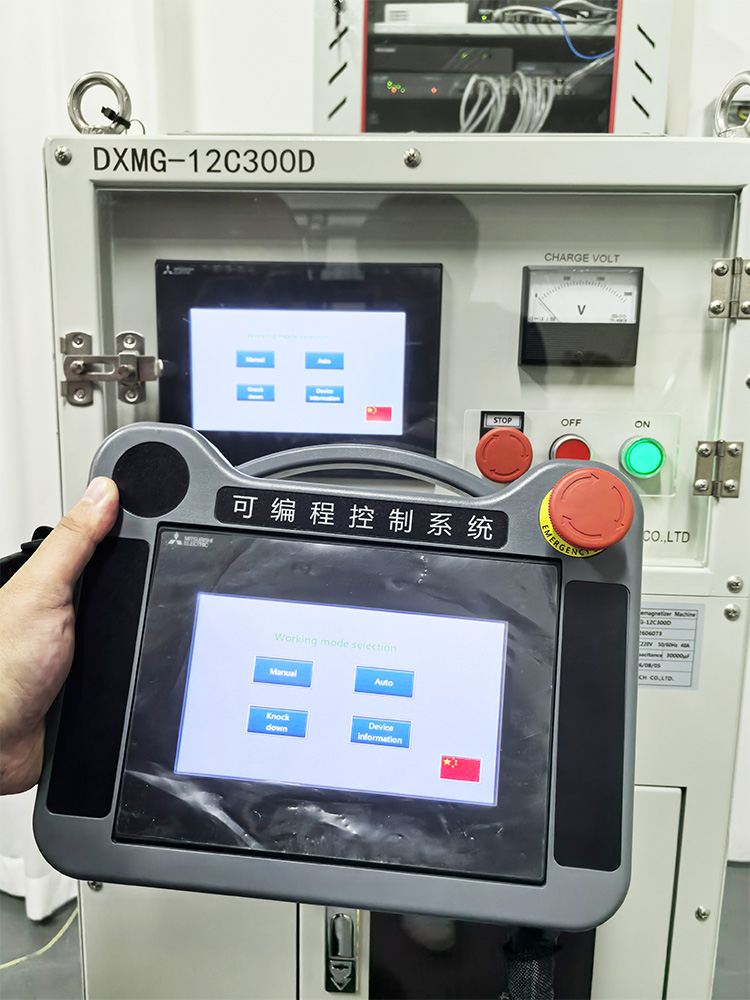

5. Various operating modes.
6. The counting function.
