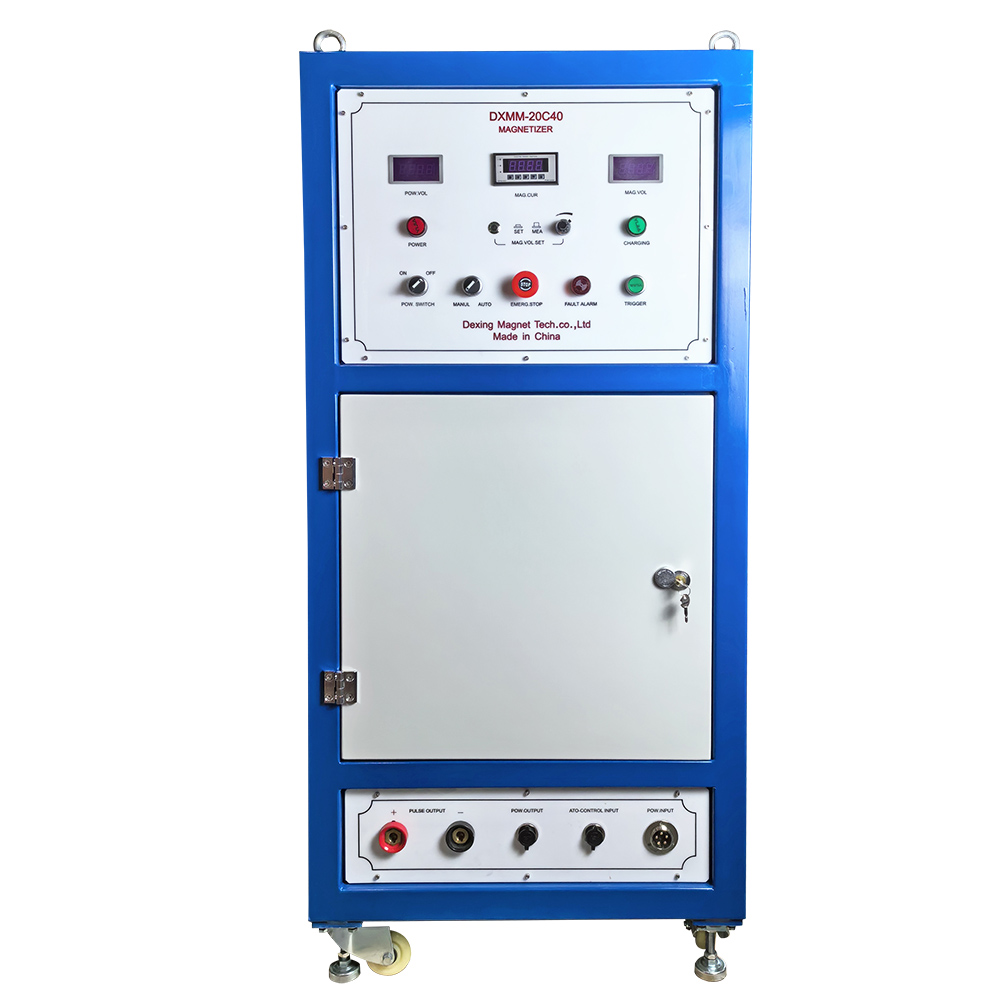

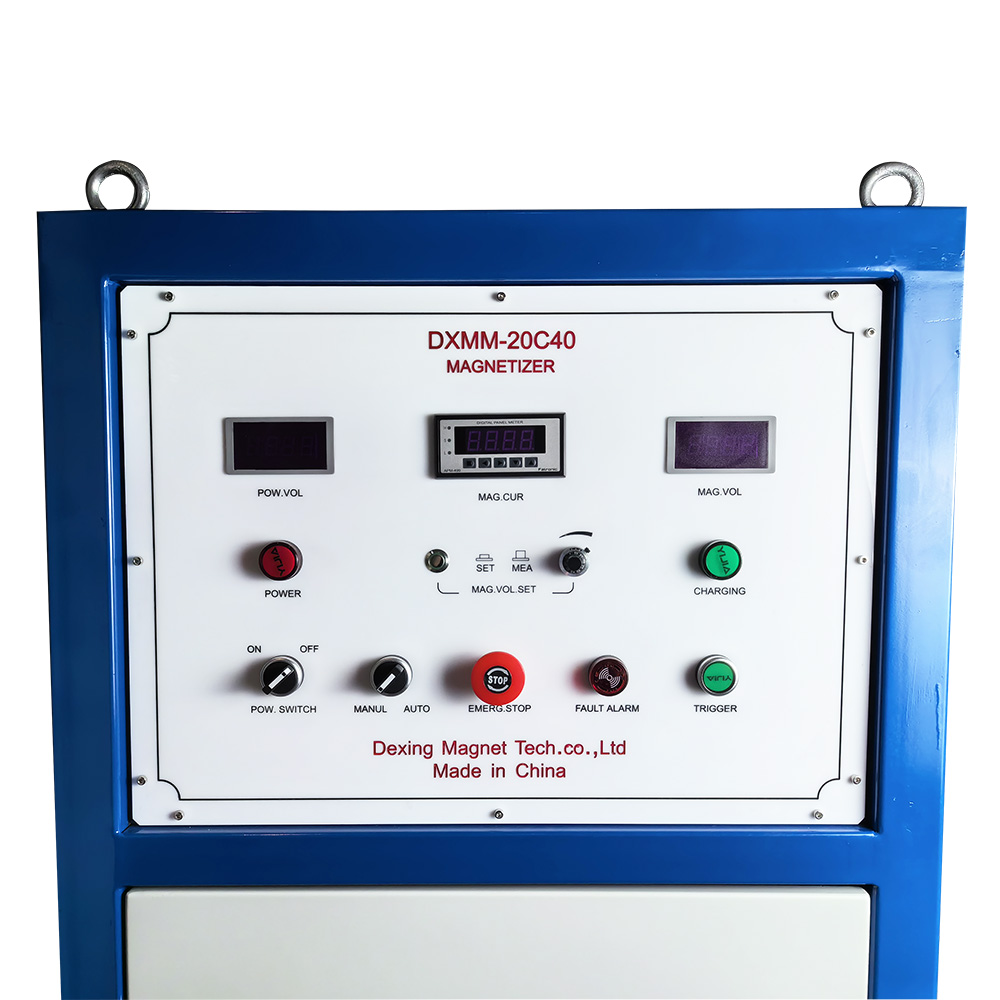

DXMM-20C40 Impulse Magnetizer Machine

Cabinet chassis structure, used to optimize circuit design, energy storage capacitors for high voltage oil-immersed power long-life capacitor. Rigorous testing means power, long working life, strict material selection and excellent cost performance. At the same time, the output voltage can be adjusted continuously, easy to control the magnetizing magnetic field strength.
In accordance with the requirements of users to increase the demagnetization function, we provide various matched magnetizing fixtures.



Technical Parameters are as follows:



Power Source Model

DXMM-20C40

Input Power

AC 220V±5%V  50HZ

Input Current

20-25A

Max.Output Current(A)

15000A

Max. Output Energy(J)

16000J

Magnetizes the cycle

2-15S

Max.Working Voltage

DC100-2000V(Adjustable)

Voltage Error

±1%V

Capacitance Capacity

8000UF (High Pressure Oil Immersion)

Electric Circuit Control

SCR(Silicon control trigger circuit)

Display Method

Digital Display

Environment Temperature

-5- +42 ℃

Altitude

≤3000m

Relative Humidity

≤90%

Protective Function

Built-in discharge resistor, chassis grounded

Dimension

L850*W550*H1050(mm)

Net Weight (KG)

190KG Approx.

Pneumatic polarity conversion device, constant current charging, output current display

Yes





Magnetizing Coil (Inside of Magnetizing Shelf )



Magnetizing Coil of DXMM-20C40 Impulse Magnetizer Machine



  1. Inner Diameter: 65mm
  2. Dry type, can be charged 5 times in a row, stop for 1 hour and then recharge 5 times.



Magnetizing Shelf



Magnetizing Shelf of DXMM-20C40 Impulse Magnetizer Machine




You may also like



User Manual of DXMM-20C40 Impulse Magnetizer

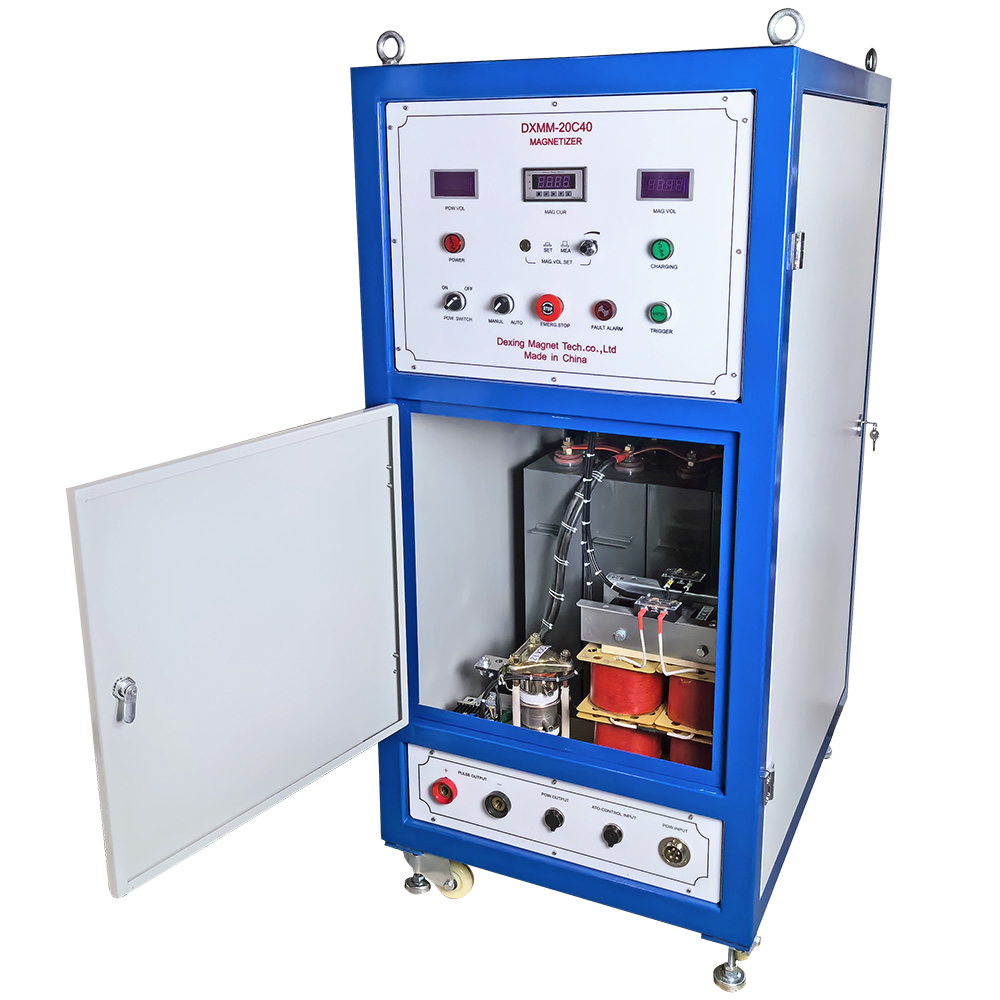

The internal circuit of the magnetizer

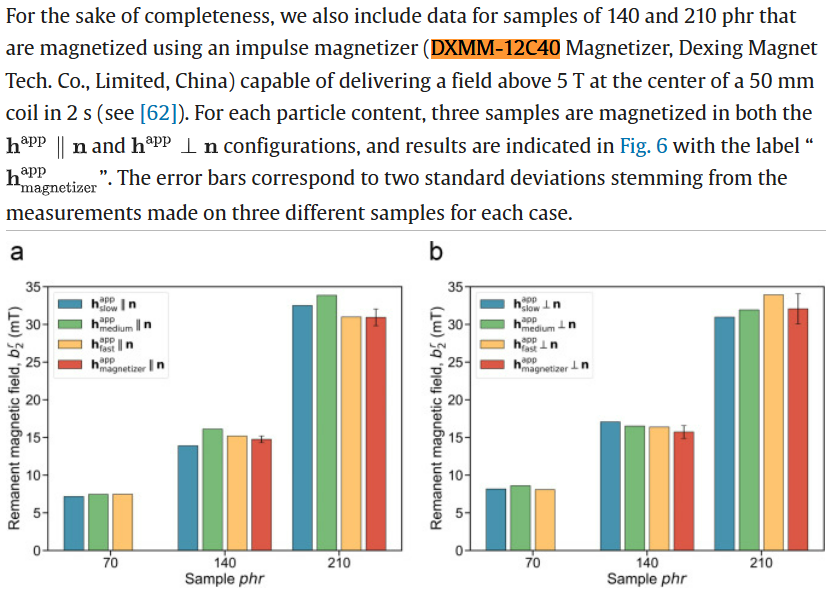

The Application of DXMM-12C40 Magnetiser in "Hard-magnetic phenomena enable autonomous self-healing elastomers"
