DX-3500D Three-channel Precision DC Power Supply
The power supply has multiple internal software and hardware protections; LCD screen display and small keyboard control; the power supply can be used in a variety of industries and applications, both in high-end testing situations and in complex industrial use sites to meet the needs of the system. Testing requirements at different stages such as R&D, weak field testing, reliability testing, and factory inspection.
Features
◆ The main control part is a fully digital control circuit to ensure that the bipolar power supply current output is accurate, stable and reliable;
◆ Using power frequency transformer, input and output are electrically isolated;
◆ The power part adopts modular design, making maintenance simple and convenient;
◆ High precision and fast dynamic response, meeting different testing and detection applications;
◆ Constant current mode ensures the stability of the output current when the load resistance changes;
◆ Equipped with USB communication interface to facilitate user system integration;
◆ Function upgrade is convenient and fast to meet the changing needs of customers in the future.
◆ The operation interface is simple and clear, and the technical requirements for users are extremely low.
Technical indicators
|
Input power |
Single phase AC 200~240V 50/60Hz 10A |
|
Display method |

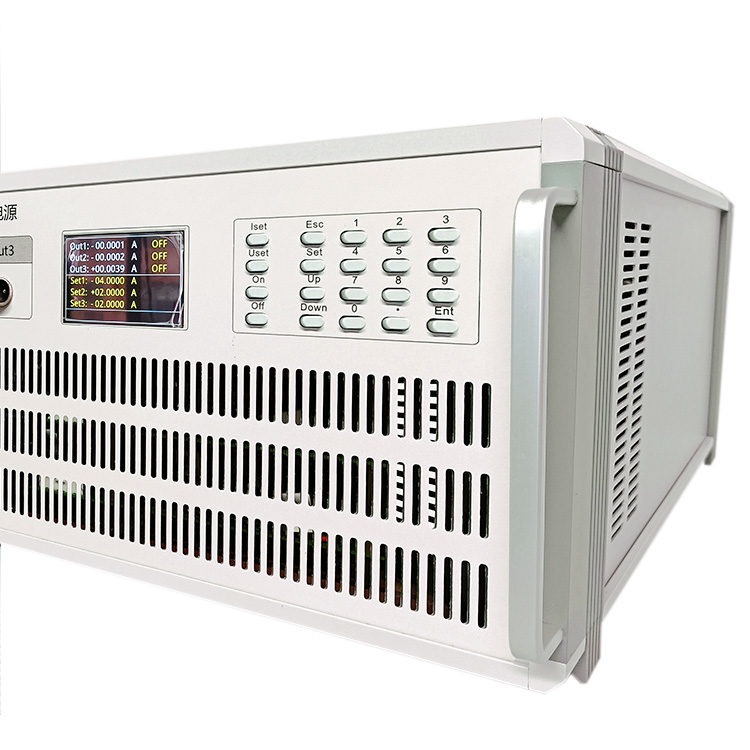

TFT true color LCD screen six digit display |
|
Dimensions |
510mmx490mmx230mm (width*depth*height) |
|
Instrument weight |
About 35kg |
|
Usage environment |
Temperature: 0℃-40℃; Humidity: 40%RH～85%RH |
|
Operating mode |
constant current |
|
Communication Interface |
USB or RS232C |
|
Cooling method |
Forced air cooling |
|
Protected mode |
Automatic voltage stabilization, overcurrent and overload protection |
|
Thermal equilibrium time |
15 minutes |
|
Output maximum power |
1 channel: 100W; 2 channel: 100W; 3 channel: 100W |
|
Maximum output voltage |
1 channel: ±32V; 2 channel: ±32V; 3 channel: ±32V |
|
Maximum output current |
1 channel: ±3.2A; 2 channel: ±3.2A; 3 channel: ±3.2A |
|
Current stability |
Full scale is better than 0.05% (after 30 minutes of warm-up) |
|
Current resolution |
0.1mA |
|
Power output |

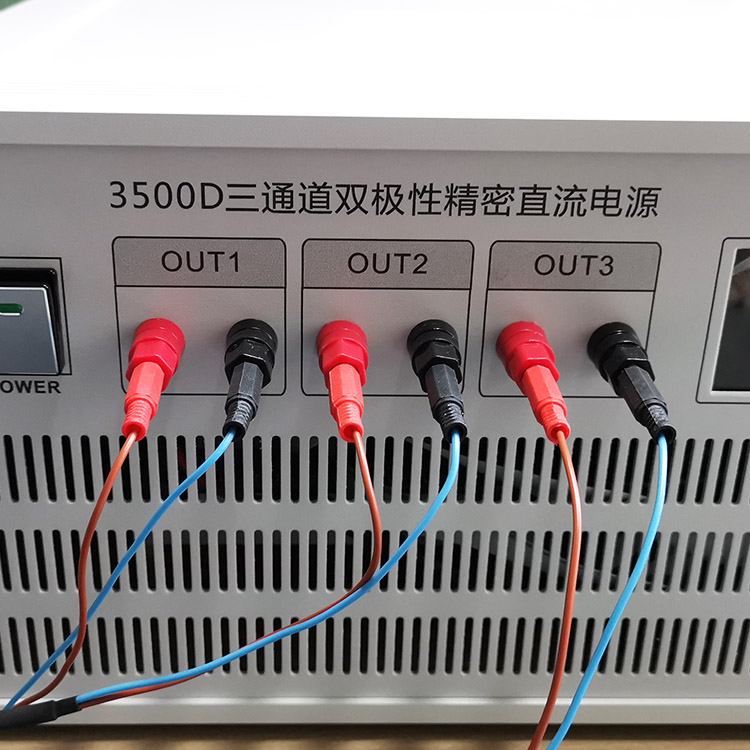

3 channels are completely independent, with independent power amplifier output and independent alarm. Each channel alarm prompts separately. |
|
D/A conversion |
16Bit, 3 channels independent output |
|
A/D conversion |
24Bit, 3-channel simultaneous acquisition |
|
Current accuracy |
±(0.3%RD①+0.01%RG②) |
|
①+A1:B21RD is the current current reading value; ②RG is the current current output range value; |
|
