Flexible Rubber Magnet
Flexible Rubber Magnet Production Line
Flexible Rubber magnets can be processed into strips, rolls, sheets, blocks, rings and various complex shapes. Its surface can also be covered with PVC sheets, coated paper, double-sided tape, coated with UV oil, or color printed.
Isotropic flexible rubber magnets are mainly used in refrigerator magnets, car stickers, printed products, promotional supplies, etc. Anisotropic flexible rubber magnets have higher magnetism and are mainly used in micro motors, computers, laser printers, copiers, and magnetic toys. etc.
Features of Flexible Rubber Magnet
1. Rubber magnets not only have good magnetic properties, but also have the characteristics of softness, strong plasticity, good temperature resistance, good oil resistance, and good corrosion resistance.
2. Rubber magnets do not contain substances harmful to the human body and will not cause pollution to the human body or the environment. It is an environmentally friendly material.
3. The rubber's magnetic power is strong and the magnetic force is stable. It can fit well on different surfaces, provides good magnetic adsorption force for other devices, and is easy to use. Widely used in food, medical, electronics, construction and other industries.
4. The surface of rubber magnets is smooth and flat. It can be printed, written and drawn directly without surface treatment. It is easy to use.
5. Rubber magnets are soft, light, easy to process, have good plasticity and can be cut freely as needed.
6. Rubber magnets have a long service life, excellent bending tensile properties and extrusion resistance, and will not deform and break due to long-term use.

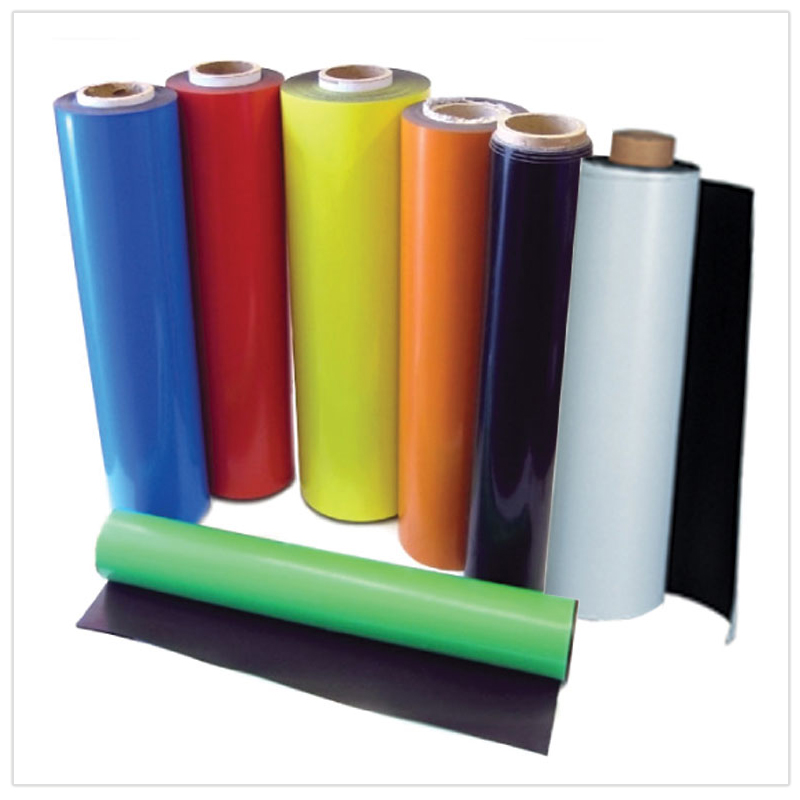

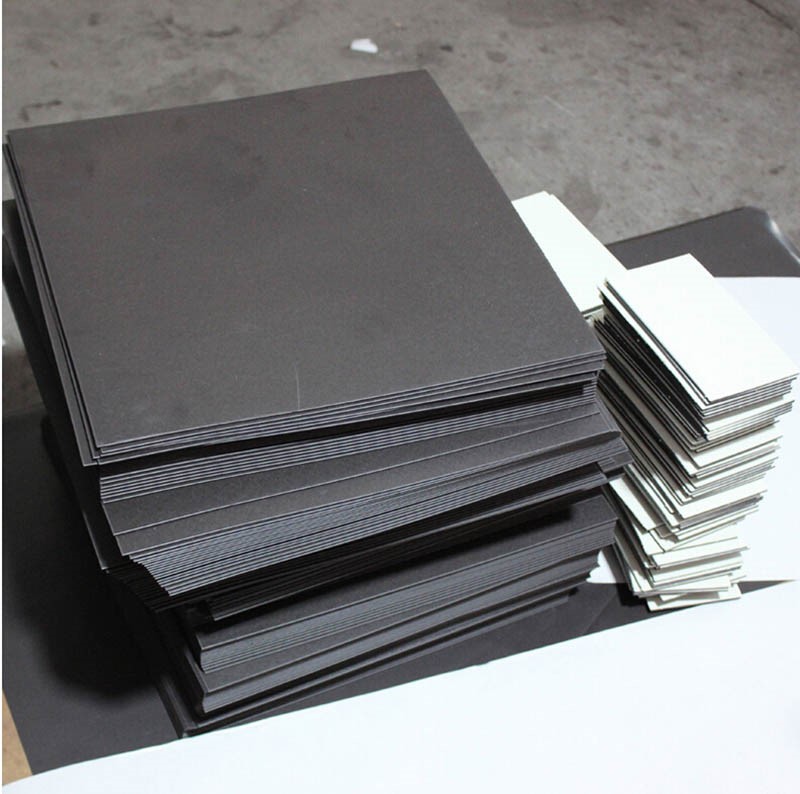

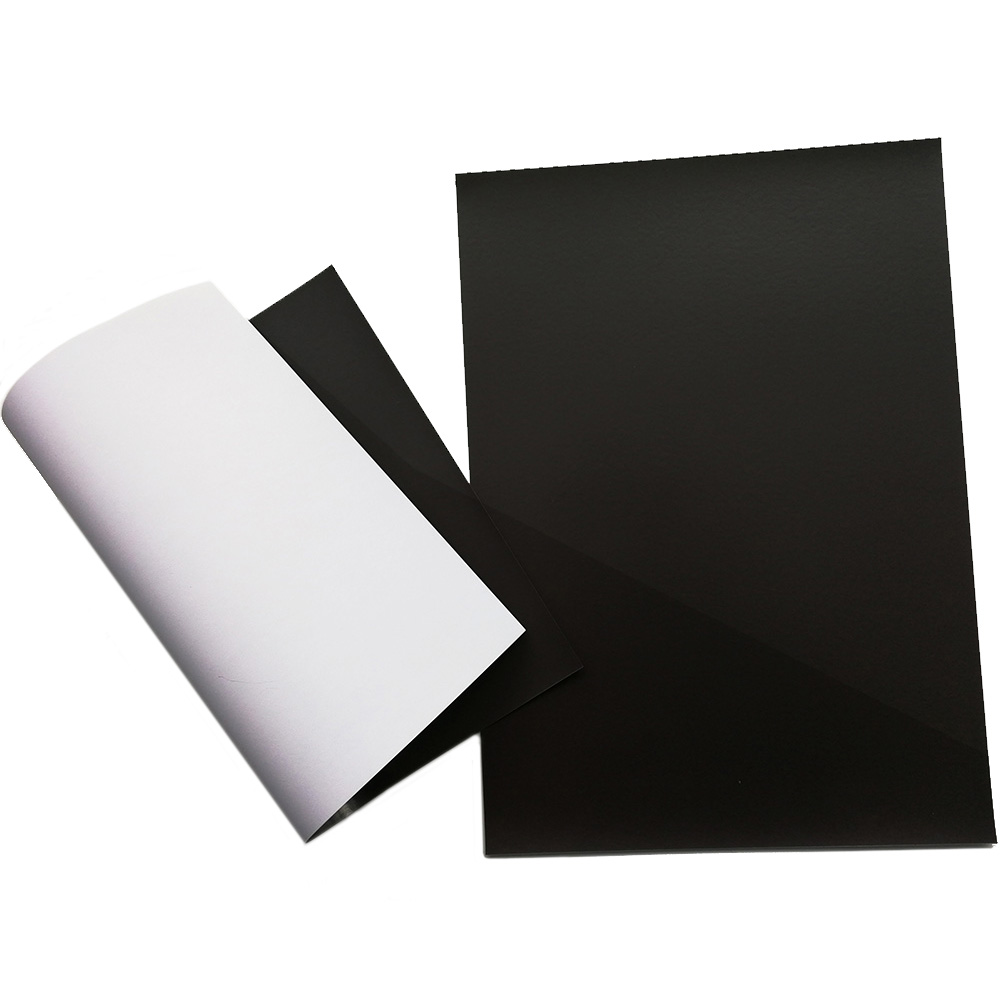

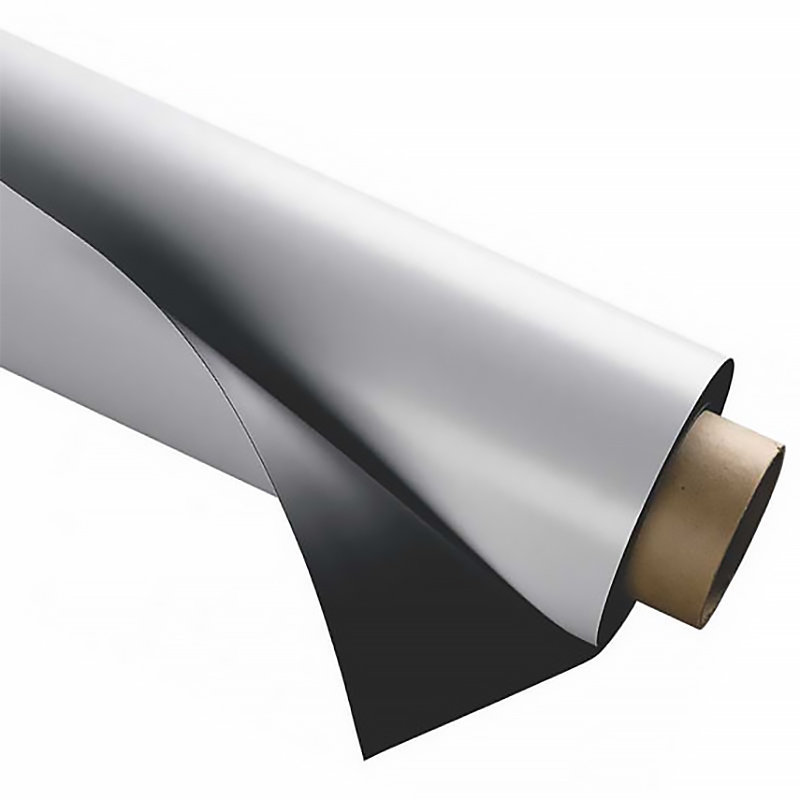

Rubber Magnet Sheet
Flexible Magnetic Sheeting is produced with a calendering process. It is normally used in office appliances, advertising, checking and testing meters, etc. According to its magnetization method, it is divided into penetration magnetization and surface magnetization.(pole width 2,4,7mm or 12,7/6.4/3.6 poles per inch).
Material Types of Rubber Magnet Sheet
|
Material |
Max. Energy Product |
|
a. Isotropic/semi Anisotropic Ferrite |
0.7-0.8MGOe |
|
b. Full Anisotropic Ferrite( High Energy Sheet) |
1.1-1.4MGOe |
|
c. Neodymium Flexible Material |
2.0-2.5MGOe |
Material Thickness of rubber magnet sheet
The popular thickness range of flexible magnet material is 0.4-1.5mm, but thicker material is available in high energy. The thicker the material the greater the pull. It is not in direct proportion, but the thicker the material the greater the pull increase. E.g., 0.75 mm thick material has a pull of 44 grams/cm2 and if proportional the 1.5mm thick material would be 88 grams/cm2, but in fact it is actually far higher at 140 grams/cm2.
|
Material Thickness(mm) |
Pull (Gram/cm2) |
|
0.4 |
19 |
|
0.5 |
28 |
|
0.75 |
44 |
|
1.5 |
140 |
Magnetic properties of flexible magnetic sheeting
| Code | Br | Hcb | Hcj | (BH)max | Forming way | Size | ||
| T | KA/m | KA/m | KJ/m3 | Max Length(m) | Max Width(mm) | Height(mm) | ||
| DXZY-1 | 0.13~0.18 | 80~120 | 100~160 | 4~6.4 | Calendering | 100 | 400 | 0.4~1.1 |
| DXZY-2 | 0.18~0.22 | 100~140 | 120~190 | 6.4~8.0 | Calendering | 2 | 930 | 0.6~3 |
| DXZY-3 | 0.21~0.239 | 140~165 | 150~210 | 8.0~10.4 | Calendering | 100 | 400 | 0.4~1.5 |
| DXZY-4 | 0.24~0.265 | 15z`6~181 | 200~270 | 10.4~12.5 | Calendering | 2 | 400 | 0.6~6 |
Physical properties of flexible magnetic sheeting
|
Code |
Tensile Strength (MPa) |
Elongation Rate (%) |
Hardness (SHA) |
Temperature (oC) |
Density (g/cm3) |
|
DXZY-1 |
7~12 |
100~200 |
85~98 |
-10~80 |
3.6~3.7 |
|
DXZY-2 |
7~12 |
100~300 |
85~98 |
-10~80 |
3.6~3.7 |
|
DXZY-3 |
7~12 |
100~200 |
85~98 |
-10~80 |
3.6~3.7 |
|
DXZY-4 |
7~12 |
100~300 |
85~98 |
-10~80 |
3.6~3.7 |
Rubber Magnet Strip
Flexible Magnetic Strips and Custom Profiles are thermoplastic permanent magnetic Extrusions. It can provide superior holding power and is widely used in stationery, household appliances, and water-tight appliances. According to its magnetic properties, it is divided into anisotropic and isotropic; according to its magnetization way, it is divided into surface magnetization and penetration magnetization (longitudinal, transverse and bilateral).
Magnetic properties of extruded magnetic strip
| Code | Br | Hcb | Hcj | (BH)max | Forming way | Size | ||
| T | KA/m | KA/m | KJ/m3 | Max Length(m) | Max Width(mm) | Height(mm) | ||
| DXZJ-1 | 0.13~0.18 | 80~115 | 100~160 | 4~6.4 | Extrusion | 100 | 400 | 0.4~1.1 |
| DXZJ-2 | 0.18~0.22 | 100~140 | 120~190 | 6.4~8.0 | Extrusion | 2 | 930 | 0.6~3 |
Physical properties of extruded magnetic strip
|
Code |
Tensile Strength (MPa) |
Elongation Rate (%) |
Hardness (SHA) |
Temperature (oC) |
Density (g/cm3) |
|
DXZJ-1 |
5~10 |
30~100 |
85~98 |
-10~80 |
3.6~3.7 |
|
DXZJ-2 |
5~10 |
40~100 |
85~98 |
-10~80 |
3.6~3.7 |
1. Used in door sealing for refrigerator and bathroom
| Specification | Pole | L(mm) | W(mm) | Appealing iron weight per 0.4 mm plastic surface(g) |
Br (Gs) |
| 8×4 | 2/3 | 8±0.15 | 4±0.07 | ≥80/≥85 | ≥650/≥720 |
| 9×2 | 3 | 9±0.15 | 2±0.07 | ≥68 | ≥560 |
| 9×2.6 | 3 | 9±0.15 | 2.6±0.07 | ≥85 | ≥620 |
| 9×3 | 3 | 9±0.15 | 3±0.07 | ≥90 | ≥680 |
| 9.8×3.1 | 3 | 9.8±0.15 | 3.1±0.07 | ≥95 | ≥680 |
| 10×3 | 3 | 10±0.15 | 3±0.07 | ≥95 | ≥680 |
| 10×5 | 2/3 | 10±0.15 | 5±0.07 | ≥100/≥110 | ≥650/≥720 |
2. Extruded strip magnet-flat profile(adhesive backed) magnet to magnet applications
The 12.5mm extrusion Mag "A" and Mag "B" allows perfect alignment or mating between profiles
The two separate 12.5mm Mag "A" will perfectly align/mate to the 2.5m Mag "B" profile
The Magnet-to-magnet applications are most useful for fixing of posters and graphics in display systems. In addition to Mag "A"/Mag"B", other types of self-aligning systems can be manufactured on request.
3. Extruded strip magnet-flat profile(adhesive backed)magnet to steel application/used in window screen
Satin white steel strip comes in 30metre rolls. It is extremely useful for work in magnet systems where there is no convenient steel/ferrous mating surface. As magnet to steel adhesion does not perfectly align/mate steel strip can be very useful to mount posters etc. on out-of-square frames.
|
Steel Width |
Thickness |
Adhesive |
|
|
Standard |
Foam-backed |
||
|
12.5 |
0.2 |
√ |
√ |
|
20 |
0.2 |
√ |
√ |
A popular application of steel strip/magnet application in Europe is holding double glazing frames to wooden window frames. This could equally apply in Africa to hold mosquito netting frames to wooden/aluminum window frames.
4. Adhesive Magnet Strips
Made of rubber magnet strip coated with adhesive, by Quality/Safety Certifications: ISO9001, MSDS
Features of Adhesive Magnet Strips:
1) Sizes: 12.7 x 1.5, 12.5 x 1.5, 19 x 1.5, 25.4 x 1.5 mm
2) Different lengths according to the customer
3) Property: isotropic and anisotropic
4) Chinese Adhesive, Tessa, 3M, as well as other adhesive for options
5. C-profile Magnet strip
Size: 10x1,15x1,20x1,25x1,30x1,40x1,50x1 available, the different sizes could be customized as requested.
Length: 30 or 50 meters per roll, Different lengths according to the customer
Property: Isotropic
Magnetization: single-side and multi-poles
