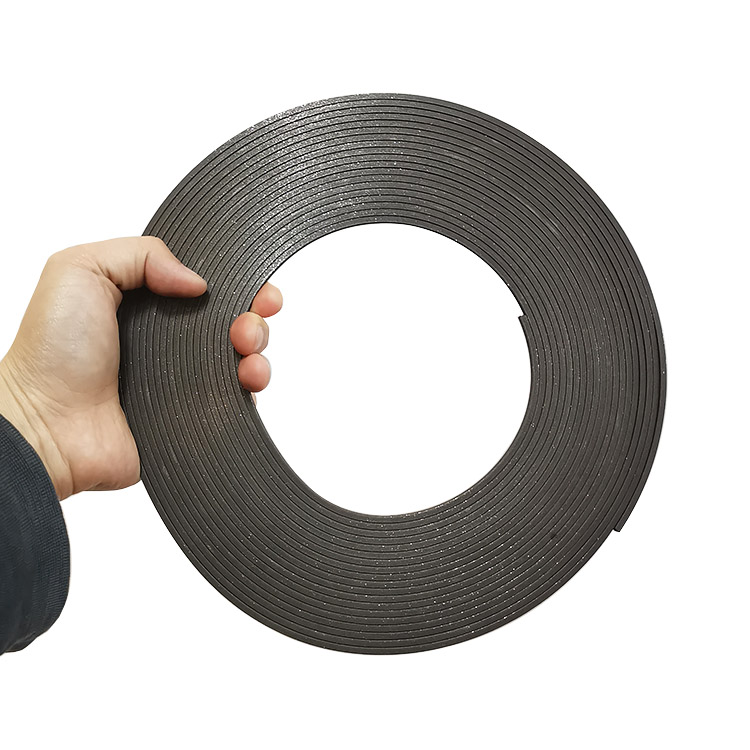

Flexible Neodymium Magnets
Production Process of Flexible Neodymium Magnets
NdFeB Flexible Magnet is composed of melt-spun NdFeB powder and rubber.
Thickness: 0.5~8.0 mm
Length: as per your requirement.
Magnetization: multi-poles or through the thickness
Surface treatment: UV-coated or Patterned
Characteristics of Flexible Neodymium Magnets
- The strongest isotropic flexible magnet in the world so far, a Max. BH of 90KJ/m3(11.25MGO) is available at the laboratory, an amazing 5 times more than that for a Ferrite magnetic strip, quite close to the highest property of compression Molded NdFeB ring magnet, magnetic property for industrial batch quantity ranges from 16 to 68 KJ/m3(2.0-8.5MGO).
- Outstanding flexural strength can be automatically assembled, with better efficiency than compression molded ring magnet.
- Dispensing with mold, short downtime.
- Applicable temperature: -40℃～120℃;
- After systematic reliability inspection, it is consistent and reliable.

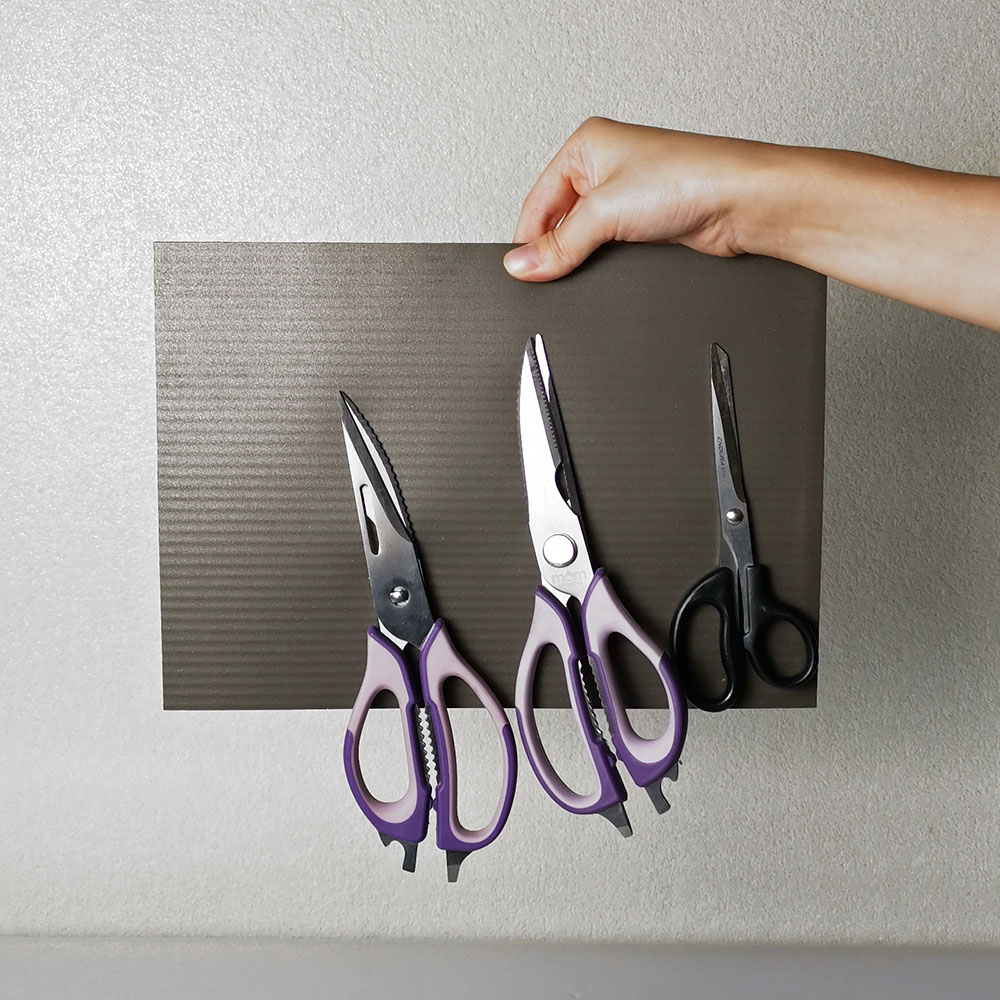

- It can be made into different shapes such as long strips, slim strips, rings, pore plates, large sheeting, etc. to meet different requirements.
Magnetic Properties of Flexible Neodymium Magnets
| Flexible Neodymium Magnets | |||||||||||||
|
Material Type |
DXN2 |
DXN3 |
DXN4 |
DXN5 |
DXN6 |
DXN7 |
DXN8 |
DXNE2 |
DXNE3 |
DXNE4 |
DXNE5 |
||
|
Magnetic Properties |
|||||||||||||
|
Residual Induction（Br） |
kGs |
2.5~3.5 |
3.3~4.3 |
3.8~4.8 |
4.3~5.3 |
4.8~5.8 |
5.3~6.3 |
5.7~6.7 |
2.5~3.5 |
3.5~4.5 |
4.5~5.5 |
5.5~6.5 |
|
|
Residual Induction（Br） |
T |
0.25~ 0.35 |
0.33~ 0.43 |
0.38~ 0.48 |
0.43~ 0.53 |
0.48~ 0.58 |
0.53~ 0.63 |
0.57~ 0.67 |
0.25~ 0.35 |
0.35~ 0.45 |
0.45~ 0.55 |
0.55~ 0.65 |
|
|
Coercive force(Hcb) |
kOe |
1.5~2.5 |
2.1~3.1 |
2.7~3.7 |
3.2~4.2 |
3.7~4.7 |
4.3~5.3 |
4.5~5.5 |
1.5~2.5 |
2.1~3.1 |
2.5~3.5 |
2.5~3.5 |
|
|
Coercive force(Hcb) |
kA/m |
120~200 |
170~250 |
210~300 |
250~340 |
290~380 |
340~420 |
350~440 |
120~200 |
170~250 |
200~280 |
200~280 |
|
|
Intrinsic coercive force(Hcj) |
kOe |
2.0~4.0 |
4.8~6.8 |
6.8~8.8 |
7.8~9.8 |
8.0~10.0 |
8.5~11.0 |
8.5~11.0 |
2.0~4.0 |
3.5~5.5 |
4.5~5.5 |
4.5~5.5 |
|
|
Intrinsic coercive force(Hcj) |
kA/m |
150~320 |
380~540 |
540~700 |
620~780 |
630~800 |
670~880 |
670~880 |
150~320 |
280~440 |
350~440 |
350~440 |
|
|
Max energy product(BH)max |
MGOe |
1.5~2.5 |
2.5~3.5 |
3.5~4.5 |
4.5~5.5 |
5.5~6.5 |
6.5~7.5 |
7.5~8.5 |
1.5~2.5 |
2.5~3.5 |
3.5~4.5 |
4.5~5.5 |
|
|
Max energy product(BH)max |
kJ/m3 |
12~20 |
20~28 |
28~36 |
36~44 |
44~52 |
52~60 |
60~68 |
12~20 |
20~28 |
28~36 |
36~44 |
|
|
Temperature Coefficient of Br |
%/℃ |
-0.11 |
-0.11 |
-0.11 |
-0.11 |
-0.11 |
-0.11 |
-0.11 |
-0.16 |
-0.16 |
-0.17 |
-0.17 |
|
|
Flux Irreversible Loss |
% |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<5 |
<6 |
|
|
Max Operating Temperature |
℃ |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
100 |
100 |
100 |
100 |
|
|
Physical Properties |
|||||||||||||
|
Tensile Strength（MPa） |
>3 |
||||||||||||
|
Elongation(%) |
30~80 |
||||||||||||
|
Hardness (Shore D) |
30~80 |
||||||||||||
|
Density (g/cm³) |
3.30~ 3.90 |
4.00~ 4.60 |
4.40~ 5.00 |
4.65~ 5.25 |
4.65~ 5.25 |
4.80~ 5.40 |
5.10~ 5.70 |
3.45~ 4.05 |
4.10~ 4.70 |
4.50~ 5.10 |
4.90~ 5.50 |
||
|
Weight reduction by heat(%) |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
<1 |
||
|
Reliability |
|||||||||||||
|
Heat-Resistant (100℃×72h) |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
||
|
Cold-Resistant (-40℃×72h) |
*** |
*** |
*** |
*** |
*** |
*** |
*** |
*** |
*** |
*** |
*** |
||
|
Wet-Resistant (60℃×90%RH×72h) |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
||
|
Hydraulic Oil-Resistant(23℃×72h) |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
||
|
Cold-Heat Impact-Resistant |
*** |
*** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
||
|
Salt Water (23℃×5%NaCl×24h) |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
** |
||
|
Remark： *** Excellent ** Good *Acceptable × Bad |
|||||||||||||
Video:

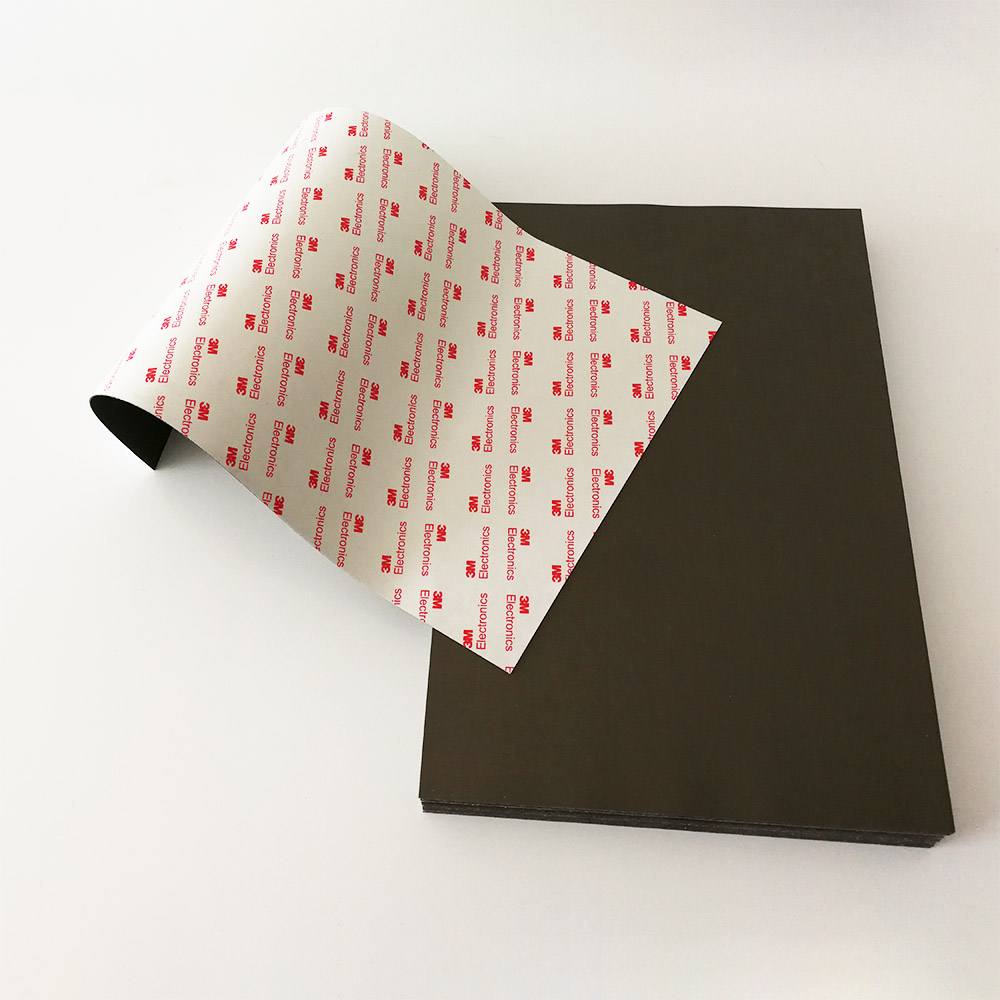

Self adhesive neodymium magnets
