Refrigerator Door Gasket Welding Machine
The welding process of the Refrigerator Door Gasket Welding Machine

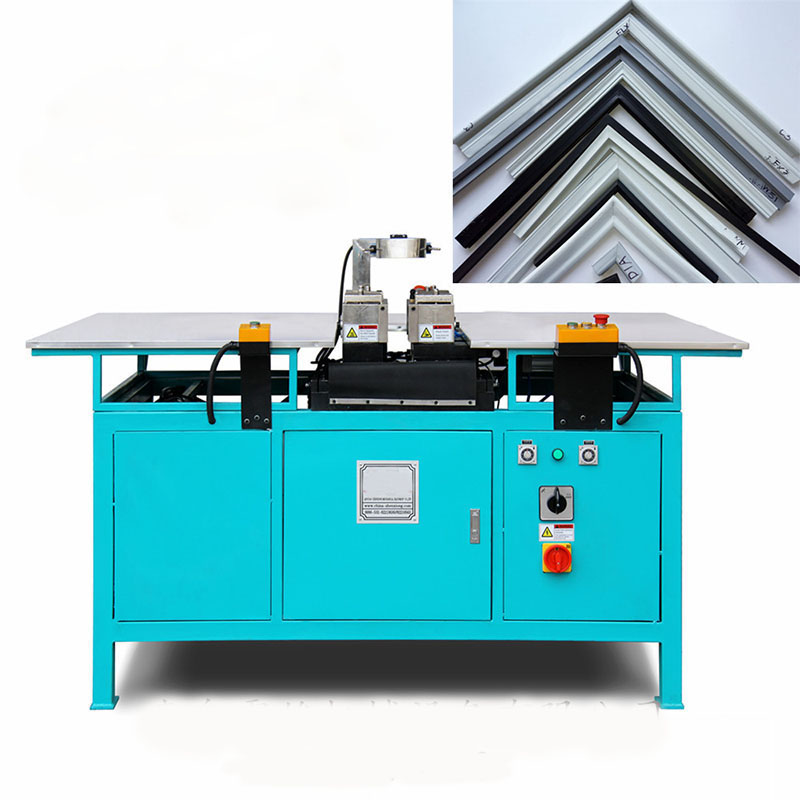

Double Corner Refrigerator Door Gasket Welding Machine
Features of the double corner welding machine
1. The machine adopts an advanced PLC industrial automation control system, and the starting system adopts OMRON pneumatic components, which ensures the stability of the program and improves the quality of the product.
2. This welding machine is a double-hole type fully automatic welding equipment. When the welding is completed, the remaining material will be automatically removed. This ensures that the welding angle is smooth, strong and beautiful, and the production efficiency is twice that of the old welding machine.

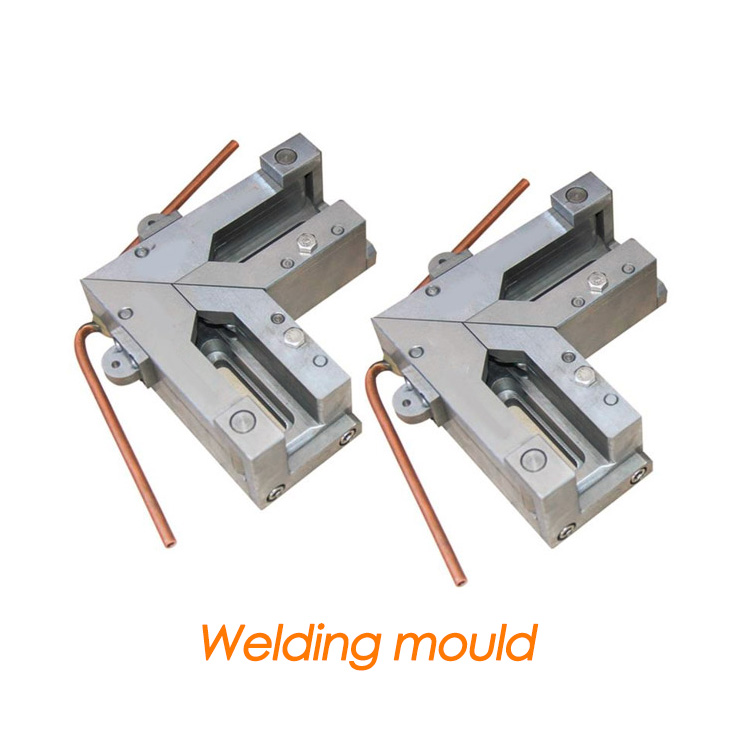

3. The mold and tooling are divided into upper and lower layers. Precision linear guide rails are used to drive the amplitude to ensure the accuracy of the equipment workers. The welding methods are: automatic heating (baking type) ~ vacuum adsorption ~ welding edge cleaning ~ internal cooling ~ external cooling ~ Automatic ejection.

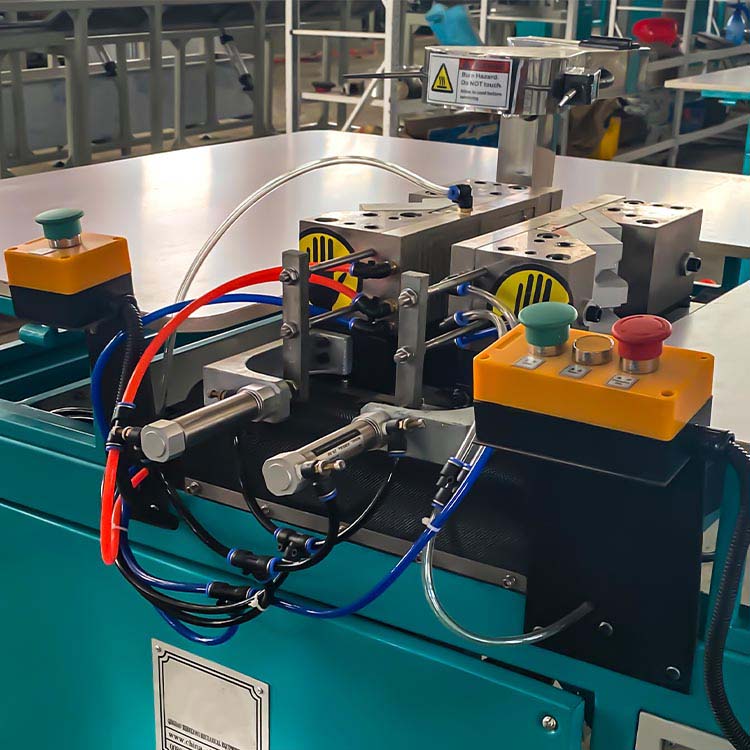

4. Safety protection system: In order to prevent the risk of crushing, a photoelectric protector is installed in front of the mold, and a two-hand start button is used; an HZ12-25 cut-off switch is used. The cut-off switch can only open the electrical box when the power is off to prevent electric shock.
5. The welding machine has a welding cycle of 11 to 14 seconds per double corner, the production capacity can reach 600 to 650 sets/shift, and the tensile strength of the welding horn is higher than the technical standards of the same industry at home and abroad.

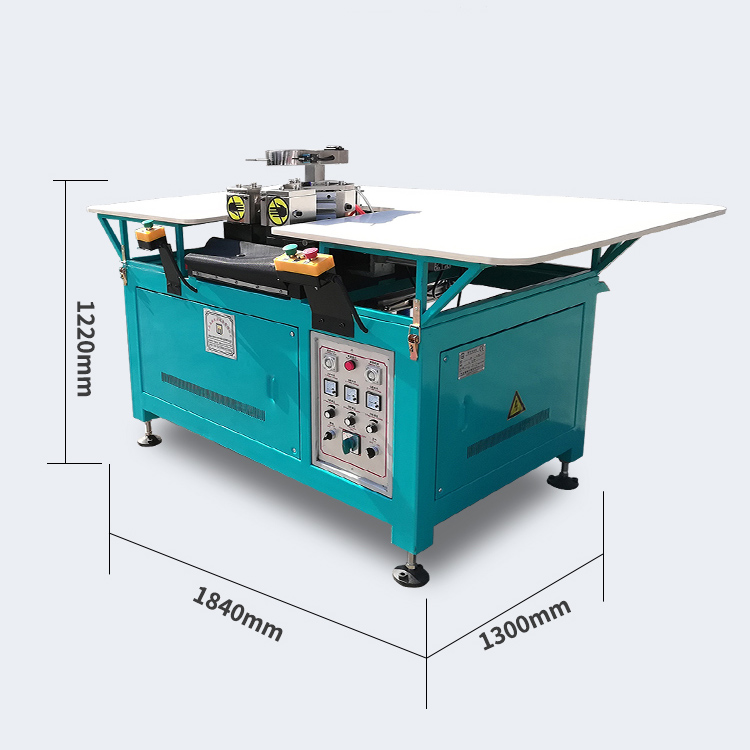

| Dimensions | 1840X1300X1220mm |
| Total Power | 2.1KW |
| Electric heating system power | 1.95KW |
| Horizontal clamping stroke | 50mm |
| Longitudinal clamping stroke | 98mm |
| Capacity | 500-600sets/day |
Single Corner Refrigerator Door Gasket Welding Machine
1. Automatic Single Corner Refrigerator Door Gasket Welding Machine
Power: 15KW
Frequency: 50-60HZ
2. Semi-automatic Single Corner Refrigerator Door Gasket Welding Machine
This sealing strip welding machine is mainly used to weld sealing strips at 90° angles.
| Dimensions | 1730×1230×1050mm |
| Horizontal clamping stroke | 20~30mm |
| Heating stroke: | 140mm |
| System heating power: | 1.75KW |
| Capacity | 200-300 sets/day |
| Power supply | 220V 50Hz |
| Fan power | 60W |
| Mold material | 2Cr13 |
3. Manual Single Corner Refrigerator Door Gasket Welding Machine
This sealing strip welding machine is mainly used to weld sealing strips at 90° angles. It is suitable for portable out-of-town maintenance and is an ideal solution for mobile operations.
This manual refrigerator door seal welding machine has the following features:
1. Light weight: The total weight is only 20kg, which is easy to carry around and is a good choice for seal repair companies.
2. The operation is simple and can be completed in just 4 steps.
3. Fast welding speed, welding time 11-14s
4. The heating temperature can be adjusted, heating power: 300w.
