3D Gauss Meter

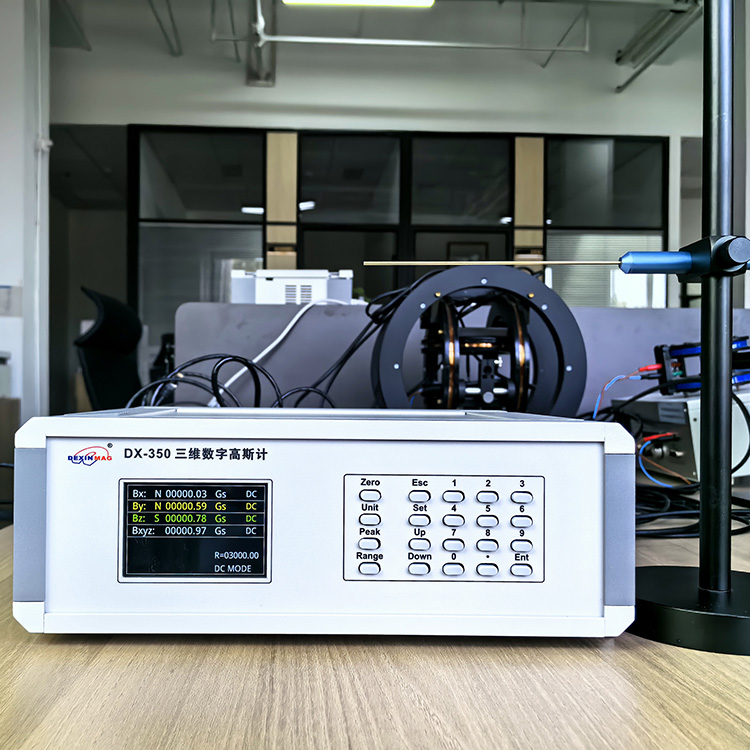

DX-350 3D digital gaussmeter is a three-channel high-precision digital gaussmeter developed for magnetic material production, scientific research institutes, aerospace and other units. Has the following characteristics:
● With 3.5-inch TFT true color screen, 7-digit display, the minimum resolution reaches 0.01G under the 30000G range;
● It has the function of automatically displaying the N/S polarity of the magnetic field;
● Switch to mT, Gs, KA/m, Oe, T with one click;
● With one-click clearing function, no manual adjustment is required;
● With automatic peak measurement and hold functions;
● With standard USB communication interface, optional software to form an automatic measurement system;
● Optional automation interface (can be designed to match customer needs), suitable for secondary development;
Technical parameters:
|

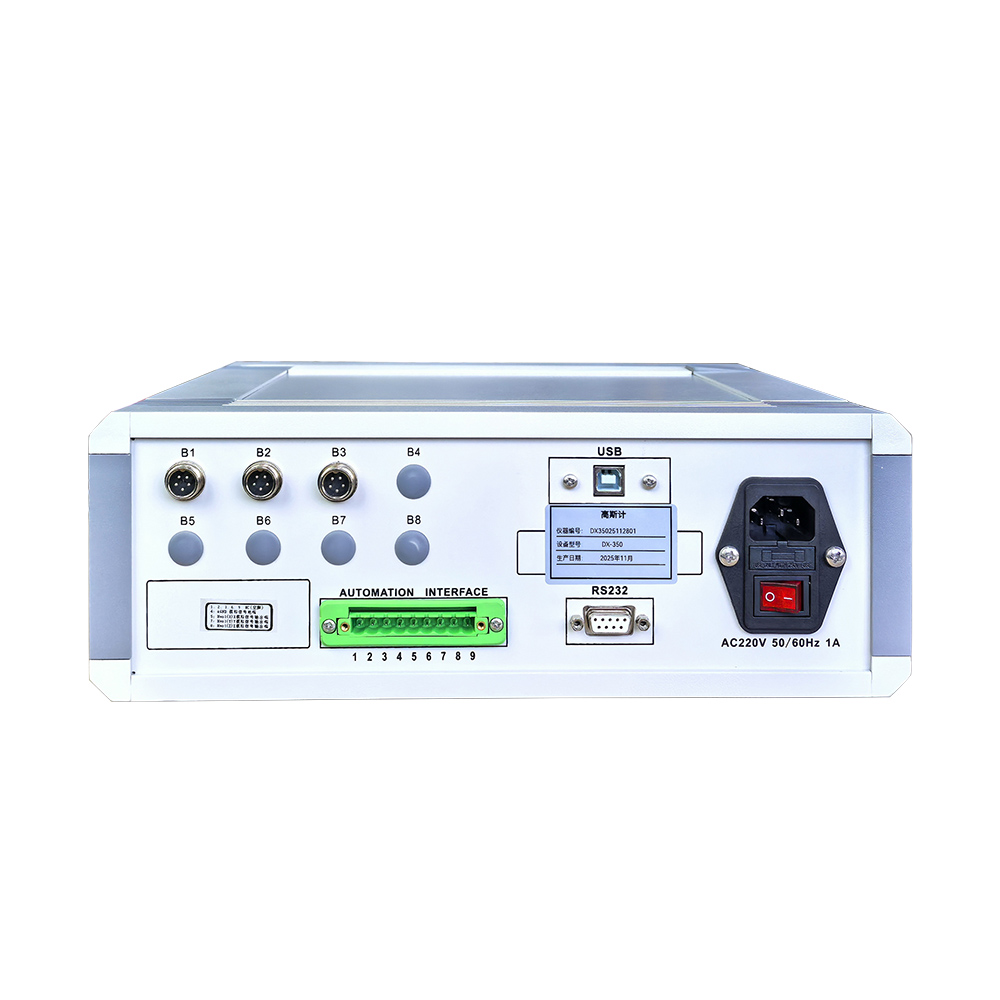

Input power |
AC 200~240V 50/60Hz 1A |
|
Display Mode |
3.5 inch TFT True Color LCD ScreenSeven-digit display |
|
Dimensions |
307 mm x 260mm x 120mm (wide*deep*high) |
|
Instrument weight |
about 3.5kg |
|
use environment |
temperature: 0℃-50℃; humidity: 40%RH~85%RH |
|
thermal equilibrium time |
10minutes |
|
temperature coefficient |
-0.06%/℃ |
|
measurement frequency |
DC |
|
Unit Display |
Gs, mT, Oe, kA/m one-click switch |
|
special functions |
Automatic one-key zero adjustment, non-linear correction |
|
Range and Resolution |
X-direction: ±30000G① range, minimum resolution: 0.01Gs |
|
Y-direction: ±30000G① range, minimum resolution: 0.01Gs |
|
|
Z-direction: ±30000G① range, minimum resolution: 0.01Gs |
|
|

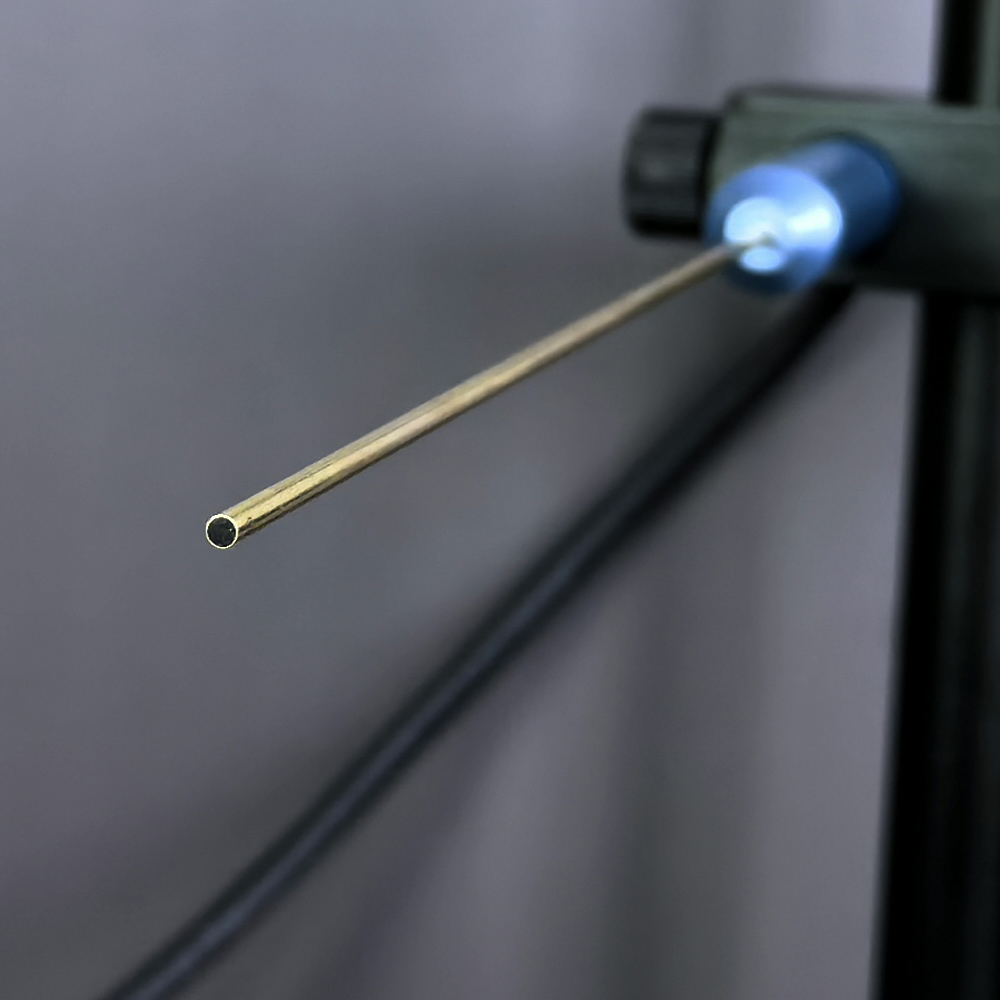

probe sensing area |
three-dimensional Hall chip is 2.0mm × 2.0mm × 0.8mm. |
|
Probe Type |
XYZ-combined three-dimensional hall chip |
|
accuracy |
±(0.45%RD② + 0.005%RG③) |
|

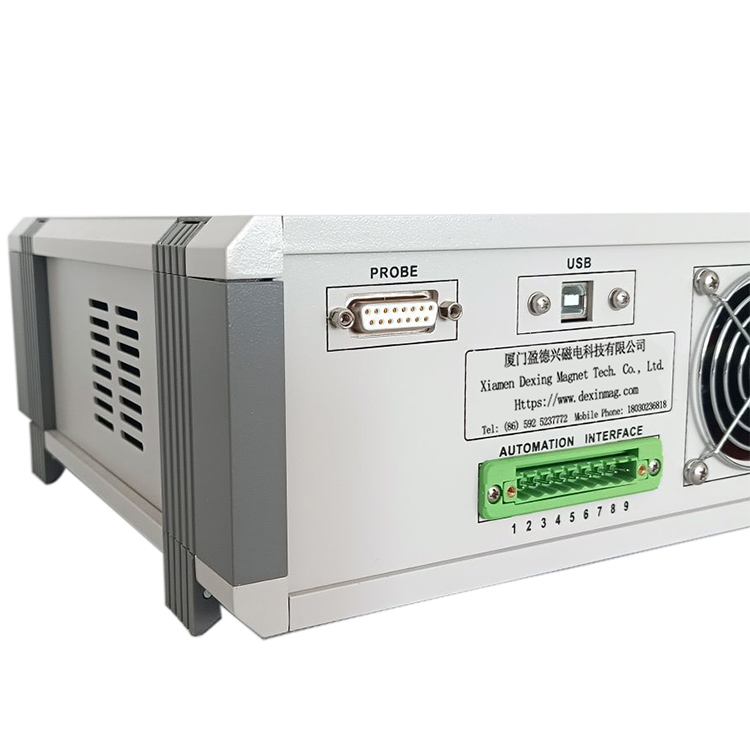

probe interface |
standard 15core DB male plug |
|
Communication Interface |
B-type USB Interface |
|
sorting function |
can manually set the upper and lower limit sorting parameters, NG/ OK |
|
measurement software |
Windows XP, Windows 7, and Windows 10 32/64 bit operating system can be used; |
|
measurement data is saved as text on the hard disk, can be viewed at any time using office software (any version Excel, Word or Notepad can view this data file) |
|
| ①The actual calibration only covers 2.5T; ②RD is the reading value; ③RG is the current range value; Remarks: In view of the continuous upgrading and transformation of products, if this technical specification is subject to change, the actual contract shall prevail. |
|
