DC Power Supply

With ingenious craftsmanship and exquisite design, it can be used in desktop operating environments or rack-mounted integration applications; it can be used in automation system integration, aging production lines, laboratories, solar inverter testing, ATE system integration, motor life cycle testing and other fields. It is an ideal choice for places that require stable DC power supply for a long time. It is comprehensively ahead of similar products in terms of reliability, maintainability, safety, etc. and continues to innovate and develop.

Features of DX6200 series DC power supplies

● Specifications: The maximum output power of a standard single machine is 15KW, the voltage output range is DC 0-1500V, and the current output range is 0-500A;
● Size: Standard 1UV, 1U, 2U, 3U rack-mounted design, suitable for system integration;

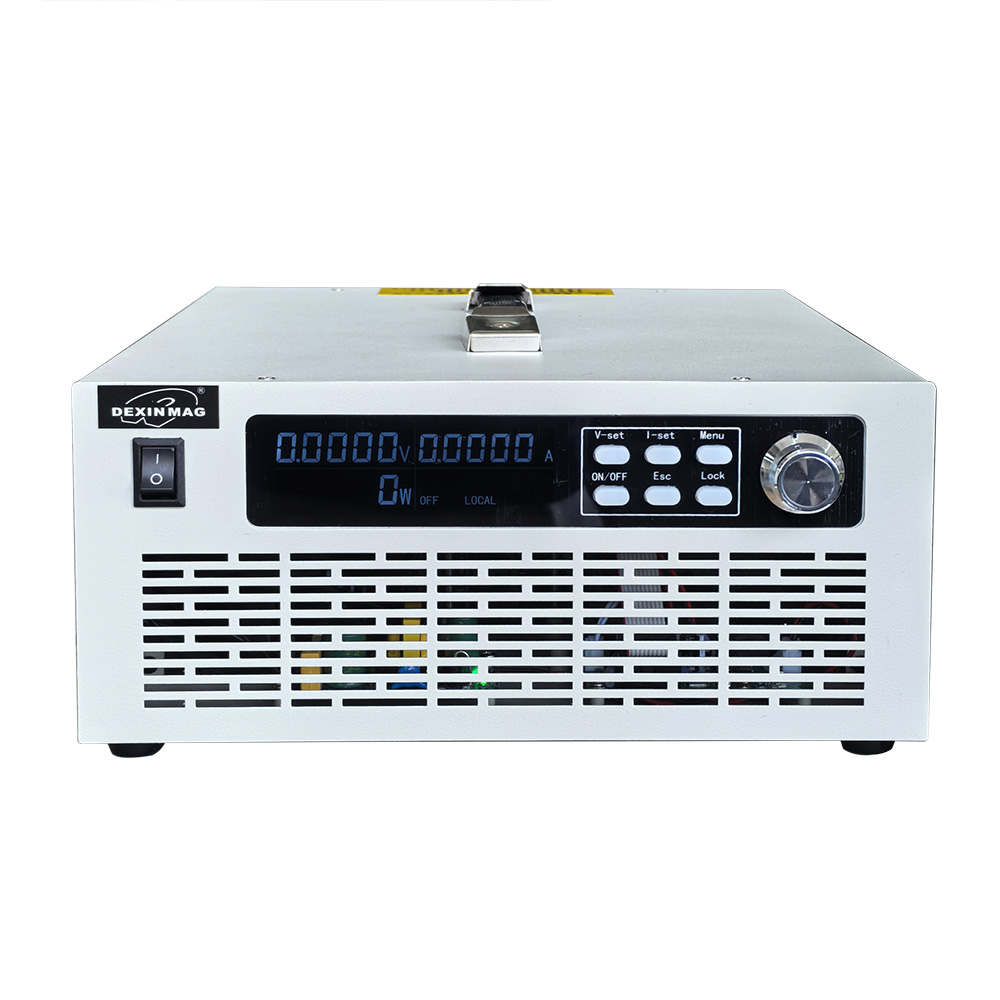

● Preset: The panel comes with a preset button, which can preset the voltage and current values;
● Functional protection: multiple protection functions such as overvoltage, overcurrent, overtemperature, short circuit, etc.;
● Intelligence: Can be linked with a PC to form an intelligent power supply for PC monitoring;

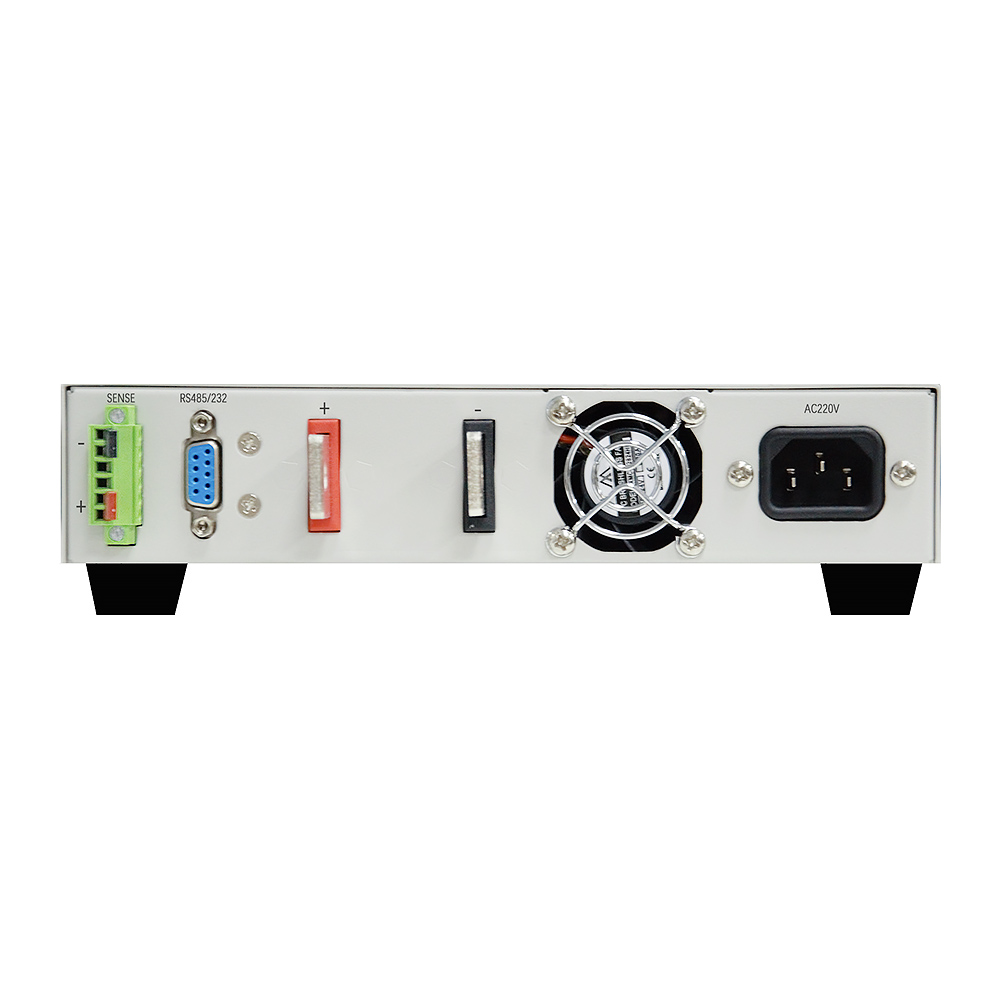

● Communication interface: Standard RS232/RS485, optional 0-5V/0-10V, 4-20mA analog communication interface, standard MODBUS-RTU protocol, SCIP protocol;
● Voltage sampling: with remote voltage compensation function to compensate for line voltage drop;
● Heating method: Using PWM speed-adjustable fan, air cooling;
● Operating environment: Designed for indoor use, temperature 0℃-40℃, humidity 10%-85%RH;
● Storage environment: Indoor storage, temperature -20℃-70℃, humidity 10%-90%RH;

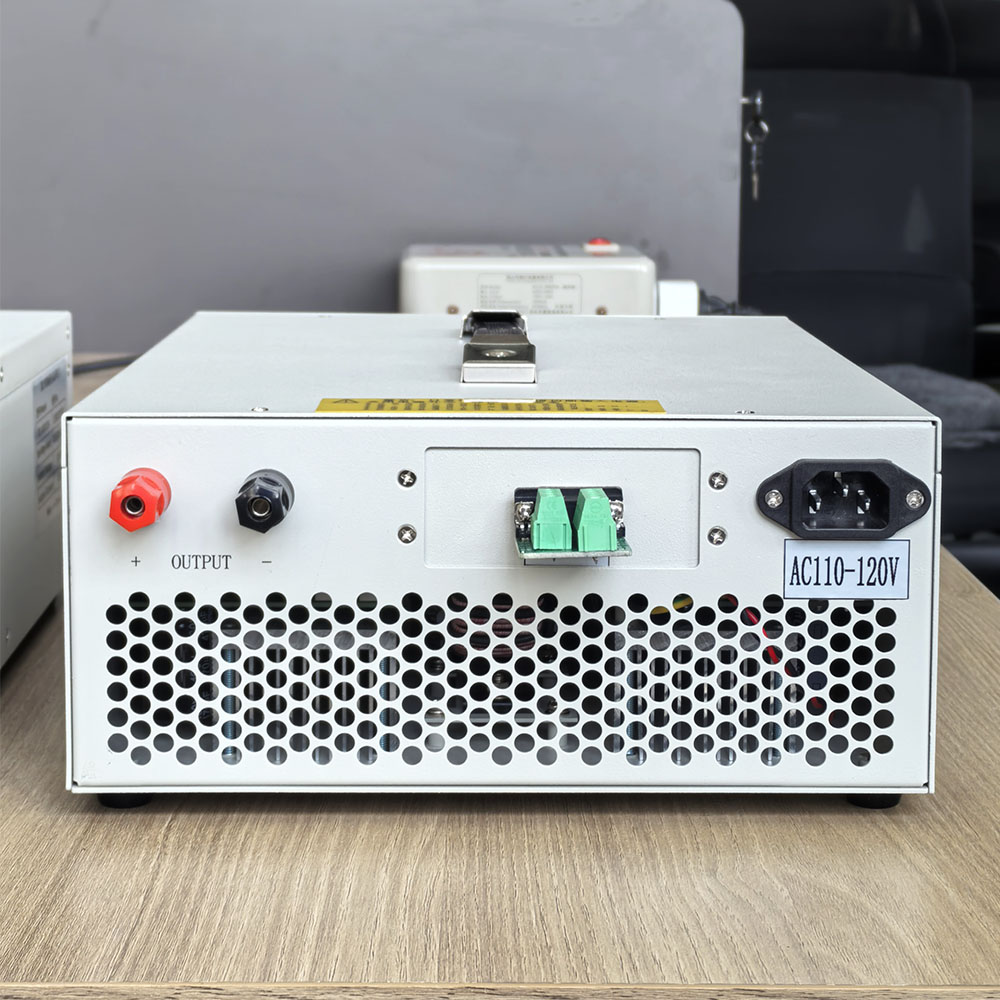

● Output polarity: output positive (+), output negative (-), both can be grounded arbitrarily;
● Special customization: Provide special specifications, sizes, and parameter power supply design customization.

Power selection

1800W

Model		DX62183060	DX62186030	DX621810018	DX621815012	DX62183006	DX62186003
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~60V	0~100V	0~150V	0~300V	0~600V
	current	0~60A	0~30A	0~18A	0~12A	0~6A	0~3A
	power	1800W
Set resolution	Voltage	1mV	1mV	10mV	10mV	10mV	10mV
Set resolution	current	1mA	1mA	1mA	1mA	0.1mA	0.1mA
readback resolution	Voltage	1mV	1mV	10mV	10mV	10mV	10mV
readback resolution	current	1mA	1mA	1mA	1mA	0.1mA	0.1mA
Load adjustment rate (%Set+Offset)	Voltage	≤0.05%+20mV	≤0.1%+20mV	≤0.1%+30mV	≤0.1%+30mV	≤0.1%+30mV	≤0.05%+30mV
Load adjustment rate (%Set+Offset)	current	≤0.05%+20mA	≤0.1%+20mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
Power regulation rate (%Set+Offset)	Voltage	≤0.05%+20mV	≤0.1%+20mV	≤0.1%+30mV	≤0.1%+30mV	≤0.1%+30mV	≤0.05%+30mV
Power regulation rate (%Set+Offset)	current	≤0.05%+20mA	≤0.1%+20mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
Set accuracy (%Set+Offset)	Voltage	≤0.05%+60mV	≤0.05%+60mV	≤0.05%+80mV	≤0.05%+100mV	≤0.05%+150mV	≤0.05%+300mV
Set accuracy (%Set+Offset)	current	≤0.1%+20mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.05%+30mA	≤0.1%+30mA
Readback accuracy (%Set+Offset)	Voltage	≤0.05%+60mV	≤0.05%+60mV	≤0.05%+80mV	≤0.05%+100mV	≤0.05%+150mV	≤0.05%+300mV
Readback accuracy (%Set+Offset)	current	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
Ripple noise (20Hz~20MHz)	Voltage	≤30mVrms	≤60mVrms	≤80mVrms	≤100mVrms	≤150mVrms	≤400mVrms
Ripple noise (20Hz~20MHz)	current	≤30mArms	≤60mArms	≤80mArms	≤100mArms	≤300mArms	≤300mArms
Rise time (10%~90%)	No load	≤50mS	≤50mS	≤50mS	≤50mS	≤200mS	≤200mS
Rise time (10%~90%)	Fully loaded	≤250mS	≤300mS	≤300mS	≤300mS	≤300mS	≤300mS
Falling time (90%~10%)	No load	≤3S	≤3S	≤5S	≤5S	≤5S	≤5S
Falling time (90%~10%)	Fully loaded	≤20mS	≤20ms	≤20ms	≤30mS	≤100mS	≤150mS
Dynamic response time		≤5mS	≤5ms	≤5mS	≤5mS	≤5mS	≤5mS
Size		215mmX405.5mmX44.45mm (Width X Depth X Height)
Net weight		about 4.5KG

3600W

Model		DX623630120	DX62366060	DX623610036	DX623615024	DX623630012	DX62366006
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~60V	0~100V	0~150V	0~300V	0~600V
	current	0~120A	0~60A	0~36A	0~24A	0~12A	0~6A
	power	3600W
Set resolution	Voltage	1mV	1mV	10mV	10mV	10mV	10mV
Set resolution	current	10mA	1mA	1mA	1mA	1mA	0.1mA
readback resolution	Voltage	1mV	1mV	10mV	10mV	10mV	10mV
readback resolution	current	10mA	1mA	1mA	1mA	1mA	0.1mA
Load adjustment rate (%Set+Offset)	Voltage	≤0.05%+20mV	≤0.1%+20mV	≤0.1%+30mV	≤0.1%+30mV	≤0.1%+30mV	≤0.05%+30mv
Load adjustment rate (%Set+Offset)	current	≤0.1%+30mA	≤0.1%+20mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
Power regulation rate (%Set+Offset)	Voltage	≤0.05%+20mV	≤0.1%+20mV	≤0.1%+30mV	≤0.1%+30mV	≤0.1%+30mV	≤0.05%+30mV
Power regulation rate (%Set+Offset)	current	≤0.1%+30mA	≤0.1%+20mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
Set accuracy (%Set+Offset)	Voltage	≤0.05%+60mV	≤0.05%+60mV	≤0.05%+80mV	≤0.05%+100mV	≤0.05%+150mV	≤0.05%+300mV
Set accuracy (%Set+Offset)	current	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.05%+30mA	≤0.1%+30mA
Readback accuracy (%Set+Offset)	Voltage	≤0.05%+60mv	≤0.05%+60mV	≤0.05%+80mV	≤0.05%+100mV	≤0.05%+150mV	≤0.05%+300mV
Readback accuracy (%Set+Offset)	current	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
Ripple noise (20Hz~20MHz)	Voltage	≤50mVrms	≤60mVrms	≤100mVrms	≤150mVrms	≤300mVrms	≤600mVrms
Ripple noise (20Hz~20MHz)	current	≤60mArms	≤60mArms	≤100mArms	≤150mArms	≤300mArms	≤600mArms
Rise time (10%~90%)	No load	≤50mS	≤50mS	≤100mS	≤150mS	≤200mS	≤200mS
Rise time (10%~90%)	Fully loaded	≤250mS	≤250mS	≤300mS	≤300mS	≤300mS	≤300mS
Falling time (90%~10%)	No load	≤3S	≤3S	≤5S	≤5S	≤5S	≤5S
Falling time (90%~10%)	Fully loaded	≤20mS	≤30mS	≤50mS	≤50mS	≤100mS	≤150mS
Dynamic response time		≤5mS	≤5mS	≤5mS	≤5mS	≤5mS	≤5mS
Size		215mmX405.5mmX88mm (Width X Depth X Height)
Net weight		about 7.5KG

6000W

Model		DX626030200	DX626060100	DX626010060	DX626030020	DX626060010	DX626012005
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~60V	0~100V	0~300V	0~600V	0~1200V
	current	0~200A	0~100A	0~60A	0~20A	0~10A	0~5A
	power	6000W
Set resolution	Voltage	1mV	1mV	10mV	10mV	10mV	100mV
Set resolution	current	10mA	10mA	1mA	1mA	1mA	0.1mA
readback resolution	Voltage	1mV	1mV	10mV	10mV	10mV	100mV
readback resolution	current	10mA	10mA	1mA	1mA	1mA	0.1mA
Load adjustment rate (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Load adjustment rate (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Power regulation rate (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Power regulation rate (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Set accuracy (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Set accuracy (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Readback accuracy (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Readback accuracy (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Ripple noise (20Hz~20MHz)	Voltage	≤100mVrms	≤120mVrms	≤150mVrms	≤300mVrms	≤600mVrms	≤900mVrms
Ripple noise (20Hz~20MHz)	current	≤100mArms	≤120mArms	≤150mArms	≤300mArms	≤600mArms	≤900mArms
Rise time (10%~90%)	No load	≤60mS	≤60mS	≤60ms	≤100mS	≤200mS	≤200mS
Rise time (10%~90%)	Fully loaded	≤450ms	≤450ms	≤300ms	≤300ms	≤300mS	≤300mS
Falling time (90%~10%)	No load	≤3S	≤3S	≤5S	≤5S	≤8S	≤8S
Falling time (90%~10%)	Fully loaded	≤20mS	≤30mS	≤30mS	≤50mS	≤200mS	≤200mS
Dynamic response time		5mS	5mS	5mS	5mS	5mS	5mS
Size		430(482.5 including ears)mmX500mmX88mm (Width X Depth X Height)
Net weight		about 16KG

7500W

Model		DX627530250	DX627560125	DX627510075	DX627530025	DX627560012	DX627512006
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~60V	0~100V	0~300V	0~600V	0~1200V
	current	0~250A	0~125A	0~75A	0~25A	0~12A	0~6A
	power	7.5KW
Set resolution	Voltage	1mV	1mV	10mV	10mV	10mV	100mV
Set resolution	current	10mA	10mA	1mA	1mA	1mA	0.1mA
readback resolution	Voltage	1mV	1mV	10mV	10mV	10mV	100mV
readback resolution	current	10mA	10mA	1mA	1mA	1mA	0.1mA
Load adjustment rate (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Load adjustment rate (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Power regulation rate (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Power regulation rate (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Set accuracy (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Set accuracy (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Readback accuracy (%Set+Offset)	Voltage	0.1%F.S+30mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Readback accuracy (%Set+Offset)	current	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+10mA	0.1%F.S+20mA	0.1%F.S+50mA
Ripple noise (20Hz~20MHz)	Voltage	≤100mVrms	≤120mVrms	≤150mVrms	≤300mVrms	≤600mVrms	≤900mVrms
Ripple noise (20Hz~20MHz)	current	≤100mArms	≤120mArms	≤150mArms	≤300mArms	≤600mArms	≤900mArms
Rise time (10%~90%)	No load	≤60mS	≤60ms	≤60ms	≤100mS	≤200m5	≤200ms
Rise time (10%~90%)	Fully loaded	≤450mS	≤450mS	≤300mS	≤300mS	≤300ms	≤300ms
Falling time (90%~10%)	No load	≤3S	≤35	≤55	≤5S	≤8S	≤8S
Falling time (90%~10%)	Fully loaded	≤20mS	≤30mS	≤30mS	≤50mS	≤200mS	≤200mS
Dynamic response time		5mS	5mS	5mS	5mS	5mS	5mS
Size		430(482.5 including ears)mmX500mmX88mm (Width X Depth X Height)
Net weight		about 16KG

9000W

Model		DX629030300	DX629050300	DX629060250	DX6290100150	DX6290150100	DX6290150010
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~50V	0~60V	0~100V	0~150V	0~1500V
	current	0~300A	0~300A	0~250A	0~150A	0~100A	0~10A
	power	9KW	9KW	9KW	9KW	9KW	9KW
Set resolution	Voltage	1mV	1mV	1mV	10mV	10mV	100mV
Set resolution	current	10mA	10mA	10mA	10mA	10mA	1mA
readback resolution	Voltage	1mV	1mV	1mV	10mV	10mV	100mV
readback resolution	current	10mA	10mA	10mA	10mA	10mA	1mA
Load adjustment rate (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Load adjustment rate (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Power regulation rate (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Power regulation rate (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Set accuracy (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Set accuracy (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Readback accuracy (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Readback accuracy (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Ripple noise (20Hz~20MHz)	Voltage	0.3%F.S+50mVrms	0.3%F.S+30mVrms	0.3%F.S+30mVrms	0.2%F.S+30mVrms	0.2%F.S+30mVrms	0.1%F.S+30mVrms
Ripple noise (20Hz~20MHz)	current	0.3%F.S+50mArms	0.3%F.S+50mArms	0.3%F.S+50mArms	0.2%F.S+50mArms	0.2%F.S+50mArms	0.3%F.S+50mArms
Rise time (10%~90%)	No load	≤60mS	≤60mS	≤60mS	≤100ms	≤200mS	≤500ms
Rise time (10%~90%)	Fully loaded	≤450mS	≤450mS	≤500mS	≤500mS	≤500mS	≤600ms
Falling time (90%~10%)	No load	≤5S	≤5S	≤5S	≤5S	≤5S	≤10S
Falling time (90%~10%)	Fully loaded	≤20mS	≤30ms	≤30mS	≤50mS	≤200mS	≤200mS
Dynamic response time		5mS	5mS	5mS	5mS	5mS	5mS
Size		430(482.5 including ears)mmX560mmX132mm (Width X Depth X Height)
Net weight		about 26KG

12000W

Model		DX6212030500	DX6212050300	DX6212060250	DX62120100150	DX62120150100	DX62120150010
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~50V	0~60V	0~100V	0~150V	0~1500V
	current	0~500A	0~300A	0~250A	0~150A	0~100A	0~104
	power	12KW	12KW	12KW	12KW	12KW	12KW
Set resolution	Voltage	1mV	1mV	1mV	10mV	10mV	100mV
Set resolution	current	10mA	10mA	10mA	10mA	10mA	1mA
readback resolution	Voltage	1mV	1mV	1mV	10mV	10mV	100mV
readback resolution	current	10mA	10mA	10mA	10mA	10mA	1mA
Load adjustment rate (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Load adjustment rate (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Power regulation rate (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Power regulation rate (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Set accuracy (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Set accuracy (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Readback accuracy (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Readback accuracy (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Ripple noise (20Hz~20MHz)	Voltage	03%FS+50mVrms	03%FS+30mVrms	0.3%F.S+30mVrms	0.2%FS+30mVrms	02%FS+30mVrms	01%F5+30mVms
Ripple noise (20Hz~20MHz)	current	0.3%F.S+50mArms	0.3%F.S+50mArms	0.3%F.S+50mArms	0.2%F.S+50mArms	02%FS+50mArms	03%FS+50mArms
Rise time (10%~90%)	No load	≤60mS	≤60mS	≤60mS	≤100mS	≤200mS	≤500mS
Rise time (10%~90%)	Fully loaded	≤450mS	≤450mS	≤500mS	≤500mS	≤500mS	≤600mS
Falling time (90%~10%)	No load	≤5S	≤5S	≤55	≤55	≤55	≤105
Falling time (90%~10%)	Fully loaded	≤20mS	≤30mS	≤30ms	≤50mS	≤200mS	≤200mS
Dynamic response time		5mS	5mS	5mS	5mS	5mS	5mS
Size		430(482.5 including ears)mmX560mmX132mm (Width X Depth X Height)
Net weight		about 26KG

15000W

Model		DX6215030500	DX6215050300	DX6215060250	DX62150100150	DX62150150100	DX62150150010
AC input		AC220V±10%; 50Hz
Output range	Voltage	0~30V	0~50V	0~60V	0~100V	0~150V	0~1500V
	current	0~500A	0~300A	0~250A	0~150A	0~100A	0~10A
	power	15KW	15KW	15KW	15KW	15KW	15KW
Set resolution	Voltage	1mV	1mV	1mV	10mV	10mV	100mV
Set resolution	current	10mA	10mA	10mA	10mA	10mA	1mA
readback resolution	Voltage	1mV	1mV	1mV	10mV	10mV	100mV
readback resolution	current	10mA	10mA	10mA	10mA	10mA	1mA
Load adjustment rate (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Load adjustment rate (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Power regulation rate (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Power regulation rate (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Set accuracy (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Set accuracy (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Readback accuracy (%Set+Offset)	Voltage	0.1%F.S+50mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV	0.1%F.S+10mV
Readback accuracy (%Set+Offset)	current	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.1%F.S+20mA	0.2%F.S+50mA
Ripple noise (20Hz~20MHz)	Voltage	03%FS+50mVrms	03%ES+30mVrms	0.3%F.S+30mVrms	0.2%FS+30mVrms	0.2%FS+30mVrms	01%F5+30mVms
Ripple noise (20Hz~20MHz)	current	03%FS+50mArms	0.3%F.S+50mArms	03%ES+50mArms	0.2%F.S+50mArms	0.2%ES+50mArms	03%FS+50mArms
Rise time (10%~90%)	No load	≤60mS	≤60mS	≤60mS	≤100ms	≤200mS	≤500mS
Rise time (10%~90%)	Fully loaded	≤450mS	≤450mS	≤500mS	≤500ms	≤500mS	≤600mS
Falling time (90%~10%)	No load	≤55	≤55	≤55	≤55	≤5S	≤10S
Falling time (90%~10%)	Fully loaded	≤20mS	≤30mS	≤30mS	≤50mS	≤200mS	≤200mS
Dynamic response time		5mS	5mS	5mS	5mS	5mS	5mS
Size		430(482.5 including ears)mmX560mmX132mm (Width X Depth X Height)
Net weight		about 26KG

You may also like

User Manual of DX6200 Series Power Supply

The DX6200 series of high-performance CNC DC power supplies independently developed by Dexinmag has the characteristics of simple operation, small size, high precision, high indicators, high power density, and high cost performance.

Home ꄲ Power Supply ꄲ Current Source ꄲ DC Power Supply

Get A Quote!

Home ꄲ Power Supply ꄲ Current Source ꄲ DC Power Supply

Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2024

Contact us now!

Get A Quote!

- Consumer hotline
- 88888888
뀩
- QQ service
- Service hours
- Monday to Friday 9:00-18:00
- QR code

DC Power Supply

Consumer hotline

Service hours

QR code
