Handheld Weak Magnetic Gauss Meter

Gaussmeter (Teslameter) is a special instrument for detecting the magnetic induction strength of magnets. It is one of the most widely used measuring instruments in the field of magnetic measurement. DX-102W is a handheld digital Gaussmeter controlled by a single-chip microcomputer. The instrument can be carried with you, has a wide range, is easy to operate, and has a clear LCD display. It has many functions such as measurement/peak hold, MT/GS unit conversion, and key-type automatic zeroing 0-3Gs-30Gs-300GsT three-speed range conversion. DX-102W handheld weak magnetic Gaussmeter is equipped with a weak magnetic probe and uses digital signal processing technology to detect DC magnetic fields, geomagnetic fields, etc.

Technical parameters

1. Power supply battery: rechargeable lithium battery, with automatic shutdown function, can be used continuously for more than 100 hours;
2. Test range: 0-3Gs-30Gs-300GsT three gears, the range can be automatically shifted;
3. Resolution: 0.001Gs; 0.01Gs;;
4. Automatic one-key zero adjustment function, quick and convenient;
5. With peak hold function and polarity judgment display function;
6. Volume: 170mm×90mm×40mm, weight: 450g;
7. Use environment: 0℃ to +50℃, humidity: 35～80%.

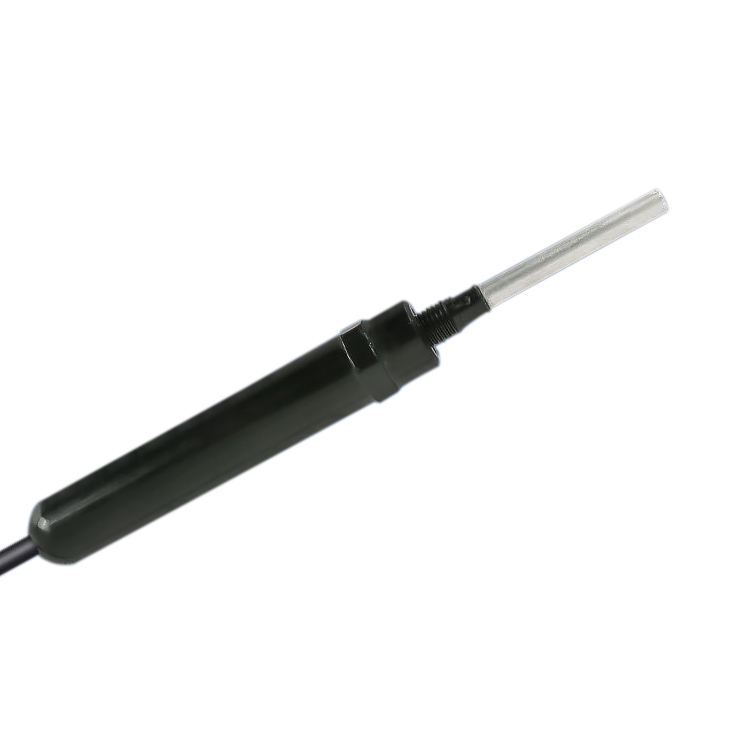

High sensitivity weak magnetic probe
