Handheld Three-dimensional Gauss Meter
Introduction
Dexinmag has developed an ultra-small, ultra-wide operating temperature range, high linearity, high sensitivity, and wide measurement range Hall sensor for magnetic field measurement, achieving a maximum linearity of 0.01% and an active area size of 0.028mm. The device integrates a patented 3D probe orthogonal angle correction technology, controlling orthogonality deviation to within 0.1°. The device is equipped with professionally designed and optimized hardware circuitry to perfectly unleash the sensor's performance potential. The digital circuitry uses a high-performance ARM Cortex 32-bit microcontroller chip, featuring a high-performance, efficient memory architecture, faster response speed, and lower measurement latency. The analog circuitry employs the patented ULLASS ultra-low-loss sampling technology to achieve high-quality acquisition of weak signals. The ultra-high-definition large screen reproduces data details with exquisite colors, and its wide viewing angle is unaffected by strong light interference, ensuring clear visibility even in complex environments. The user-friendly interactive touch design makes operation smooth and convenient; a light touch allows for easy completion of various function settings and data retrieval, eliminating cumbersome buttons and providing a completely upgraded user experience. The product complies with international system certifications such as ISO9001, CE, and IQNET.
Feature
| Capacitive touchscreen with adjustable backlight | AC/DC magnetic field measurement | Orthogonality correction algorithm |
| 5 ¾-digit reading resolution | Intelligent range switching | FFT analysis |
| Bluetooth BLE (10Hz) support | Intelligent probe recognition | High-speed/low-speed switching |
| Measured values and curve display | Spherical coordinate display | Analog output |
| Extreme/maximum display and peak hold | Ultra-low noise | Threshold detection |
| Data storage, callback, and export | USB-C data communication | General instruction set (supports LabVIEW) |
Technical parameters
|
Total Range |
±500kGs（50T） |
||||
|
Test Dimensions |
One-dimensional, two-dimensional, and three-dimensional (X, Y, Z) |
||||
|
Measurement Method |
Auto (automatic range switching) / Manual |
||||
|
Range (mT) |
30 |
300 | 3000 | 30000 | 50000 |
|
Resolution (DC) |
0.0001mT |
0.001mT | 0.01mT | 0.1mT | 0.1mT |
|
Resolution (AC) |
0.1Gs/10μT |
||||
|
Accuracy |
DC - Three-dimensional - ±0.1% ±0.005% range of reading (0.01-0.05T); |
||||
|
AC bandwidth |
50K |
||||
|
3D Correction Orthogonality Error |
Better than 0.1° |
||||
|
Probe temperature coefficient |
-(0.02% ±1 count)/ ºC |
||||
|
Probe temperature compensation coefficient |
-(0.007% ±1 count)/ ºC |
||||
|
Unit conversion |
1T=1000mT，1mT=1000μT ，1Gs=1Oe，1mT=10Gs，1Gs=79.8A/m |
||||
|
Dimensions |
187*82*28（mm） |
||||
|
Weight |
362.8g |
||||
|
Color scheme |
Obsidian Black |
||||
General specification
| Analog Interface | BNC-±3V |
| Communication Interface | TYPE-C |
| Power Supply | Two 18650 batteries in parallel |
| Power Consumption | 4.2W |
| Continuous Operation | 5 hours |
| Adaptor Probe | 3D, 2D, 1D (room temperature, high temperature, low temperature, high and low temperature) |
| Other Communication Methods | Bluetooth BLE communication (10Hz) |

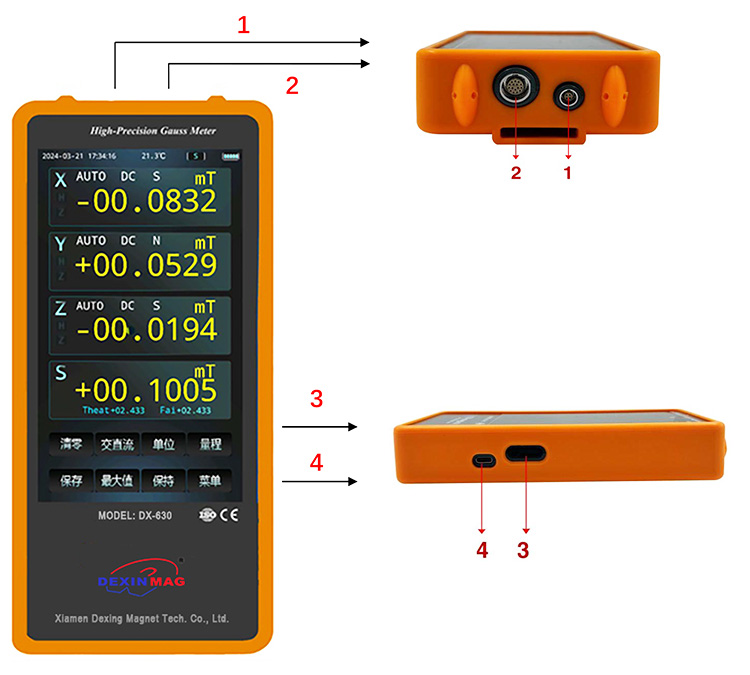

Interface
|
No. |
Notes |
|
1 |
Analog signal output |
|
2 |
Sensor input interface |
|
3 |
Power button |
|
4 |
Type-C interface |
Function Introduction
|
|
|
|
|
Magnetic Field Measurement

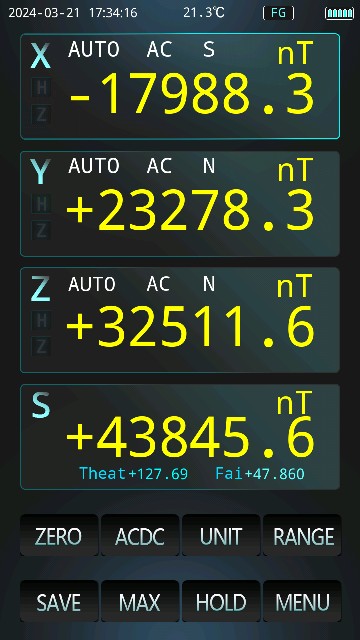

Touch buttons include: zeroing, AC/DC switching, unit switching, range switching, data saving, maximum and minimum value display, screen hold, and menu. |
Menu Settings

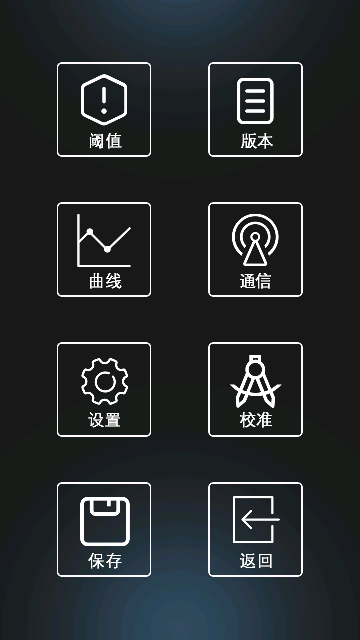

The menu interface includes threshold settings, version information viewing, curve viewing, communication settings, device settings, calibration, and save/view. The curve function includes time-domain plot display, peak detection, and FFT spectrum display. |
Threshold Settings

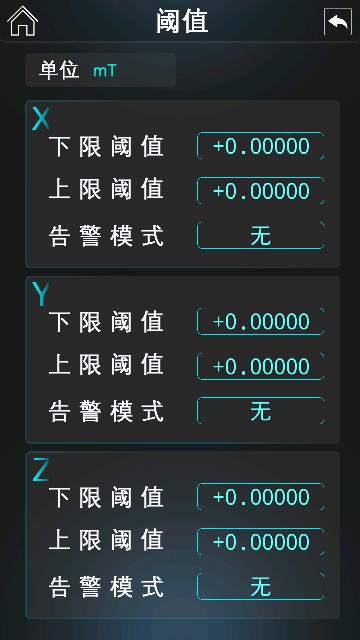

Threshold settings allow you to set three-dimensional alarm thresholds. When the collected value exceeds the set threshold, the device will issue an alarm. Units: mT, Gs. Threshold settings can be entered via numeric keypad. Alarm Modes: None, Within Range, Outside Range. |
|
|
|
|
|
Curve Display
The curve displays a three-dimensional time-domain curve, and you can choose to display the curve for a specific axis individually. Below the curve, the current measurement value, maximum value, and minimum value are displayed. |
Device Settings

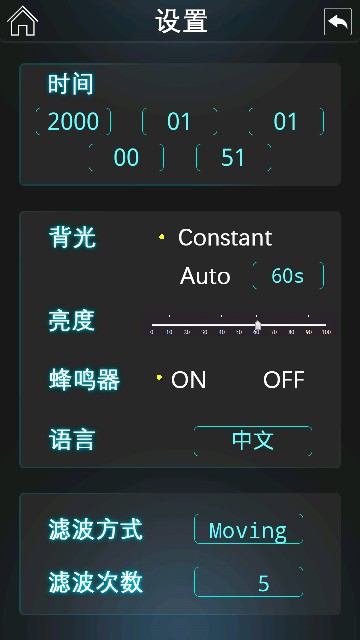

Time Settings: Set year, month, day, hour, and minute. Backlight Adjustment: Select between always on or automatic screen-off mode. Screen Brightness Adjustment. Buzzer On/Off. Language Settings. Filtering Method: Average Filter, Sliding Filter, None. |
Data Saving

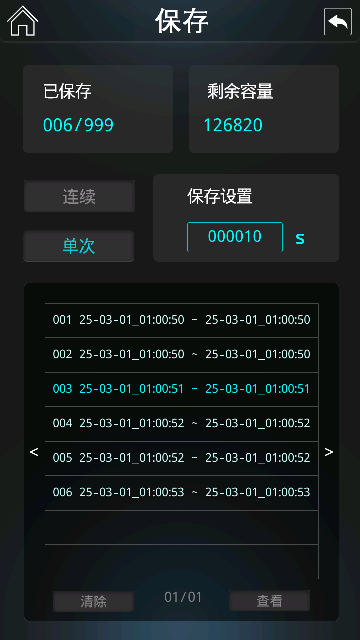

Saving Mode: Single or Continuous. Data Callback Viewing |
Data reading software

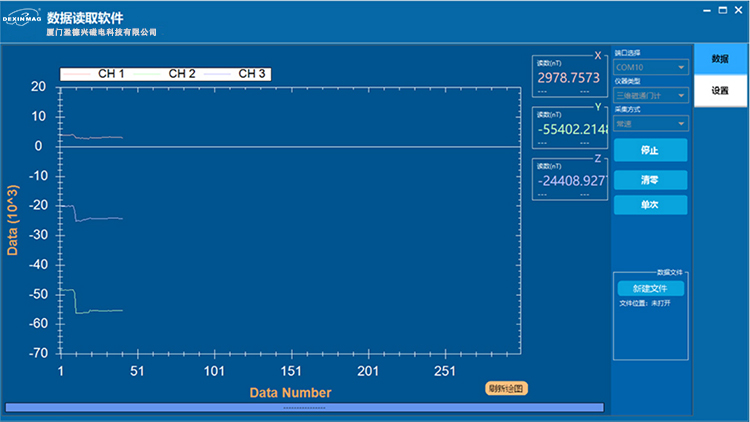

The host computer data reading software features recording and plotting functions, automatic probe calibration/host automatic memory operation mode, automatic zero point, automatic range, threshold setting and alarm, self-setting time and brightness, and selectable display units such as milligauss and nanotesla, among many other intelligent functions.
(1) Users can use a computer to read test data and draw various measurement graphs using professional plotting software. Graphs can be sent and printed.
(2) Real-time data can be monitored on the computer using the serial port real-time transmission function.
(3) Real-time data can be queried using a fixed instruction set.
Adapted probe

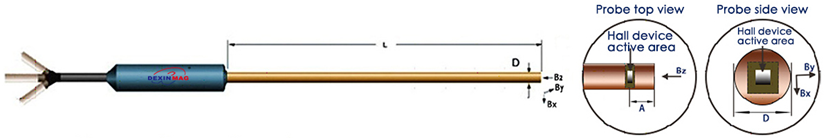

Conventional 3D Hall probe
Probe length can be customized; the Array probe can be customized.
Can add a temperature sensor inside the probe
|
No. |
L(cm) |
D(mm) |
Dia. of active area(mm) |
Frequency range |
Full range |
Accuracy (linearity) |
Working temperature zone |
Temperature coefficient(max) |
Packaging materials |
|
3ADX801F |
10/25/50 |
5 |
0.15 |
DC-1kHz |
300kG |
±0.10% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Round brass |
|
3ADX802F |
10/25/50 |
3 |
0.15 |
DC-1kHz |
300kG |
±0.10% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Round brass |
|
3ADX803F |
10/25/50 |
2 |
0.1 |
DC-1kHz |
300kG |
±0.50% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Round brass |
|
3ADX804F |
10/25/50 |
1.5 |
0.1 |
DC-1kHz |
300kG |
±0.50% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Round brass |
|
3ADX805F |
10/25/50 |
1.2 |
0.1 |
DC-1kHz |
300kG |
±0.50% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Round brass |
|
3ADX806F Square |
10/25/50 |
4 |
0.15 |
DC-1kHz |
300kG |
±0.10% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Square brass |
|
3ADX807F Square |
10/25/50 |
2.5 |
0.15 |
DC-1kHz |
300kG |
±0.10% ~ 30kG |
-10℃ ~ +75℃ |
±0.03%/℃ |
Square brass |
Note: The red one is the standard probe
