Weak Magnetic Scanning System
Application Areas
- Materials Science: Soft Magnetic Composite Materials
- Deep Space Exploration: Lunar Residue Magnetic Decoding
- Geological Exploration: Basalt Magnetic Scanning

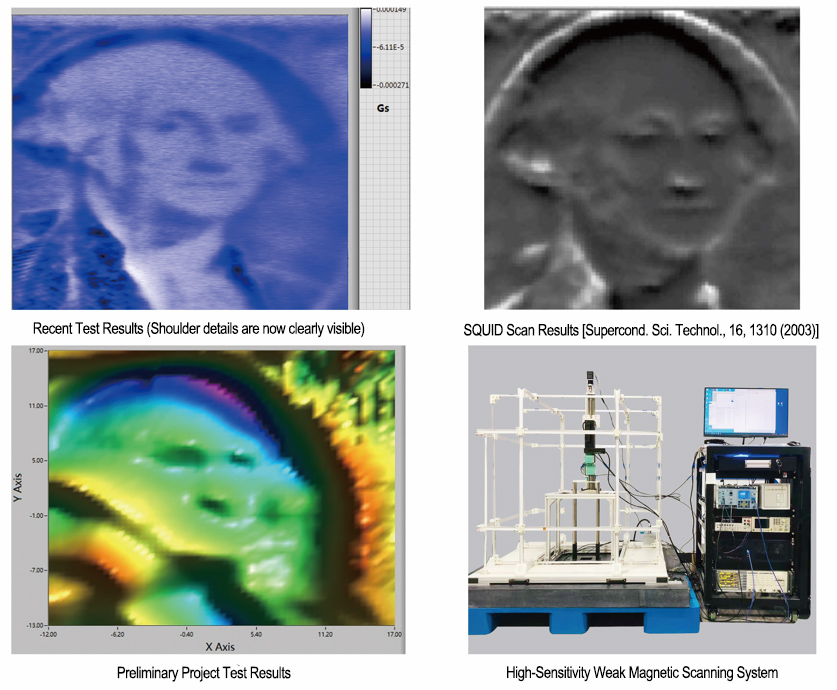

- Others: Magnetic Anti-counterfeiting for Banknotes
Three key technological breakthroughs:
- Optimization of high-sensitivity GMI materials and devices
- Precise and efficient magnetic moment and magnetic inversion
- Z-axis differential and micro-vibration phase-locked measurement
The 10p emu magnetic measurement product represents a breakthrough from zero to one!
|
Indicator Descriptions |
Project objectives: |
|
Magnetic Moment Sensitivity |
≤1x10⁻¹⁴ Am² |
|
Magnetic Moment Magnetic Modulus Deviation |
≤2% |
|
Magnetic Moment Direction Deviation |
≤1. |
|
Magnetic Magnetic Field Direction Deviation |
≤1.5 pT/√Hz |
|
Signal Moment Sensitivity |
≤50 μm |
|
Spatial Resolution |
≤1 μm |
|
Positioning Accuracy |
≥51 mm x 51 mm |
|
Scanning Range |
≥1 T adjustable |
|
Peak Pulse Charging Magnetic Field |
≥1 T adjustable |
|
Peak AC Decharging Magnetic Field |
≥3000 hours |
|
Mean Time Between Failures (MTBF) |
≥8 levels |
|
Technology Readiness |
≥3 |
|
Number of Application Areas |
System software with magnetic moment inversion function |
This DX-2012W high-sensitivity weak magnetic scanning system instrument was developed under the National Key Research and Development Program Major Instrument Project led by the Institute of Physics, Chinese Academy of Sciences.
