Programmable Current Source

The precision current source is a wide spectrum, high-precision DC steady-current power supply, which has the advantages of fast response, high precision constant current, long-term stable operation, and is suitable for various types of loads (resistive, inductive, capacitive).
Since the current of the current source is fixed, the current source cannot be disconnected. When the current source is connected in series with a resistor, its effect on the external circuit is the same as that of a single current source. In addition, a current source and a voltage source can be equivalently converted, and a current source connected in parallel with a resistor can be equivalent to a voltage source connected in series with a resistor.

Parameters of DXF series DC current sources

Model

Output

Current

 Step resolution Accuracy Effective value of noise ripple

Effective

Output Voltage

Max Output

Output

impedance

Temperature coefficient

(25±10℃)
DX - F2002 ±105 mA 1μA (1/105,000) ±(0.015% set value +2μA) 1.2μA (Bandwidth 300kHz) 0 - 105V 10W >500MΩ ±2ppm / ºC  Max
DX - F2005 ±1200 mA 10μA (1/120,000) ±(0.015% set value +20μA) 12μA (Bandwidth 300kHz) 0 - 42V 50W >100MΩ ±2ppm / ºC  Max
DX - F2030 ±10 A 0.1mA (1/100,000) ±(0.1% set value +2mA) 0.7mA (Bandwidth 300kHz) 0 - 100V 1000W >300kΩ ±20ppm / ºC Max

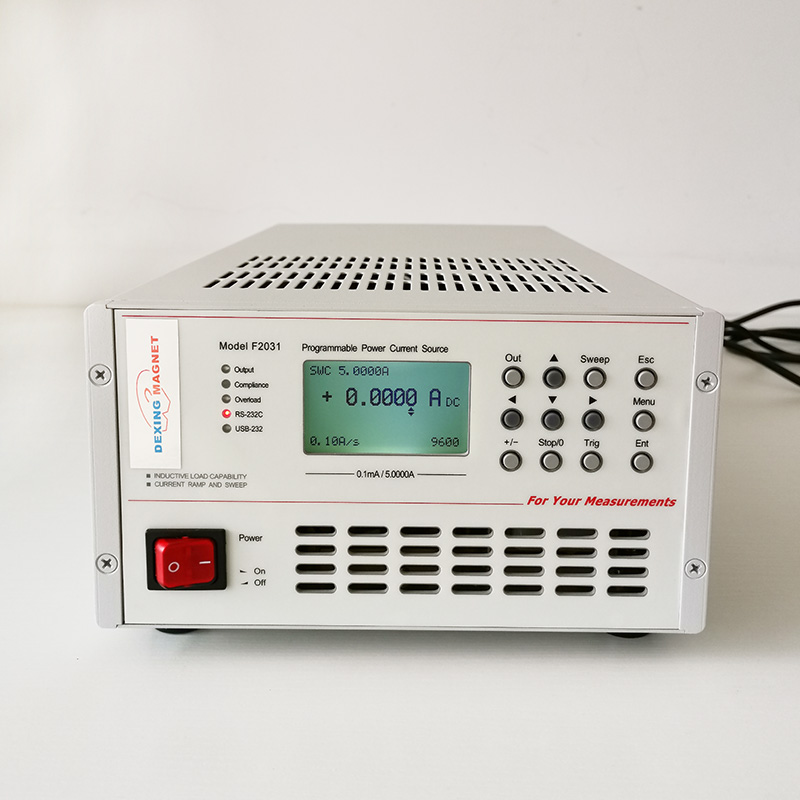

DX - F2031 ±5 A 0.05mA (1/100,000) ±(0.1% set value +1mA) 0.2mA (Bandwidth 300kHz) 0 - 60V 300W >2.5MΩ ±5ppm / ºC Max
DX - F2036 ±10 A 0.1mA (1/100,000) ±(0.1% set value +2mA) 0.5mA (Bandwidth 300kHz) 0 - 170V 1700W >300kΩ ±20ppm / ºC Max

DX - F2070

Water-cooling

 ±65 A 1mA (1/ 65000) ±(0.1% set value +10mA) 3.5mA (Bandwidth 300kHz) 0 - 120V 7800W >500kΩ ±20ppm / ºC Max

DX - F2071

Forced air cooling

 ±33 A 0.1mA (1/330,000) ±(0.1% set value +5mA) 1.8mA (Bandwidth 300kHz) 0 - 120V 3960W >500kΩ ±20ppm / ºC Max

DX - F2106

True bipolar

 ±2500mA 10μA (1/250,000) ±(0.015% set value +50μA) 70μA (Bandwidth 300kHz) 0 - 21V 50W >100MΩ ±2ppm / ºC Max

DX - F2130

True bipolar

 ±10A 10μA (1/1,000,000) ±(0.05% set value +2mA) 1mA (Bandwidth 300kHz 0 - 60V 600W >1MΩ ±10pm / ºC Max
넳 넲

Home > Power Supply > Programmable Current Source > Product Introduction

CE certificate of DX series Programmable Power Supply

  • DXMP Series Bipolar Constant Current Power Supply

    This bipolar source is a highly stable bipolar constant current power supply, which is widely used in the excitation of inductive loads such as electromagnets and Helmholtz coils. The power supply adopts a linear power supply structure, with high output current stability, low ripple and noise.

    넶585 ¥ 0.00

  • Programmable Current Source

    The precision current source is a wide spectrum, high-precision DC steady-current power supply, which has the advantages of fast response, high precision constant current, long-term stable operation, and is suitable for various types of loads (resistive, inductive, capacitive).

    넶414 ¥ 0.00

  • DC Power Supply

    The DX6200 series of high-performance CNC DC power supplies independently developed by Dexinmag has the characteristics of simple operation, small size, high precision, high indicators, high power density, and high cost performance.

    넶195 ¥ 0.00

  • Superconducting Magnet Power Supply

    DXNT series all-digital high-stability superconducting magnet power supply is mainly developed for superconducting magnets in combination with the superconducting magnet itself and its use characteristics.

    넶88 ¥ 0.00

  • DX-3500D Three-channel Precision DC Power Supply

    DX-3500D three-channel precision DC power supply is a three-channel high-precision bipolar DC power supply. It is mainly used to provide high-precision bidirectional current excitation for geomagnetic compensation coils, coil magnetic field generators and small micro-coil electromagnets. With digital high-frequency control, high-precision, fast response output is achieved.

    넶83 ¥ 0.00

The Programmable current source is mainly used as electromagnet power supply and Helmholtz coil power supply.

Dexinmag is a world-renowned manufacturer specializing in the production of Programmable Power Supply.

Applications of constant current power supply

Magnetism
Helmholtz coils; Maxwell coils; Medium electromagnets; High-power solenoids.



Electrical
True ohm measurement system; Low resistance precision measurement; Multimeter current range calibration (0.1 level).



Test system
Hall test system; Vibrating sample magnetometer VSM; Thin film material magnetic measurement system; Three-dimensional coil magnetic field system; Rotating magnetic field.



Production line detection
Low resistance online precision measurement; Transformer operating temperature detection; Precision motor control and detection.



Semiconductor lighting
High-power LED aging test; High-voltage LED lamp aging test.



Control system
Precision temperature control; Precision electrochemical control.





Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
